If your vehicle is fi tted with a spare wheel of a different size to those on the vehicle, you must not exceed 80 km/h (50 mp h) whilst using the spare wheel.
The wheel bolts are specifi c to the type of wheel.
If the type of wheel is changed, check with your CITROËN dealer that the wheel bolts are compatible with the new wheels.
Note: take care to note down the code number engrav ed on the head of the anti-theft bolt socket. This will enable you to obtain replacement anti-theft bolt sockets from a dealership.
Spare wheel
Your vehicle may be fi tted with a different spare wheel to those on the vehicle. When fi tting the spare wheel, it is normal to notice that the wheel bolt washers do not come into contact with the wheel rim.
The spare wheel is secured by the conical tapering of the wheel bolt’s shaft. See illustration.
When refi tting the original wheel, ensure that the wheel bolt contact surfaces are clean and in good condition.
Refi tting a wheel1. Fit the wheel on the hub, using the centring guide. Make sure that the contact surface between the hub and the wheel is clean.2. Screw in the bolts but do not fully tighten them.3. Lower the jack and remove it.4. Tighten the wheel bolts, using the wheelbrace.5. Refi t the protectors on the bolts.6. Return the ground clearance to the normal position. See chap-ter “Hydractive III+ Suspen-sion”.7. Ensure the tyre pressure is correct (see “Vehicle identifi ca-tion”) and have the balancing checked.
Wheel equipped with defl a-tion detection sensor
Such wheels have tyre pressure sensors. It is essential to have repairs carried out by a CITROËN dealer.
Anti-theft bolts
Each wheel is equipped with one anti-theft bolt.
To remove it1. Remove the protector using tool 3.2. Use the anti-theft socket with the handle.
C H A N G I N G A W H E E L

174
VI
T O W I N G – L I F T I N G
TOWING WITH WHEELS ON THE GROUND
Towing eye fi xings are located at the front and at the rear of the vehicle.
Detach the cover:For the front cover, lever with a screwdriver at the top of the cover.
For the rear cover, press on the right hand side.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.
The towing eye is removable, to be stowed in the jack protect ion box inside the spare wheel.

175
VII
F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
These consumption fi gures are established according to Directive 80/1268/CEE. Fuel consumption can vary depend-ing on style of driving, traffi c conditions, weather conditions, vehicle load, how the vehicle has been maintained and on use of accessories.
The fuel consumption fi gures quoted are correct at time o f going to press.
FAP: Diesel particulate fi lter system.
BVM: Manual gearbox.
BVA: Automatic gearbox.
Engine type1.8i 16V2.0i 16V3.0 V6HDi 110FAPHDi 138FAPHDi 173FAPV6 HDi 208FAP
SaloonBVMBVMBVABVABVMBVMBVABVMBVA
Urban10.81212.715.67.37.99.98.811.8
CO2 emissions (g/km)257285303371193209262234315
Extra urban6.26.36.77.54.74.95.55.26.4
CO2 emissions (g/km)148151160180125129146138171
Combined7.98.48.910.55.667.16.58.4
CO2 emissions (g/km)188198212248149157189172223

176
VII
G E N E R A L
ENGINE TYPE1.8i 16VBVM2.0i 16VBVM2.0i 16VBVA3.0 V6BVA
Fuel tank capacityApproximately 71 litres
Fuels to be usedUnleaded petrol RON 95 - RON 98
French fi scal rating----
Power (kW)92103103155
Turning circle between walls (in metres)12121212,2
Calculated maximum speed in km/h (mph) (In the highest gear)----
Weights (kg)
Unladen weight1510152115831725
Gross vehicle weight (MTAC)2015206320902230
Maximum weight on rear axle9609609601010
Gross train weight (MTRA)(1)3315356335903630
Gross trailer weight (within the Gross Train Weight limit)
8% < incline ≤ 12% 1300
(1530*)
1500
(1720*)
1500
(1720*)
1400
(1650*)
incline ≤ 8%1700180018001400
Gross trailer weight (without brakes)750
Trailer nose weight62696966
Maximum roof rack load80

177
VII
HDi 110BVM FAPHDi 138BVM FAPHDi 138BVA FAPHDi 173BVM FAPV6 HDi 208BVA FAP
Approximately 71 litres
Diesel fuel
-----
80100100125150
12121212,212,2
-----
15031608165817291766
20402155219022162310
9609709709801045
31403755349038163710
1100
(1370*)
1600
(1820*)
1300
(1560*)
1600
(1820*)
1400
(1690*)
11001800130018001400
750
5573637368
80
G E N E R A L
MTAC: Gross vehicle weight.
MTRA: Gross train weight.
Weights: Refer to the manufacturer's plate.
(*) Weight transfer: The braked tow-ing weight can be increased.
It is possible, when the towing vehi-cle is within the gross vehicle weight, to transfer weight allowance from the trailer.
In all cases, do not exceed the trailer and Gross Train Weight values indi-cated.
(1) In the case of a towing vehicle, the maximum speed is limited to 100 km/h (62 mph).
Observe your vehicle's towing lim-its. It is essential to comply with the max. Gross Trailer Weights and speed limits as specifi ed by legislation in each country.
Chainable tyres: All tyres are chain-able, except 18” or 19”.
For Belgium and Switzerland: See homologation documents.

178
VII
A
D
BC
F
I

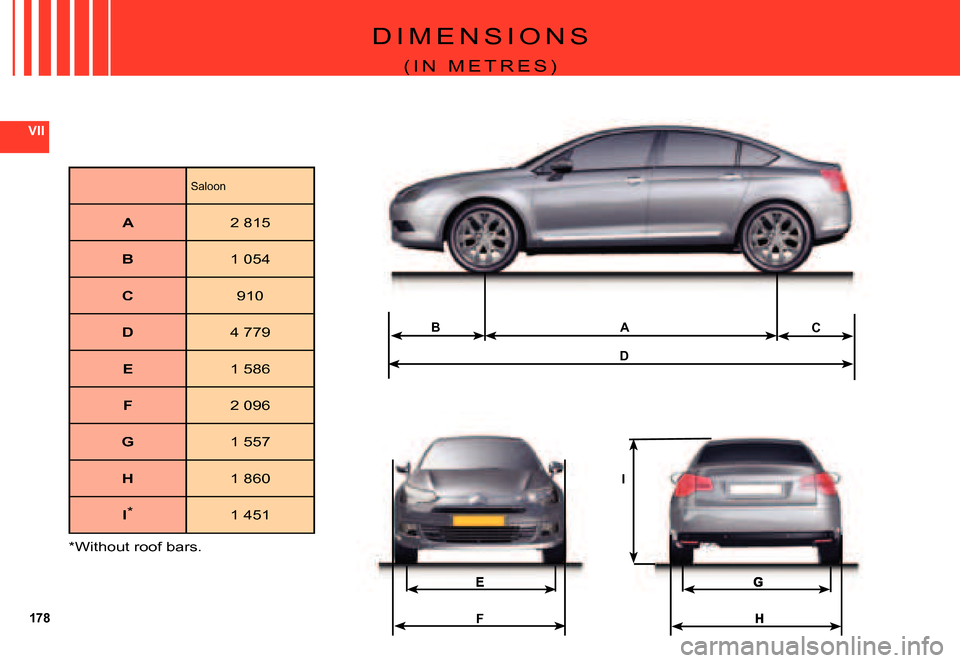

D I M E N S I O N S
( I N M E T R E S )
Saloon
A2 815
B1 054
C910
D4 779
E1 586
F2 096
G1 557
H1 860
I*1 451
*Without roof bars.

179
VII
B
A
FECD
D I M E N S I O N S
( I N M E T R E S )
Berline
A1 030
B1 115
C504
D566
E 1 040
F 1 705

180
VII
C
A
D
B
E
123456
A
V E H I C L E I D E N T I F I C A T I O N
A Chassis number plateOn the left hand door centre pil-lar.
1. EU type approval number.2. Vehicle identifi cation No. (VIN).3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B Body serial numberC Serial number on dashboardD Paint colour codeOn front pillar.
E Tyre referenceTyre pressuresOn the left hand door centre pillar.
The vehicle type and the identifi cation number are also indicated on the registration document.
All CITROËN original replacement parts are available exclusively w ithin the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.
