2007.5 Citroen C4 PICASSO Owner's Manual

A
IN BRIEF
I
20
M O N I T O R I N G
Seat belts not
fastened / unfastened
warning lamp
This warning lamp informs you if the
front passenger’s seat belt is not
fastened / unfastened and if the sec-
ond- and third-row rear passengers’
seat belts are unfastened. The lit up
positions represent the passengers
whose seat belts are not fastened /
unfastened. Locking from inside
You can use electrical central
locking or unlocking by pressing
on button
A.
If one of the doors is open or is
not closed properly, central lock-
ing will not work.
Anti-intrusion security
When starting the engine, the sys-
tem automatically locks the doors
once you reach approximately
10 km/h (approximately 6 mph). Tyre deflation
detection
This function warns you if a tyre is
deflated or punctured.
This system does not absolve
the driver of the need to regularly
check the tyre pressures.
The SERVICE warning
lamp lights up, and a ve-
hicle outline is displayed,
accompanied by a mes-
sage and a sound signal.
Deflation warning
The STOP warning lamp
lights up, and a vehicle
outline is displayed, ac-
companied by a message
and a sound signal.
Puncture
:
36
: 98: 190

AC
BA
IN BRIEF
I
21
P A S S E N G E R S A F E T Y
Deactivation of front
passenger airbag
1. Insert key into
(A) .2. Select «OFF» position.
3. Remove key.
CHILD SAFETY
Manual control
The rear doors are locked by op -
erating the lever (aperture at an
angle). ISOFIX fixing system
The 3 second-row rear seats
and the front passenger seat of
your vehicle are fitted with regu
-
lation ISOFIX anchoring points,
with 3 rings for each seat position
(A B C) .
This fixing system is designed for
children weighing up to 18 kg.
Electric control
Pressing on the button prohibits
operation of the electric windows
and opening of the rear doors from
the rear of the vehicle.
: 123
: 124
: 128

A
B
C
D

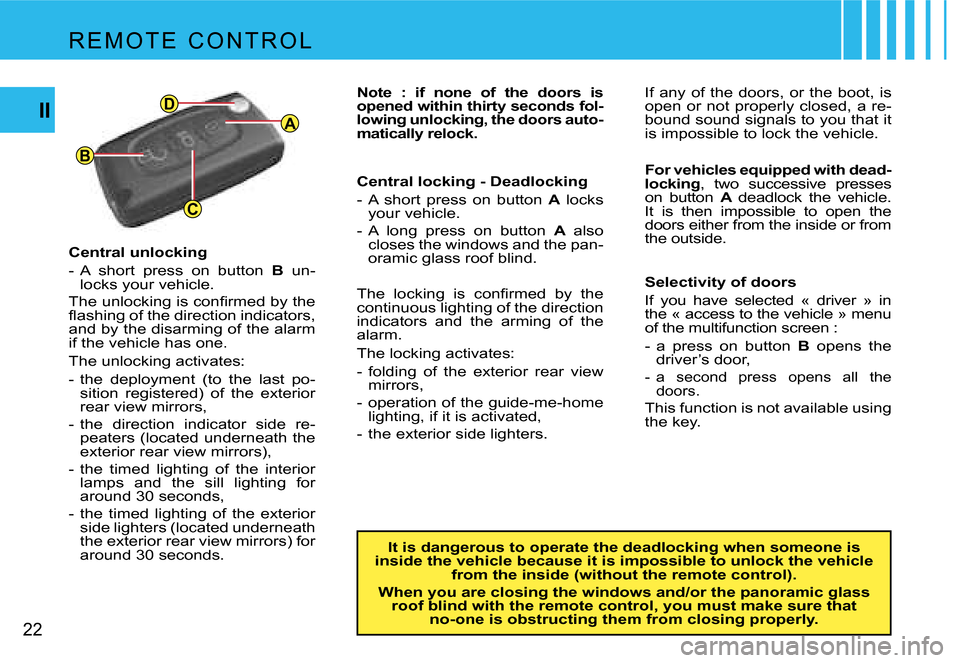

22
II
R E M O T E C O N T R O L
Central unlocking
- A short press on button B un-
locks your vehicle.
The unlocking is confirmed by the
flashing of the direction indicators,
and by the disarming of the alarm
if the vehicle has one
.
The unlocking activates:
- the deployment (to the last po- sition registered) of the exterior
rear view mirrors,
- the direction indicator side re- peaters (located underneath the
exterior rear view mirrors),
- the timed lighting of the interior lamps and the sill lighting for
around 30 seconds,
- the timed lighting of the exterior side lighters (located underneath
the exterior rear view mirrors) for
around 30 seconds. It is dangerous to operate the deadlocking when someone
is
inside the vehicle because it is impossible to unlock the vehicle
from the inside (without the remote control).
When you are closing the windows and/or the panoramic glass
roof blind with the remote control, you must make sure tha t
no-one is obstructing them from closing properly.
Note : if none of the doors is
opened within thirty seconds fol-
lowing unlocking, the doors auto-
matically relock.
Central locking - Deadlocking
- A short press on button
A locks
your vehicle.
- A long press on button A also
closes the windows and the pan-
oramic glass roof blind.
The locking is confirmed by the
continuous lighting of the direction
indicators and the arming of the
alarm.
The locking activates:
- folding of the exterior rear view mirrors,
- operation of the guide-me-home lighting, if it is activated,
- the exterior side lighters. If any of the doors, or the boot, is
open or not properly closed, a re-
bound sound signals to you that it
is impossible to lock the vehicle.
For vehicles equipped with dead-
locking
, two successive presses
on button A deadlock the vehicle.
It is then impossible to open the
doors either from the inside or from
the outside.
Selectivity of doors
If you have selected « driver » in
the « access to the vehicle » menu
of the multifunction screen :
- a press on button B opens the
driver’s door,- a second press opens all the doors.
This function is not available using
the key.

II
23
R E M O T E C O N T R O L
Guide-me-home lighting
A press on button
C operates the
guide-me-home lighting (lighting
of the sidelamps, dipped beams,
number plate lamps and side light-
ers (located underneath the exte-
rior rear view mirrors).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Vehicle location
To locate the vehicle on a carpark,
press button A. The location of the
vehicle is revealed by :
- the flashing of the direction indi- cators and side repeaters for a
few seconds,
- the lighting of the interior lamps for around 30 seconds,
- the lighting of the side lighters.
The vehicle remains locked.
Foldaway and ejection
of the key
Button D folds the key in and out of
its housing in the remote control.
If you do not press on button D, you
could damage the mechanism. Simultaneous use of other high frequency equipment
(mobile telephones, domestic alarms, etc.) may interfere temporarily with the operation of the remote control. If it malfunctions on a permanent basis, you must re-initialise the remote control.
Except for re-initialisation, the remote control cannot functio n
while the key is in the ignition, even with the ignition switched off.
Be aware that an inadvertent manipulation of
the remote control in your pocket could cause the vehicl e doors
to unlock without your knowledge.
However, if no door is opened within thirty seconds
following an unlocking, the doors will automatically re lock.
Warning : there is a risk of damage if the replacement battery is not in conformity.
Use only those batteries that are identical or equivalent
to those recommended by CITROËN.
Remote control battery spent
This information is given by a message on the multi
function screen, accompa-
nied by a sound signal and the lighting of the SERV ICE warning lamp.
Changing the remote control battery
Detach the housing to access the battery.
Battery : CR 0523, 3V.
Re-initialising the remote control
After a change of battery, it is necessary to re-initialise the remote control.
For that, switch on the ignition and immediately press butto n A on your
remote control until the action desired is triggered. This manœ uvre may
take some ten seconds.
Note : Make a careful note of the numbers for your keys and remote con-
trol on the ASSISTANCE card. Keep this in a safe place.
Do not throw away spent batteries. Return them to a CITROËN dealer
or to an approved collection point (photo shops, etc.).

24
II
Electronic immobiliser
key
The key locks and unlocks all the
vehicle’s doors, as well as switch-
ing on the engine.
Note : For security reasons when
the ignition is switched off, when
the driver’s door is opened a
sound signal reminds you if you
have not removed the key.
The key can also deactivate the front
passenger airbag (see «Airbags»).
It is dangerous to operate the deadlocking when someone is
inside the vehicle because it is impossible to unlock the vehicle
from the inside (without the remote control).
The number of the key is on the label supplied with the key.
In the case of loss, only a CITROËN dealer can provide you with
new keys or remote controls.
Central locking with the key
Turn the key briefly in the door lock. The vehicle is locked.
Deadlocking : Central locking with the key
Turn the key a second time in the door lock. The vehicle is dea
dlocked. It is
then impossible to open the doors from the inside or from the outside.
A long action with the key closes the windows.
Note : With the vehicle stationary and the engine switched off, loc king is sig-
nalled by the flashing of the warning lamp on the interior l ocking control.
If any of the doors, or the boot, is open or not properly clo sed, a rebound
sound signals to you that it is impossible to lock the vehicle.
Electronic immobiliser
The ELECTRONIC IMMOBILISER locks the vehicle’s supply system.
The system activates automatically when the key is removed from the ignition.
All the vehicle keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue is est ablished between the ignition
key and the electronic immobiliser device.
If the key is not recognised, starting is impossible.
If this happens, leave your vehicle immobilised and contact a C ITROËN
dealer.
K E Y S

II
25
A confidential card is given to the
new owner when he takes deliv-
ery of his new vehicle.
This card bears a hidden access
code for the use of the CITROËN
dealer when servicing the elec-
tronic immobiliser device.
Do not scratch the confidential
strip, the security of the immobi-
liser system depends on the infor-
mation below remaining covered.
Should the card be lost, your im-
mobiliser system can no longer be
considered secure.
Never attempt to modify the electronic
immobiliser’s electrical circuit, as that could render
your vehicle undriveable.
Should the confidential card become lost, a CITROËN dealer would have to undertake a major repair.
In the event of a change of vehicle ownership, it is essenti
al for the new
owner to possess the CODE card.
Never leave it in the vehicle.
Advice
Keep the code card bearing your personal electronic immobiliser numb er
in a safe place (never in the vehicle).
If any key modifications become necessary (addition, cancellation or re-
placement of the key), It is essential to take the confidential card together
with all the keys to a CITROËN dealer.
C O D E C A R D

A
B
1
26
II
Your vehicle may be equipped with
an ANTI-INTRUSION ALARM.
This provides :
• Exterior perimeter protection by means of detectors on the vehi -
cle access points (doors, boot,
bonnet) as well as on the electri -
cal supply.
• Interior volumetric protection by means of ultrasonic sensors
(detecting movement inside the
passenger compartment). This
can be deactivated using the
control 1. The installation also has a siren,
and a warning lamp on the control
1
which is visible from outside the
vehicle, indicating the three pos -
sible statuses of the alarm:
• Alarm not active (disarmed), warn -
ing lamp off.
• Alarm active (armed), the warn -
ing lamp flashes slowly.
• Alarm triggered (signalling an intrusion), the warning lamp
flashes rapidly if the alarm is dis -
armed by a press on the control
B . It stops as soon as you switch
on the ignition.
Note : If there is a malfunction,
the warning lamp remains perma -
nently on. DISARMING OF THE ALARM
USING THE REMOTE
CONTROL
The alarm is disarmed when you
unlock the vehicle (with a press on
button
B on the remote control).
DISARMING OF THE ALARM
WITH THE KEY
Unlock the doors with the key.
The siren triggers. Enter the ve -
hicle, insert the key in the ignition
and turn it to the drive position to
stop the siren. Otherwise the si -
ren will continue for approximately
30 seconds.
A N T I - I N T R U S I O N A L A R M

II
27
A N T I - I N T R U S I O N A L A R M
OPERATION OF THE ALARM
First make sure all the doors are closed.
The alarm is armed by pressing button
A on the re-
mote control.
With the alarm armed, the protections are active after
5 seconds (perimeter) and 45 seconds (volumetric).
When the alarm is armed (on standby), any intrusion
will trigger the siren for 30 seconds, accompanied by
the direction indicators lighting up.
The alarm then goes back on standby, but the trigger-
ing remains memorised and is signalled by the rapid
flashing of the warning lamp on control 1 after you
have deactivated the alarm with a press on the un-
locking button B. The flashing stops when you switch
on the ignition.
The siren is also triggered if there is a cutting of the
electrical supply. To stop it, restore the electrical sup-
ply then press on the unlocking button B.
Note :
• If you want to lock your vehicle without arming the alarm, just lock with the key only.
• If you try to lock your vehicle but a door, or the boot, is still open, the central locking does not operate but
the alarm will arm itself after approx. 45 seconds. You
will hear a rebound sound coming from the locks.
Note : The siren is automatically deactivated (for ex-
ample for disconnecting the battery) as soon as the
vehicle is unlocked using the remote control Deactivation of the volumetric detection
You can operate the alarm with perimeter protection
only, by deactivating the volumetric protection (if for
example you wish to leave an animal in the vehicle).
For this, switch off the ignition then immediately press
button
1 for at least one second.
The warning lamp on button 1 should come permanent-
ly on. It will start to flash when the alarm is armed.
Arm the alarm by locking your vehicle with the remote
control.
It is recommended to disarm the volumetric detection
when you use an automatic car wash, to prevent ran-
dom triggering of the alarm.
Automatic activation (according to destination)
The alarm is armed automatically, 2 minutes after the
last door, or the boot, has been closed.
In order to prevent the alarm from triggering when you
open one of the doors or the boot, it is essential to press
the unlocking button B again on the remote control.
