2007.5 Citroen C4 PICASSO Owner's Manual

3
2
1
0
4
82
II
Windscreen wipe
3 Rapid wipe.
2 Normal wipe.
1 Intermittent wipe.
0 Stop.
4 Automatic wipe by pressing
downwards, and single wipe.
Note : To deactivate automatic wipe :
- go to position 1, then return to
position 0. Position 1 :
The wipe interval will adjust automatically as a function o f the
speed of the vehicle.
Note : In position 2 or 3 : when the vehicle is stationary the wipe interval
will reduce automatically.
For safety, the wiper system is deactivated approx. one m inute after
you switch off the ignition.
When you switch on the ignition, to reactivate the functio n :
- return to the Stop position ,
- go to the position desired .
Vehicle equipped with a rain sensor
Position 4 by pressing downwards : The wipe interval will adjust auto-
matically as a function of the intensity of the rain.
Note : A press downwards produces a single wipe without deactivating
automatic wipe.
IMPORTANT :
Do not cover the rain sensor , which is located behind the interior rear
view mirror and visible from outside the windscreen.
If washing the vehicle, switch off the ignition or deactiva te automatic
wipe.
Changing the wiper blades
For replacement, the wipers should be stopped in the maintenance position.
Switch off the ignition, then within a minute action th e wiper control stalk.
The wipers will position themselves in the middle of the wi ndscreen.
After replacement, the wipers will resume their normal position when you
switch on the ignition and action the wiper stalk.
For safety, the wiper system is deactivated approx. one m inute after you switch off the ignition.
If the windscreen is frozen when you are starting a journ ey, make sure that you de-ice it
before using the front and rear wipers.
W A S H / W I P E

A
B
II
83
A - Headlamp wash
Provided the dipped beams are
on, pull the control stalk towards
you : screen wash will then be ac-
companied by a timed sweep of
the wipers as well as by a head-
lamp wash.Check that the front and rear wipers are able to
operate freely if for example you are installing a
bicycle-carrier, or in freezing conditions.
Remove any accumulation of snow from the base of the windscreen.
B - Rear screen wipe
Rear screen wipe
will deploy automatically , provided the windscreen
wipers are operating, when you engage reverse gear.
Activation / deactivation of this function is possi ble via the « Personalisation -
Configuration » menu in the « Main menu ».
Note : Deactivation may be essential if you install a bicycle-carrier on t he
tailgate. Stop.
Intermittent rear screen wipe.
Timed rear screen wash and wipe.
W A S H / W I P E

12
84
II

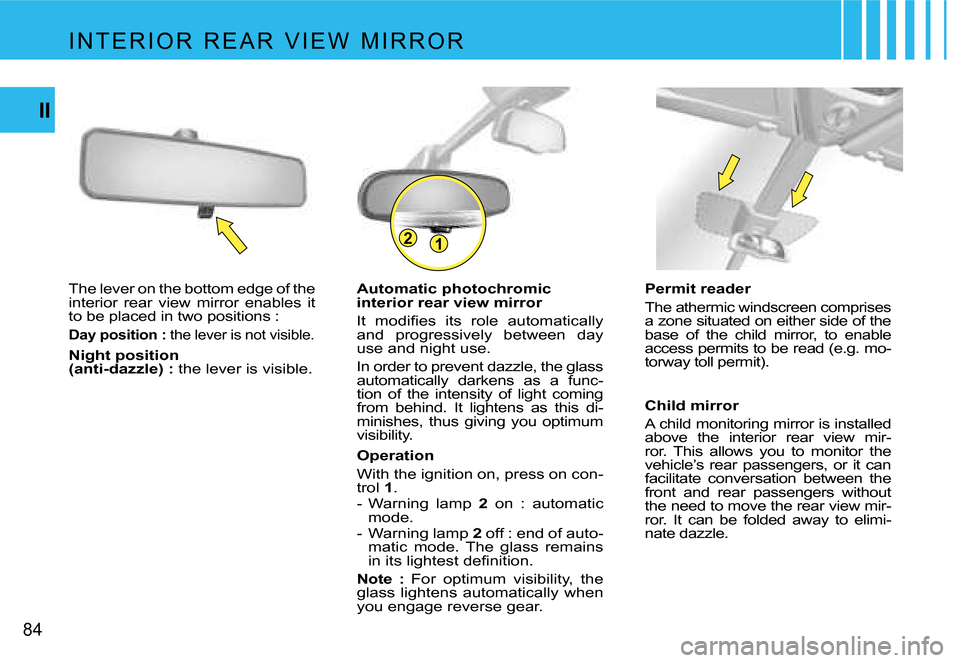

Automatic photochromic
interior rear view mirror
It modifies its role automatically
and progressively between day
use and night use.
In order to prevent dazzle, the glass
automatically darkens as a func-
tion of the intensity of light coming
from behind. It lightens as this di-
minishes, thus giving you optimum
visibility.
Operation
With the ignition on, press on con-
trol 1.
- Warning lamp 2 on : automatic
mode.
- Warning lamp 2 off : end of auto-
matic mode. The glass remains
in its lightest definition.
Note : For optimum visibility, the
glass lightens automatically when
you engage reverse gear.
The lever on the bottom edge of the
interior rear view mirror enables it
to be placed in two positions :
Day position :
the lever is not visible.
Night position
(anti-dazzle) : the lever is visible. Permit reader
The athermic windscreen comprises
a zone situated on either side of the
base of the child mirror, to enable
access permits to be read (e.g. mo-
torway toll permit).
Child mirror
A child monitoring mirror is installed
above the interior rear view mir-
ror. This allows you to monitor the
vehicle’s rear passengers, or it can
facilitate conversation between the
front and rear passengers without
the need to move the rear view mir
-
ror. It can be folded away to elimi-
nate dazzle.
I N T E R I O R R E A R V I E W M I R R O R

1
2
II
85
REAR VIEW MIRRORS
ADJUSTMENT
This operates with the ignition
switched on.
From the driver’s seat position, se-
lect the rear view mirror by moving
control 1 to the left or right, then
adjust the rear view mirror in the
four directions by acting on con -
trol 2.
Demisting-deicing of the rear view
mirrors is coupled with that for the
rear screen.
REAR VIEW MIRRORS
FOLDBACK
When the vehicle is parked, the rear
view mirrors can be folded back ei -
ther manually or electrically.
Electrically
From the central position, a press
to the rear on control 1 folds the
rear view mirrors back.
The opposite movement is ob -
tained by pressing again on the
rear of the control.
Electrically and automatically
The rear view mirrors also fold
back automatically when you lock
the doors.
The rear view mirrors redeploy
when you unlock the vehicle, un -
less the foldback was performed
manually. In this case, you have
to press on the rear of the control
to deploy them.
Note : The automatic foldback
of the rear view mirrors can be
deactivated. Contact a CITROËN
dealer. Adjusting the indexed

position of the driver’s and
passenger’s rear view mirrors
With the engine running :
- Select the rear view mirror using
control 1.
- Engage reverse gear, the glass of the rear view mirror positions
itself automatically to give a bet -
ter sight of the pavement.
- If necessary, adjust your rear view mirror to your preference by
means of the electrical control 2.
This position is then memorised.
Deactivation of the rear view
mirror indexing function
To deactivate the function, move
control 1 to the central position.
E X T E R I O R R E A R V I E W M I R R O R S

A
86
II
For safety, these manoeuvres should not be performed while the vehicle is in motion.
Adjusting the seat belt height
The correct positioning of the seat belt reel is around
mid-shoulder level (see : USER PRECAUTIONS).
To adjust the belt, pinch the control and slide it in th
e
direction required.
Adjusting the steering wheel
The steering wheel can be adjusted for height and r
each.
WITH THE VEHICLE STATIONARY , first adjust your
seat to the most suitable position, then adjust the posi -
tion of the steering wheel.
See « Driving position ».
Unlock the steering wheel by pulling the control A
towards you.
Adjust the position of the steering wheel then lock it by
pushing the control firmly back into its initial location.
Note : If you press firmly on your steering wheel after
locking, a small click may be heard.
S T E E R I N G W H E E L A D J U S T M E N T - S E AT B E LT A D J U S T M E N T

AB9
0
II
87
SLIDING SUN VISORS
Sliding blinds
Sliding blinds are provided for your protection against
bright sunlight. They can be adjusted manually.
- Slide the blind on the visor to the desired position by pushing the area A.
Visor struts
The blinds are extended on the sun visor struts.
Fold the visor downwards, to protect against dazzle to
the face.
If dazzle is coming from the side windows, detach t he vi-
sor from its housing above the centre of the windsc reen
and pivot it to the side.
PANORAMIC GLASS ROOF BLIND
Opening the roof blind (positions 1 to 9)
- Rotate the control B to slide the roof blind to the posi -
tion desired.
Closing the roof blind (position 0)
- Rotate the control B to position 0 to close the roof
blind.
The blind has an anti-pinch device.
Note :
-
A long press on the locking button on the remote co ntrol
will close the blind (practical when for example yo u leave
your vehicle on a sunlit carpark)
.
- On returning to your vehicle, a short press on the button B repositions the blind to the last position
selected.
- Following a fault or after a battery disconnectio n
during the movement of the blind or after it has st opped,
you have to re-initialise the anti-pinch function. Place
the blind in the closed position and press for arou nd
2 seconds on button B.
Do not attach or suspend heavy objects on the
slide rail of the sun blind, which also
incorporates the interior rear view mirror.
R O O F A D J U S T M E N T S

A
1
3
4
2
88
II
This driving assistance device
enables you to drive at a constant
speed of your choice, without the
need to action the accelerator. It
is active over speeds of around
40 km/h (approx. 25 mph).
The cruise control commands are
located on the steering wheel.
Note : The information relating to
the cruise control is displayed in
zone A of the instrument panel.
Selection of the function
Rotate the control 1 to the «REG»
position.
Selection of a cruise
speed
On selection of the
function via control
1, no cruise speed
has yet been memo-
rised. Once the desired speed has been
reached via action on the accel-
erator, press button
2 or button 4.
The cruise speed is then memo-
rised. It is displayed in zone A of
the instrument panel.
You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
Note : The speed of your vehicle
may vary slightly in relation to that
memorised.
If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
then the speed flashes. Adapt your
speed as necessary.
Bi-tone instrument panel
Adjustment of the memorised
speed while cruise control is in
operation
You can adjust the memorised
speed, displayed in zone A, by
pressing on :
- button 4 to increase the speed,
- button 2 to decrease the speed.
Note : successive presses will
modify the cruise speed in steps of
1 km/h and a sustained press in
steps of 5 km/h (3 mph).
Temporary override of the
cruise speed
During the operation of cruise con-
trol, it is always possible to action
the accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone A flashes.
You have only to release the ac-
celerator pedal to return to the
cruise speed.
C R U I S E C O N T R O L

II
89
Stopping the function
- by an action on the control on position «REG» to position 0.
- by the engine stopping.
The cruise speed previously cho-
sen is no longer memorised.
If there is a malfunction , a mes-
sage will display accompanied by
a sound signal and lighting of the
SERVICE warning lamp.
Contact a CITROËN dealer.
Cruise control should only be used when the driving conditions allow you to drive at a constant speed.
Do not use it in heavy traffic, or on dangerous or slippery roads.
The driver must remain attentive and in full control of hi s vehicle.
You are recommended to keep your feet within range of the pedals.
Re-engaging cruise control -
by recall of the memorised
speed :
After a disengagement, press on button 3. Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A.
If the memorised cruise speed is
higher than the current speed, the
vehicle wll accelerate to reach the
former.
- by selection of the current speed :
Press on button 2 or 4 once the
desired speed has been reached.
The information «OFF» will then
disappear from zone A.
Observation
: If during the opera-
tion of cruise control, the system is
unable to keep within the memo-
rised speed (for example on a steep
descent), then the speed flashes.
Adapt your speed as necessary.
Disengaging of cruise control
while retaining the memorised
speed
- Either by pressing on the brake pedal or on the clutch pedal.
- Or by pressing button 3.
- Or if either the ESP or the ASR system is active.
Note : cruise control is not active if
the gear lever is in neutral.
These actions cause the informa-
tion «OFF» to appear in zone A of
the instrument panel.
These manœuvres do not cancel
the cruise speed which remains
displayed in the instrument panel.
C R U I S E C O N T R O L
