2007.5 Citroen C4 PICASSO Owner's Manual

IV
153
Using the RDS
(radio data system)
function on FM
The majority of FM radio stations
use the RDS system. The radio in
your vehicle has this system,.
The RDS system enables these
stations to transmit non-audible
data in addition to the broadcas
ting of their programmes. The data
provides access to various functions
described in this chapter, such as:
display of the station name, inter-
mittent traffic information flashes or
automatic scanning of stations. This
enables you to continue listening to
your chosen radio station, regard-
less of the different frequencies it
uses in the regions through which
you are travelling
.
Scanning of RDS stations
Your radio keeps the best pos-
sible reception by continuously
looking for any other frequencies
on which the selected radio sta-
tion is broadcast, automatically
choosing the frequency offering
the best reception (providing the
station broadcasts on more than
one transmitter or frequency). Activation/deactivation of the
RDS functions
The RDS functions can be accessed
via the following two menus : -
Main menu (press button O).
- Audio menu (press button L).
To activate/deactivate the RDS
functions on multifunction
screen C :
1. Press button O.
2. Select the AUDIO icon using
buttons J or M.
3. Confirm your choice with a
press on button L.
4. Select the sub-menu for the
FM waveband, via buttons J
or M. Confirm your choice with
a press on button L.
5. Select scanning for RDS sta-
tions, via buttons J or M.
6. Validate your choice with a
press on button L.
7. Using control L, select/dese-
lect to activate/deactivate the
function.
8. Validate your choice by select-
ing “ OK” on the display. To activate/deactivate the
RDS functions on
multifunction screen A :
1.
Press button O.
2. Select the AUDIO-CD icon via
buttons J or M.
3. Select scanning for RDS sta-
tions, via buttons J or M. The
system tells you the status (ac-
tive or inactive) of the function.
4. Modify this status via buttons
K or N.
5. Then please wait for the dis-
play to disappear.
Note :
If the RDS function is active :
The “ RDS” on the display will light
up provided the station being re-
ceived uses the RDS system with
scanning of frequencies.
The “ RDS” on the display is barred
if the station received uses the
RDS system without frequency
search.
If your RDS function is deactiva-
ted, the “ RDS” on the display will
be absent in all cases.
The display will indicate the “ NAME ” for the stations that use
the RDS system and the frequency
for stations that do not use it.
R D S S Y S T E M

154IV
Regional search mode
Some stations, when they are or-
ganised in networks, broadcast
regional programmes at certain
times of day, and national pro-
grammes at other times.
It is possible to search :
- Either for a regional station only.
-
Or across the whole network in
order to find a different programme.
To activate/deactivate this func-
tion, proceed as for Scanning of
RDS stations.
Note :
When this mode is activated, the
system will remain tuned to one
specific regional station.
TA traffic information
(traffic announcements)
Some stations allow broadcasting,
only in FM, of these messages
thanks to the “ TA” function.
You can activate the “ TA” func-
tion by pressing on button I. This
allows you, even though you are
listening to another audio source
or to a radio programme not itself
providing traffic messages, to re-
ceive traffic information flashes
from an FM station which broad-
casts them. While the messages are being
broadcast the original source is
paused and when the messages
have ended your radio will auto-
matically revert to the music pro-
gramme you were listening to.
Notes :
- You have to be in FM wave
band.
- The station being listened to should
indicate via the RDS system that it
broadcasts traffic information
.
- Stations organised in a network (EON) have regional transmitters
that send their own programmes:
while you are listening to one of
these stations the system will
switch automatically to a station
on the network that is broadcast-
ing traffic information.
- You can stop listening to a mes- sage by pressing button I.
Sound volume adjustment for
traffic information
The sound volume for traffic infor-
mation operates separately from
that for the rest of the system, and
can be adjusted independently.
Rotate button A while a traffic
information message is being
broadcast.
This volume adjustment is memo-
rised. Selecting a programme
type
Certain stations offer the possibi-
lity of listening to a particular pro-
gramme type, selected from a list
(PTY).
press for more than two seconds
on button
I.
Press on buttons J or M to scroll
through and select the programme
type you prefer, then press on but-
ton L to validate your choice.
Searching for a station
broadcasting this programme
type
When you have chosen a pro-
gramme type, the list of corres-
ponding stations appears on the
display, press on buttons J or M to
scroll down and select the station
you want, then press on button L
to validate your choice.
Quitting pty mode
To quit “ PTY” mode, select the
function to deactivate “ PTY” in
the list of the different programme
types
.
Radio text via contextual menu
This function allows to view the
information broadcast by the sta-
tion, concerning the programme
you are currently listening to.
To activate/deactivate this func-
tion, proceed as for Scanning of
RDS stations.
R D S S Y S T E M

IV
155
Selecting CD source
After inserting a CD, with the printed
side facing upwards, the player will
start playing the CD automatically.
To change manually to CD source
(CD already inserted), press button
D until you obtain the source you
require.
Ejecting a CD
Press button B to eject the CD,
the audio system will automati-
cally switch to radio source.
If the CD is not removed within 10
to 15 seconds of being ejected, it
will automatically be taken back
into the CD player, although it will
not be played.
Selecting a track
Press button K once to play the
next track.
Press button N once to return to
the beginning of the track current-
ly being played, press a second
time to go back to the start of the
previous track.
Press the buttons successively to
skip several tracks at a time.
This can also be done via the con-
trol G. As the list of tracks is dis-
played on the screen, select the
desired track using buttons J or
M , then validate using button L.
You can also do this by means of
control 2 at the steering wheel. Fast forward and rapid reverse
with accelerated sound
To move swiftly through the CD,
press and keep pressed button
K
or N, respectively for fast forward
or rapid reverse with accelerated
sound.
Play resumes as normal when the
button is released.
Menu
This menu allows activation/deac-
tivation of two options :
- Playback of the first 7 seconds (approx.) of each track of the
CD.
- Random playback of the CD tracks.
This can be accessed in two ways :
- Either by pressing button O and
proceeding as for Search of Sta-
tions RDS – for screen C, the
sub-menu corresponds to the
Audio Preferences.
- Or, provided you are in CD source, by pressing onbutton L.
You can then access the Audio
menu (for screen C only).
Note :
If one of these options is active,
it remains active for CD changer
source. Safety precautions
For safety, do not use a CD player
if the cabin temperature is higher
than +60 °C or lower than -10° C.
If the temperature becomes too
high, an automatic safety device
will prevent the CD player from
working until an acceptable tem-
perature is restored.
Handling compact discs
Do not drop them. Store the CDs
so that they are kept of dust. Avoid
touching the disc surface as any
scratches may adversely affect
the sound quality. Do not attach
any stickers to the discs. Do not
use damaged or deformed discs.
Do not expose them to heat or di-
rect sunlight.
If the surface of the compact disc
is dirty, it can be wiped with a soft,
clean cloth. Always wipe from the
centre of the disc outwards.
C D S O U R C E

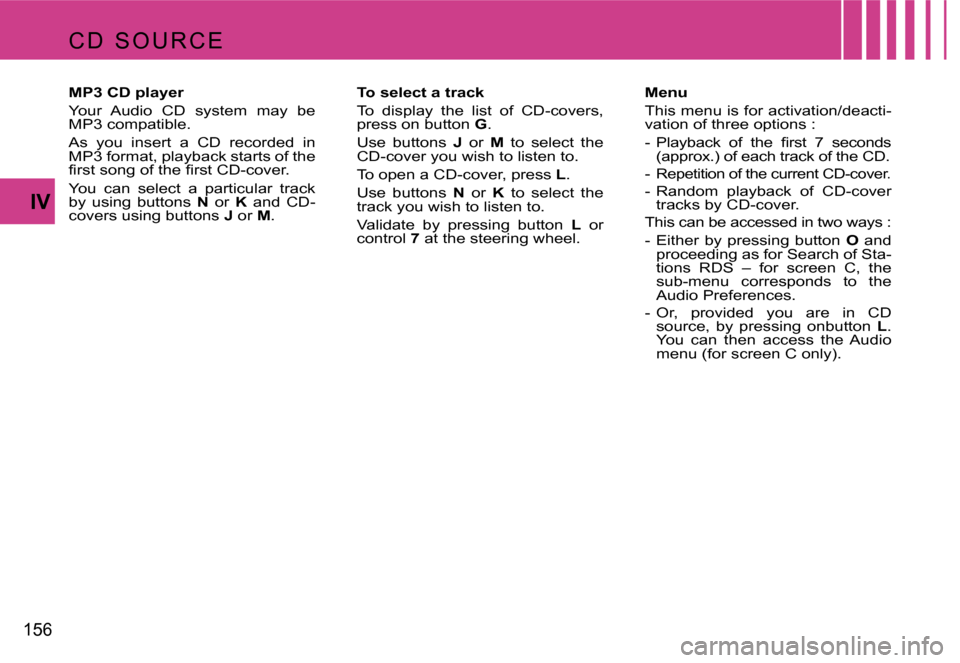

156IV
C D S O U R C E
MP3 CD player
Your Audio CD system may be
MP3 compatible.
As you insert a CD recorded in
MP3 format, playback starts of the
first song of the first CD-cover.
You can select a particular track
by using buttons
N or K and CD-
covers using buttons J or M. To select a track
To display the list of CD-covers,
press on button
G.
Use buttons J or M to select the
CD-cover you wish to listen to.
To open a CD-cover, press L.
Use buttons N or K to select the
track you wish to listen to.
Validate by pressing button L or
control 7 at the steering wheel. Menu
This menu is for activation/deacti-
vation of three options :
- Playback of the first 7 seconds
(approx.) of each track of the CD.
-
Repetition of the current CD-cover.
- Random playback of CD-cover tracks by CD-cover.
This can be accessed in two ways :
- Either by pressing button O and
proceeding as for Search of Sta-
tions RDS – for screen C, the
sub-menu corresponds to the
Audio Preferences.
- Or, provided you are in CD source, by pressing onbutton L.
You can then access the Audio
menu (for screen C only).

IV
157
C D C H A N G E R S O U R C E
Selecting a CD
To select a CD, either press one of
the pre-selection buttons
1 to 5 on
the keypad P, or scroll using but-
tons J or M.
The CD will start to play automati-
cally.
You can also do this by means of
control 3 at the steering wheel.
After each change of source, on
return to CD changer source, play-
back will resume at the same point
where it had been interrupted.
Selecting a track
Press button K once to play the
next track.
Press button N once to return to
the beginning of the track current-
ly being played, press a second
time to go back to the start of the
previous track.
Press the buttons successively to
skip several tracks at a time.
You can also do this by means of
the controls 2 and 3 at the steer-
ing wheel. Fast forward and rapid reverse
with accelerated sound
Press and keep pressed one of
the buttons
K or N respectively for
fast forward or rapid reverse with
accelerated sound. Play resumes
as normal when the button is re-
leased.
Menu
This menu is for activation/deacti-
vation of three options :
- Playback of the first 7 seconds (approx.) of each track of the
CD.
- Repetition of the current CD.
- Random playback of tracks, CD by CD.
This can be accessed in two ways :
- Either by pressing button O and
proceeding as for Search of Sta-
tions RDS – for screen C, the
sub-menu corresponds to the
Audio Preferences.
- Or if you are in CD changer source by pressing button L. You
then have access to the AUDIO
menu (for screen C only).
Note :
If one of these options is active, it
remains active for CD source.
CD Changer
This equipment
S (if present) is lo-
cated in the passenger’s storage
compartment on the dashboard. It
can accommodate 5 discs.
Inserting CDs into the
magazine
Insert the CDs printed surface to
the left.
Note :
- Each compartment takes one disc only.
- The CD changer will not operate if discs are inserted the wrong
way up.
Removing discs
To remove a CD, give a long press
on the corresponding button.
Note :
- The CD changer (if there is one) is not MP3 compatible.
Selecting CD changer
source
Press on button D until you reach
CD changer.
After the magazine engages, play-
back of the first track of the first
CD will begin.

158IV
- The telephone detects the Blue-
tooth system on your vehicle. “CITROËN ” displays on your
telephone.
You should then select “ CITROËN”
on your telephone controls. Next
you must choose whether or not
to accept this twinning then select,
on screen C using J, M or 8, one
of the 4 memories. Validate with a
press on button L or 7.
Note :
You can select a memory already
attributed, although the telephone
twinned to this location will no
longer be.
- Next the telephone asks you to en- ter an identification code : 1234.
- Validate.
Notes :
This entry may be demanded ear-
lier in the twinning sequence.
The telephone is now twinned to
your Bluetooth system. For imme-
diate access to the Bluetooth func-
tions, it may be necessary to make
a connection (see following page,
Configuration : Connecting a
twinned mobile telephone ).
Once the twinning is finished, you
will be able to connect your tele-
phone via the “ Main menu”.
Connecting a twinned telephone
Each time you enter the vehicle,
after switching on the audio sys-
tem, your telephone is detected automatically. If more than one
telephone is present, the last
telephone to have been connect-
ed is the first to be recognised.
Note :
Disconnections may occur. You
may have to make a new connec-
tion (see following page,
Configu-
ration : Connecting a twinned
mobile telephone ).
Observations :
- In the event of a problem, it is recommended to switch your
telephone off and then on again.
- If you switch off your telephone within the field of reception of the
Bluetooth system on your vehi-
cle, the next connection will not
be automatic. To restore auto-
matic connection, you will have to
connect your telephone manually
(see following page, Configura-
tion : Connecting a twinned
mobile telephone ).
- If you are already in telephone communication when the audio
system is turned on, the latter
detects the telephone.
- To avoid interference, you are advised not to place your mobile
telephone close to your radio.
To accept an incoming call
Use button L or control 7 at the
steering wheel.
Your audio system may be Bluetooth
compatible. It allows you to connect
a
mobile telephone for use “hands
free ” and even to use its directory.
It permits you to twin up to four
telephones, to be able then to con-
nect whichever one you choose.
The Bluetooth functions available
and the content of the display are
dependent on the type of mobile
telephone, its settings and the type
of contract you have. For this rea-
son it is advisable to make enqui-
ries with your telephone provider.
Prior to any operation :
Your display should be lit up (key
in position M).
Your telephone’s Bluetooth sys-
tem must be activated.
Twinning a telephone
Twinning a telephone consists of
having it recognised by the Bluetooth
system on your vehicle. This then
permits an instantaneous connec-
tion
.
Twinning can only be performed
with ignition switched on, dis-
play illuminated, engine stopped .
No other telephone should be
connected.
The twinning must be performed
with the telephone and its Bluetooth
system activated.
Notes :
Refer to the user instructions to fa-
miliarise yourself with the features
of twinning.
B L U E T O O T H ®

IV
159
Main Menu
Press on the Menu control O to
access the Main Menu, then se-
lect the “ Telephone ” icon via but-
tons J, M or 8 and then validate
the selection via button L or 7.
You have access :
- To the Directory.
- To Configuration.
- To Communication Management.
You access your choices using J,
M or 8 then you validate them with
a press on L or 7.
This main menu can also be ac-
cessed by pressing button E then
button L.
Directory
This menu lets you open :
The telephone Directory of the
telephone that is connected.
The Calls List.
This menu can also be accessed
with a press on control 11.
Telephone directory
The starting of a telephone call
can be done independently of the
telephone or of the audio system,
thanks to the directory.
The directory is displayed. Select
the number via J, M or 8, then vali-
date with a press on L or 7. Observations :
The directory displayed updates
itself automatically.
If the person to be called does not
figure in the directory, the call can
only be made starting from the
telephone.
If you have information recorded
in the Vcard format, you must se-
lect the person you wish to call,
then validate. A list of 4 numbers
maximum can be displayed with
the following labels : “
Home”,
“ Office ”, “Mobile ” and “Car”.
Calls list
After selecting this component
and then validating, the calls list
is displayed with a maximum of :
10 calls made (arrow pointing up-
ward), 10 calls received (arrow
pointing downward) and 10 calls
not connected.
It is possible to make a call starting
from this list : Select the number
via J, M or 8, then validate with a
press on L or 7. Configuration
This menu allows you to :
- Delete a twinning.
Using
J, M or 8, select this choice
then validate via L or 7. Select
in the list the telephone that you
no longer wish to have twinned.
Validate.
- Consult the list of twinnings.
The list of telephones twinned is displayed.
- Connect a mobile telephone that is twinned.
Select the telephone that you wish to connect. This access al-
lows you to make a connection
manually.
Call management
This menu is accessible during
your calls, permitting you to :
- Swap a call if there is another call incoming.
- End a call.
- Be in Secret mode.
Note :
If you are in telephone conver-
sation, you have access to this “ Configuration ” menu by means
of a press on L or 7.
B L U E T O O T H ®

160IV
B L U E T O O T H
®
Voice recognition
A short press on button
12 starts
voice recognition for the telephone.
Voice recognition allows you to
make a call to a number for which
you have recorded a label on the
mobile telephone that is twinned
and connected.
Note :
It is possible to stop the call as
long as the dialling has not com-
menced, by means of a short
press on button 12.
Notes :
- While you are on a call, the audio source currently being listened
to is paused.
- Some ring tones on your mobile telephone may not be recognised
by the Bluetooth system on your
vehicle. A different ring tone will
be chosen by the system. Displays
A press on the “
TEL” button dis-
plays the telephone information
on the right on your screen.
A “ Telephone ” symbol appears on
your display when you connect a
mobile telephone.
A “ Battery ” symbol appears at the
bottom of the display to indicate
the range of the mobile telephone
connected.
An “ Envelope ” symbol appears at
the bottom of the display to indicate
the presence of an unread SMS on
the mobile telephone connected.
A “ Sound track ” symbol appears
at the bottom of the display to indi-
cate the presence of a message on
the mobile telephone connected.
To swap a call
During a telephone conversation,
the system is able to tell you of a
second call incoming. To accept it,
validate. To change from one call
to the other, select this choice.
To end a call
This choice enables you to end a
telephone conversation, for exam-
ple if there is another call incoming.
Secret mode
Select this choice. This allows
you not to be heard by the other
person. To restore sound to the
other person, select deactivation
of Secret mode in the menu “Call
Management”.
Note :
If you wish to transfer a call from
the audio system to the mobile
telephone (for example when lea-
ving your vehicle), refer to the user
instructions for the latter.
