2007.5 Citroen C4 PICASSO Owner's Manual

12
3
4
VI
177
FRONT LENS
 Dipped beam
 Main beam
 Sidelamp
 Direction indicator
Note : A slight misting may appear on the surface of
the headlamp glass in certain conditions of use.
C H A N G I N G B U L B S - H A L O G E N H E A D L A M P S
Dipped beam
1. Remove the rubber plug
.
2. Rotate the bulb-holder a quarter turn anti-clockwis e
and remove it from its housing.
3. Replace the bulb H7.
4. Reposition the bulb-holder by pushing it in, tighte -
ning it by a quarter turn (clockwise).
5. Put back the rubber plug.
Changing a halogen bulb should only be done after the headlamp has been

switched off for a few minutes (risk of serious burn).
Do not touch the bulb directly with your fingers, use lint-fre e cloths.
It is imperative to use only anti-U.V. type bulbs in
order not to damage the headlamp.

178VI
Main beam
1.
Remove the rubber plug.
2. Detach the clips by lowering
them on each side of the bulb.
3. Pull on t he bulb- holder t o
remove it.
4. Replace the bulb H1.
5. Push the bulb-holder back into
its housing.
6. Reattach the clips.
7. Put back the rubber plug. Sidelamp
1.
Rotate the bulb-holder a quarter
turn anti-clockwise.
2. Remove it from its housing.
3. Replace the bulb H6W.
4. Reposition the bulb-holder.
5.
Rotate it a quarter turn clock-
wise to reposition in its housing. Direction indicator
1.
The direction indicator bulb is
located underneath the main
beam bulb. Remove the rub-
ber plug.
2. Pull on the bulb-holder to re-
move it.
3. Replace the bulb H21.
4. Reposition the bulb-holder in
the bracket and push it in.
5. Put back the rubber plug.
C H A N G I N G B U L B S - H A L O G E N H E A D L A M P S

12
3
4
VI
179
 Main beam (H7)
1. Remove the rubber plug
.
2. Rotate the bulb-holder a quarter turn anti-clockwis e
and remove it from its housing.
3. Replace the bulb H7.
4. Reposition the bulb-holder by pushing it in, tighte -
ning it by a quarter turn (clockwise).
5. Put back the rubber plug.
C H A N G I N G B U L B S - D I R E C T I O N A L H E A D L A M P S
FRONT LENS WITH XENON DUAL-FUNCTION
DIRECTIONAL HEADLAMPS
 Xenon dual-function headlamp (dipped/main beam)
If the headlamp bears this symbol, any
operation to change the Xenon dual-function
directional headlamp D1S is the preserve of
professionals (risk of electrocution).
Contact a CITROËN dealer.
It is recommended to change both bulbs at the same
time if one of them is faulty.
 Sidelamp (see « Halogen headlamps »)
 Direction indicator (see « Halogen headlamps »)

1
23
A
B
180
VIREAR LENS
Note the bulb that is faulty.
Bulbs
 Direction indicator: PY21W.
 Stoplamp and sidelamp :
P21/5W.
 Reversing lamp : P21W.Rear lamp units on the
bodywork
1.
With the tailgate open, press
on the plastic cover A, located
close to the lens, to release it
from its housing.
2. Undo the two screws B on the
side of the lens and detach the
lamp by pulling it rearwards.
3. Disconnect the connector linking
the lens unit with the tailgate.
4. Remove the bulb-holder.
5. Replace the bulbs. To remove a
bulb, rotate it a quarter turn. To
refit the bulb, rotate it a quarter
turn in the other direction.
6. Reposition the bulb-holder.
7. Reconnect the connector to
the lens unit.
8. Reattach the lamp unit on the
bodywork and do up the two
screws.
9. Reposition the plastic cover
by exerting a pressure. Rear lamps on the tailgate
1.
With the boot open, remove the
plastic cover on the tailgate.
2. Remove the bulb-holder from
its housing.
3. Replace the bulb. To remove a
bulb, rotate it a quarter turn. To
refit the bulb, rotate it a quarter
turn in the other direction.
4. Reposition the bulb-holder.
5. Refit the plastic cover.
C H A N G I N G B U L B S - R E A R L E N S - C 4 P I C A S S O

3
2
1
4
VI
181
REAR LENS
Note the bulb that is faulty.
Bulbs :
 Direction indicator : PY21W.
 Stoplamp : P21W.
 Reversing lamp : P21W.
 Sidelamp :
LED
Contact a CITROËN dealer. Rear lamps
1.
With the tailgate open, undo
the 3 screws located on the
side of the lens unit and pull it
rearwards to detach.
2. Disconnect the connector lin-
king the lens unit to the boot.
Do not disconnect the LEDs.
3. Remove the seal.
4. Remove the bulb-holder.
5. Replace the bulbs. To remove
a bulb, rotate it a quarter turn.
To fit the bulb, rotate it a quarter
turn in the other direction.
6. Reposition the bulb-holder.
7. Put back the seal.
8. Reconnect the connector to
the lens unit.
9. Stow the harness in the open -
ing provided in the bodywork.
10. Reattach the lens unit on
the bodywork and do up the
3 screws. Third stoplampwith bulb
1.
With the boot open, detach
the interior trim.
2. Undo the nuts.
3. Using a thin screwdriver, de -
tach the 3 retaining lugs.
4. Remove the lamp via the ex -
terior of the tailgate.
5. Remove the bulb-holder.
6. Change the faulty bulb(s).
Check that the vehicle lamps work correctly after each op eration.
C H A N G I N G B U L B S - R E A R L E N S - G R A N D C 4
P I C A S S O
Third stoplampwith LED
Contact a CITROËN dealer

12

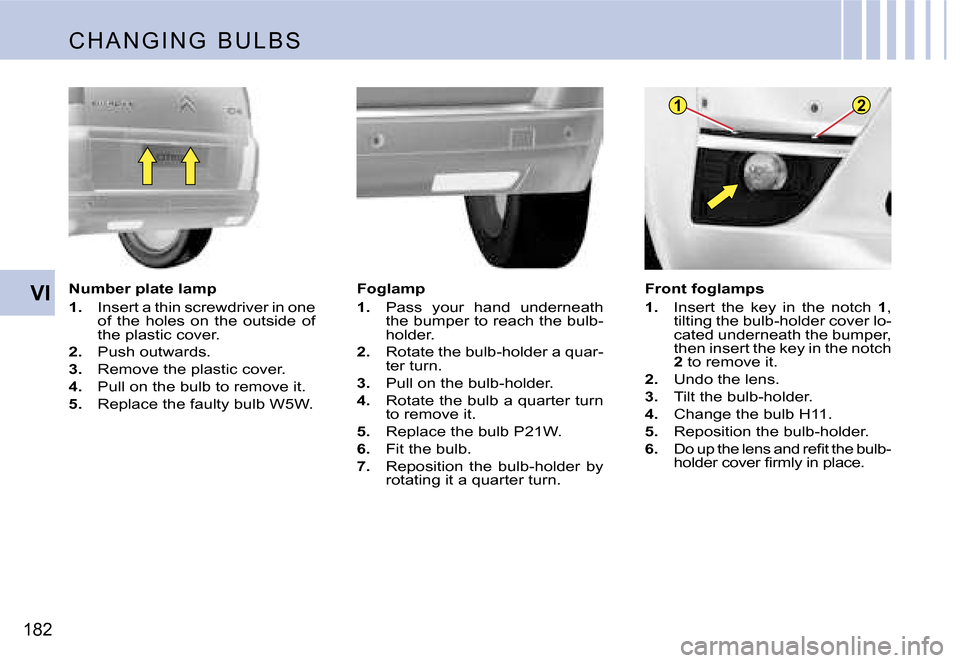

182
VI
C H A N G I N G B U L B S
Number plate lamp
1. Insert a thin screwdriver in one
of the holes on the outside of
the plastic cover.
2. Push outwards.
3. Remove the plastic cover.
4. Pull on the bulb to remove it.
5. Replace the faulty bulb W5W. Foglamp
1.
Pass your hand underneath
the bumper to reach the bulb-
holder.
2. Rotate the bulb-holder a quar -
ter turn.
3. Pull on the bulb-holder.
4. Rotate the bulb a quarter turn
to remove it.
5. Replace the bulb P21W.
6. Fit the bulb.
7. Reposition the bulb-holder by
rotating it a quarter turn. Front foglamps
1.
Insert the key in the notch 1,
tilting the bulb-holder cover lo -
cated underneath the bumper,
then insert the key in the notch
2 to remove it.
2. Undo the lens.
3. Tilt the bulb-holder.
4. Change the bulb H11.
5. Reposition the bulb-holder.
6. Do up the lens and refit the bulb-
holder cover firmly in place.

2
2
1
VI
183Direction indicators side
repeaters in the rear view
mirrors
To change the side repeater, press
firmly downwards on the zone indi-
cated by the arrow, then pull out the
side repeater bulb.
C H A N G I N G B U L B S
Interior lamp (1)
Detach the cover of the interior
lamp 1 with a thin screwdriver
close to the button, to access the
bulb.
Bulb : W 5 W
Spotlamps (2)
Detach the cover of the interior
lamp. To access the bulb, detach
the partition for the spotlamp con-
cerned, as necessary.
Bulb: W 5 W Boot lamps
Detach the unit by pushing it rear-
wards.
Bulb:
W 5 W
Torch
1. Open the tab.
2. Push with a flat screwdriver in
the hole under the tab and re-
cover the bulb unit.
3. Open the bulb unit fully to
change the bulb.
Bulb: Krypton 3.6V.

C
D
A
B
184VI
Towbar
We recommend you to have this device fitted by a
CITROËN dealer, who will be acquainted with your
vehicle’s towing capability and with the procedures
necessary for installing a safety item of this kind.
It is essential to install a CITROËN approved elec-
tronic unit when having a towbar fitted, in order to
prevent any risk of malfunction or damage (risk of
fire).
The fitting of a caravan mirror on the wing is pro-
hibited.
S A F E T Y R E C O M M E N D AT I O N S -
C 4 P I C A S S O A N D G R A N D C 4 P I C A S S O
Respect the authorised load capacities.
For maximum loads that can be distributed on the roof bars:
See Chapter: “General information”.
Bicycle carrier
Do not attach a bicycle carrier with straps to the fol-
lowing vehicle versions:
- C4 Picasso 5-seater (all versions) ;
- C4 Picasso 7-seater version with opening rear
screen.
Roof bars and roof boxes
The design of your vehicle, for your safety and to
avoid damage to the roof and tailgate, requires the
use of roof bars and roof boxes that are tested and
approved by AUTOMOBILES CITROËN.
DIMENSIONS
(in millimetres)
A : 99.04 mm C : 96.84 mm
B : 931.60 mm D : 820.53 mm
Recommendations
- Distribute your load evenly, avoiding overloading on one si de.
- Arrange the heaviest part of the load as close as possible to the roof.
- Anchor the load securely and signal if any part of it is overha nging.
- Drive gently, as the vehicle will be more liable to the e ffects of side winds (vehicle stability may be altered).
- Remove the roof bars as soon as they are no longer needed.
