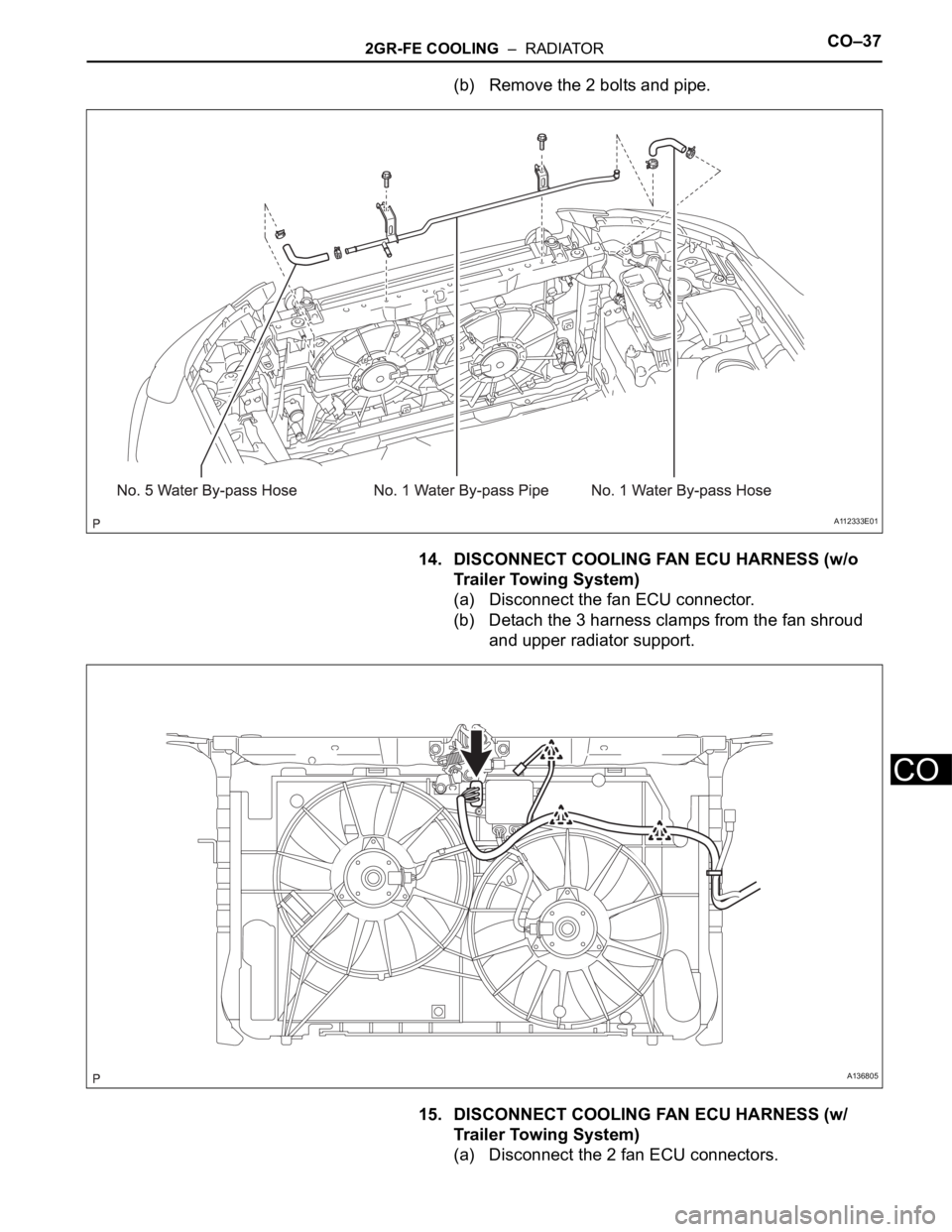

2006 TOYOTA RAV4 2gr

2GR-FE COOLING – RADIATORCO–37
CO
(b) Remove the 2 bolts and pipe.
14. DISCONNECT COOLING FAN ECU HARNESS (w/o
Trailer Towing System)
(a) Disconnect the fan ECU connector.
(b) Detach the 3 harness clamps from the fan shroud
and upper radiator support.
15. DISCONNECT COOLING FAN ECU HARNESS (w/
Trailer Towing System)
(a) Disconnect the 2 fan ECU connectors.
A112333E01
A136805

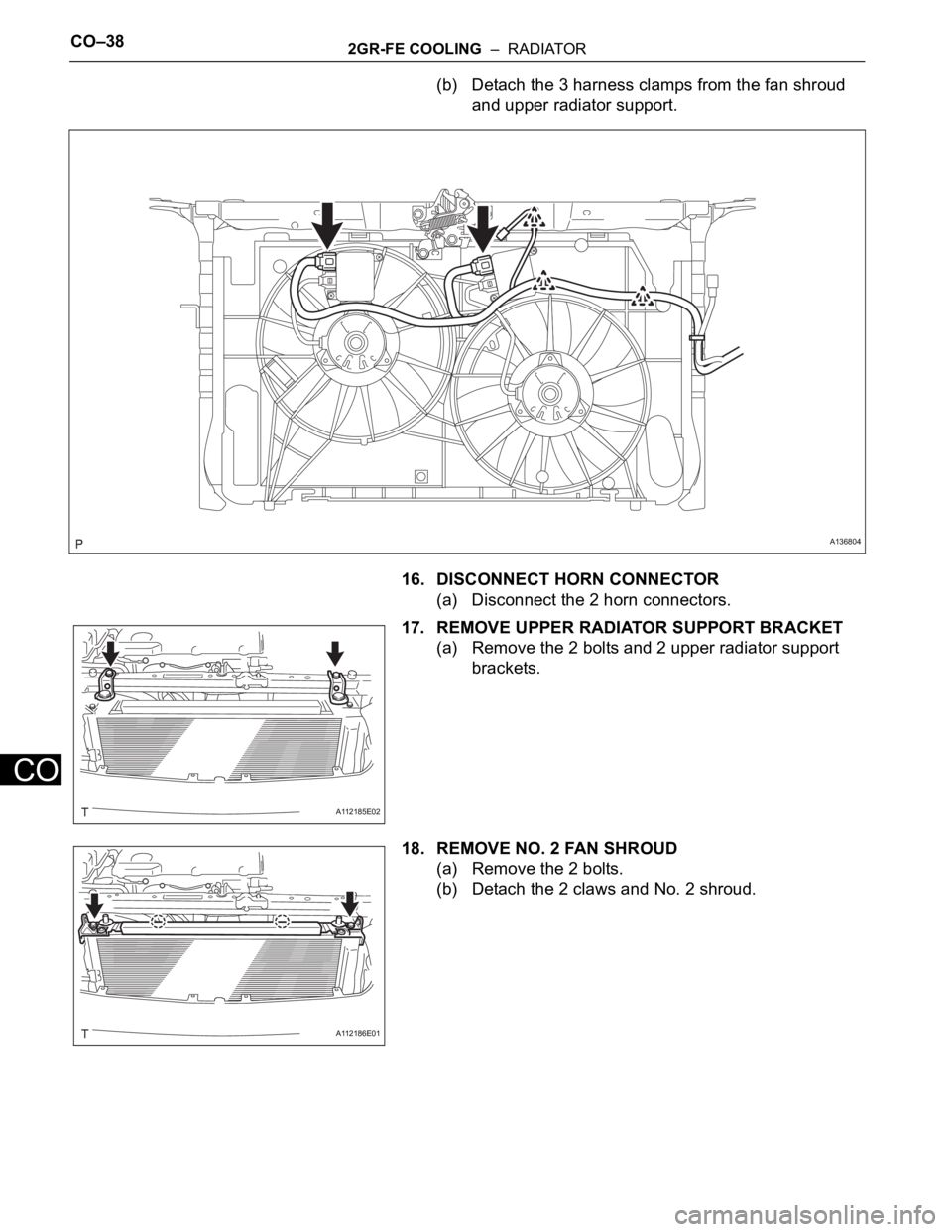

CO–382GR-FE COOLING – RADIATOR
CO
(b) Detach the 3 harness clamps from the fan shroud
and upper radiator support.
16. DISCONNECT HORN CONNECTOR
(a) Disconnect the 2 horn connectors.
17. REMOVE UPPER RADIATOR SUPPORT BRACKET
(a) Remove the 2 bolts and 2 upper radiator support
brackets.
18. REMOVE NO. 2 FAN SHROUD
(a) Remove the 2 bolts.
(b) Detach the 2 claws and No. 2 shroud.
A136804
A112185E02
A112186E01

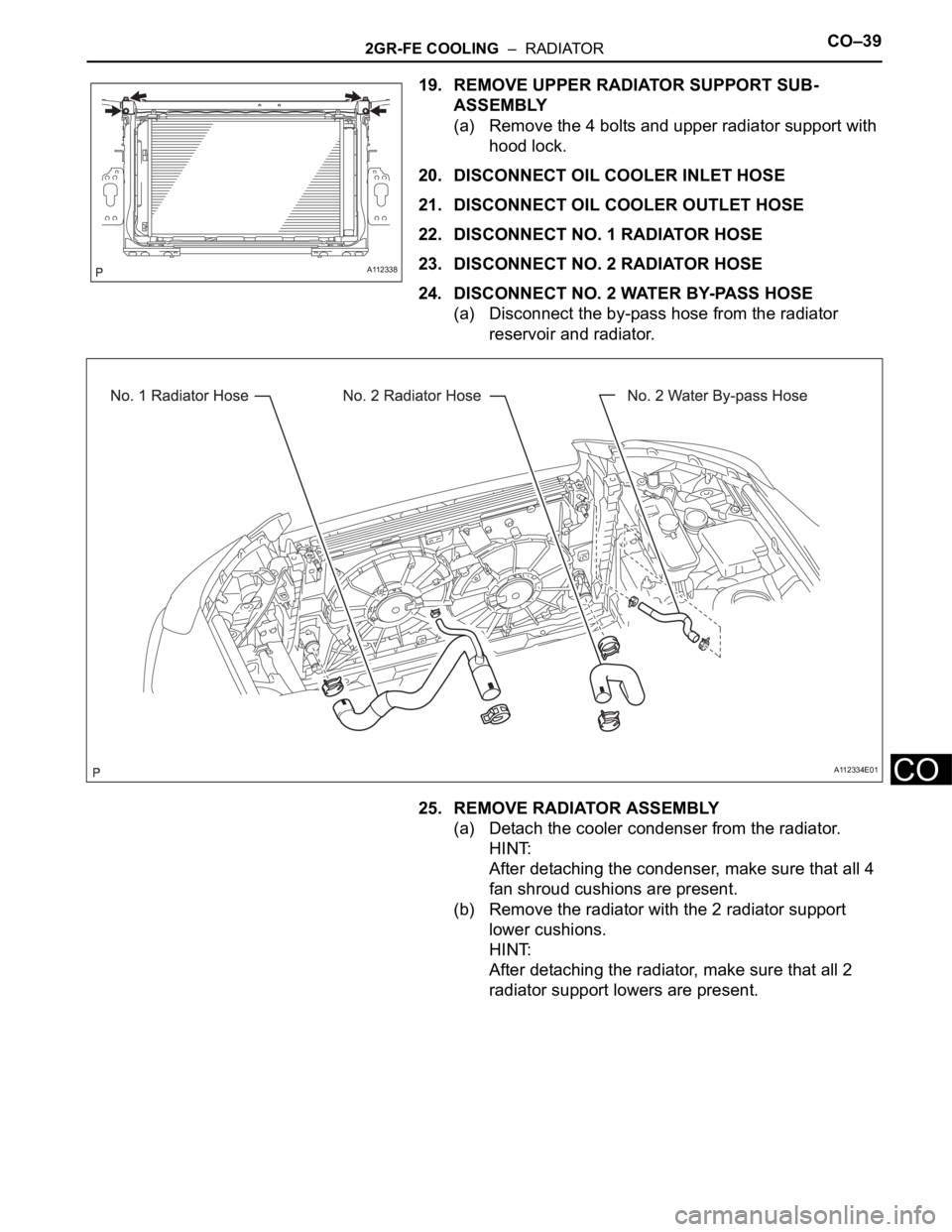

2GR-FE COOLING – RADIATORCO–39
CO
19. REMOVE UPPER RADIATOR SUPPORT SUB-
ASSEMBLY
(a) Remove the 4 bolts and upper radiator support with
hood lock.
20. DISCONNECT OIL COOLER INLET HOSE
21. DISCONNECT OIL COOLER OUTLET HOSE
22. DISCONNECT NO. 1 RADIATOR HOSE
23. DISCONNECT NO. 2 RADIATOR HOSE
24. DISCONNECT NO. 2 WATER BY-PASS HOSE
(a) Disconnect the by-pass hose from the radiator
reservoir and radiator.
25. REMOVE RADIATOR ASSEMBLY
(a) Detach the cooler condenser from the radiator.
HINT:
After detaching the condenser, make sure that all 4
fan shroud cushions are present.
(b) Remove the radiator with the 2 radiator support
lower cushions.
HINT:
After detaching the radiator, make sure that all 2
radiator support lowers are present.
A112338
A112334E01

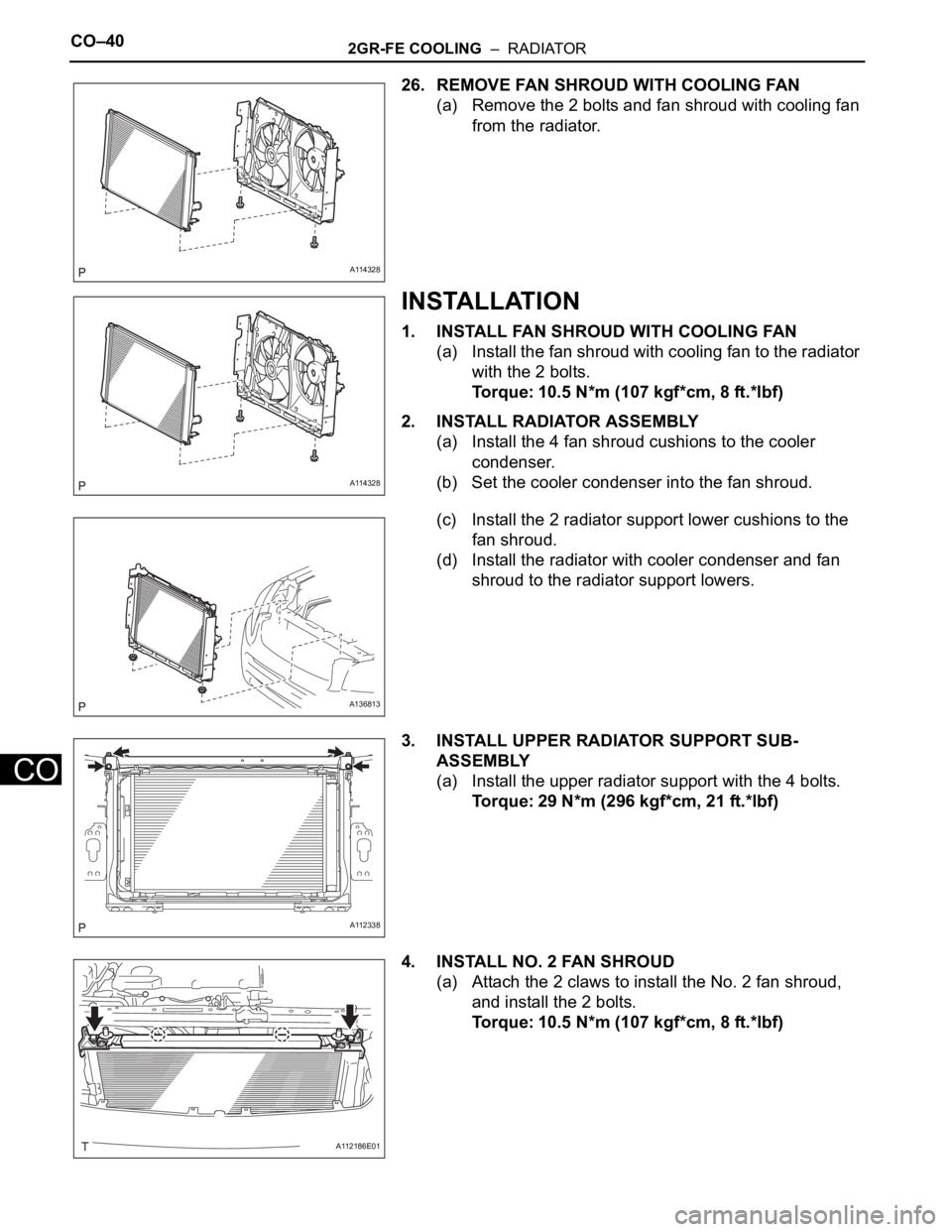

CO–402GR-FE COOLING – RADIATOR
CO
26. REMOVE FAN SHROUD WITH COOLING FAN
(a) Remove the 2 bolts and fan shroud with cooling fan
from the radiator.
INSTALLATION
1. INSTALL FAN SHROUD WITH COOLING FAN
(a) Install the fan shroud with cooling fan to the radiator
with the 2 bolts.
Torque: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)
2. INSTALL RADIATOR ASSEMBLY
(a) Install the 4 fan shroud cushions to the cooler
condenser.
(b) Set the cooler condenser into the fan shroud.
(c) Install the 2 radiator support lower cushions to the
fan shroud.
(d) Install the radiator with cooler condenser and fan
shroud to the radiator support lowers.
3. INSTALL UPPER RADIATOR SUPPORT SUB-
ASSEMBLY
(a) Install the upper radiator support with the 4 bolts.
Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
4. INSTALL NO. 2 FAN SHROUD
(a) Attach the 2 claws to install the No. 2 fan shroud,
and install the 2 bolts.
Torque: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)
A114328
A114328
A136813
A112338
A112186E01

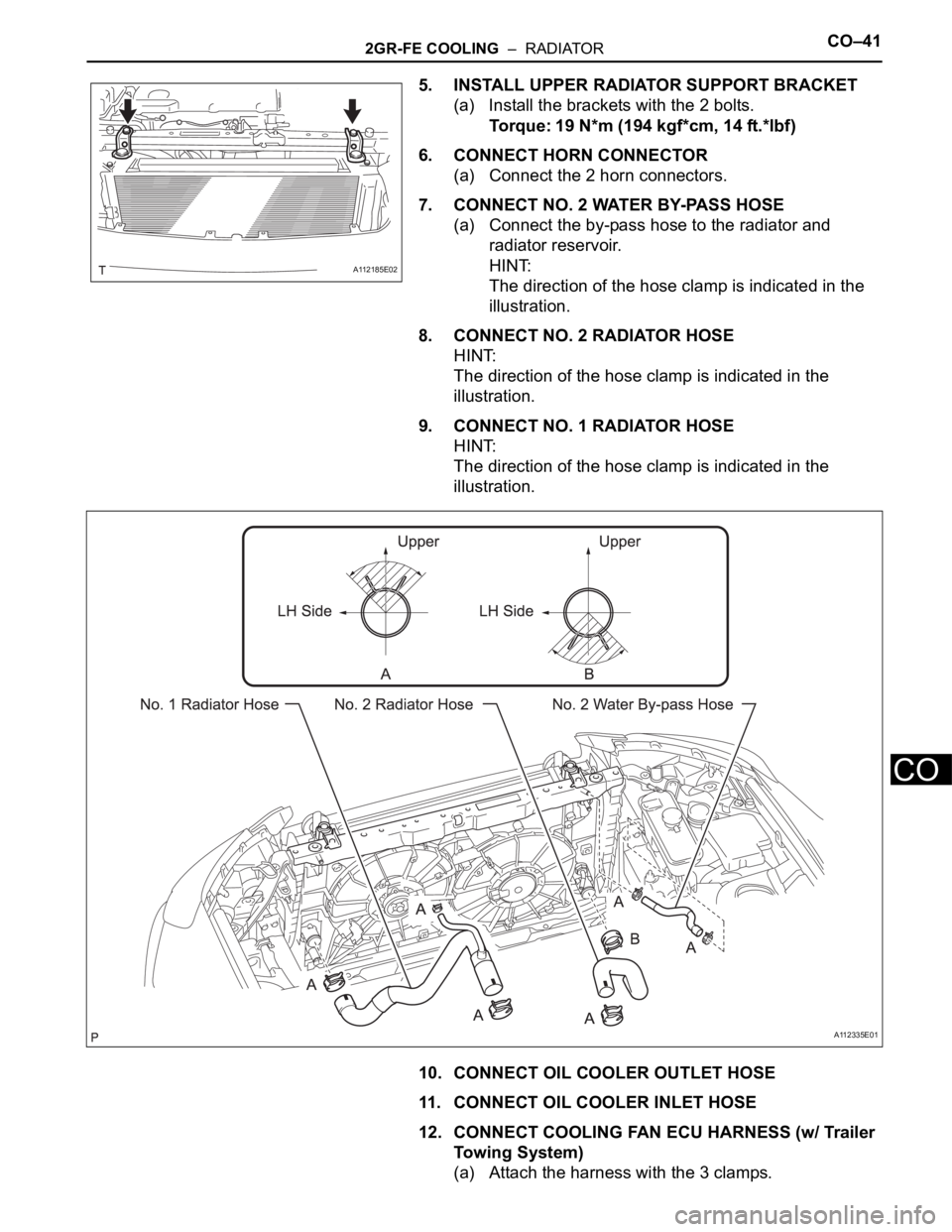

2GR-FE COOLING – RADIATORCO–41
CO
5. INSTALL UPPER RADIATOR SUPPORT BRACKET
(a) Install the brackets with the 2 bolts.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
6. CONNECT HORN CONNECTOR
(a) Connect the 2 horn connectors.
7. CONNECT NO. 2 WATER BY-PASS HOSE
(a) Connect the by-pass hose to the radiator and
radiator reservoir.
HINT:
The direction of the hose clamp is indicated in the
illustration.
8. CONNECT NO. 2 RADIATOR HOSE
HINT:
The direction of the hose clamp is indicated in the
illustration.
9. CONNECT NO. 1 RADIATOR HOSE
HINT:
The direction of the hose clamp is indicated in the
illustration.
10. CONNECT OIL COOLER OUTLET HOSE
11. CONNECT OIL COOLER INLET HOSE
12. CONNECT COOLING FAN ECU HARNESS (w/ Trailer
Towing System)
(a) Attach the harness with the 3 clamps.
A112185E02
A112335E01

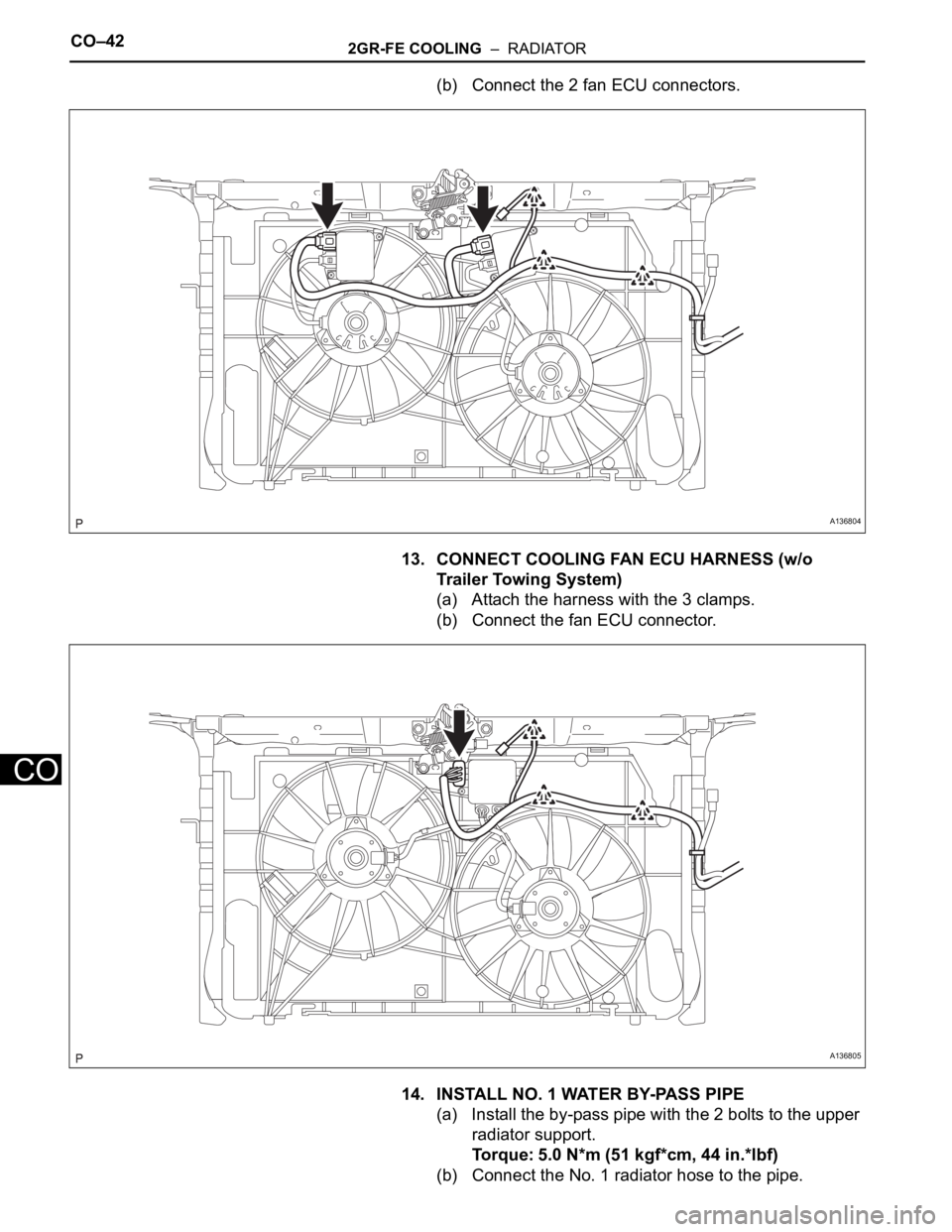

CO–422GR-FE COOLING – RADIATOR
CO
(b) Connect the 2 fan ECU connectors.
13. CONNECT COOLING FAN ECU HARNESS (w/o
Trailer Towing System)
(a) Attach the harness with the 3 clamps.
(b) Connect the fan ECU connector.
14. INSTALL NO. 1 WATER BY-PASS PIPE
(a) Install the by-pass pipe with the 2 bolts to the upper
radiator support.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
(b) Connect the No. 1 radiator hose to the pipe.
A136804
A136805

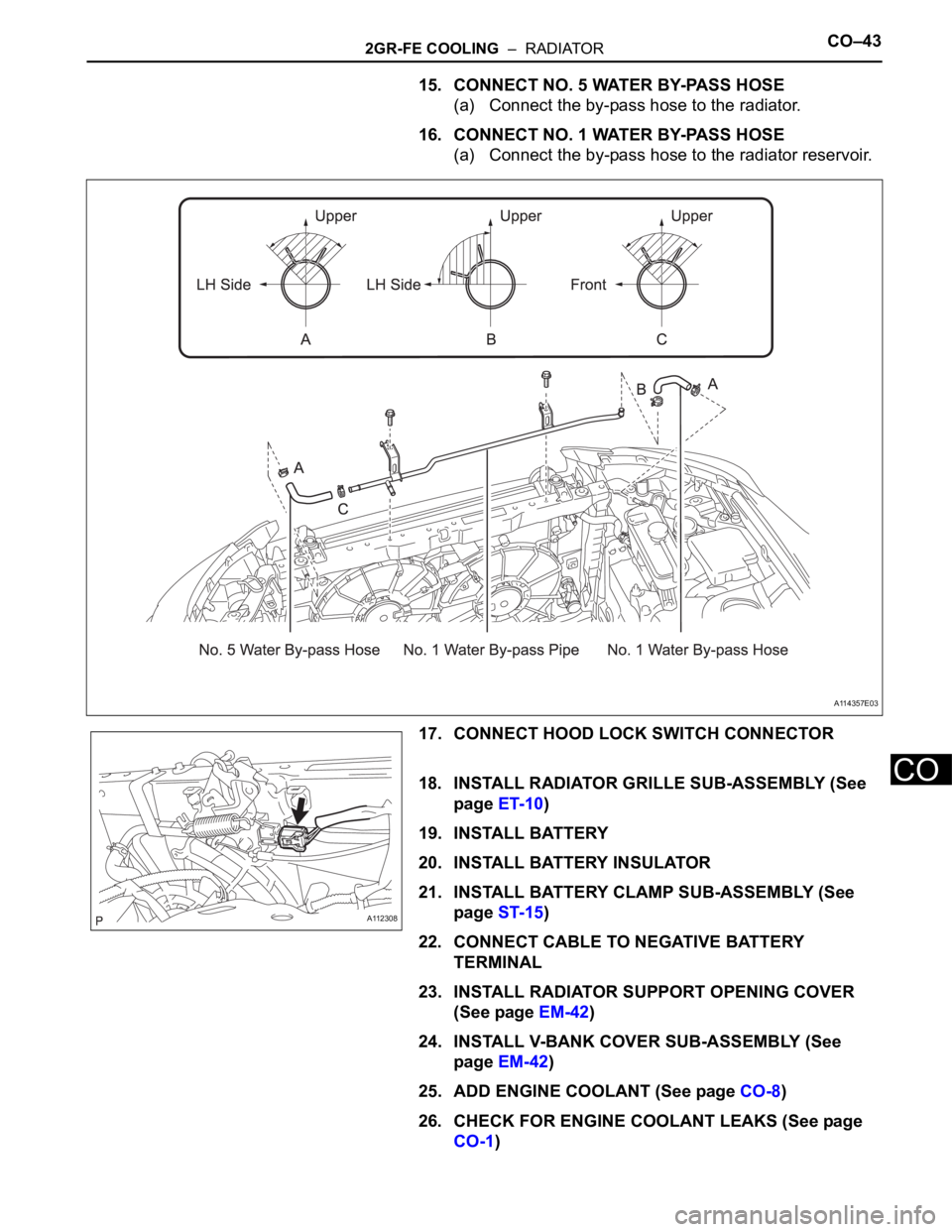

2GR-FE COOLING – RADIATORCO–43
CO
15. CONNECT NO. 5 WATER BY-PASS HOSE
(a) Connect the by-pass hose to the radiator.
16. CONNECT NO. 1 WATER BY-PASS HOSE
(a) Connect the by-pass hose to the radiator reservoir.
17. CONNECT HOOD LOCK SWITCH CONNECTOR
18. INSTALL RADIATOR GRILLE SUB-ASSEMBLY (See
page ET-10)
19. INSTALL BATTERY
20. INSTALL BATTERY INSULATOR
21. INSTALL BATTERY CLAMP SUB-ASSEMBLY (See
page ST-15)
22. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
23. INSTALL RADIATOR SUPPORT OPENING COVER
(See page EM-42)
24. INSTALL V-BANK COVER SUB-ASSEMBLY (See
page EM-42)
25. ADD ENGINE COOLANT (See page CO-8)
26. CHECK FOR ENGINE COOLANT LEAKS (See page
CO-1)
A114357E03
A112308

CO–442GR-FE COOLING – RADIATOR
CO
27. INSTALL NO. 1 ENGINE UNDER COVER (See page
EM-41)
