2006 TOYOTA 4RUNNER Owners Manual

’06 4Runner_U (L/O 0508)
55
CAUTION
When tumbling seats or returning
seats to their original positions, ob-
serve the following to prevent person-
al injury:
Do not tumble or return the seat
while the vehicle is moving.
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
Be careful not to get your hands or
feet pinched in the seat.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback or tumbled seat
while driving.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.BEFORE FOLDING UP THIRD SEATS
1. Stow the third seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you fold up the third seats.
NOTICE
The seat belt buckles must be stowed
before you fold up the third seats.
—Folding up third seats

’06 4Runner_U (L/O 0508)
56

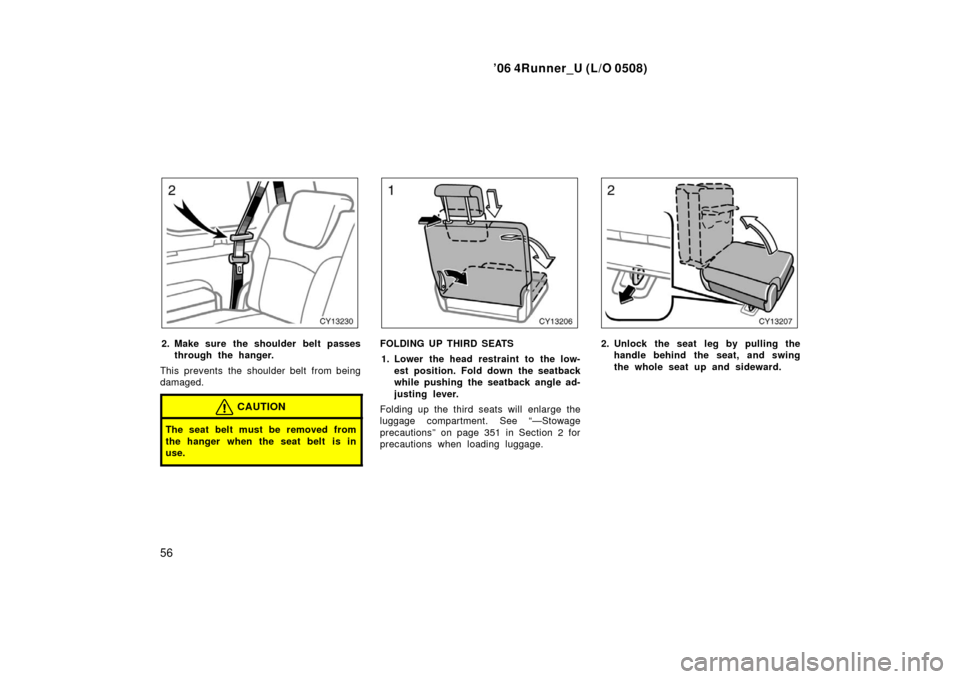

2. Make sure the shoulder belt passes
through the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
FOLDING UP THIRD SEATS 1. Lower the head restraint to the low- est position. Fold down the seatback
while pushing the seatback angle ad-
justing lever.
Folding up the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 351 in Section 2 for
precautions when loading luggage.2. Unlock the seat leg by pulling the handle behind the seat, and swing
the whole seat up and sideward.

’06 4Runner_U (L/O 0508)
57

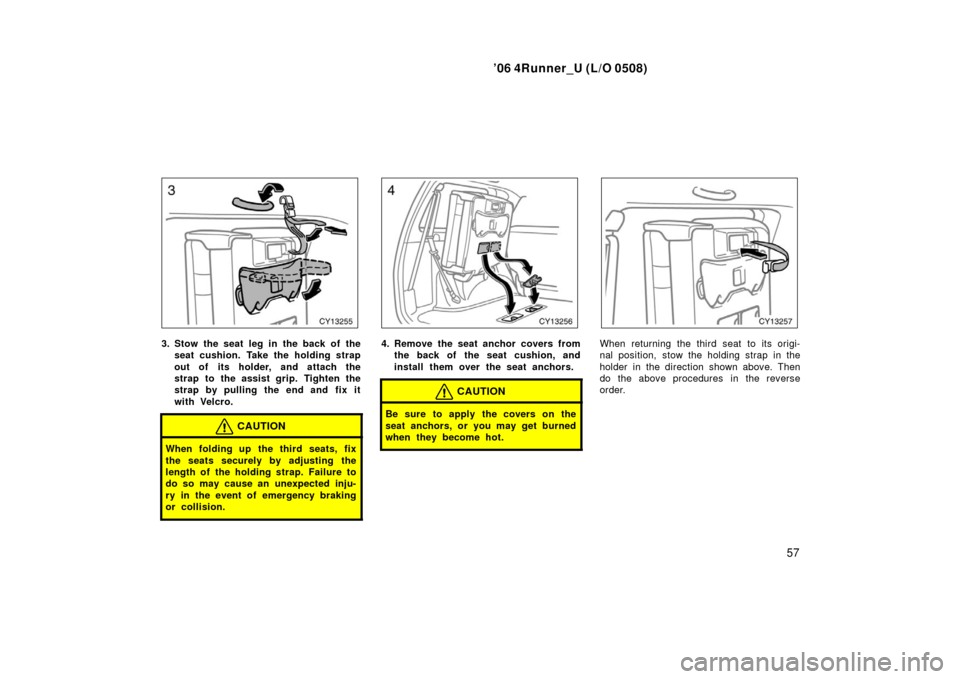

3. Stow the seat leg in the back of the
seat cushion. Take the holding strap
out of its holder, and attach the
strap to the assist grip. Tighten the
strap by pulling the end and fix it
with Velcro.
CAUTION
When folding up the third seats, fix
the seats securely by adjusting the
length of the holding strap. Failure to
do so may cause an unexpected inju-
ry in the event of emergency braking
or collision.
4. Remove the seat anchor covers fromthe back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
When returning the third seat to its origi-
nal position, stow the holding strap in the
holder in the direction shown above. Then
do the above procedures in the reverse
order.

’06 4Runner_U (L/O 0508)
58

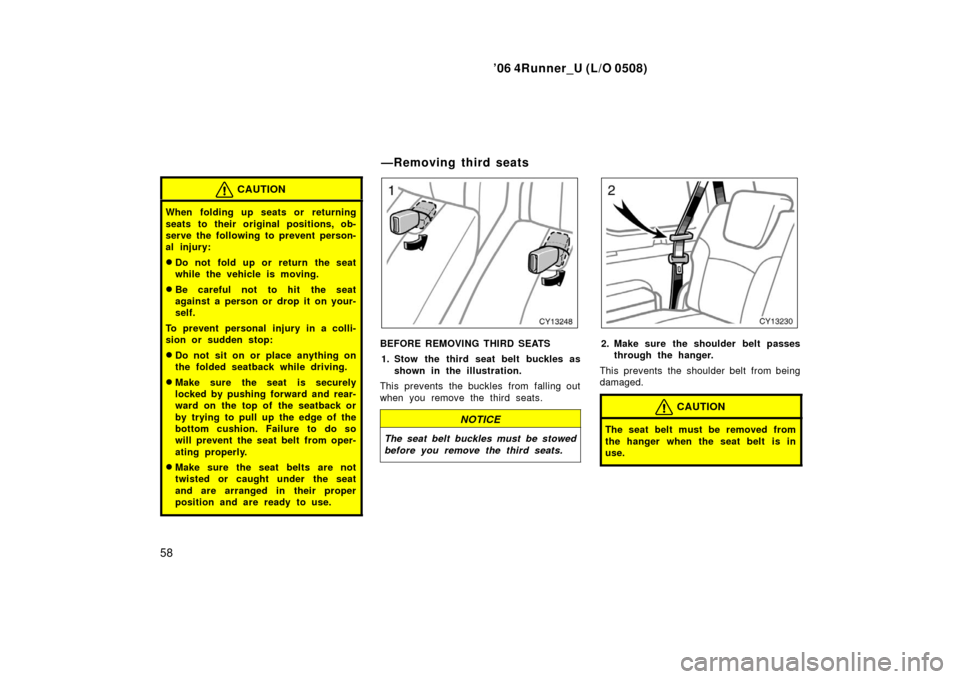

CAUTION
When folding up seats or returning
seats to their original positions, ob-
serve the following to prevent person-
al injury:
Do not fold up or return the seat
while the vehicle is moving.
Be careful not to hit the seat
against a person or drop it on your-
self.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
BEFORE REMOVING THIRD SEATS 1. Stow the third seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you remove the third seats.
NOTICE
The seat belt buckles must be stowed
before you remove the third seats.
2. Make sure the shoulder belt passes through the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
—Removing third seats

’06 4Runner_U (L/O 0508)
59
REMOVING THIRD SEATS
1. Lower the head restraint to the low- est position. Fold down the seatback
while pushing the seatback angle ad-
justing lever.2. Unlock the seat leg by pulling thehandle behind the seat, and lift the
whole seat up. Retract the seat leg
into the back of the seat cushion.
Then, place the seat on the floor.3. Remove the cover and push the seatlock release lever outward to unlock
the seat lock, then pull up the whole
seat and remove it. After removing
the seat, reinstall the cover.
Removing the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 351 in Section 2 for
precautions when loading luggage.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.

’06 4Runner_U (L/O 0508)
60

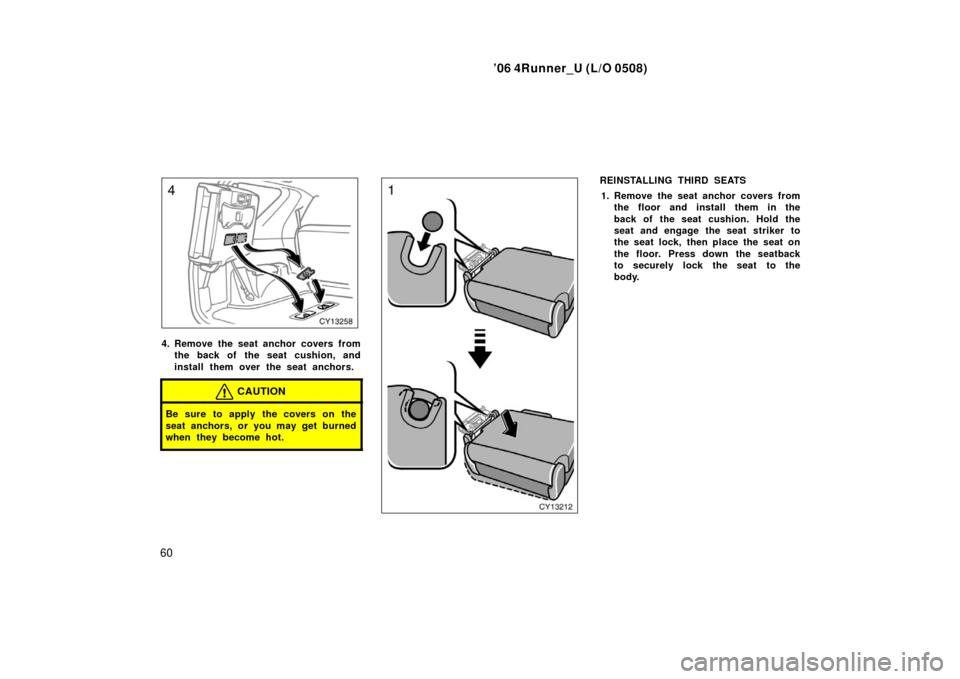

4. Remove the seat anchor covers from
the back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
REINSTALLING THIRD SEATS
1. Remove the seat anchor covers from the floor and install them in the
back of the seat cushion. Hold the
seat and engage the seat striker to
the seat lock, then place the seat on
the floor. Press down the seatback
to securely lock the seat to the
body.

’06 4Runner_U (L/O 0508)
61

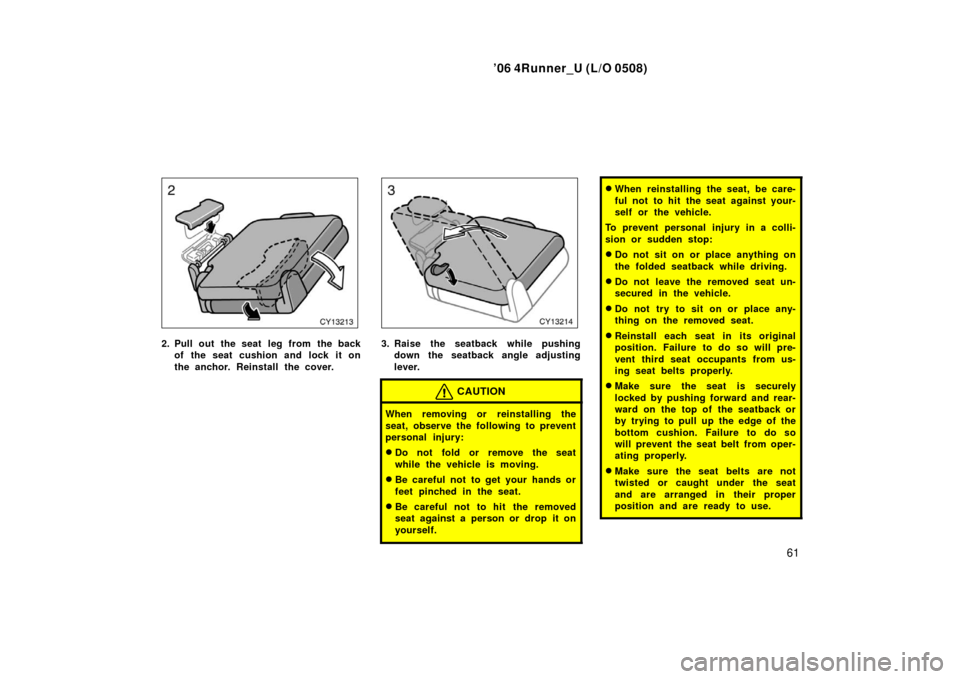

2. Pull out the seat leg from the back
of the seat cushion and lock it on
the anchor. Reinstall the cover.3. Raise the seatback while pushingdown the seatback angle adjusting
lever.
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
When reinstalling the seat, be care-
ful not to hit the seat against your-
self or the vehicle.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat un-
secured in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
Reinstall each seat in its original
position. Failure to do so will pre-
vent third seat occupants from us-
ing seat belts properly.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.

’06 4Runner_U (L/O 0508)
62

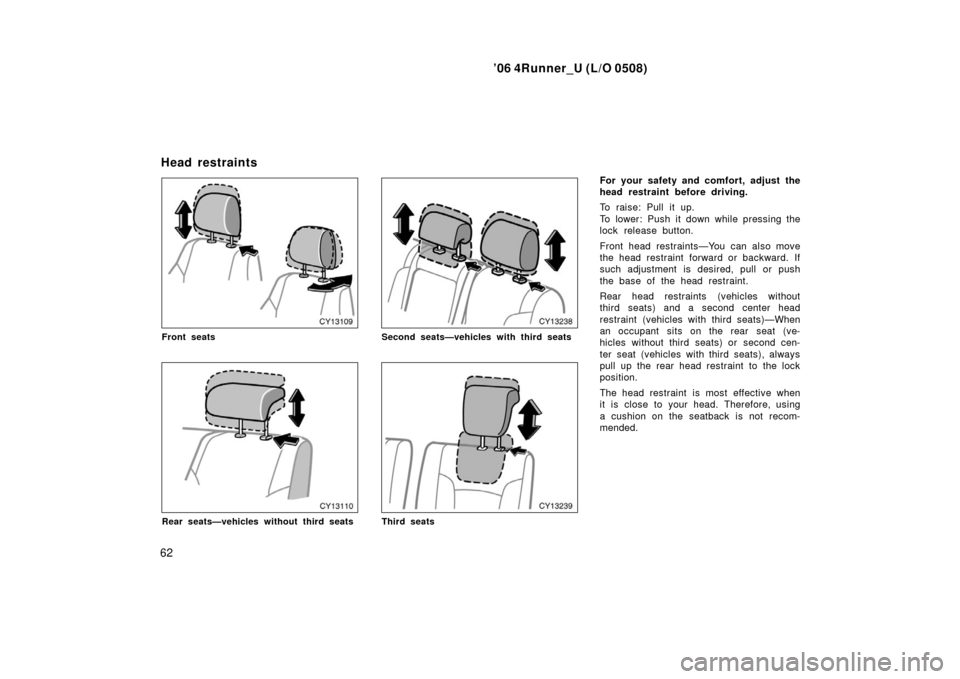

Front seats
Rear seats—vehicles without third seats
Second seats—vehicles with third seats
Third seats
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraints—You can also move
the head restraint forward or backward. If
such adjustment is desired, pull or push
the base of the head restraint.
Rear head restraints (vehicles without
third seats) and a second center head
restraint (vehicles with third seats)—When
an occupant sits on the rear seat (ve-
hicles without third seats) or second cen-
ter seat (vehicles with third seats), always
pull up the rear head restraint to the lock
position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
Head restraints
