OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 144
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 147
. . . . . . . . . . . . . .
SECTION 1 6

’06 4Runner_U (L/O 0508)
144
Low fuel level
warning light

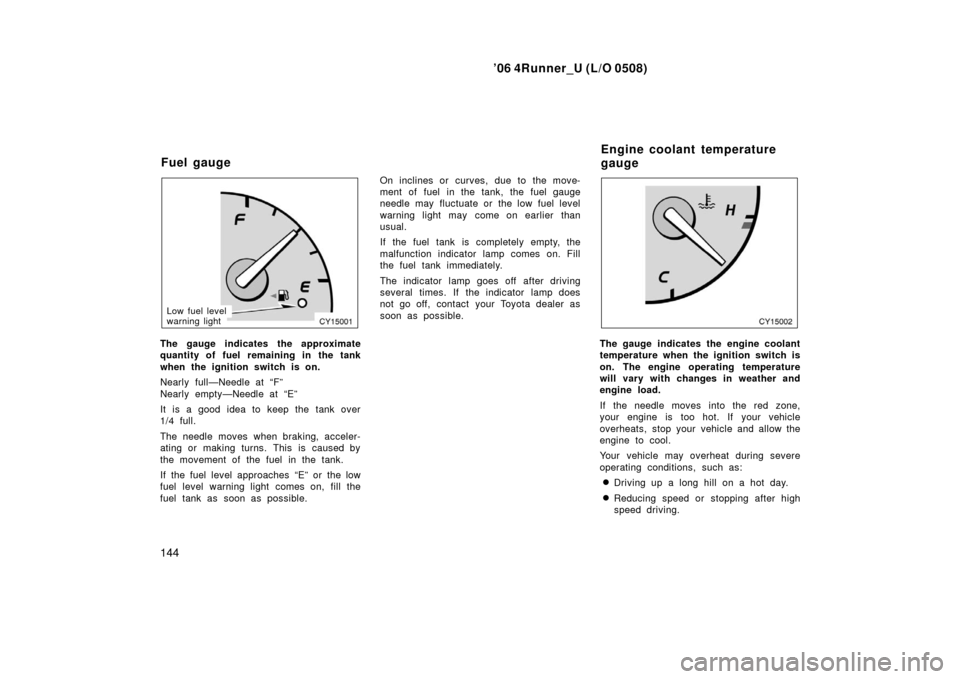

The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible. On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge

’06 4Runner_U (L/O 0508)
145

Idling for a long period with the air
conditioning on in stop
−and− go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 378 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.

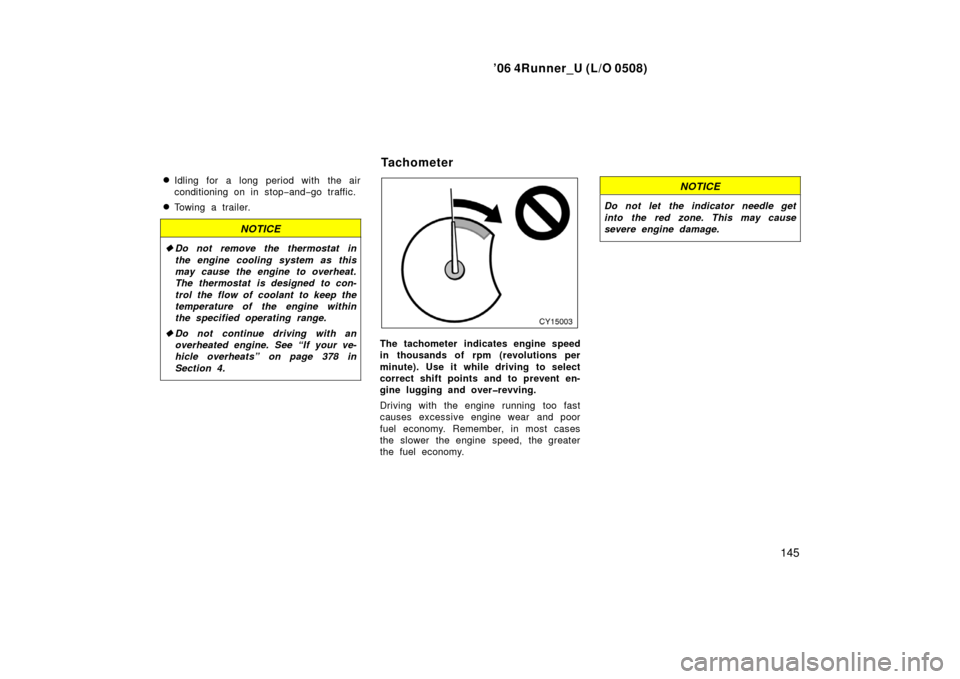

NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Tachometer

’06 4Runner_U (L/O 0508)
146
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Odometer and two trip meters

’06 4Runner_U (L/O 0508)
147
If the indicator or buzzer comes on...Do this.
(a)
(indicator and buzzer)
If parking brake is off, stop immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)Stop and check.
(f)Take vehicle to Toyota dealer.
(g)Low fuel level warning lightFill up tank.
Service reminder indicators and warning buzzers

’06 4Runner_U (L/O 0508)
148
If the indicator or buzzer comes on...Do this.
(h)Replace engine oil.
(i)orTake vehicle to Toyota dealer. If brake system warning light is also on, stop
immediately and contact Toyota dealer.
(j)Take vehicle to Toyota dealer.
(k)Close all side doors and back door.
(l)Take vehicle to Toyota dealer immediately.
(m)Stop and check.
(n)Adjust tire pressure. If the light remains, contact Toyota dealer.

’06 4Runner_U (L/O 0508)
149
If the indicator or buzzer comes on...Do this.
(o)Add washer fluid.
(p)Key reminder buzzerRemove key.

’06 4Runner_U (L/O 0508)
150
(a) Brake System Warning Light and
Buzzer
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
When the hydraulic brake booster
fails...
If the hydraulic booster causes a problem
resulting in poor braking performance, the
warning light comes on and buzzer sounds
continuously. Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If any of the following conditions oc-
curs, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
The warning buzzer comes on to-
gether with the warning light.
In either case, this can indicate that
the brakes may not work properly
and your stopping distance will be-
come longer. Depress the brake
pedal firmly and bring the vehicle
to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
Any of the following conditions may oc-
cur, but do not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the warning light and
buzzer. It is normal if the light turns off
and the buzzer stops sounding after a
few seconds.
You may hear a small sound in the
engine compartment after the engine is
started or the brake pedal is depressed
repeatedly. This is a pump pulsating
sound of the brake system, and it is
not a malfunction.
