2006 TOYOTA 4RUNNER Owners Manual

’06 4Runner_U (L/O 0508)
47
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace the head restraint.

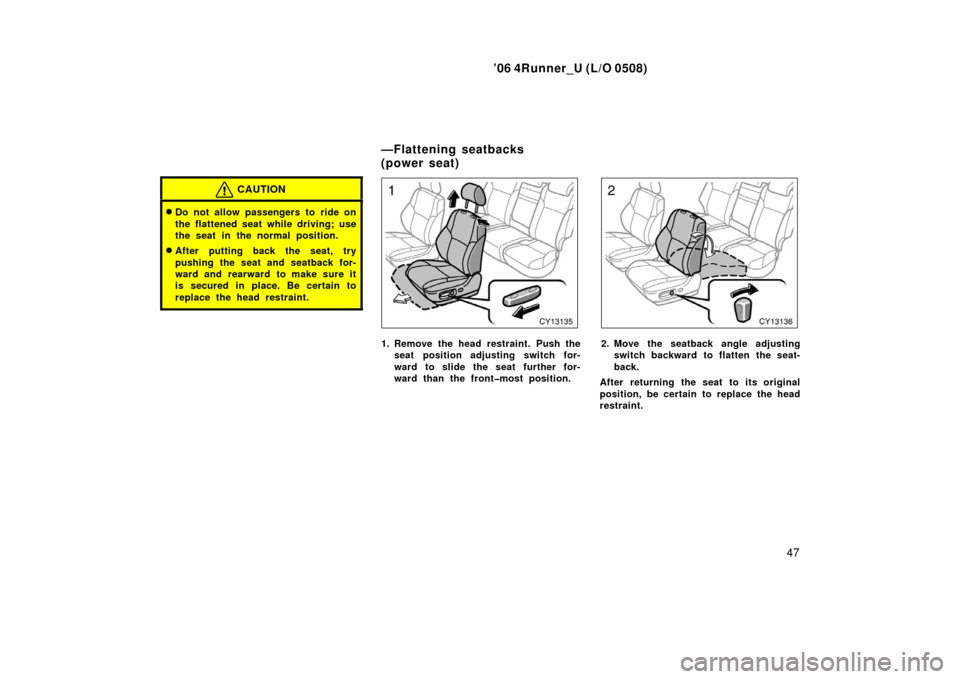

1. Remove the head restraint. Push the
seat position adjusting switch for-
ward to slide the seat further for-
ward than the frontmost position.2. Move the seatback angle adjustingswitch backward to flatten the seat-
back.
After returning the seat to its original
position, be certain to replace the head
restraint.
—Flattening seatbacks
(power seat)

’06 4Runner_U (L/O 0508)
48
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace the head restraint.

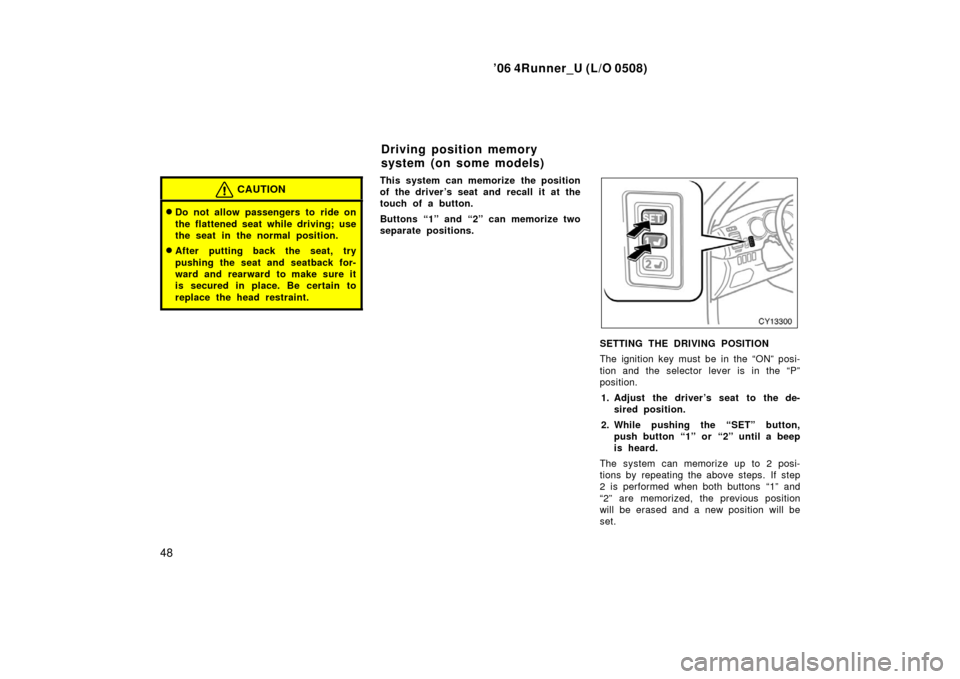

This system can memorize the position
of the driver ’s seat and recall it at the
touch of a button.
Buttons “1” and “2” can memorize two
separate positions.
SETTING THE DRIVING POSITION
The ignition key must be in the “ON” posi-
tion and the selector lever is in the “P”
position.
1. Adjust the driver’s seat to the de- sired position.
2. While pushing the “SET” button, push button “1” or “2” until a beep
is heard.
The system can memorize up to 2 posi-
tions by repeating the above steps. If step
2 is performed when both buttons “1” and
“2” are memorized, the previous position
will be erased and a new position will be
set.
Driving position memory
system (on some models)

’06 4Runner_U (L/O 0508)
49
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
RECALLING THE MEMORIZED POSITION

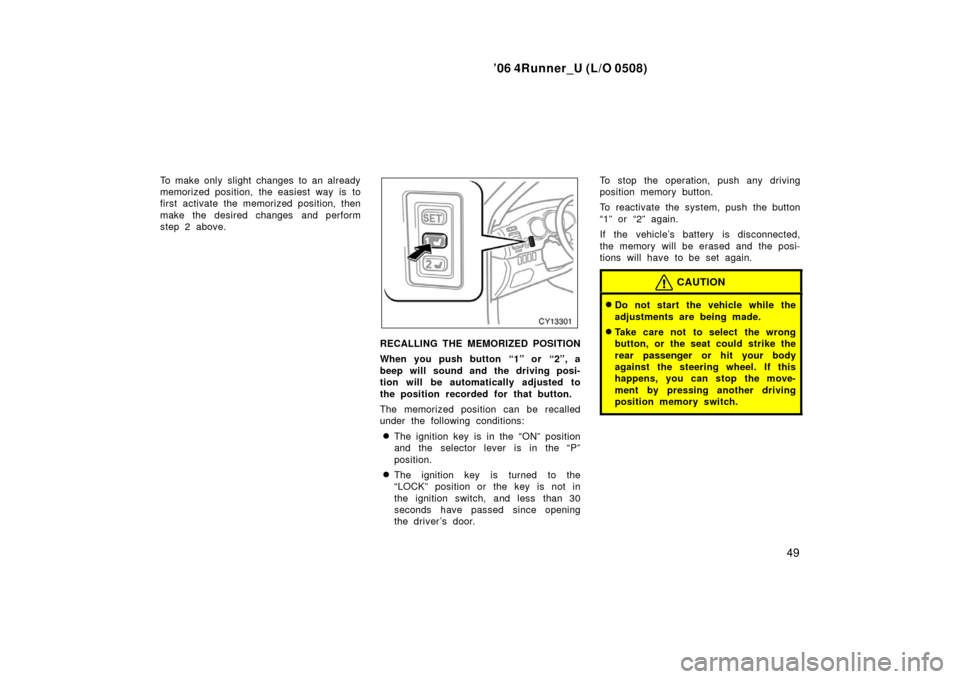

When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The ignition key is in the “ON” position
and the selector lever is in the “P”
position.
The ignition key is turned to the
“LOCK” position or the key is not in
the ignition switch, and less than 30
seconds have passed since opening
the driver ’s door. To stop the operation, push any driving
position memory button.
To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustments are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch.

’06 4Runner_U (L/O 0508)
50

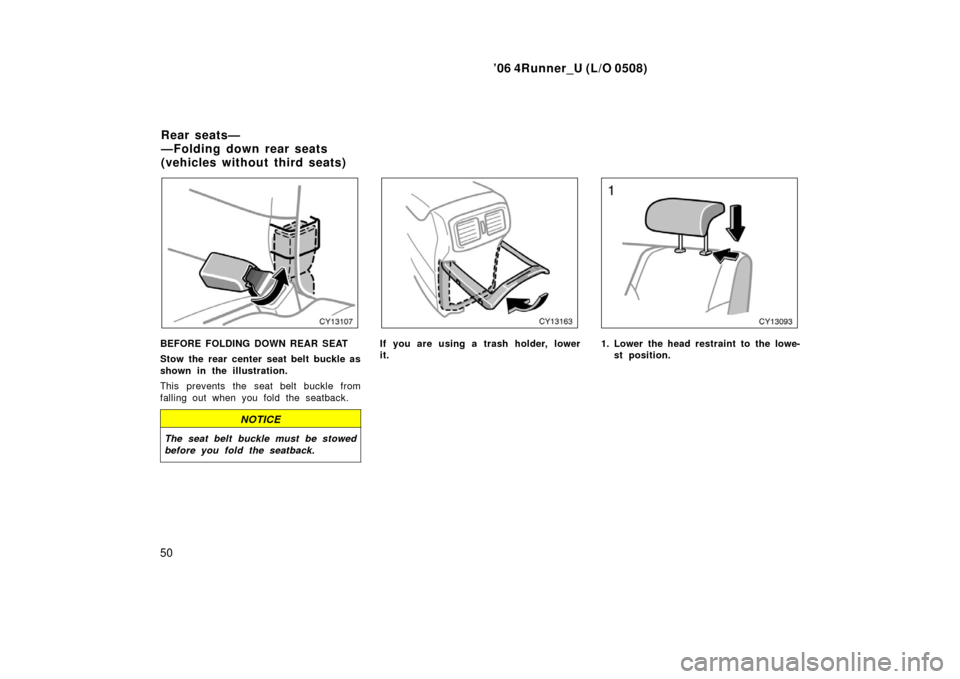

BEFORE FOLDING DOWN REAR SEAT
Stow the rear center seat belt buckle as
shown in the illustration.
This prevents the seat belt buckle from
falling out when you fold the seatback.
NOTICE
The seat belt buckle must be stowed
before you fold the seatback.
If you are using a trash holder, lower
it.1. Lower the head restraint to the lowe-
st position.
Rear seats—
—Folding down rear seats
(vehicles without third seats)

’06 4Runner_U (L/O 0508)
51

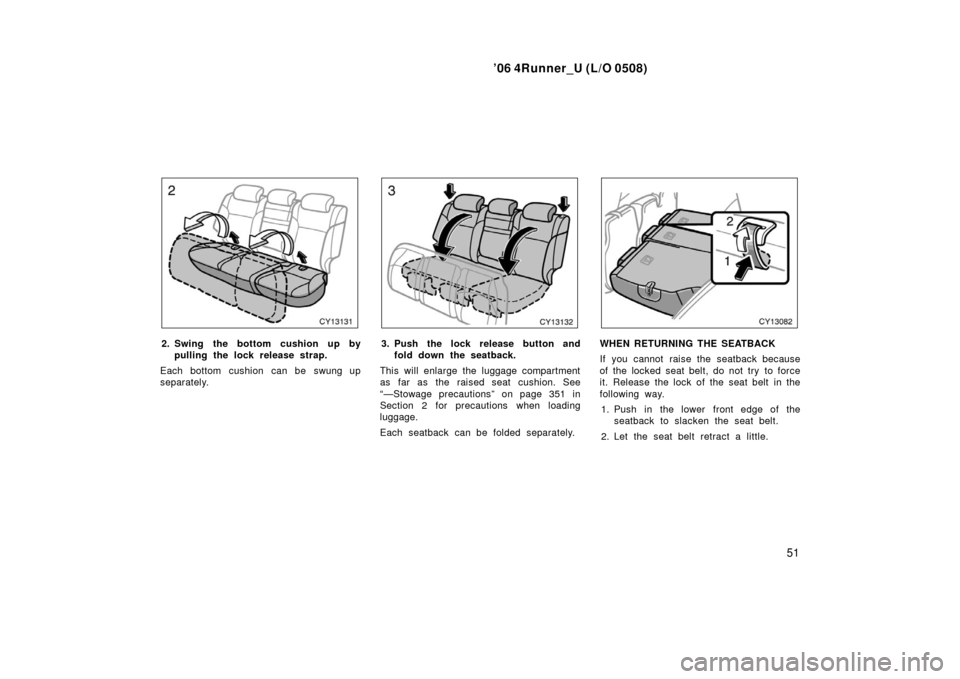

2. Swing the bottom cushion up by
pulling the lock rel ease strap.
Each bottom cushion can be swung up
separately.3. Push the lock release button and fold down the seatback.
This will enlarge the luggage compartment
as far as the raised seat cushion. See
“—Stowage precautions” on page 351 in
Section 2 for precautions when loading
luggage.
Each seatback can be folded separately.WHEN RETURNING THE SEATBACK
If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way. 1. Push in the lower front edge of the seatback to slacken the seat belt.
2. Let the seat belt retract a little.

’06 4Runner_U (L/O 0508)
52

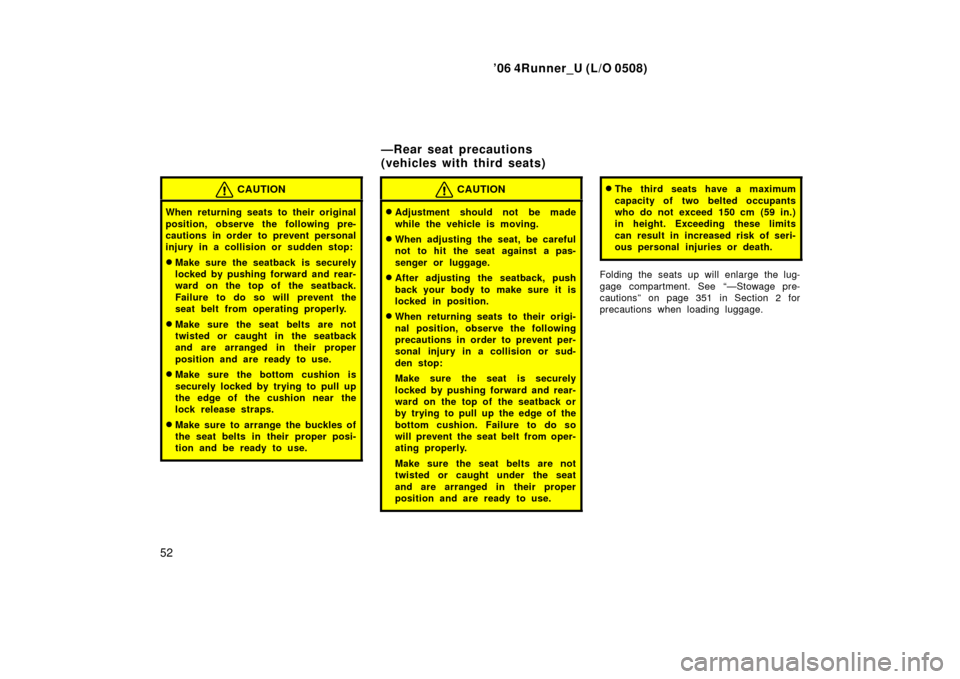

CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the cushion near the
lock release straps.
Make sure to arrange the buckles of
the seat belts in their proper posi-
tion and be ready to use.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
The third seats have a maximum
capacity of two belted occupants
who do not exceed 150 cm (59 in.)
in height. Exceeding these limits
can result in increased risk of seri-
ous personal injuries or death.
Folding the seats up will enlarge the lug-
gage compartment. See “—Stowage pre-
cautions” on page 351 in Section 2 for
precautions when loading luggage.
—Rear seat precautions
(vehicles with third seats)

’06 4Runner_U (L/O 0508)
53
Second seats
Third seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lock release
lever. Then lean back to the desired
angle and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the passengers
are sitting up straight and well back
in the seats. If you are reclined, the
lap belt may slide past your hips and
apply restraint forces directly to the
abdomen. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the second seat.
NOTICE
The seat belt buckles must be stowed
before you tumble the second seat.
—Adjusting rear seats
(vehicles with third seats) —Tumbling second seats

’06 4Runner_U (L/O 0508)
54

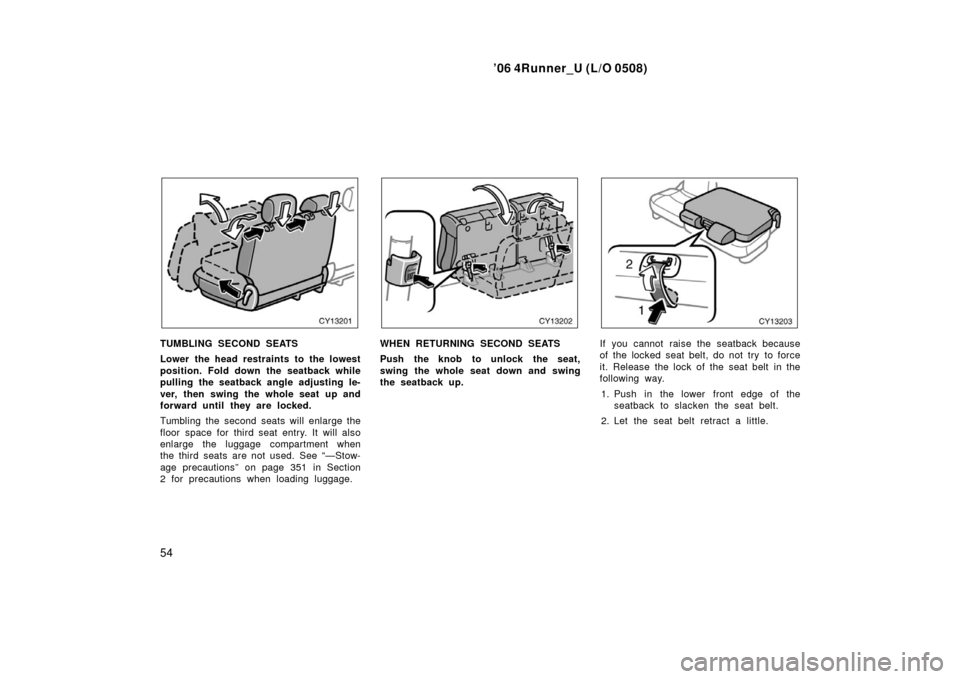

TUMBLING SECOND SEATS
Lower the head restraints to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting le-
ver, then swing the whole seat up and
forward until they are locked.
Tumbling the second seats will enlarge the
floor space for third seat entry. It will also
enlarge the luggage compartment when
the third seats are not used. See “—Stow-
age precautions” on page 351 in Section
2 for precautions when loading luggage.WHEN RETURNING SECOND SEATS
Push the knob to unlock the seat,
swing the whole seat down and swing
the seatback up.If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way.
1. Push in the lower front edge of the seatback to slacken the seat belt.
2. Let the seat belt retract a little.
