2006 TOYOTA 4RUNNER Owners Manual

’06 4Runner_U (L/O 0508)
439
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: HB4 halogen bulbs
D: Wedge base bulbs (amber)
E: Single end bulbs
F: Wedge base bulbs (clear)
G: Double end bulbs
9005
Ty p e
WBulb No.Light bulbs
Headlights (high beam)
Headlights (low beam)
Front fog lights
Parking and front side marker lights
Front turn signal lights
Rear turn signal lights
Back −up lights
License plate lights
High mounted stoplight
Interior light
Personal lights
Vanity lights
Door courtesy lights
Glove box light
Luggage compartment light
Running board lights —
9006 168
—
—
—
—
921
—
—
— —
921
168
1156NA 60
55
51
5
27
21
18 5
18 8
5
3
3.8
1.2 8
3.8 A
B
C
D E
D F
F
F
G F
G
F
F
G F

’06 4Runner_U (L/O 0508)
440

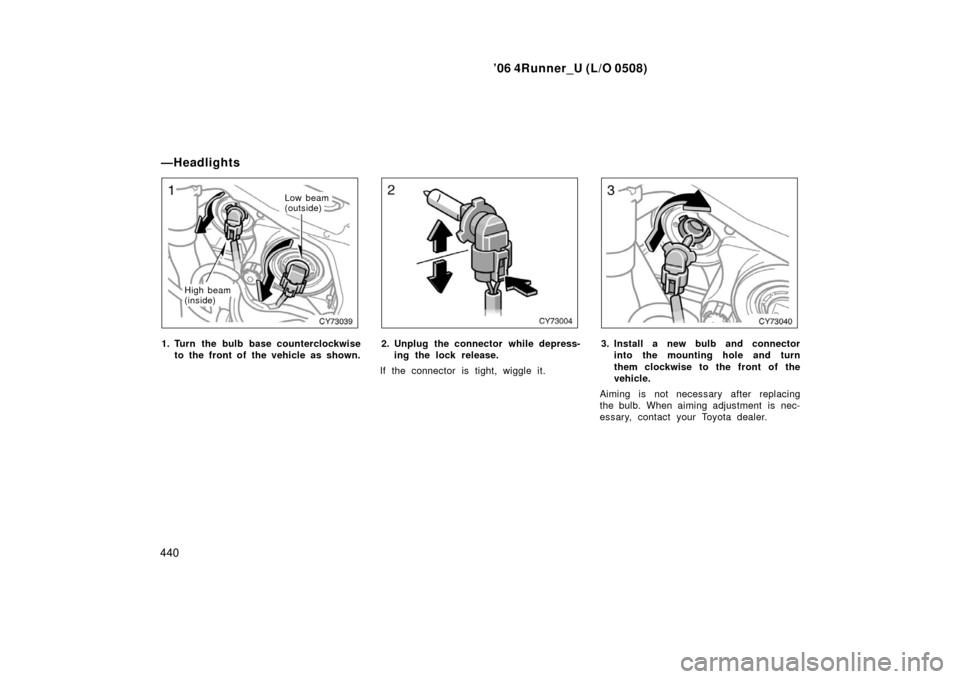

Low beam
(outside)
High beam
(inside)
1. Turn the bulb base counterclockwise to the front of the vehicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole and turn
them clockwise to the front of the
vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’06 4Runner_U (L/O 0508)
441

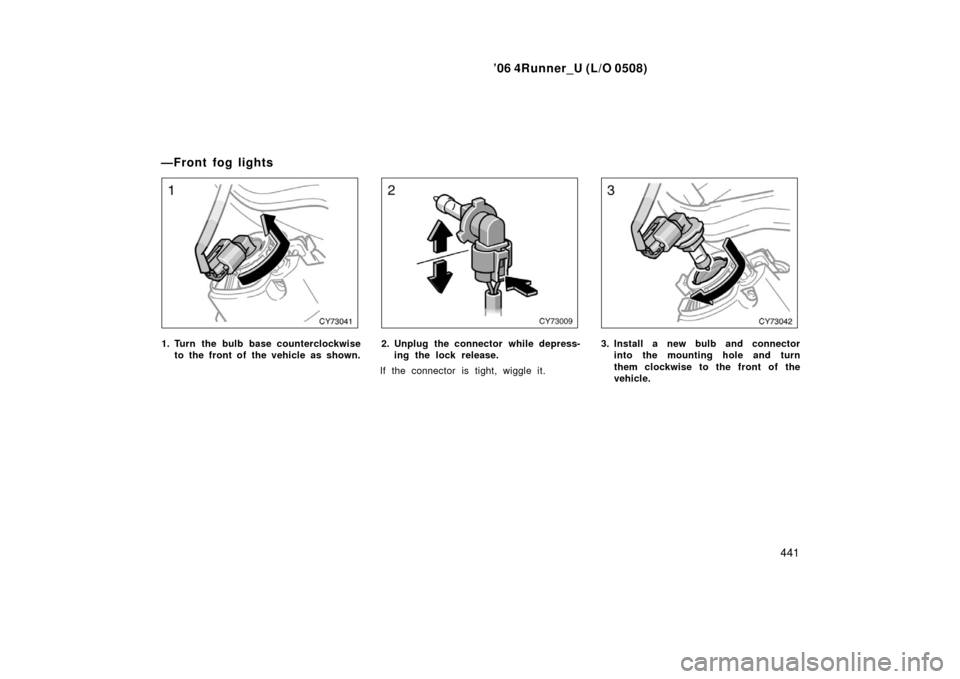

1. Turn the bulb base counterclockwise
to the front of the vehicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole and turn
them clockwise to the front of the
vehicle.
—Front fog lights

’06 4Runner_U (L/O 0508)
442
Use a flathead screwdriver which is
wrapped with a cloth.
—Parking and front side
marker lights —Front turn signal lights—Rear turn signal and
backup lights

’06 4Runner_U (L/O 0508)
443

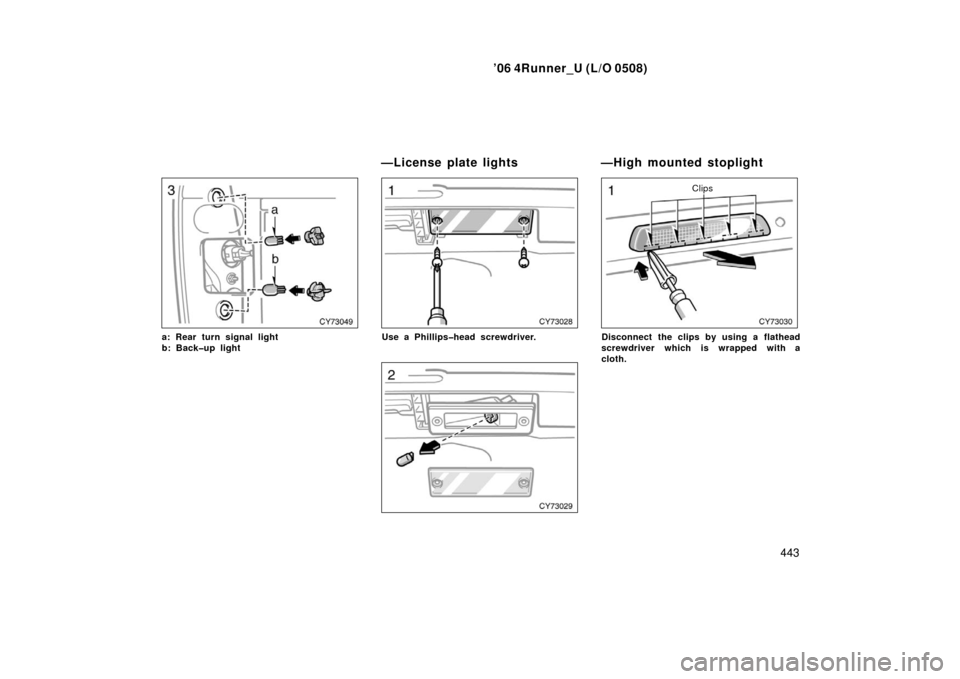

a: Rear turn signal light
b: Backup lightUse a Phillipshead screwdriver.
Clips
Disconnect the clips by using a flathead
screwdriver which is wrapped with a
cloth.

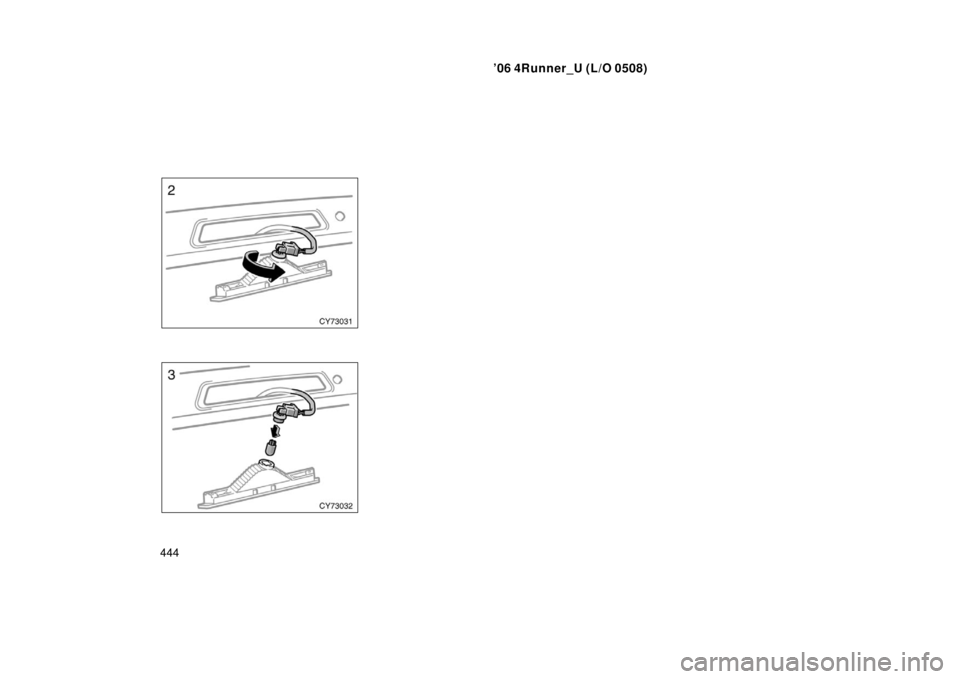

—License plate lights —High mounted stoplight

’06 4Runner_U (L/O 0508)
444

’06 4Runner_U (L/O 0508)
445
SPECIFICATIONS
Specifications
Dimensions and weights 446
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 447
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 447
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 447
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 451
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 452
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’06 4Runner_U (L/O 0508)
446
Towing capacity (trailer weight + cargo
weight), kg (lb.):
For weight carrying hitch 2268 (5000)
Also for weight distributing hitch
(4.7 L V8 [2UZ −FE] engine only)
Tw o −wheel drive models
3311 (7300)
Four −wheel drive models
3175 (7000)
Dimensions and weights
Overall width mm (in.)
2790 (109.8)
Overall height
∗
1mm (in.)
1575 (62.0)
Wheelbase mm (in.)
Front tread mm (in.) 1575 (62.0)
Rear tread mm (in.)
431 (950)
∗7
476 (1050)∗8
∗1: Unladen vehicle∗2:Two −wheel drive models∗
3: Four −wheel drive models∗
4: With roof rails∗5: With rear spoiler∗6: With rear height control air suspension∗7: With 5 occupants∗8: With 7 occupantsOverall length mm (in.)
Vehicle capacity weight (occupants + luggage)
kg (lb.)4805 (189.2)
1910 (75.2)
1820 (71.7)
∗
2or3,4
1800 (70.9)∗2, 3, 5
1755 (69.1)∗2, 3
1805 (71.1)∗2 or 3,4,6
1785 (70.3)∗2 or 3,5,6
1740 (68.5)∗2or3,6
91 (200)∗7
0(0)∗8Luggage compartment load capacity kg (lb.)
