2006 TOYOTA 4RUNNER Owners Manual

’06 4Runner_U (L/O 0508)
199
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference 200
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 201
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 229
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
AUX adapter 230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear seat entertainment system 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 270
. . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

’06 4Runner_U (L/O 0508)
200

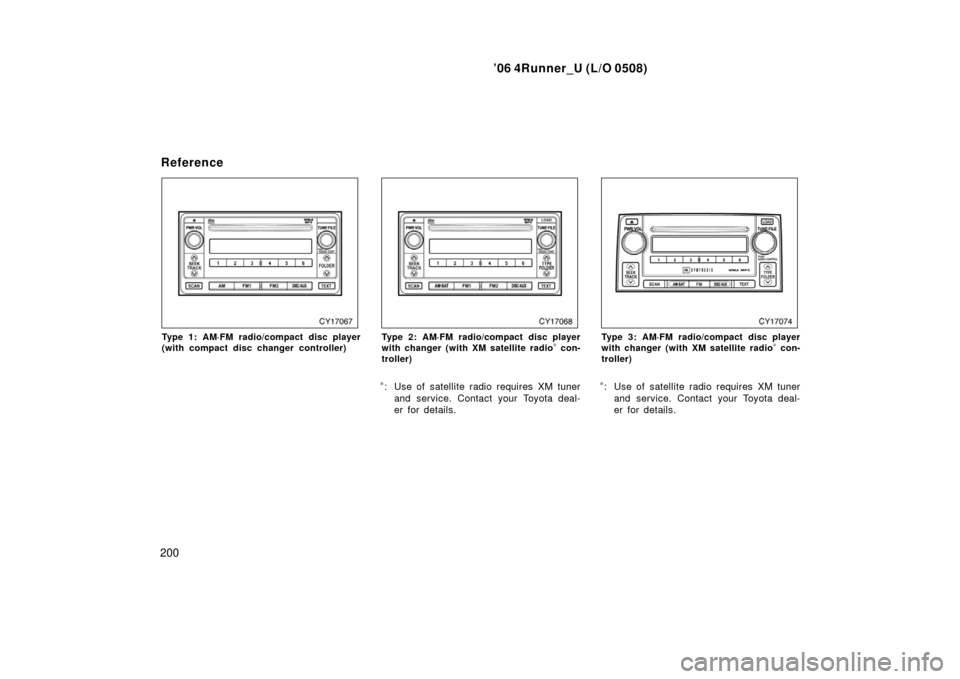

Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)Type 2: AM·FM radio/compact disc player
with changer (with XM satellite radio∗ con-
troller)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
Type 3: AM·FM radio/compact disc player
with changer (with XM satellite radio∗ con-
troller)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
Reference

’06 4Runner_U (L/O 0508)
201
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM1”, “FM2”, “FM”,
“AM·SAT”∗
or “DISC·AUX” to turn on that function
without pushing “PWR·VOL”.
You can turn on the compact disc player
by inserting a compact disc.
You can turn off the compact disc player
by ejecting the compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the compact disc.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1”, “FM2”, “FM”,
“AM·SAT”∗
or “DISC·AUX” if the system is already on
but you want to switch from one function
to another.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
LISTENING TO THE XM SATELLITE
RADIO BROADCAST
∗ (type 2 and 3)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM satellite radio ser-
vice is also necessary.
How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states. How to subscribe:
You must enter into a separate service
agreement with the XM radio in order to
receive satellite broadcast programming in
the vehicle. Additional activation and ser-
vice subscription fees apply that are not
included in the purchase price of the ve-
hicle and optional digital satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to the
XM radio, visit XM on the web at
www.xmradio.com
or call an XM’s Listener
Care at (800) 852 −9696. The XM radio is
solely responsible for the quality, availabil-
ity and content of the satellite radio ser-
vices provided, which are subject to the
terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM satellite radio and are
subject to change.
Using your audio system—
—Some basics

’06 4Runner_U (L/O 0508)
202
Satellite tuner technology notice:
Toyota’s satellite radio t uners are awarded
Type Approval Certificates from XM Satel-
lite Radio Inc. as proof of compatibility
with the services offered by the XM satel-
lite radio.
Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE” knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel (000) alternates the
display between the radio ID and the spe-
cific radio ID code.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
SRS

Type 1 and 2 audio systems utilize SRS
FOCUS  and SRS TruBass  audio
enhancement technologies, under license
from SRS Labs, Inc., in all mode except
AM radio mode.
FOCUS , TruB as s , SRS andsymbol are trademarks of
S RS Labs , Inc .
FOCUS and TruBass technologies are incorporated under
license from SRS Labs, Inc.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass. Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear quarter window.NOTICE
Putting a film (especially a conductive
or metallic film) on the rear quarter
window will noticeably reduce the
sensitivity of the radio.

’06 4Runner_U (L/O 0508)
203
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The compact disc
player will play from track 1 through to
the end of the disc. Then it will play from
track 1 again.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2 and 3)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. This compact disc play-
er can store up to six discs. The player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.

’06 4Runner_U (L/O 0508)
204

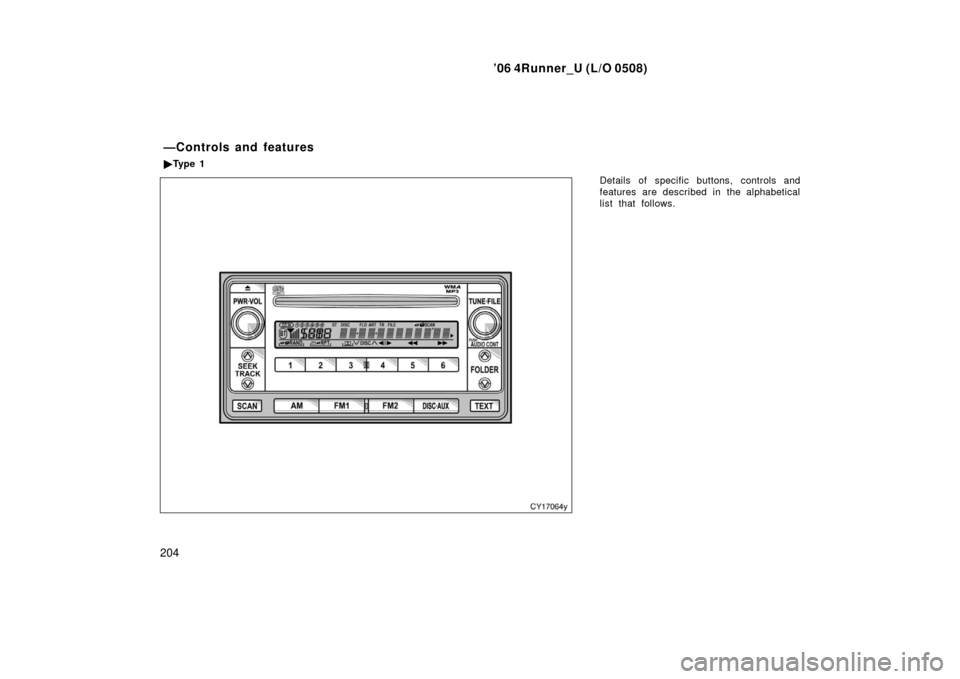

Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features
Ty p e 1

’06 4Runner_U (L/O 0508)
205
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE·FILE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast −forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONT (Tone and sound balance
controls)
Each time you push the “AUDIO CONT”
knob, the mode changes. To adjust the
tone and balance, turn the knob.
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7. Switching over the Speed Automatic
Sound Levelizer (ASL) level
ASL: The Automatic Sound Levelizer can
be turned on by turning the knob. In addi-
tion, turning the knob allows you to select
from LOW, MID, and HIGH volume and
tone settings. The ASL system automati-
cally adjusts volume and tone in accor-
dance with the driving speed. This helps
ensure an optimal listening experience
even if noise levels rise while driving.
DISC·AUX (Compact disc)
Push the “DISC·AUX” button to play a
compact disc.
When the audio system is set to compact
disc operation, the display shows the
track number currently being played.
Vehicles with AUX adapter—
To switch between CD, DVD, and AUX
(external device) modes, press the
“DISC·AUX” button. The AUX mode is only
available when AUX adapter is connected
to the system. When the AUX adapter is
in use, “AUX” will appear on the display.

’06 4Runner_U (L/O 0508)
206
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”: The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
the separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of the separate unit is open. Close the
compact disc changer lid.
If “NO MUSIC” appears on the display,
it indicates that a disc with no MP3/WMA
data has been inserted. Remove the disc
from the player and insert an MP3/WMA
data disc.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
DISC
With compact disc changer only—
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
FM1 FM2
Push the “FM1” or “FM2” button to turn on
the radio and select the FM band. “FM1”
or “FM2” will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each of the preset button.
FOLDER (Folder up/down)
To skip up or down to a different folder:
Push either side of the “FOLDER” several
times until the number of the folder you
want to listen to appears on the display.
To jump to the first file in the current
folder:
Push and hold the “ ” side of the button
until you hear a beep.
When playing a disc featuring both audio
data (CD −DA) and MP3/WMA files, audio
data (CD −DA) is played. PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random)
Compact disc player
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
