2006 SSANGYONG RODIUS Service Manual

0-3
SPECIAL SERVICE TOOLS
RODIUS 2007.07
0000-00
0000-00SPECIAL SERVICE TOOLS
1. ENGINE ASSEMBLY
Injector Puller
Y99220072BGlow Plug Wrench
Y99220132BFuel Pipe WrenchSealing Caps
665 995 5844
Valve
Remover/Installer
Y99220082BPulley Lock/Wrench
Y99220052BEngine Lock
602 589 00 40 00
Injector Copper
Washer Puller
Y99220022B
(1) D20DT Engine
1) COMPONENTS AND SPECIAL TOOLS

0-4
RODIUS 2007.07
0000-00
SPECIAL SERVICE TOOLS
Injector Puller Y99220072B Glow Plug Wrench
Y99220132B Fuel Pipe Wrench Sealing Caps
665 995 5844
Injector Copper Washer Puller
Y99220022B
Valve
Remover/Installer
Y99220082B Pulley Lock/Wrench
Y99220052B HP Pump Lock
Y99220102B
Engine Lock
602 589 00 40 00
HP Pump Bearing Puller
Y99220032B
(2) D27DT Engine

0-5
SPECIAL SERVICE TOOLS
RODIUS 2007.07
0000-00
Name and Part Number Application
Y99220092B
Compression pressure measuring
adapter and gauge
Y99220082B
Supporting bar and lever
Y99220162B
Guide pin extractor
Y99220112B
Intake manifold guide pin
2) Special Tools and Equipment

0-6
RODIUS 2007.07
0000-00
SPECIAL SERVICE TOOLS
Name and Part Number Application
Y99220152B
HLA remover
Y99220142B
Stem seal installer

0-7
SPECIAL SERVICE TOOLS
RODIUS 2007.07
0000-00
Name and Part Number Application
Y99220122B
Piston protrusion measuring jig
Y99220172B
Piston insertion jig

0-8
RODIUS 2007.07
0000-00
SPECIAL SERVICE TOOLS
Name and Part Number Application
Y99220112B
Intake manifold guide pinInstallation of intake manifold

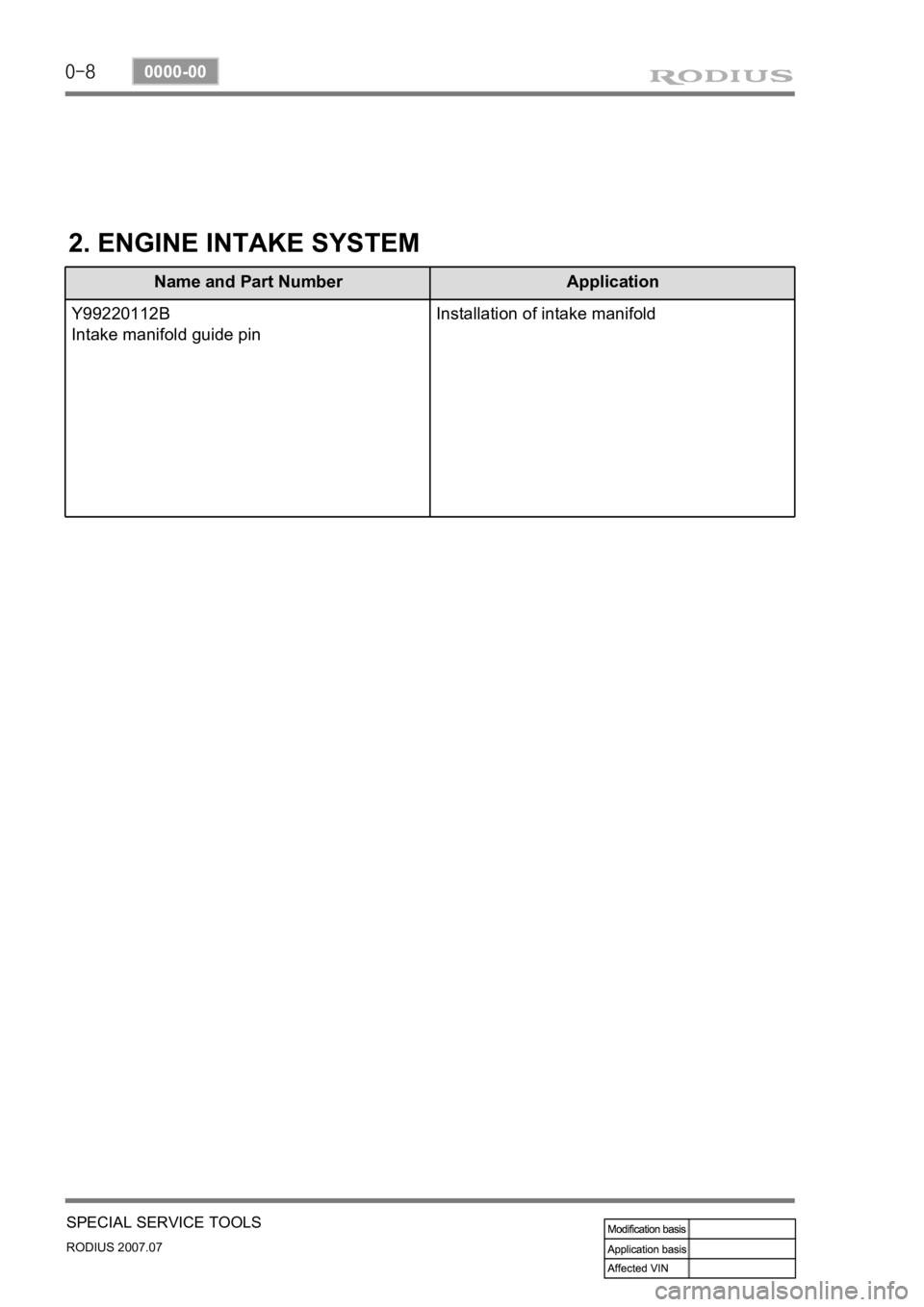

2. ENGINE INTAKE SYSTEM

0-9
SPECIAL SERVICE TOOLS
RODIUS 2007.07
0000-00
Name and Part Number Application
103 589 02 09 00
Engine filter cap
3. ENGINE LUBRICATION SYSTEM
1) SPECIAL TOOLS AND EQUIPMENT

0-10
RODIUS 2007.07
0000-00
SPECIAL SERVICE TOOLS
4. ENGINE COOLING
SYSTEM
1) SPECIAL TOOLS AND EQUIPMENT
