2006 SSANGYONG RODIUS Service Manual

0-6
RODIUS 2007.07
0000-00
WIPER/WASHER SYSTEM
3. COMPONETS LOCATOR OF REAR WIPER
ASSEMBLY
Rear wiper assembly
Rear wiper motor
Wiper blade assembly

0-7
WIPER/WASHER SYSTEM
RODIUS 2007.07
0000-00
4. CIRCUIT DIAGRAM OF WIPER & WASHER

0-3
TRANSFER CASE
RODIUS 2007.07
3410-01
3410-01PART TIME TRANSFER CASE
1. SPECIFICATIONS

0-4
RODIUS 2007.07
3410-01
TRANSFER CASE
1. PART TIME TRANSFER CASE OVERVIEW
By using the planetary gear sets, two-gears shift type part time transfer case achieves direct
connection when selecting 4WD “HIGH” and 2.48 of reduction gear ratio when selecting
4WD “LOW”.
The silent chain in transfer case transfers the output power to front wheels.
Simple operation of switches on instrument panel allows to shift to “2H”, “4H” and “4L”
easily while driving.
The warning lamp alarms the driver when the system is defective.

0-5
TRANSFER CASE
RODIUS 2007.07
3410-01
2. OPERATION
To make the mode shift easier, stop the
vehicle, depress the brake pedal, select
the mode switch, and move the selecto
r
lever with the sequence of [N-P-N]. -

0-6
RODIUS 2007.07
3410-01
TRANSFER CASE

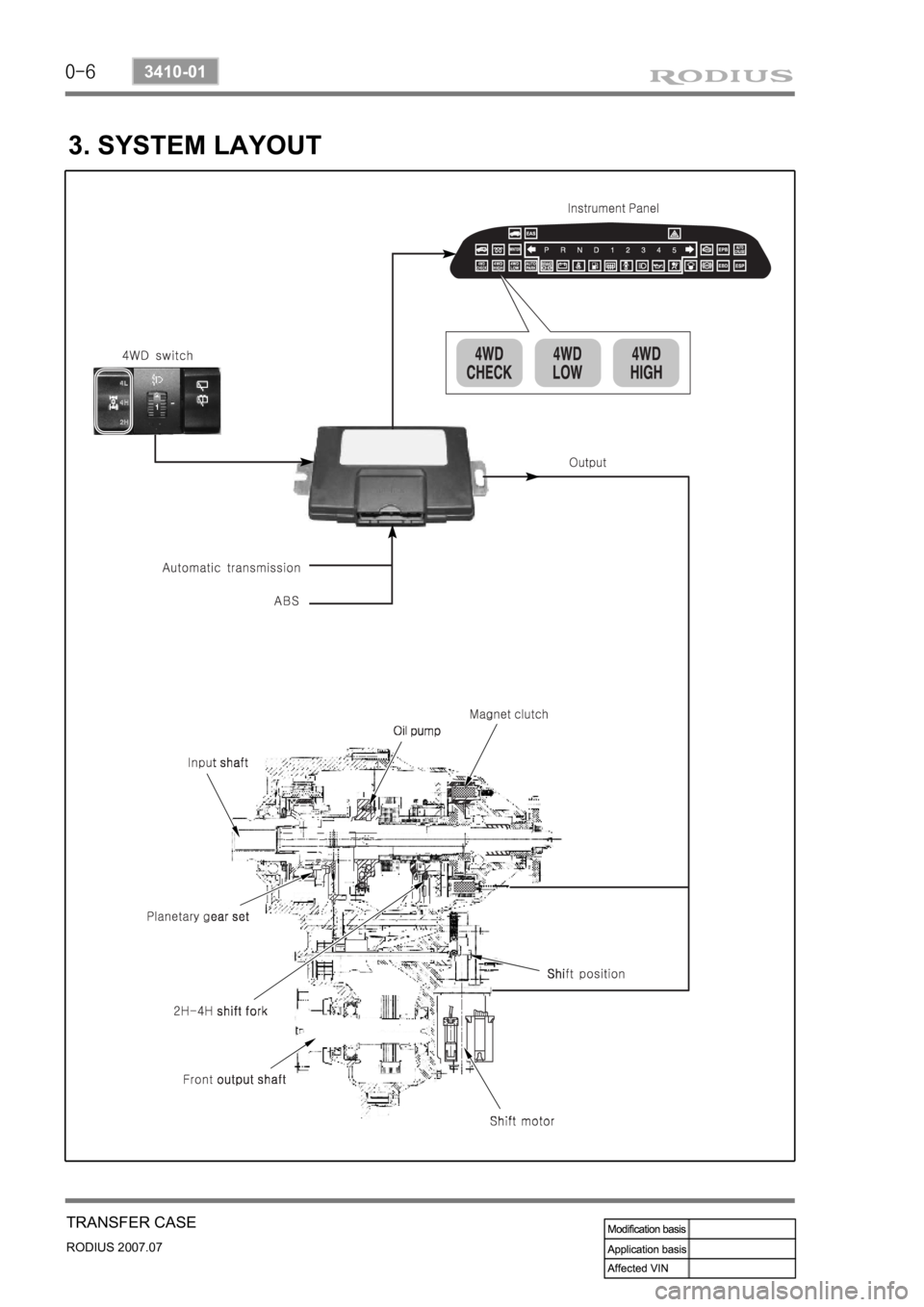

3. SYSTEM LAYOUT

0-7
TRANSFER CASE
RODIUS 2007.07
3410-01
4. SECTIONAL DIAGRAM

0-8
RODIUS 2007.07
3410-01
TRANSFER CASE
5. EXPLODED VIEW
