ground or four wheels on the ground
(forward or backward) as this may
cause serious and expensive damage
to the transmission.
If it is necessary to tow the vehicle
with the front wheels raised, always
use towing dollies under the rear
wheels.

When towing rear wheel drive mod-
els with the front wheels on the
ground or on towing dollies:
Turn the ignition key to the OFF po-
sition, and secure the steering wheel
in a straight ahead position with a
rope or similar device. Never secure
the steering wheel by turning the
ignition key to the LOCK position.
This may damage the steering lock
mechanism.
VEHICLE RECOVERY (Freeing a
stuck vehicle)Use the recovery hook by installing it in the front
of the vehicle. (The rear has no towing points.)
1. Remove the front license plate (if so
equipped).
2. Remove the recovery hook cover
1from the
bumper.
3. Securely install the recovery hook2
stored
with jacking tools.
Make sure that the hook is properly secured in
the stored place after use.
WARNING

Stand clear of a stuck vehicle.

Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat and
be damaged.
CAUTION

Tow chains or cables must be at-
tached only to the vehicle recovery
hooks or main structural members of
the vehicle. Otherwise, the vehicle
body will be damaged.

Do not use the vehicle tie downs to
free a vehicle stuck in sand, snow,
mud, etc. Never tow a vehicle using
the vehicle tie downs or recovery
hooks.

Always pull the cable straight out
from the front of the vehicle. Never
SCE0605
6-12
In case of emergency


06.1.17/Z33-D/V5.0

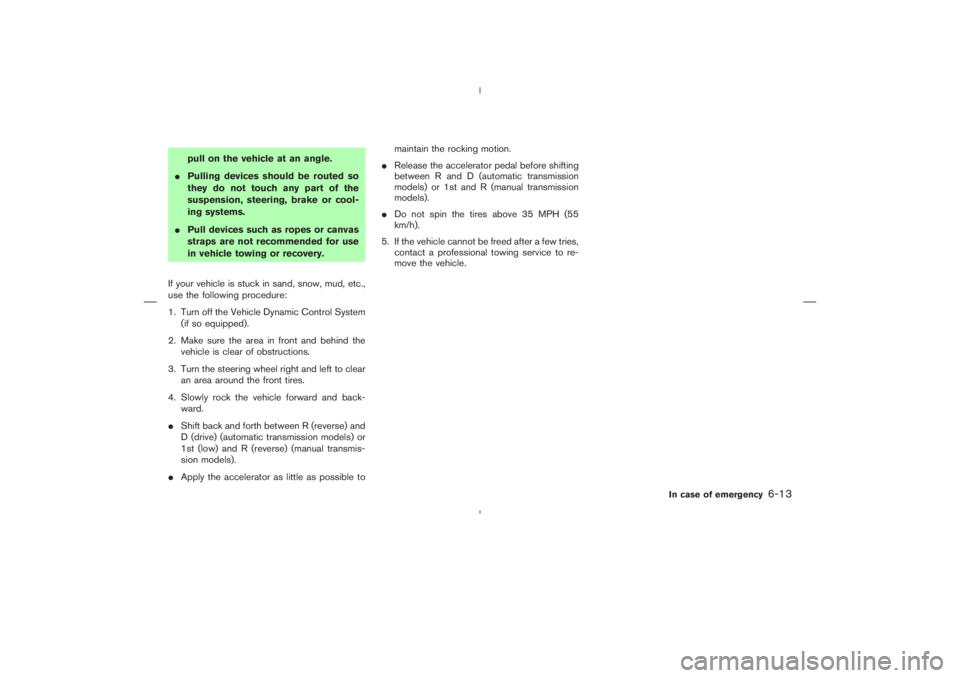

pull on the vehicle at an angle.

Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.

Pull devices such as ropes or canvas
straps are not recommended for use
in vehicle towing or recovery.
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control System
(if so equipped).
2. Make sure the area in front and behind the
vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear
an area around the front tires.
4. Slowly rock the vehicle forward and back-
ward.

Shift back and forth between R (reverse) and
D (drive) (automatic transmission models) or
1st (low) and R (reverse) (manual transmis-
sion models).

Apply the accelerator as little as possible tomaintain the rocking motion.

Release the accelerator pedal before shifting
between R and D (automatic transmission
models) or 1st and R (manual transmission
models).

Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries,
contact a professional towing service to re-
move the vehicle.
In case of emergency
6-13


06.1.17/Z33-D/V5.0


MEMO6-14
In case of emergency


06.1.17/Z33-D/V5.0

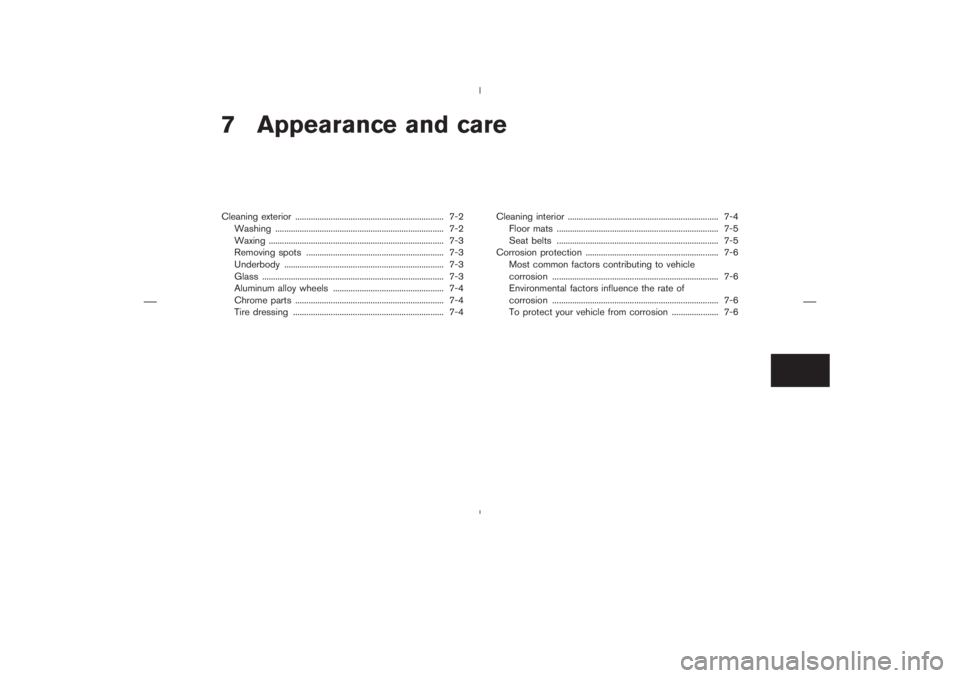

7 Appearance and careCleaning exterior ................................................................... 7-2
Washing ............................................................................ 7-2
Waxing ............................................................................... 7-3
Removing spots .............................................................. 7-3
Underbody ........................................................................ 7-3
Glass .................................................................................. 7-3
Aluminum alloy wheels .................................................. 7-4
Chrome parts ................................................................... 7-4
Tire dressing .................................................................... 7-4Cleaning interior .................................................................... 7-4
Floor mats ......................................................................... 7-5
Seat belts ......................................................................... 7-5
Corrosion protection ............................................................ 7-6
Most common factors contributing to vehicle
corrosion ........................................................................... 7-6
Environmental factors influence the rate of
corrosion ........................................................................... 7-6
To protect your vehicle from corrosion ..................... 7-6


06.1.17/Z33-D/V5.0


In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
In the following cases, please wash your vehicle
as soon as possible to protect the paint surface.

After a rainfall to prevent possible damage
from acid rain

After driving on coastal roads

When contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get on
the paint surface

When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGWash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or a
general purpose dish-washing liquid mixed with
clean, lukewarm (never hot) water.
CAUTION

Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.

Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.

Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.

For Roadster models, observe the
following:
•Do not use an automatic car wash
or a high pressure car wash. The
soft top may be damaged.
•Avoid applying direct water pres-
sure, such as high pressured water
from household hoses, on the lin-
ing of the soft top and vehicle
body. Avoid applying continuouswater on the parts around the soft
top and the windows. These may
cause water to leak into the inside of
your vehicle.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
Soft top care and cleaning (Roadster
models)Proper care and handling should be observed to
maintain a good appearance of the soft top.
Improper care may cause the top cloth’s surface
to stiffen, stain, or mat. Follow the instructions
shown in this section.
It is not necessary to wash the soft top every
time you wash the vehicle body, but clean the
CLEANING EXTERIOR7-2
Appearance and care


06.1.17/Z33-D/V5.0

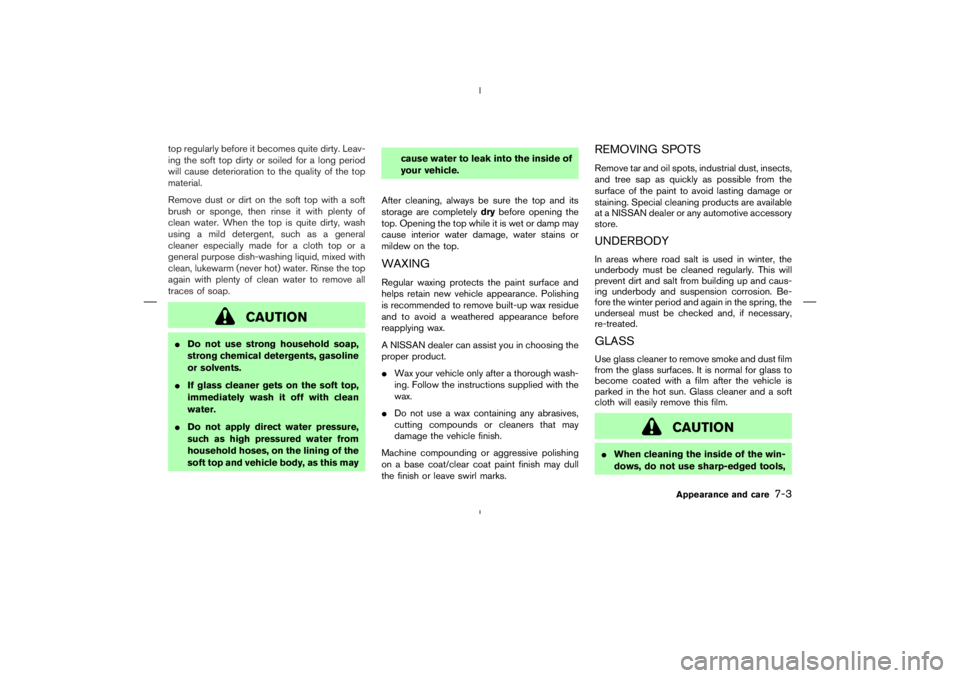

top regularly before it becomes quite dirty. Leav-
ing the soft top dirty or soiled for a long period
will cause deterioration to the quality of the top
material.
Remove dust or dirt on the soft top with a soft
brush or sponge, then rinse it with plenty of
clean water. When the top is quite dirty, wash
using a mild detergent, such as a general
cleaner especially made for a cloth top or a
general purpose dish-washing liquid, mixed with
clean, lukewarm (never hot) water. Rinse the top
again with plenty of clean water to remove all
traces of soap.
CAUTION

Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.

If glass cleaner gets on the soft top,
immediately wash it off with clean
water.

Do not apply direct water pressure,
such as high pressured water from
household hoses, on the lining of the
soft top and vehicle body, as this maycause water to leak into the inside of
your vehicle.
After cleaning, always be sure the top and its
storage are completelydrybefore opening the
top. Opening the top while it is wet or damp may
cause interior water damage, water stains or
mildew on the top.
WAXINGRegular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.

Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with the
wax.

Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
Machine compounding or aggressive polishing
on a base coat/clear coat paint finish may dull
the finish or leave swirl marks.
REMOVING SPOTSRemove tar and oil spots, industrial dust, insects,
and tree sap as quickly as possible from the
surface of the paint to avoid lasting damage or
staining. Special cleaning products are available
at a NISSAN dealer or any automotive accessory
store.UNDERBODYIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and caus-
ing underbody and suspension corrosion. Be-
fore the winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.GLASSUse glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION

When cleaning the inside of the win-
dows, do not use sharp-edged tools,
Appearance and care
7-3


06.1.17/Z33-D/V5.0

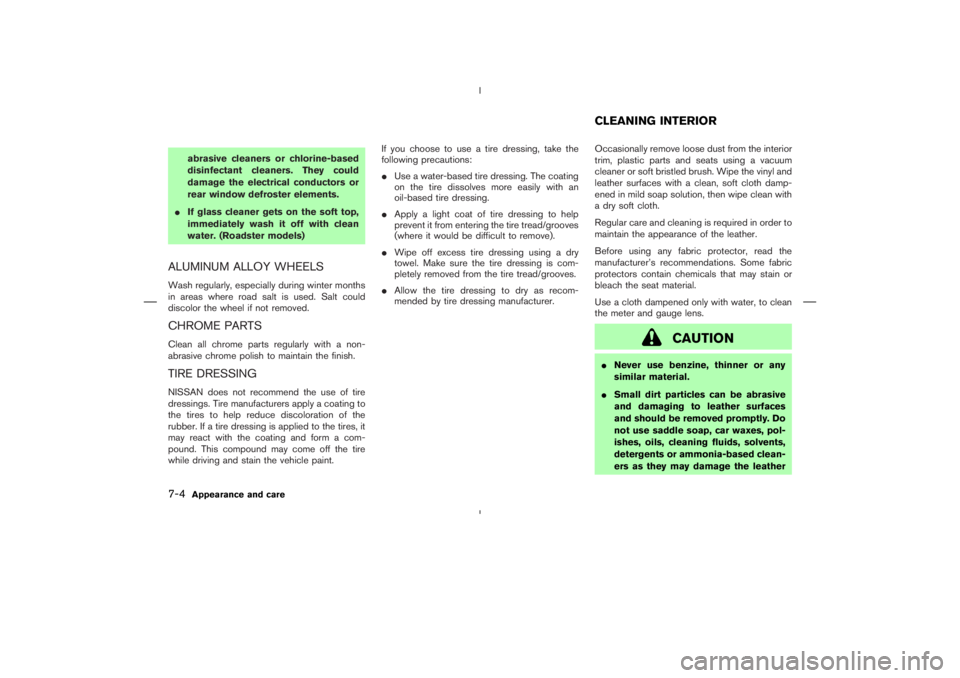

abrasive cleaners or chlorine-based
disinfectant cleaners. They could
damage the electrical conductors or
rear window defroster elements.

If glass cleaner gets on the soft top,
immediately wash it off with clean
water. (Roadster models)
ALUMINUM ALLOY WHEELSWash regularly, especially during winter months
in areas where road salt is used. Salt could
discolor the wheel if not removed.CHROME PARTSClean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.TIRE DRESSINGNISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.If you choose to use a tire dressing, take the
following precautions:

Use a water-based tire dressing. The coating
on the tire dissolves more easily with an
oil-based tire dressing.

Apply a light coat of tire dressing to help
prevent it from entering the tire tread/grooves
(where it would be difficult to remove).

Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is com-
pletely removed from the tire tread/grooves.

Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth damp-
ened in mild soap solution, then wipe clean with
a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
CAUTION

Never use benzine, thinner or any
similar material.

Small dirt particles can be abrasive
and damaging to leather surfaces
and should be removed promptly. Do
not use saddle soap, car waxes, pol-
ishes, oils, cleaning fluids, solvents,
detergents or ammonia-based clean-
ers as they may damage the leatherCLEANING INTERIOR
7-4
Appearance and care


06.1.17/Z33-D/V5.0


natural finish.

Never use fabric protectors unless
recommended by the manufacturer.

Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
FLOOR MATSThe use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior.No matter what
mats are used, be sure they are fitted for
your vehicle and are properly positioned in
the footwell to prevent interference with
pedal operation.Mats should be maintained
with regular cleaning and replaced if they be-
come excessively worn.
Floor mat positioning aid
(driver’s side only)This model includes a front floor mat bracket to
act as a floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The driver’s side floor mat has a
grommet hole incorporated in it. Simply position
the mat by placing the floor mat bracket through
the floor mat grommet hole while centering the
mat in the floorpan contour.
Periodically check to make certain that the mats
are properly positioned.
SEAT BELTSThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely before using
them. See “Seat belt maintenance” in the “1.
Safety — Seats, seat belts and supplemental
restraint system” section.
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye or
chemical solvents to clean the seat
belts, since these may severely weaken
the seat belt webbing.
SAI0012
Appearance and care
7-5


06.1.17/Z33-D/V5.0
