2006 NISSAN 350Z Owner´s Manual

WARNING

The VDC system is designed to help
improve driving stability but does not
prevent accidents due to abrupt
steering operation at high speeds or
due to careless or dangerous driving
techniques. Reduce vehicle speed
and be especially careful when driv-
ing and cornering on slippery sur-
faces and always drive carefully.

If engine related parts such as a muf-
fler are not standard equipment or
are extremely deteriorated, the “VDC
OFF” indicator or “SLIP” indicator or
both indicator lights may illuminate.

Do not modify the vehicle’s suspen-
sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars and bushings are not
NISSAN-approved or are extremely
deteriorated the VDC system may not
operate properly. This could ad-
versely affect vehicle handling per-
formance, and the “VDC OFF” indica-tor or “SLIP” indicator or both indica-
tor lights may illuminate.

If brake related parts such as brake
pads, rotors and calipers are not
standard equipment or are extremely
deteriorated, the “VDC OFF” indica-
tor or “SLIP” indicator or both indica-
tor lights may illuminate.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the VDC system may not oper-
ate properly and the “VDC OFF” indi-
cator or “SLIP” indicator or both
indicator lights may illuminate. Do
not drive on these types of roads.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the “VDC OFF” indicator or
“SLIP” indicator or both indicator
lights may illuminate. This is not a
malfunction. Restart the engine after
driving onto a stable surface.

If wheels or tires other than those
recommended are used, the VDC sys-tem may not operate properly and the
“VDC OFF” indicator or “SLIP” indi-
cator or both indicator lights may
illuminate.

The VDC system is not a substitute
for winter tires or tire chains on a
snow-covered road.5-24
Starting and driving


06.1.17/Z33-D/V5.0


FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
deicer or glycerin to it through the key hole. If the
lock becomes frozen, heat the key before insert-
ing it into the key hole.ANTI-FREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
anti-freeze to assure proper winter protection.
For additional information, see “Engine Cooling
System” in the “8. Maintenance and do-it-
yourself” section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For additional information,
see “Battery” in the “8. Maintenance and do-it-
yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain plug located under the radiator. Refill
before operating the vehicle. See “Engine cool-
ing system” in the “8. Maintenance and do-it-
yourself” section for changing engine coolant.
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Consult a NISSAN
dealer for the tire type, size, speed rating and
availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some provinces
and states prohibit their use. Check local,
state and provincial laws before installing
studded tires.
Skid and traction capabilities of stud-
ded snow tires, on wet or dry surfaces,
may be poorer than that of non-studded
snow tires.
3. Tire chains may be used.
CAUTION
Tire chains/cables cannot be installed
on 265/35R19 size tires. Installation of
the tire chains/cables on 265/35R19size tires will cause damage to the ve-
hicle. If you plan to use tire
chains/cables, you should install
245/45R18 size tires on your vehicle.
Use of tire chains may be prohibited according
to location. Check the local laws before installing
tire chains. When installing tire chains, make
sure they are of proper size for the tires on your
vehicle and are installed according to the chain
manufacturer’s suggestions.Use only SAE
Class S chains.Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables). The minimum
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to ensure
a tight fit. Loose end links of the tire chain must
be secured or removed to prevent the possibility
of whipping action damage to the fenders or
underbody. If possible, avoid fully loading your
vehicle when using tire chains. In addition, drive
at a reduced speed. Otherwise, your vehicle may
COLD WEATHER DRIVING
Starting and driving
5-25


06.1.17/Z33-D/V5.0


be damaged and/or vehicle handling and perfor-
mance may be adversely affected.

Never install the tire chains on a T-type
spare tire.

Do not use the tire chains on dry roads.

Tire chains must be installed only on the
rear wheels and not on the front wheels.SPECIAL WINTER EQUIPMENTIt is recommended that the following items be
carried in the vehicle during winter:

a scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.

a sturdy, flat board to be placed under the
jack to give it firm support.

a shovel to dig the vehicle out of snow-drifts.

extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING

Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” un-
der these conditions. Try to avoid
driving on wet ice until the road is
salted or sanded.

Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction.

Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.

Allow greater following distances on
slippery roads.

Watch for slippery spots (glare ice).
These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake beforereaching it. Try not to brake while on
the ice, and avoid any sudden steer-
ing maneuvers.

Do not use cruise control on slippery
roads.

Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)An engine block heater to assist extreme cold
temperature starting is available through a
NISSAN dealer.
WARNING
Do not use your heater with an un-
grounded electrical system or two-
pronged (cheater) adapters. You can be
injured by an electrical shock if you use
an ungrounded connection.
5-26
Starting and driving


06.1.17/Z33-D/V5.0


MEMO
Starting and driving
5-27


06.1.17/Z33-D/V5.0


MEMO5-28
Starting and driving


06.1.17/Z33-D/V5.0

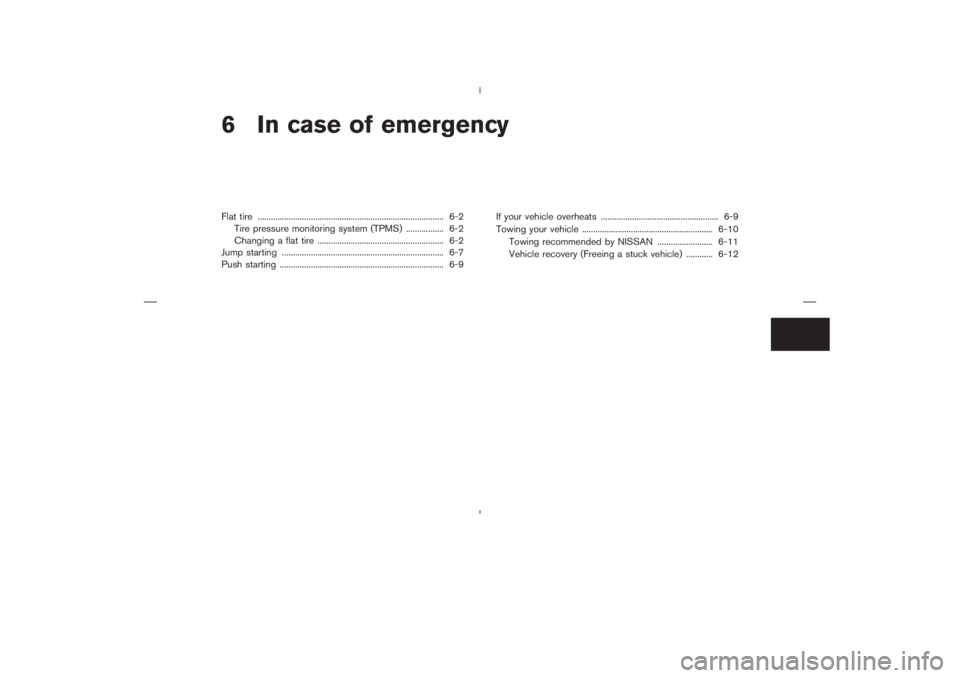

6 In case of emergencyFlat tire .................................................................................... 6-2
Tire pressure monitoring system (TPMS) ................. 6-2
Changing a flat tire ......................................................... 6-2
Jump starting ......................................................................... 6-7
Push starting .......................................................................... 6-9If your vehicle overheats ..................................................... 6-9
Towing your vehicle ........................................................... 6-10
Towing recommended by NISSAN ......................... 6-11
Vehicle recovery (Freeing a stuck vehicle) ............ 6-12


06.1.17/Z33-D/V5.0


TIRE PRESSURE MONITORING
SYSTEM (TPMS)This vehicle is equipped with the tire pressure
monitoring system (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit, one or more of
your tires is significantly under-inflated. The sys-
tem also displays pressure of all tires (except the
spare tire) on the trip computer by sending a
signal from a sensor that is installed in each
wheel. If the vehicle is being driven with low tire
pressure, the TPMS will activate and warn you of
it by the low tire pressure warning light (in the
meter panel) or the PSI indicator (on the trip
computer). This system will activate only when
the vehicle is driven at speeds above 16 MPH
(25 km/h). For more details, refer to “Trip com-
puter” and “Warning/indicator lights and audible
reminders” in the “2. Instruments and controls”
section and “Tire pressure monitoring system
(TPMS)” in the “5. Starting and driving” section.
WARNING

If the low tire pressure warning light
illuminates and/or the PSI indicator
flashes while driving, avoid sudden
steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the
road to a safe location and stop the
vehicle as soon as possible. Serious
vehicle damage could occur and may
lead to an accident and could result
in serious personal injury. Check the
tire pressure for all four tires. Adjust
the tire pressure to the recom-
mended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If you have a flat
tire, replace it with a spare tire as
soon as possible.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash. Contact yourNISSAN dealer as soon as possible
for tire replacement and/or system
resetting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking
brake. Shift the manual transmission into R
(Reverse) position (automatic transmission in
P (Park) position).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to
FLAT TIRE6-2
In case of emergency


06.1.17/Z33-D/V5.0


signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle
and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING

Make sure the parking brake is se-
curely applied and the manual trans-
mission is shifted into R (Reverse), or
the automatic transmission into P
(Park).

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

Never change tires if oncoming traffic
is close to your vehicle. Wait for pro-
fessional road assistance.
Blocking wheelsPlace suitable blocks
1
at both the front and
back of the wheel diagonally opposite the flat tire
to prevent the vehicle from moving when it
is jacked up.
WARNING
Be sure to block the wheel as the ve-
hicle may move and result in personal
injury.
Getting the spare tire and toolsRemove spare tire and jacking tools from the
storage area located in the luggage/trunk as
illustrated.
Coupe models:
1. Spare tire — Turn the retainer counterclock-
wise to remove.
2. Jack — Turn it counterclockwise to remove.
3. Jacking tools
MCE0001A
SCE0409
Coupe modelsIn case of emergency
6-3


06.1.17/Z33-D/V5.0
