2006 NISSAN 350Z Owner´s Manual

3. Close and lock all doors and rear hatch/trunk
lid.
Lock all doors by using the key or the keyfob.
When using the keyfob, the hazard indicators
flash twice to indicate all doors are locked.
4. Confirm that the security indicator light
comes on. The security indicator light glows
for about 30 seconds and then blinks. The
system is now activated. If, during this 30
second time period, the door is unlocked by
the key or the keyfob, or the ignition key is
turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and rear hatch/trunk lid
locked and ignition key off. Turn the igni-
tion key to ACC to turn the system off.Vehicle security system activationThe security system will give the following alarm:

The headlights blink and the horn sounds
intermittently.

The alarm automatically turns off after ap-
proximately 50 seconds. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlocking
a door with the key, or by pushing theUNLOCK
button on the keyfob.
The alarm is activated by:

Opening the door without using the key or
keyfob.

Opening the rear hatch or the trunk lid with-
out using the keyfob.
How to stop an activated alarmThe alarm will stop only by unlocking a door with
the key, or by pushing the UNLOCK
but-
ton on keyfob. The alarm will not stop if the
ignition key is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using the registered key
(for example, when interference is caused by
another registered key, an automated toll road
device or automated payment device on the key
ring), restart the engine using the following
procedures:1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
key on a separate key ring to avoid interfer-
ence from other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE PARTY RE-
2-20
Instruments and controls


06.1.17/Z33-D/V5.0


SPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER-
ATE THE EQUIPMENT.
Security indicator lightThis light
Ablinks whenever the ignition switch
is in the LOCK, OFF or ACC position. This
function indicates the security system equipped
on the vehicle is operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System
service as soon as possible. Bring all reg-
istered keys that you have when visiting aNISSAN dealer for service.
SIC1699A
Instruments and controls
2-21


06.1.17/Z33-D/V5.0


The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent (INT) — intermittent operation
can be adjusted by turning the knob towardA
(Slower) or
B
(Faster).
The intermittent operation speed varies in
accordance with the vehicle speed. (For
example, when the vehicle speed is high, the
intermittent operation speed will be faster.)
2Low (LO) — continuous low speed operation
3High (HI) — continuous high speed operationPush the lever up
4
to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you5
to operate the
washer. Then the wiper will also operate several
times.
WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.

Do not fill the window washer reser-
voir tank with washer fluid concen-
trates at full strength. Some methylalcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.

Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
SIC2998
WINDSHIELD WIPER AND
WASHER SWITCH2-22
Instruments and controls


06.1.17/Z33-D/V5.0


The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
and obscure your vision. Warm the rear
window with the defroster before you
wash the rear window.
CAUTION

If the rear window wiper operation is
interrupted by snow or ice, the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow or ice on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.

Do not fill the window washer reser-voir tank with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.

Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
SIC2999
REAR WINDOW WIPER AND
WASHER SWITCH (Coupe
models)
Instruments and controls
2-23


06.1.17/Z33-D/V5.0


To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch on. The indicator light
A
will come on.
Push the switch again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION

When cleaning the inner side of the
rear window, be careful not to scratch
or damage the rear window de-froster.

Do not use the rear window defroster
switch while the soft top is being
operated or fully opened. The heat
may damage the top material and/or
components. (for Roadster models)
XENON HEADLIGHTS
WARNINGHIGH VOLTAGE

When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.

Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
SIC3000
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHHEADLIGHT AND TURN SIGNAL
SWITCH2-24
Instruments and controls


06.1.17/Z33-D/V5.0

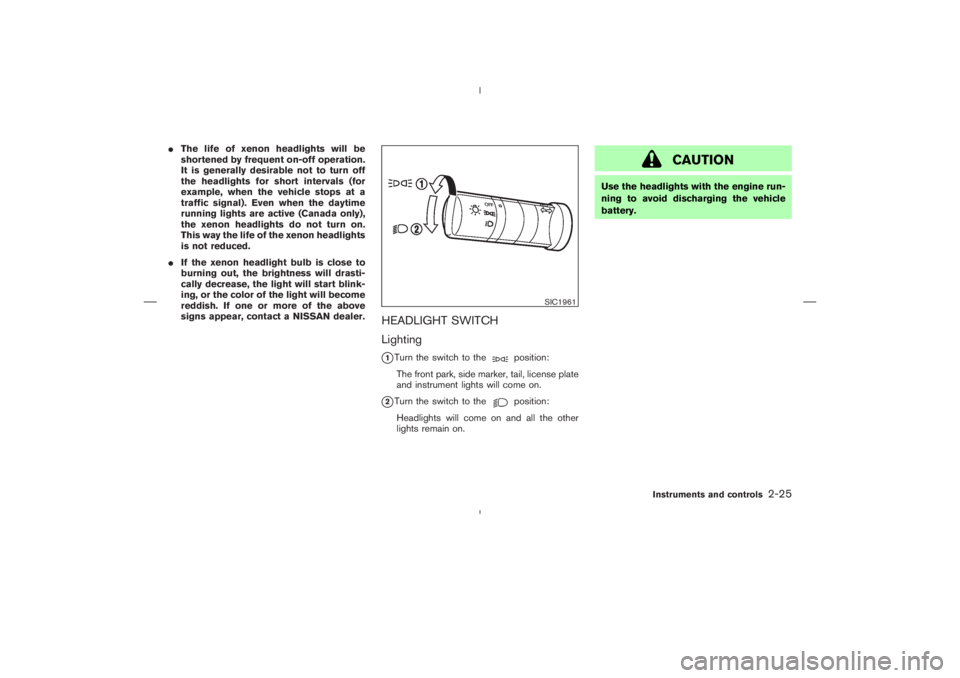

The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.

If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact a NISSAN dealer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to the
position:
The front park, side marker, tail, license plate
and instrument lights will come on.
2Turn the switch to the
position:
Headlights will come on and all the other
lights remain on.
CAUTION
Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.
SIC1961
Instruments and controls
2-25


06.1.17/Z33-D/V5.0


Headlight beam select
1To select the high beam, push the lever
forward. The high beam lights come on and
the high beam indicator light
illumi-
nates.
2Pull the lever back to select the low beam.
3Pulling the lever toward you will flash the
headlight high beam.
Battery saver system
When the headlight switch is in the
or
position while the ignition switch is in
the ON position, the lights will automaticallyturn off 5 minutes after the ignition switch has
been turned to the OFF position.

After the headlights automatically turn off with
the headlight switch in the
or
po-
sition, the headlights will illuminate again for 5
minutes if the headlight switch is turned to
the OFF position and then turned to the
or
position.CAUTION
Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging the vehicle battery.DAYTIME RUNNING LIGHT SYSTEM
(Canada only)The headlights automatically illuminate at a re-
duced intensity when the engine is started with
the parking brake released. The daytime running
lights operate with the headlight switch in the
OFF position or in the
position. Turn the
headlight switch to theposition for full
illumination when driving at night.If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is turned off.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC1962A
2-26
Instruments and controls


06.1.17/Z33-D/V5.0


TURN SIGNAL SWITCH1
Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.2
Lane change signal
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
INSTRUMENT BRIGHTNESS
CONTROLThe instrument brightness control operates
when the light switch is in the
or
position and the ignition switch is in the
ON position.
To adjust the brightness of instrument panel
lights, press the control switches located on the
left side of the meter panel. Pressing the upper
switchA
will brighten the lights. The lower
switch
B
will dim the lights. Repeatedly press-
ing the lower switch will turn the lights off.Push the switch (located on the front part of the
center console) on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
Some state or provincial laws may prohibit
the use of the hazard warning flasher
switch while driving.
WARNING

If stopping for an emergency, be sure
to move the vehicle well off the road.
SIC1963
SIC3001
SIC2475
HAZARD WARNING FLASHER
SWITCH
Instruments and controls
2-27


06.1.17/Z33-D/V5.0
