2006 NISSAN 350Z Owner´s Manual

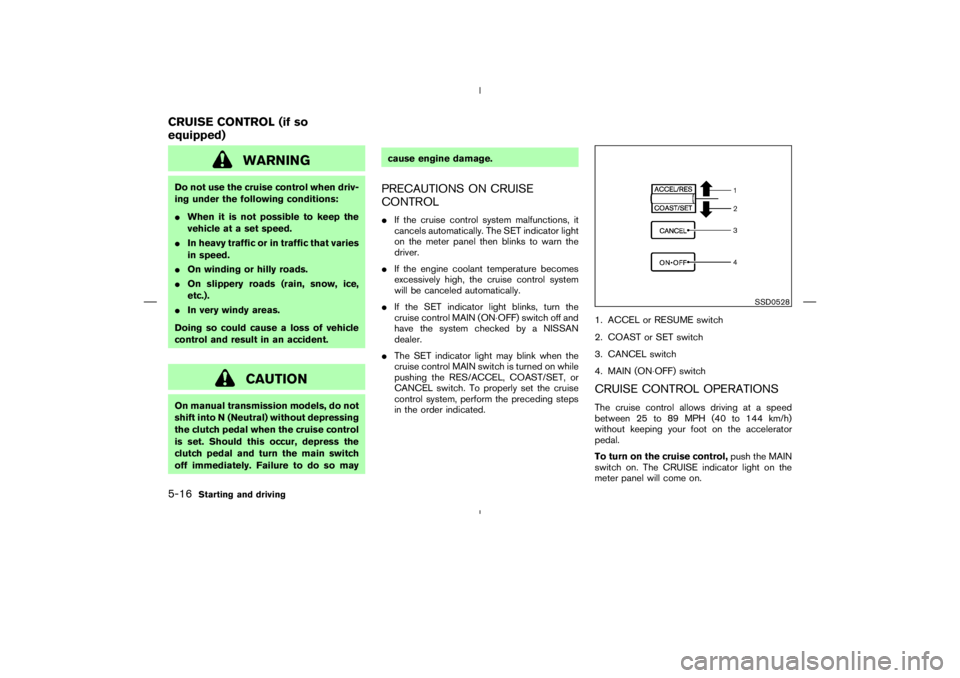

WARNING
Do not use the cruise control when driv-
ing under the following conditions:

When it is not possible to keep the
vehicle at a set speed.

In heavy traffic or in traffic that varies
in speed.

On winding or hilly roads.

On slippery roads (rain, snow, ice,
etc.).

In very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.
CAUTION
On manual transmission models, do not
shift into N(Neutral) without depressing
the clutch pedal when the cruise control
is set. Should this occur, depress the
clutch pedal and turn the main switch
off immediately. Failure to do so maycause engine damage.
PRECAUTIONS ON CRUISE
CONTROL
If the cruise control system malfunctions, it
cancels automatically. The SET indicator light
on the meter panel then blinks to warn the
driver.

If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.

If the SET indicator light blinks, turn the
cruise control MAIN (ON⋅OFF) switch off and
have the system checked by a NISSAN
dealer.

The SET indicator light may blink when the
cruise control MAIN switch is turned on while
pushing the RES/ACCEL, COAST/SET, or
CANCEL switch. To properly set the cruise
control system, perform the preceding steps
in the order indicated.1. ACCEL or RESUME switch
2. COAST or SET switch
3. CANCEL switch
4. MAIN (ON⋅OFF) switch
CRUISE CONTROL OPERATIONSThe cruise control allows driving at a speed
between 25 to 89 MPH (40 to 144 km/h)
without keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the MAIN
switch on. The CRUISE indicator light on the
meter panel will come on.
SSD0528
CRUISE CONTROL (if so
equipped)5-16
Starting and driving


06.1.17/Z33-D/V5.0


To set cruising speed,accelerate the vehicle
to the desired speed, push the COAST/SET
switch and release it. (The SET indicator light
will come on.) Take your foot off the accelerator
pedal. Your vehicle will maintain the set speed.

To pass another vehicle,depress the ac-
celerator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.

The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed,use one of the
following three methods:
a) Push the CANCEL switch; The SET indicator
light will go out.
b) Tap the brake pedal; The SET indicator light
will go out.
c) Turn the MAIN switch off. Both the CRUISE
indicator and SET indicator lights will go out.

If you depress the brake pedal while pushing
the ACCEL/RES set switch and reset at the
cruising speed, turn the MAIN switch off
once and then turn it on again.

The cruise control will automatically be can-
celled if the vehicle slows down more thanapproximately 8 MPH (13 km/h) below the
set speed.

If you depress the clutch pedal (manual trans-
mission) or move the selector lever to N
(Neutral) position (automatic transmission),
the cruise control will be canceled.
To reset at a faster cruising speed,use one
of the following three methods:
a) Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
b) Push and hold the ACCEL/RES set switch.
When the vehicle attains the speed you
desire, release the switch.
c) Push, then quickly release the ACCEL/RES
set switch. Each time you do this, the set
speed will increase by about 1 MPH (1.6
km/h).
To reset at a slower cruising speed,use one
of the following three methods:
a) Lightly tap the brake pedal. When the vehicle
attains the desired speed, push the
COAST/SET switch and release it.
b) Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows
down to the desired speed.c) Push, then quickly release the COAST/
SET switch. Each time you do this, the set
speed will decrease by about 1 MPH (1.6
km/h).
To resume the preset speed,push and re-
lease the ACCEL/RES set switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Starting and driving
5-17


06.1.17/Z33-D/V5.0


CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and
economy of your new vehicle. Failure to
follow these recommendations may re-
sult in shortened engine life and re-
duced engine performance.

Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.

Do not accelerate at full throttle in any gear.

Avoid quick starts.

Avoid hard braking as much as possible.

Do not tow a trailer for the first 500 miles
(800 km).
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.

Drive at moderate speeds on the highway.
Driving at high speed will lower fuel economy.

Avoid unnecessary stopping and braking.
Maintain a safe distance behind other ve-
hicles.

Use a proper gear range which suits road
conditions. On level roads, shift into high gear
as soon as possible.

Avoid unnecessary engine idling.

Keep your engine tuned up.

Follow the recommended periodic mainte-
nance schedule.

Keep the tires inflated to the correct pres-
sure. Low tire pressure will increase tire wear
and lower fuel economy.

Keep the front wheels in correct alignment.
Improper alignment will increase tire wear
and lower fuel economy.

Air conditioner operation lowers fuel
economy. Use the air conditioner only when
necessary.

When cruising at highway speeds, it is more
economical to use the air conditioner andleave the windows closed to reduce drag.

Use the recommended viscosity engine oil.
See “Engine oil and oil filter recommenda-
tion” in the “9. Technical and consumer infor-
mation” section.BREAK-IN SCHEDULE INCREASING FUEL ECONOMY5-18
Starting and driving


06.1.17/Z33-D/V5.0

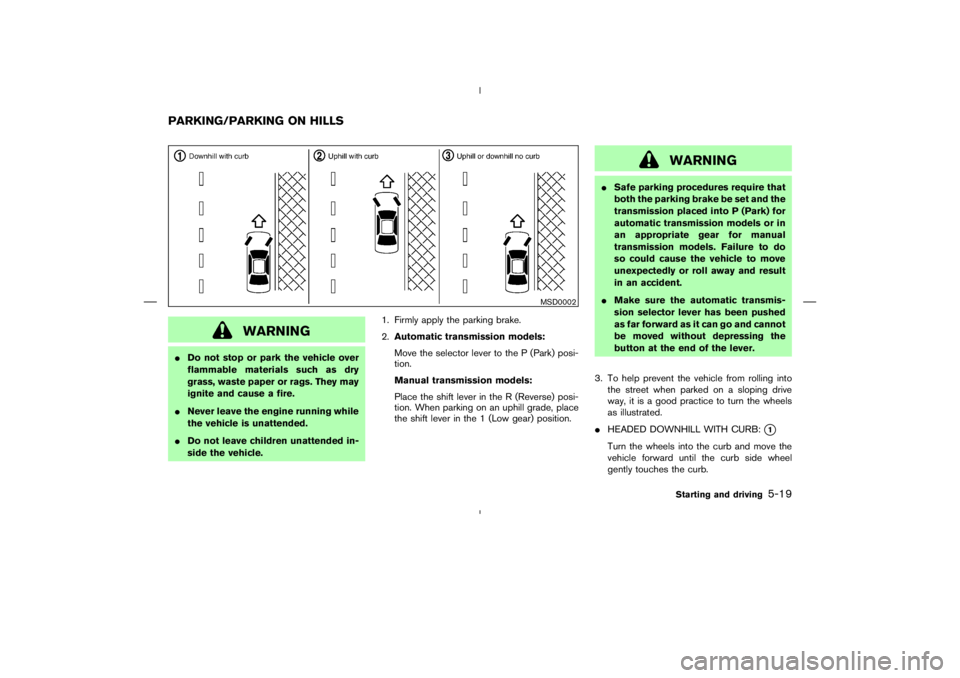

WARNING

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.

Never leave the engine running while
the vehicle is unattended.

Do not leave children unattended in-
side the vehicle.1. Firmly apply the parking brake.
2.Automatic transmission models:
Move the selector lever to the P (Park) posi-
tion.
Manual transmission models:
Place the shift lever in the R (Reverse) posi-
tion. When parking on an uphill grade, place
the shift lever in the 1 (Low gear) position.
WARNING

Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park) for
automatic transmission models or in
an appropriate gear for manual
transmission models. Failure to do
so could cause the vehicle to move
unexpectedly or roll away and result
in an accident.

Make sure the automatic transmis-
sion selector lever has been pushed
as far forward as it can go and cannot
be moved without depressing the
button at the end of the lever.
3. To help prevent the vehicle from rolling into
the street when parked on a sloping drive
way, it is a good practice to turn the wheels
as illustrated.

HEADED DOWNHILL WITH CURB:
1
Turn the wheels into the curband move the
vehicle forward until the curbside wheel
gently touches the curb.
MSD0002
PARKING/PARKING ON HILLS
Starting and driving
5-19


06.1.17/Z33-D/V5.0


HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curband
move the vehicle back until the curb side
wheel gently touches the curb.

HEADED UPHILL OR DOWNHILL, NO
CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the center
of the road if it moves.
4. Turn the ignition key to the LOCK position
and remove the key.The power assisted steering uses a hydraulic
pump, driven by the engine, to assist steering.
If the engine stops or drive belt breaks, you will
still have control of the vehicle. However, much
greater steering effort is needed, especially in
sharp turns or at low speeds.
WARNING
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be much harder to operate.
BRAKING PRECAUTIONSThe brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.Vacuum assisted brakesThe brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.Using the brakesAvoid resting your foot on the brake pedal while
driving. This overheats the brakes, increases
wear on the brakes and pads, and reduces gas
mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
POWER STEERING BRAKE SYSTEM
5-20
Starting and driving


06.1.17/Z33-D/V5.0


WARNING

While driving on a slippery surface,
be careful when braking, accelerat-
ing or downshifting. Abrupt braking
or accelerating could cause the
wheels to skid and result in an acci-
dent.

If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.Wet brakesWhen the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly pressing the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.Parking brake break-inBreak in the parking brake shoes whenever thestopping effect of the parking brake is weakened
or whenever the parking brake shoes and/or
drums/rotors are replaced, in order to assure the
best braking performance.
This procedure is described in the vehicle ser-
vice manual and can be performed by a NISSAN
dealer.
ANTI-LOCK BRAKE SYSTEM (ABS)The anti-lock brake system controls the brakes
so the wheels will not lock when braking abruptly
or when braking on slippery surfaces. The sys-
tem detects the rotation speed at each wheel
and varies the brake fluid pressure to prevent
each wheel from locking and sliding. By prevent-
ing wheel lockup, the system helps the driver
maintain steering control and helps to minimize
swerving and spinning on slippery surfaces.Using the systemDepress the brake pedal and hold it down.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping
distances.
Normal operationThe anti-lock brake system will not operate at
speeds below 3 to 6 MPH (5 to 10 km/h) to
completely stop the vehicle. (The speeds will
vary according to road conditions.) When the
anti-lock system senses that one or more wheels
are close to locking up, the actuator (under the
hood) rapidly applies and releases hydraulic
pressure (like pumping the brakes very quickly).
While the actuator is working, you may feel a
pulsation in the brake pedal and hear a noise or
vibration from the actuator under the hood. This
is normal and indicates that the anti-lock system
is working properly. However, the pulsation may
indicate that road conditions are hazardous and
extra care is required while driving.Self-test featureThe anti-lock brake system consists of electronic
sensors, electric pumps, and hydraulic solenoids
controlled by a computer. The computer has a
built-in diagnostic feature that tests the system
each time you start the engine and move the
vehicle at a low speed in forward or reverse.
When the self-test occurs, you may hear a clunk
noise and/or feel a pulsation in the brake pedal.
This is normal and is not an indication of any
malfunction. If the computer senses any mal-
function, it switches the anti-lock brake system
off and turns on the ABS warning light in the
Starting and driving
5-21


06.1.17/Z33-D/V5.0


instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the light comes on during the self-test or while
driving, take the vehicle to a NISSAN dealer for
repair.
WARNING
The anti-lock brake system is a sophis-
ticated device, but it cannot prevent ac-
cidents resulting from careless or dan-
gerous driving techniques. It can help
maintain vehicle control during braking
on slippery surfaces but remember that
the stopping distance on slippery sur-
faces will be longer than on normal
surfaces even with the anti-lock brake
system. Stopping distances may also be
longer on rough, gravel or snow covered
roads, or if you are using tire chains.
Always maintain a safe distance from
the vehicle in front of you. Ultimately,
the responsibility for safety of self and
others rests in the hands of the driver.Tire type and condition of tires may also
affect braking effectiveness.

When replacing tires, install the
specified size of tires to the front and
rear.

When installing a spare tire, make
sure it is the proper size and type as
specified on the Tire and Loading
Information label. See “Vehicle iden-
tification” in the “9. Technical and
consumer information” section for
the Tire and Loading Information la-
bel location.On slippery surfaces such as wet asphalt roads,
vehicle wheels may spin when the vehicle is
accelerated. This wheel spin reduces accelera-
tion, or causes the vehicle to swerve, thus
decreasing vehicle stability.
When the vehicle drive wheels begin to spin, the
traction control system (TCS) controls the en-
gine torque using an electronic control system,
and it also controls automatic control shifting if
necessary (for automatic transmission models).
This reduces spinning of the drive wheels, and
result in improved vehicle acceleration perfor-
mance. It also improves the vehicle stability by
swerving motion.

When the traction control system is operat-
ing, the slip indicator light in the meter panel
blinks.

If the slip indicator light blinks, the vehicle is
under slippery conditions. Be sure to drive
carefully. See “Slip indicator light” and “Trac-
tion control system (TCS) off indicator light”
in the “2. Instruments and controls” section.

Indicator light
If a malfunction occurs in the traction control
system, the SLIP and
indicator lights
come on in the meter panel.
As long as these indicator lights are on, the
traction control function (except the ABS) is
canceled. The vehicle will behaves like a
TRACTIONCONTROL SYSTEM
(TCS) (if so equipped)
5-22
Starting and driving


06.1.17/Z33-D/V5.0


model without the traction control system.
WARNING
The traction control system is designed
to prevent the wheels from spinning.
However, it does not prevent vehicle
slipping or spinning due to abrupt steer-
ing operation at high speeds or by care-
less or dangerous driving techniques.
Be especially careful when driving on
slippery surfaces and always drive
safely.When accelerating or driving on a slippery sur-
faces, the tires may spin or slide. With the
Vehicle Dynamic Control (VDC) system, sensors
detect these movements and control the braking
and engine output to help improve vehicle sta-
bility.

When the VDC system is operating, the
“SLIP” indicator in the instrument panel
blinks.

When only the Traction Control System
(TCS) portion of the VDC system is operat-
ing, the “SLIP” indicator in the instrument
panel blinks.

If the “SLIP” indicator blinks, the road condi-
tions are slippery. Be sure to adjust your
speed and driving to these conditions. Be
sure to drive carefully. See “Slip indicator
light”, and “Vehicle Dynamic Control (VDC)
OFF indicator light” in the “2. Instruments and
controls” section.

Indicator light
If a malfunction occurs in the system, the
“SLIP” and “VDC OFF” indicator lights illumi-
nate in the instrument panel. As long as these
indicators are illuminated, the VDC system
function is canceled.
The VDC system uses an Active Brake Limited
Slip (ABLS) system to improve vehicle traction.The ABLS system works when one of the driving
wheels is spinning on a slippery surface. The
ABLS system brakes the spinning wheel, which
distributes the driving power to the other driving
wheel. If the vehicle is operated with the VDC
system turned off, all VDC system functions and
TCS functions will be turned off. The ABLS
system and ABS will still operate with the VDC
system off. When the ABLS system is activated,
the “SLIP” indicator light will blink and you may
hear a clunk noise and/or feel a pulsation in the
brake pedal. This is normal and is not an indica-
tion of a malfunction.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
feel a vibration from under the hood. This is
normal and indicates that the VDC system is
working properly.
The VDC system computer has a built-in diag-
nostic feature that tests the system each time
you start the engine and move the vehicle for-
ward or backward. When the self-test occurs,
you may hear a clunk noise and/or feel a pulsa-
tion in the brake pedal. This is normal and is not
an indication of a malfunction.
VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM (if so equipped)
Starting and driving
5-23


06.1.17/Z33-D/V5.0
