2006 NISSAN 350Z Owner´s Manual

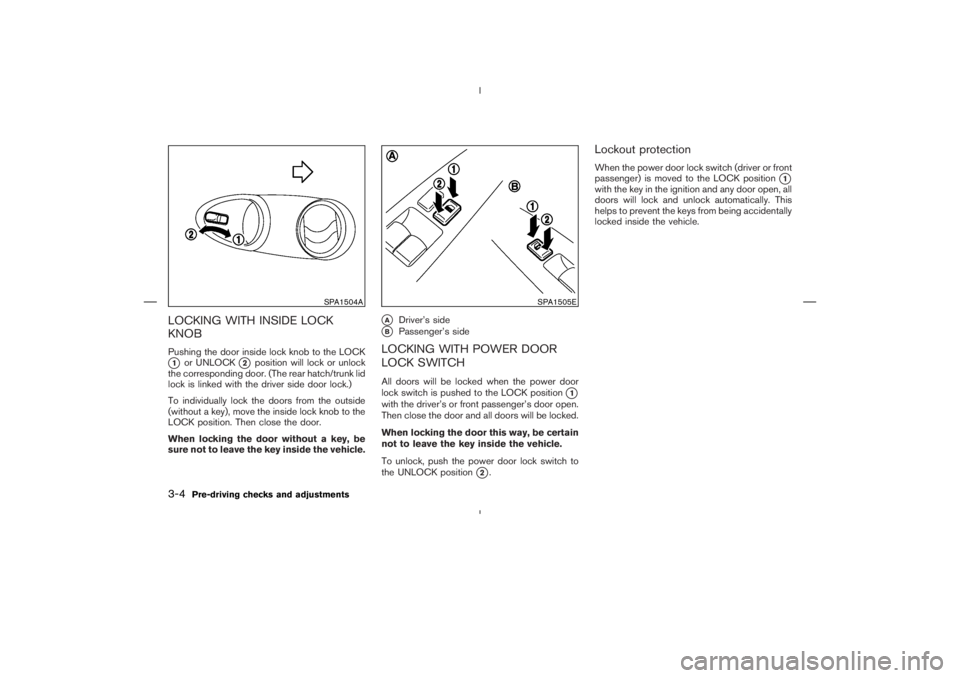

LOCKING WITH INSIDE LOCK
KNOBPushing the door inside lock knobto the LOCK1
or UNLOCK
2
position will lock or unlock
the corresponding door. (The rear hatch/trunk lid
lock is linked with the driver side door lock.)
To individually lock the doors from the outside
(without a key), move the inside lock knobto the
LOCK position. Then close the door.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
A
Driver’s side
B
Passenger’s side
LOCKING WITH POWER DOOR
LOCK SWITCHAll doors will be locked when the power door
lock switch is pushed to the LOCK position
1
with the driver’s or front passenger’s door open.
Then close the door and all doors will be locked.
When locking the door this way, be certain
not to leave the key inside the vehicle.
To unlock, push the power door lock switch to
the UNLOCK position
2.
Lockout protectionWhen the power door lock switch (driver or front
passenger) is moved to the LOCK position
1
with the key in the ignition and any door open, all
doors will lock and unlock automatically. This
helps to prevent the keys from being accidentally
locked inside the vehicle.
SPA1504A
SPA1505E
3-4
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0

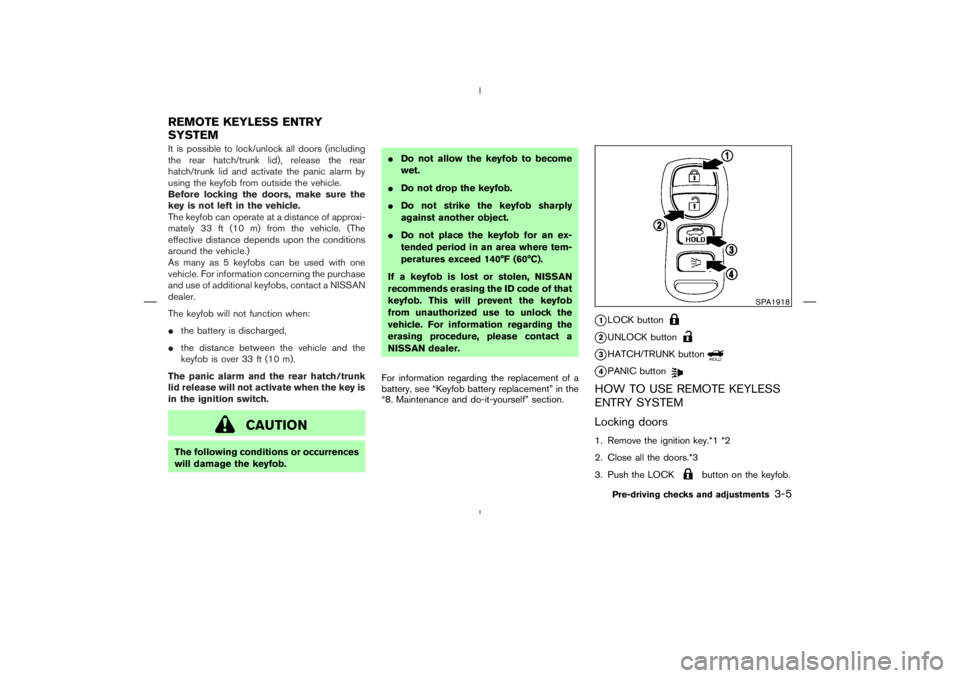

It is possible to lock/unlock all doors (including
the rear hatch/trunk lid), release the rear
hatch/trunk lid and activate the panic alarm by
using the keyfobfrom outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as 5 keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact a NISSAN
dealer.
The keyfobwill not function when:

the battery is discharged,

the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm and the rear hatch/trunk
lid release will not activate when the key is
in the ignition switch.
CAUTION
The following conditions or occurrences
will damage the keyfob.
Do not allow the keyfob to become
wet.

Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.
For information regarding the replacement of a
battery, see “Keyfob battery replacement” in the
“8. Maintenance and do-it-yourself” section.
1LOCK button
2UNLOCK button
3HATCH/TRUNK button
4PANIC button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking doors1. Remove the ignition key.*1 *2
2. Close all the doors.*3
3. Push the LOCK
button on the keyfob.
SPA1918
REMOTE KEYLESS ENTRY
SYSTEM
Pre-driving checks and adjustments
3-5


06.1.17/Z33-D/V5.0


4. All the doors will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition switch is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.

When the LOCK
button is pushed with
all doors locked, the hazard indicator flashes
twice and the horn chirps once as a reminder
that the doors are already locked.
*1: Doors lock with the keyfobwhile a key is in
the ignition switch. However, the panic
alarm and the rear hatch/trunk lid release will
not activate when the key is in the ignition
switch.
*2: Doors lock with the keyfobwhile the ignition
switch is in the ON position. However, the
hazard indicator and horn will not function.
*3: Doors lock with the keyfobwhile any door is
open. However, the hazard indicator and
horn will not function.
Unlocking doors1. Push the UNLOCK
button on the key-
fobonce.
The driver’s door and rear hatch/trunk lid
unlock.

The hazard indicator flashes once if all doors
are completely closed with the ignition switch
in any position except the ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR position with the ignition switch
in any position except the ON position.
2. Push the UNLOCK
button on the key-
fobagain within 5 seconds.

Passenger’s door unlocks.

The hazard indicator flashes once if all doors
are completely closed.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute of pushing the UNLOCK
button.

Any door or rear hatch/trunk lid is opened.

The ignition switch is turned to the ON
position.
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the windowsPush the UNLOCK
button on the keyfob
and the driver’s door will unlock.
Continue to push the UNLOCK
button for
3 seconds. All the door windows will start to be
lowered. Keep pushing the UNLOCK
but-
ton until the windows are fully open.
To stop lowering the windows, release the UN-
LOCK
button. To start lowering the win-
dows again, push the UNLOCK
button
again for 3 more seconds.
Releasing the rear hatch/trunk lid1. Push the HATCH/TRUNK
button on
the keyfobfor longer than 0.5 seconds with
the key removed from the ignition switch.
2. The rear hatch (Coupe) or trunk lid (Road-
ster) opens.
Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention by
pushing and holding the PANIC
button on
the keyfobforlonger than 0.5 seconds(with
the key removed from the ignition switch).
The theft warning alarm and headlights will stay
on for 30 seconds.
3-6
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0


The panic alarm stops when:

It has run for 30 seconds, or

The LOCK
button or the UNLOCK
button is pushed, or

The PANIC
button or the
HATCH/TRUNKbutton is pushed on
the keyfobfor longer than 0.5 seconds.
Setting hazard indicator and horn
modeThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button is pushed, the hazard indi-
cator flashes twice and the horn chirps once.
When the UNLOCK
button is pushed, the
hazard indicator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
is pushed, neither the hazard indicator nor the
horn operates.
(Switching procedure)
Push the LOCK
and UNLOCK
but-
tons on the keyfobsimultaneously for more than
2 seconds to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
SPA1260
Pre-driving checks and adjustments
3-7


06.1.17/Z33-D/V5.0


once and the horn chirps once.
1. Pull the hood lock release handle
1
located
below the instrument panel; the hood will
then spring up slightly.
2. Raise the lever
2
at the front of the hood
with your fingertips and raise the hood.
3. Insert the assist bar into the slot
3
in the
front edge of the hood.
4. When closing the hood, reset the assist bar
to its original position, then slowly close the
hood and make sure it locks into place.
Hold the coated part
A
when removing or
resetting the support rod. Avoid direct con-
tact with the metal parts, as they may behot immediately after the engine has been
stopped.
WARNING

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
SPA2156
HOOD
3-8
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0


WARNING
Do not drive with the rear hatch open.
This could allow dangerous exhaust
gases to be drawn into the vehicle. See
“Precautions when starting and driving”
in the “5. Starting and driving” section
for exhaust gas.
OPENER OPERATIONThe rear hatch release switch is located be-
tween the license plate lights.
To open the rear hatch, unlock it with one of the
following operations then push the release
switch:

Push the UNLOCK
button on the key-
fobonce. (Pushing the HATCH/TRUNK
button on the keyfob can open the rear
hatch at once without pushing the release
switch.)

Insert the key into the door key cylinder and
turn the door key counterclockwise once.
Push the power door lock switch to the
UNLOCK side.
The rear hatch employs a spring component
which enables you to lift up the hatch by one
hand. Because of this, sometimes the rear hatch
may clatter when the lock is released, but it is not
a malfunction.
To close, push the rear hatch down securely.
The rear hatch release switch is linked with the
driver side door lock. To open the rear hatch,
unlock the driver side door.
SPA1507
REAR HATCH (Coupe models)
Pre-driving checks and adjustments
3-9


06.1.17/Z33-D/V5.0


SECONDARY REAR HATCH
RELEASEThe secondary rear hatch release mechanism
allows opening the rear hatch in the event of
discharged battery or emergency.
The release (string) handle is located under the
strut tower bar inside the luggage compartment.
To open the rear hatch from the inside,
firmly pull the release handle to the direc-
tion shown above until the lock releases.
WARNING

Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Precautions when starting and
driving” in the “5. Starting and driv-
ing” section for exhaust gas.

Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
trunk closed when not in use, and
prevent children’s access to car keys.
OPENER OPERATIONThe trunk lid release switch is located between
the license plate lights.
To open the trunk lid, unlock it with one of the
following operations then push the release
switch:

Push the UNLOCK
button on the key-
fobonce. (Pushing the HATCH/TRUNK
button on the keyfob can open the
trunk lid at once without pushing the release
switch.)

Insert the key into the door key cylinder and
turn it counterclockwise once.
SPA1556
SPA1685
TRUNK LID (Roadster models)
3-10
Pre-driving checks and adjustments


06.1.17/Z33-D/V5.0


Push the power door lock switch to the
UNLOCK side. (After locking the doors with a
keyfob, this switch is not available due to the
security system.)
To close, push the trunk lid down securely.
The trunk lid release switch is linked with the
driver side door lock. To open the trunk lid,
unlock the driver side door.
Cancel switchWhen the cancel switch (located inside the rear
floor box) is OFF, the trunk lid cannot be opened
with the release switch. It can be opened only by
pushing the HATCH/TRUNK
button on
the keyfob.
INTERIOR TRUNK LID RELEASE
WARNING
Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously in-
jured. Keep the car locked, with the
trunk closed when not in use, and pre-
vent children’s access to car keys.
SPA1686
SPA1687
Pre-driving checks and adjustments
3-11


06.1.17/Z33-D/V5.0
