2006 MERCEDES-BENZ SPRINTER fuse

HEATER TIMER-AUXILIARY
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16YL (EXCEPT PROGRAM TIMER) HEATER TIMER (CUT-IN SIGNAL)
2 16YL (PROGRAM TIMER) CABIN HEATER CONTROL
3- -
4 16BR GROUND
5- -
6 16GY/RD HEATER TIMER
7- -
8- -
9 16BR/WT HEATER TIMER
10 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
11 16RD FUSED B(+)
12 16BR GROUND
HIGH IDLE SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 18BR/WT HIGH IDLE ON SIGNAL
4 18BR/WT HIGH IDLE ON SIGNAL
5- -
6- -
7 18BR GROUND
8- -
9 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
10 - -
HOOD AJAR SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 16BK/BL HOOD AJAR SWITCH SENSE
2- -
3 16BR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 53

HORN
CAV CIRCUIT FUNCTION
1 18RD/DG FUSED B(+)
2 18BR GROUND
3 18BK/BL SIREN SIGNAL CONTROL
HORN (VTSS)
CAV CIRCUIT FUNCTION
1 16BK/BR HORN RELAY OUTPUT
2 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
IGNITION LOCK SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
INSTRUMENT CLUSTER C1
CAV CIRCUIT FUNCTION
1 20BR FUEL LEVEL SENSOR SIGNAL RETURN
2 20BR/DG AMBIENT TEMPERATURE SENSOR SIGNAL RETURN
4 20WT/GY K-IC/ATC/HBM/CHM
5 20BR/BK PARK BRAKE INDICATOR SIGNAL
7 20BK/DG RIGHT TURN SIGNAL
10 20BL/BK FUEL LEVEL SENSOR SIGNAL (+)
11 20BL/DG AMBIENT TEMPERATURE SENSOR SIGNAL (+)
14 20DG/WT/BL ENGINE COOLANT LEVEL SWITCH SIGNAL
15 20BR/WT FRONT COURTESY LAMPS CONTROL
16 20YL/RD SEAT BELT SWITCH SIGNAL
17 20DG CAN C BUS (-)
18 20DG/WT CAN C BUS (+)
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSVA

INSTRUMENT CLUSTER C2 - WHITE
CAV CIRCUIT FUNCTION
1- -
2- -
3 20RD/YL FUSED B(+)
4 20BR/WT BRAKE WEAR SENSOR SIGNAL
5- -
6 18BR GROUND
7 20GY/DG/RD LAMP DRIVER
8 20BL/WT FUSED HIGH BEAM SWITCH OUTPUT
9 20BL/RD/WT VEHICLE SPEED SENSOR OUTPUT
10 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
12 - -
13 20BK/WT LEFT TURN SIGNAL
14 20BR/YL BRAKE FLUID LEVEL INDICATOR SIGNAL
15 20BL GENERATOR MONITOR SIGNAL
16 20YL AIRBAG WARNING INDICATOR DRIVER
17 - -
18 20BL/VT D(+) RELAY NO. 1 CONTROL
18 20BL/VT D(+) RELAY NO. 1 CONTROL
INSTRUMENT PANEL SOCKET - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD FUSED B(+)
INTAKE AIR PRESSURE SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 20BR/RD INTAKE PRESSURE SENSOR GROUND
2 20VT/DG INTAKE PRESSURE SENSOR SIGNAL
3 20VT/RD INTAKE PRESSURE SENSOR 5 VOLT SUPPLY
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 55

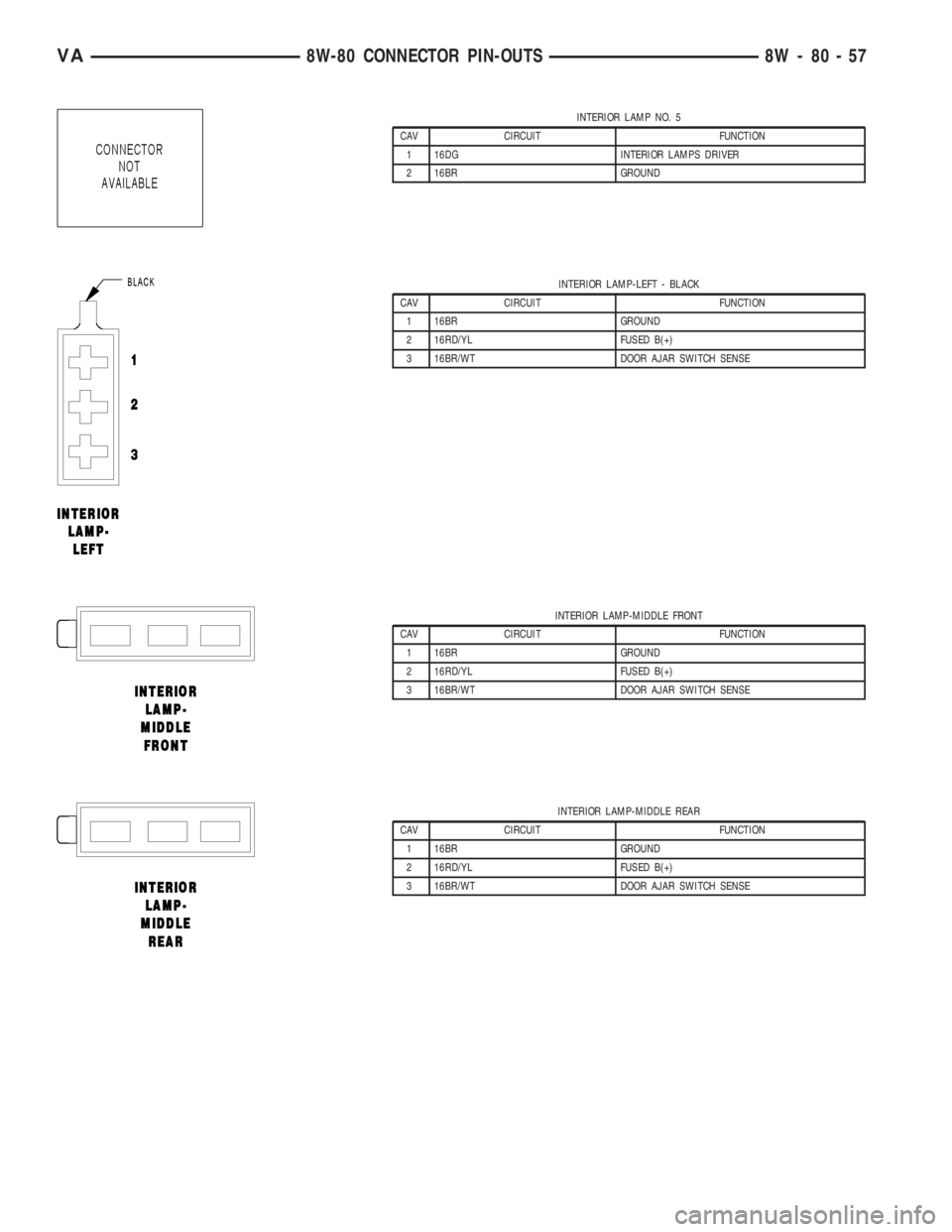

INTERIOR LAMP NO. 5
CAV CIRCUIT FUNCTION
1 16DG INTERIOR LAMPS DRIVER
2 16BR GROUND
INTERIOR LAMP-LEFT - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE
INTERIOR LAMP-MIDDLE FRONT
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE
INTERIOR LAMP-MIDDLE REAR
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE

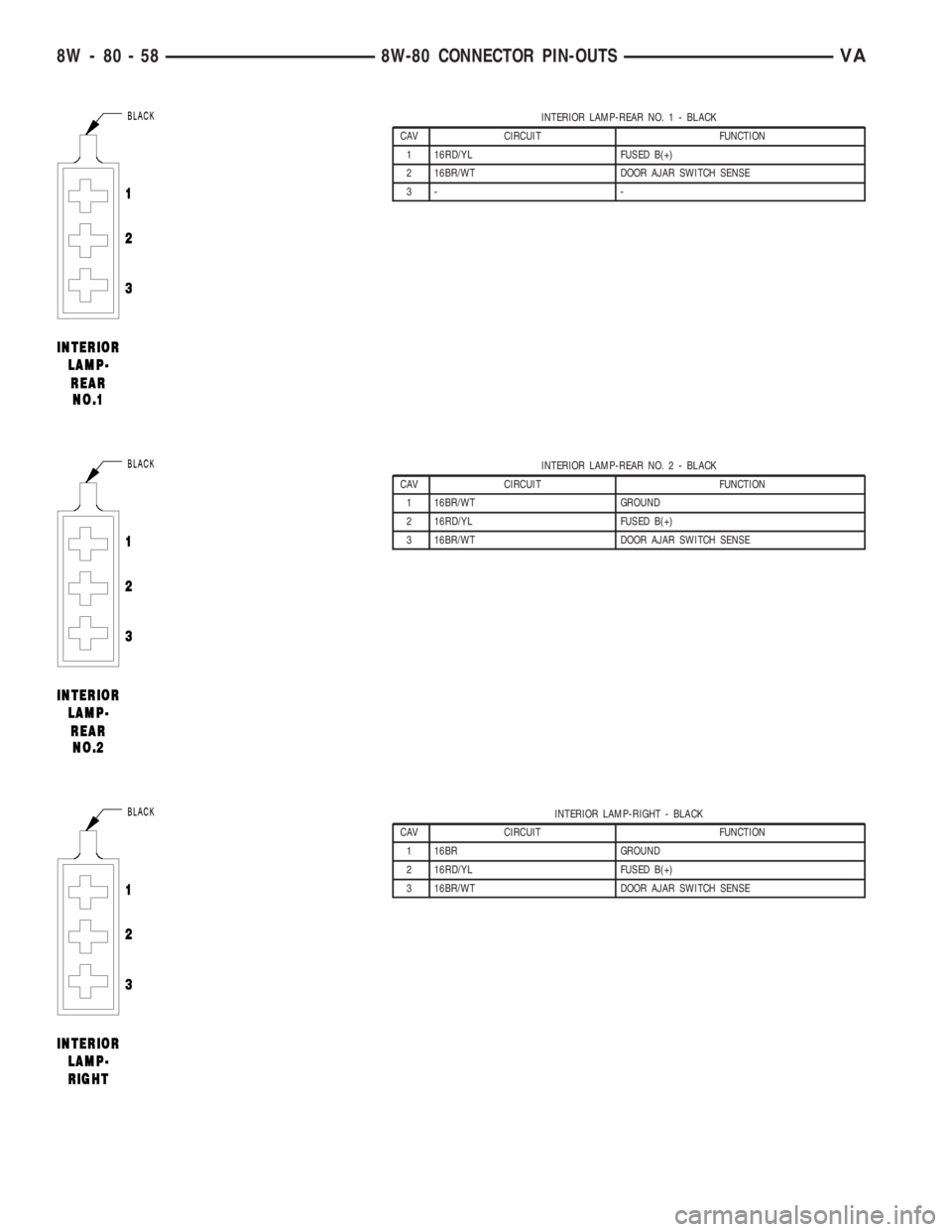

VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 57

INTERIOR LAMP-REAR NO. 1 - BLACK
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16BR/WT DOOR AJAR SWITCH SENSE
3- -
INTERIOR LAMP-REAR NO. 2 - BLACK
CAV CIRCUIT FUNCTION
1 16BR/WT GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE
INTERIOR LAMP-RIGHT - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE
8W - 80 - 58 8W-80 CONNECTOR PIN-OUTSVA

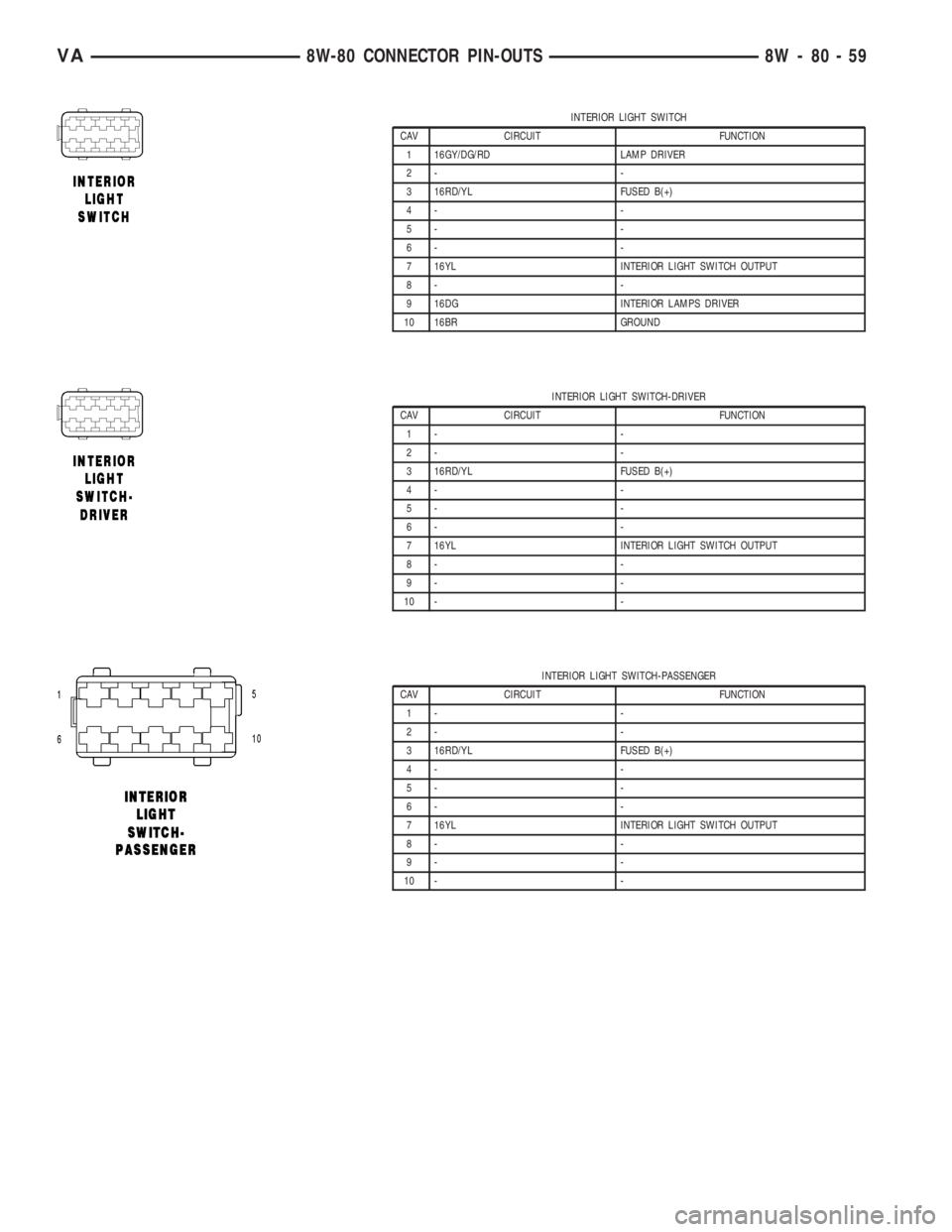

INTERIOR LIGHT SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16RD/YL FUSED B(+)
4- -
5- -
6- -
7 16YL INTERIOR LIGHT SWITCH OUTPUT
8- -
9 16DG INTERIOR LAMPS DRIVER
10 16BR GROUND
INTERIOR LIGHT SWITCH-DRIVER
CAV CIRCUIT FUNCTION
1- -
2- -
3 16RD/YL FUSED B(+)
4- -
5- -
6- -
7 16YL INTERIOR LIGHT SWITCH OUTPUT
8- -
9- -
10 - -
INTERIOR LIGHT SWITCH-PASSENGER
CAV CIRCUIT FUNCTION
1- -
2- -
3 16RD/YL FUSED B(+)
4- -
5- -
6- -
7 16YL INTERIOR LIGHT SWITCH OUTPUT
8- -
9- -
10 - -
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 59

INTERIOR LIGHT SWITCH-REAR
CAV CIRCUIT FUNCTION
1- -
2- -
3 16RD/YL FUSED B(+)
4- -
5- -
6- -
7 16YL INTERIOR LIGHT SWITCH OUTPUT
8- -
9- -
10 - -
INTERIOR LIGHTING CONNECTOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16DG INTERIOR LAMPS DRIVER
3 16BR GROUND
4 16YL INTERIOR LIGHT SWITCH OUTPUT
INTRUSION SENSOR NO. 1 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20DG/BK INTRUSION SENSOR 1 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
INTRUSION SENSOR NO. 2 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20GY/BK INTRUSION SENSOR 2 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTSVA

INTRUSION SENSOR NO. 3 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20DG/WT/BL INTRUSION SENSOR 3 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
KICK DOWN SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 18BR/DG KICKDOWN SWITCH SIGNAL
2 18BR (EXCEPT OBD) SENSOR GROUND
2 18BR (OBD) GROUND
LATERAL ACCELERATION SENSOR
CAV CIRCUIT FUNCTION
1 20YL/RD SENSOR SIGNAL
2 20YL/WT SENSOR SIGNAL
3 20RD/BL POWER INPUT
4 20DG/YL SENSOR SIGNAL
5 20BK/DG SENSOR SIGNAL
6 20BR GROUND
LICENSE PLATE LAMP NO. 1
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16BR GROUND
LICENSE PLATE LAMP NO. 2
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16BR GROUND
