2006 MERCEDES-BENZ SLK55AMG Owner's Manual

328 OperationTires and wheelsPlacard (Example B)
1Vehicle Tire Information placard with
recommended cold tire inflation
pressures
Placard (Example B) lists the recommend-
ed cold tire inflation pressures for maxi-
mum loaded vehicle weight. The tire
inflation pressures listed apply to the tires
installed as original equipment.Important notes on tire inflation
pressure
Tire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 100 mph (160 km / h) or higher,
where it is legal and conditions allow,
consult the placard on the inside of the fuel
filler flap on how to adjust the cold tire in-
flation pressure. If you do not adjust the
tire inflation pressure, excessive heat can
build up and result in sudden tire failure.Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure.
Some vehicles may have supplemental tire
pressure information for vehicle loads less
than the maximum loaded vehicle condi-
tion. If such information is provided, it can
be found on the placard located on the in-
side of the fuel filler flap.
Tire inflation pressure changes by approxi-
mately 1.5 psi (0.1 bar) per 18°F (10°C) of
air temperature change. Keep this in mind
when checking tire inflation pressure
where the temperature is different from
the outside temperature.
iPlacard (Example B) may list
recommended cold tire inflation
pressures for different vehicle loads.
Warning!
G
If the tire inflation pressure repeatedly
drops:

Check the tires for punctures from
foreign objects.


Check to see whether air is leaking from
the valves or from around the rim.

329 Operation
Tires and wheels
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least 3 hours or driven
less than 1 mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than 3 hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire in-
flation pressure. Otherwise, the tire will be
underinflated.Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:

Remove the cap from the valve on one
tire.

Firmly press a tire gauge onto the
valve.

Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
placard on the driver’s door B-pillar
(page 327). If necessary, add air to
achieve the recommended tire inflation
pressure.

Install the valve cap.

Repeat this procedure for each tire.
Run Flat Indicator*
While the vehicle is being driven, the Run
Flat Indicator monitors the set tire inflation
pressures by evaluating each wheel’s rota-
tional speed. This allows the system to de-
tect a significant loss of pressure in a tire.
If a wheel’s rotational speed changes due
to falling tire inflation pressure, you will
see a corresponding warning message in
the multifunction display.
The Run Flat Indicator may function in a re-
stricted manner or with a delay if:


snow chains are mounted to the
vehicle


winter road conditions prevail


you are driving on a loose surface (e.g.
sand or gravel)


you are driving in a very sporty manner
(involving rapid acceleration or high
speeds in curves)
iIf you have overfilled the tire, release
tire inflation pressure by pushing the
metal stem of the valve with e.g. a tip of
a pen. Then recheck the tire inflation
pressure with the tire gauge.

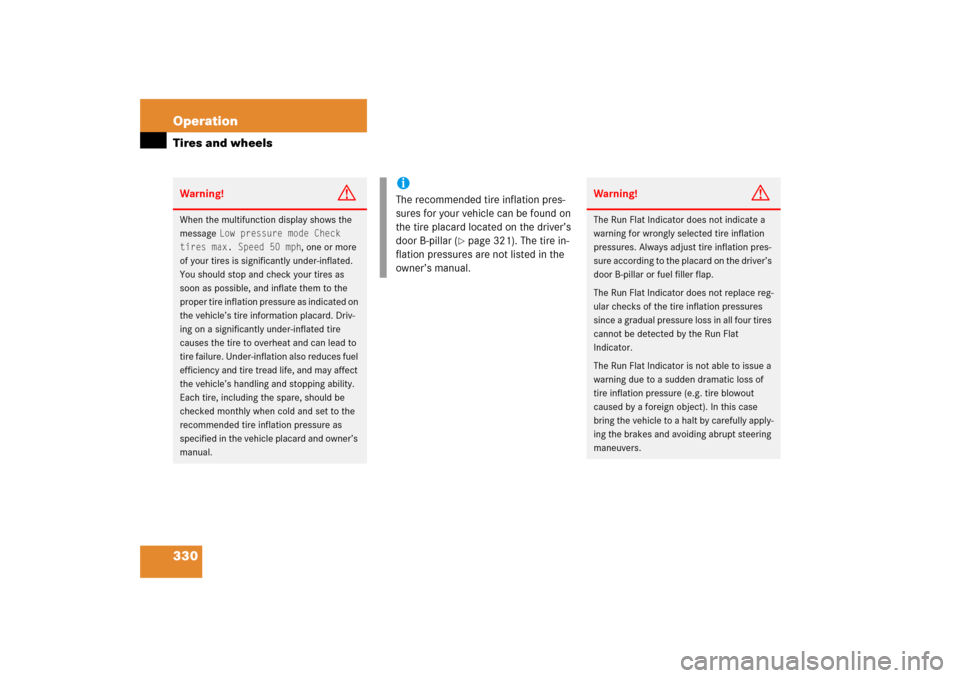

330 OperationTires and wheelsWarning!
G
When the multifunction display shows the
message
Low pressure mode Check
tires max. Speed 50 mph
, one or more
of your tires is significantly under-inflated.
You should stop and check your tires as
soon as possible, and inflate them to the
proper tire inflation pressure as indicated on
the vehicle’s tire information placard. Driv-
ing on a significantly under-inflated tire
causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
Each tire, including the spare, should be
checked monthly when cold and set to the
recommended tire inflation pressure as
specified in the vehicle placard and owner’s
manual.
iThe recommended tire inflation pres-
sures for your vehicle can be found on
the tire placard located on the driver’s
door B-pillar (
page 321). The tire in-
flation pressures are not listed in the
owner’s manual.
Warning!
G
The Run Flat Indicator does not indicate a
warning for wrongly selected tire inflation
pressures. Always adjust tire inflation pres-
sure according to the placard on the driver’s
door B-pillar or fuel filler flap.
The Run Flat Indicator does not replace reg-
ular checks of the tire inflation pressures
since a gradual pressure loss in all four tires
cannot be detected by the Run Flat
Indicator.
The Run Flat Indicator is not able to issue a
warning due to a sudden dramatic loss of
tire inflation pressure (e.g. tire blowout
caused by a foreign object). In this case
bring the vehicle to a halt by carefully apply-
ing the brakes and avoiding abrupt steering
maneuvers.

331 Operation
Tires and wheels
Reactivating the Run Flat Indicator
The tire inflation pressure monitor must be
reactivated in the following situations:

If you have changed the tire inflation
pressure


If you have replaced the wheels or tires


If you have installed new wheels or
tires

Using the tire placard on the driver’s
door B-pillar or, if available, the inside
of the fuel filler flap, make sure the tire
inflation pressure of all four tires is cor-
rect.

Switch on the ignition (
page 36).
The standard display menu appears in
the multifunction display (page 128).

Press buttonk orj repeatedly
until the following message appears in
the multifunction display:Run Flat Indicator
active
Reactivation poss.: +

Press buttonæ.
The following message will appear in
the multifunction display:Tire pres. now

OK?

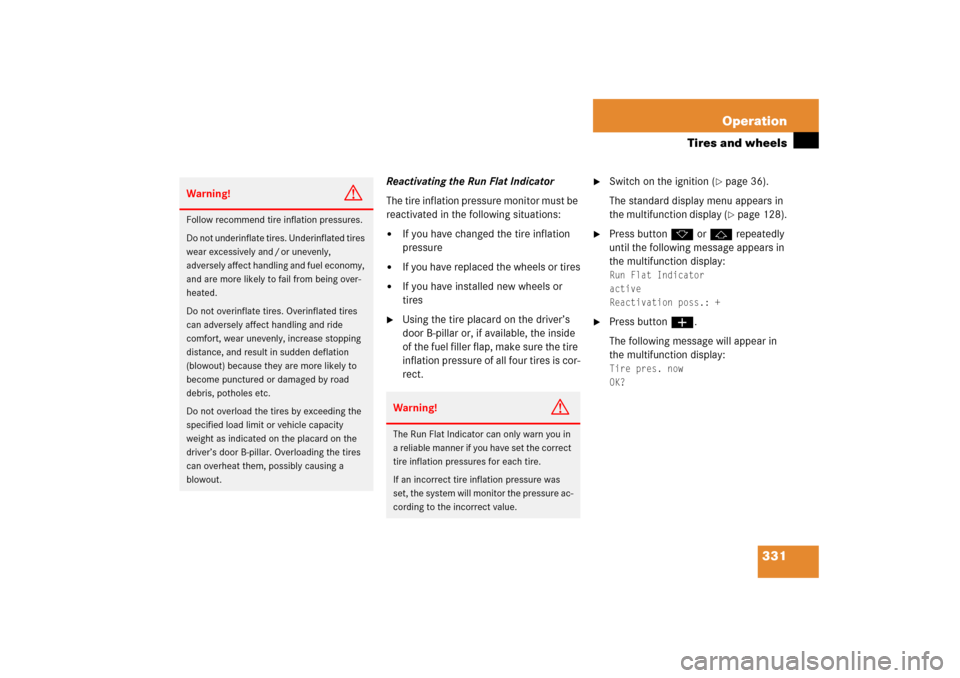

Warning!
G
Follow recommend tire inflation pressures.
Do not underinflate tires. Underinflated tires
wear excessively and / or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout.
Warning!
G
The Run Flat Indicator can only warn you in
a reliable manner if you have set the correct
tire inflation pressures for each tire.
If an incorrect tire inflation pressure was
set, the system will monitor the pressure ac-
cording to the incorrect value.

332 OperationTires and wheelsIf you wish to confirm activation:
Press buttonæ.
The following message will appear in
the multifunction display:Run Flat Indicator
reactivated
After a certain “learning phase”, the Run
Flat Indicator checks the set pressure val-
ues for all four tires.
If you wish to cancel activation:
Press buttonç.
or

Wait until the messageTire pres. now
OK?disappears.Potential problems associated with
underinflated and overinflated tires
Underinflated tire inflation pressure
Underinflated tires can:


cause excessive and uneven tire wear


adversely affect fuel economy


lead to tire failure from being
overheated


adversely affect handling
characteristicsOverinflated tire inflation pressure
Overinflated tires can:


adversely affect handling
characteristics


cause uneven tire wear


be more prone to damage from road
hazards


adversely affect ride comfort


increase stopping distance

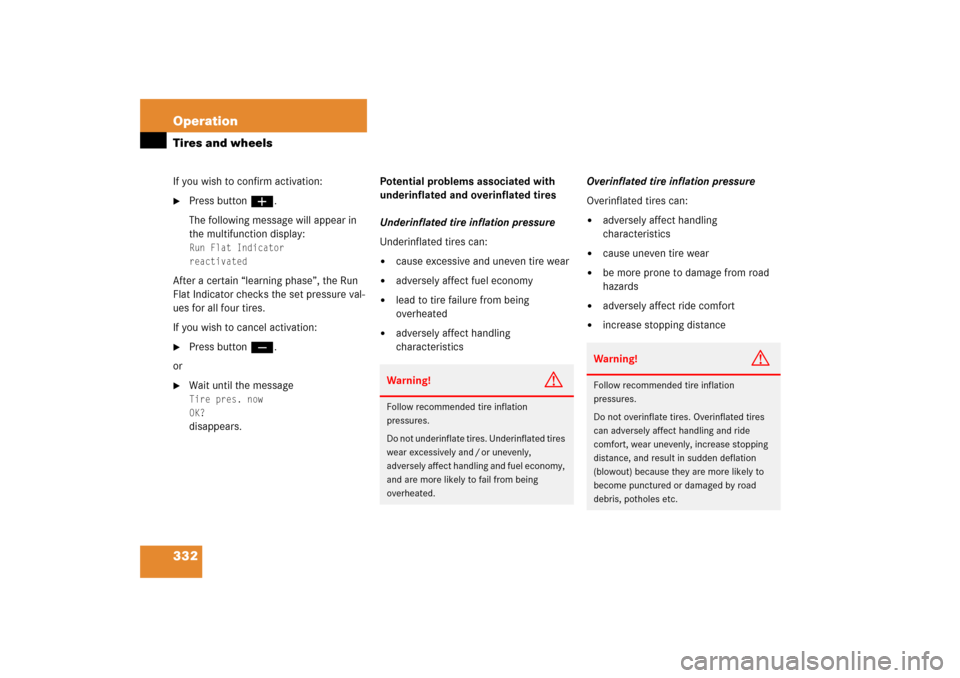

Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and / or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Warning!
G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.

333 Operation
Tires and wheels
MOExtended system*
The MOExtended system allows you to
continue driving your vehicle even if there
is a total loss of pressure in one or more
tires.
You may only use the MOExtended system
in conjunction with the Run Flat Indicator*.
!The maximum distance in emergency
mode depends on the vehicle’s load. It
is 30 miles (50 km) if the vehicle is par-
tially loaded and 18 miles (30 km) if the
vehicle is fully loaded.
The point at which the maximum driv-
ing distance begins in emergency
mode is when the warning message
appears in the multifunction display
indicating that there is a loss of tire
inflation pressure.
Do not exceed the maximum speed of
50 mph (80 km/h).
Warning!
G
In emergency mode, your vehicle’s driving
characteristics are diminished in such situa-
tions as:

driving around curves


while braking


while accelerating rapidly
Therefore, your driving style must be adapt-
ed accordingly. Avoid abrupt steering and
driving maneuvers, as well as driving over
obstacles (road curbs, potholes, or off-road
areas). This is especially important if the ve-
hicle is heavily loaded.
The emergency driving distance that can be
achieved greatly depends on the demands
placed on the vehicle. Depending on speed,
load, driving maneuvers, road conditions,
outside temperature, etc., the distance can
be significantly shorter or, if the vehicle is
driven cautiously, somewhat longer.
Do not continue driving in emergency mode
if

you notice knocking sounds


the vehicle starts to shake


smoke develops and you smell rubber


ESP
® is intervening continuously


you notice tears on the tire sidewalls
After driving in emergency mode, you must
have the rims inspected by an authorized
Mercedes-Benz Center to check if they are
suitable for further use. The failed tire must
be replaced in any case.iWhen replacing individual or all tires on
the vehicle, make sure only tires
marked with “MOExtended” are mount-
ed in the size specified for your vehicle
(page 439).

334 OperationTires and wheelsTire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 341)
2DOT, Tire Identification Number (TIN)
(page 339)
3Maximum tire load (
page 340)
4Maximum tire inflation pressure
(
page 341)
5Manufacturer
6Tire ply material (
page 343)
7Tire size designation, load and speed
rating (
page 334)
8Load identification (
page 338)
9Tire nameTire size designation, load and speed
rating
1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed rating
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.
For more information, see “Rims and
tires” (
page 439).
iFor illustration purposes only. Actual
data on tires are specific to each vehi-
cle and may vary from data shown in
above illustration.

335 Operation
Tires and wheels
General:
Depending on the design standards used,
the tire size molded into the sidewall may
have no letter or a letter preceding the tire
size designation.
No letter preceding the size designation
(as illustrated above): Passenger car tire
based on European design standards.
Letter “P” preceding the size designation:
Passenger car tire based on U.S. design
standards.
Letter “LT” preceding the size designation:
Light Truck tire based on U.S. design
standards.
Letter “T” preceding the size designation:
Temporary spare tires which are high
pressure compact spares designed for
temporary emergency use only. Tire width
The tire width1 (
page 334) indicates
the nominal tire width in mm.
Aspect ratio
The aspect ratio2 (page 334) is the
dimensional relationship between tire
section height and section width and is
expressed in percentage. The aspect ratio
is arrived at by dividing section height by
section width.
Tire code
The tire code3 (
page 334) indicates
the tire construction type. The “R” stands
for radial tire type. Letter “D” means diag-
onal or bias ply construction; letter “B”
means belted-bias ply construction.
At the tire manufacturer’s option, any tire
with a speed capability above 149 mph
(240 km/h) can include a “ZR” in the size
designation (for example: 245/40 ZR 18).
For additional information, see “Tire speed
rating” (
page 336).Rim diameter
The rim diameter4 (
page 334) is the
diameter of the bead seat, not the
diameter of the rim edge. Rim diameter is
indicated in inches (in).
Tire load rating
The tire load rating5 (page 334) is a
numerical code associated with the
maximum load a tire can support.
For example, a load rating of 91 corre-
sponds to a maximum load of 1 356 lbs
(615 kg) the tire is designed to support.
See also “Maximum tire load”
(
page 340) where the maximum load as-
sociated with the load index is indicated in
kilograms and lbs.
