2006 MERCEDES-BENZ SLK55AMG Owner's Manual

152 Controls in detailControl systemWhich messages will appear in the multi-
function display depends on whether your
telephone is switched on or off:

If the telephone is switched off, the
message in the multifunction display is: PHONE off
.


If the telephone is switched on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network,

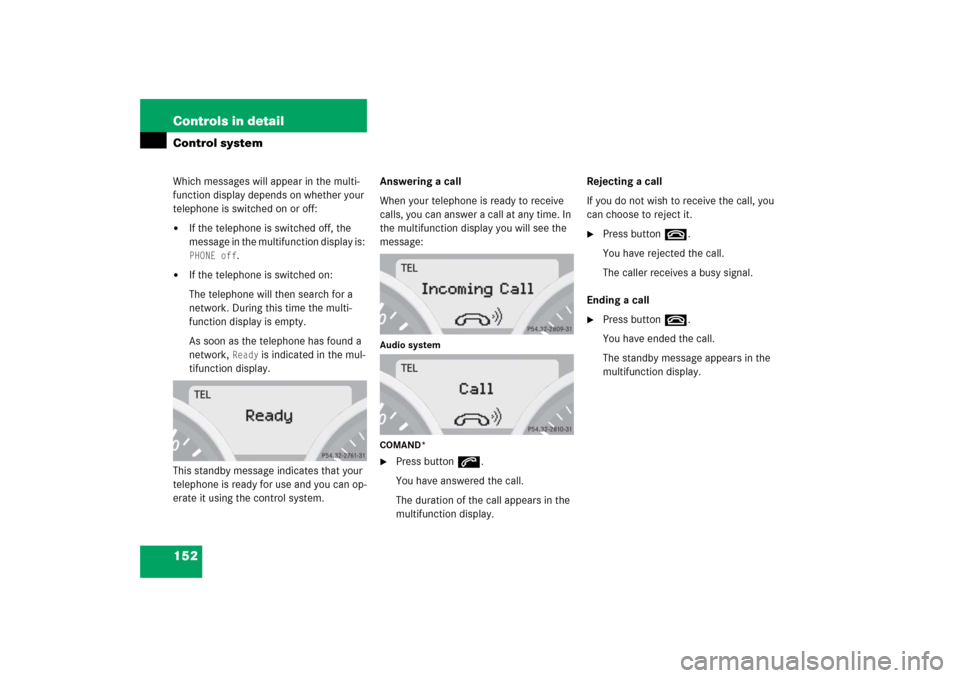

Ready
is indicated in the mul-
tifunction display.
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will see the
message:
Audio system
COMAND*
Press buttons.
You have answered the call.
The duration of the call appears in the
multifunction display.Rejecting a call
If you do not wish to receive the call, you
can choose to reject it.

Press buttont.
You have rejected the call.
The caller receives a busy signal.
Ending a call

Press buttont.
You have ended the call.
The standby message appears in the
multifunction display.

153 Controls in detail
Control system
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press buttonèorÿ repeatedly
until you see the
TEL
menu and the
standby message in the multifunction
display.

Press buttonjork.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
multifunction display you will see the
message
Please wait
.
When the message
Please wait
disap-
pears, the phone book has been load-
ed.

Press buttonjork repeatedly
until the desired name appears in the
multifunction display.
The stored names are displayed in
ascending or descending alphabetical
order.

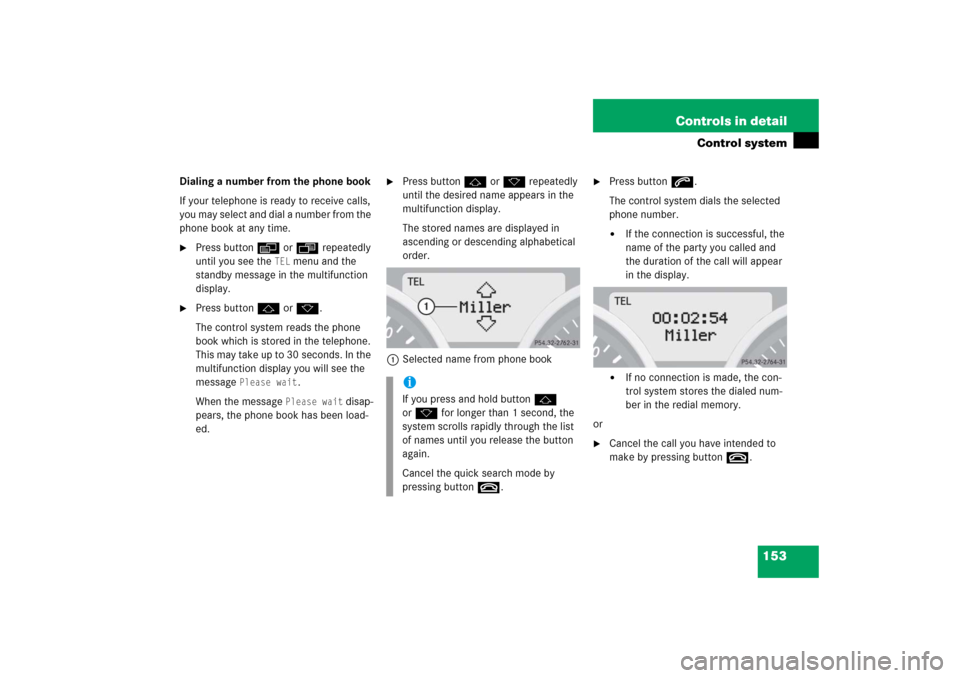

1Selected name from phone book

Press buttons.
The control system dials the selected
phone number.

If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.
or

Cancel the call you have intended to
make by pressing buttont.
iIf you press and hold buttonj
ork for longer than 1 second, the
system scrolls rapidly through the list
of names until you release the button
again.
Cancel the quick search mode by
pressing buttont.

154 Controls in detailControl systemRedialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.
Press buttonèorÿ repeatedly
until you see the
TEL
menu and the
standby message in the multifunction
display.

Press buttons.

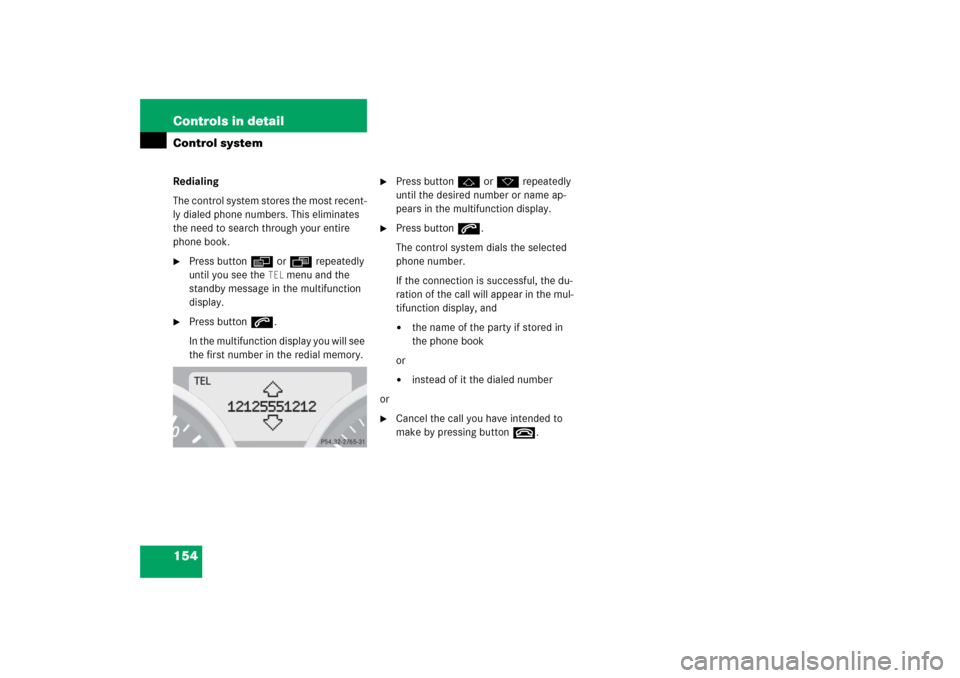

In the multifunction display you will see
the first number in the redial memory.

Press buttonjork repeatedly
until the desired number or name ap-
pears in the multifunction display.

Press buttons.
The control system dials the selected
phone number.
If the connection is successful, the du-
ration of the call will appear in the mul-
tifunction display, and

the name of the party if stored in
the phone book
or


instead of it the dialed number
or

Cancel the call you have intended to
make by pressing buttont.

155 Controls in detail
Manual transmission
Manual transmission
Manual transmission is standard equip-
ment on select models and not available
on all models.
For information on driving with a manual
transmission, see “Manual transmission”
(page 51).

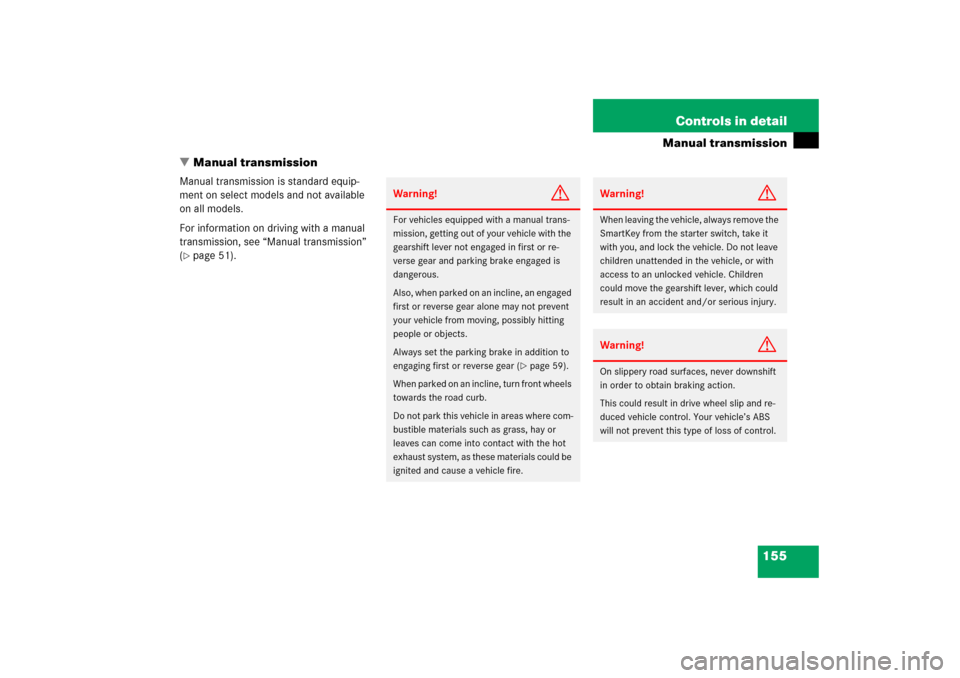

Warning!
G
For vehicles equipped with a manual trans-
mission, getting out of your vehicle with the
gearshift lever not engaged in first or re-
verse gear and parking brake engaged is
dangerous.
Also, when parked on an incline, an engaged
first or reverse gear alone may not prevent
your vehicle from moving, possibly hitting
people or objects.
Always set the parking brake in addition to
engaging first or reverse gear (
page 59).
When parked on an incline, turn front wheels
towards the road curb.
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could move the gearshift lever, which could
result in an accident and/or serious injury.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action.
This could result in drive wheel slip and re-
duced vehicle control. Your vehicle’s ABS
will not prevent this type of loss of control.

156 Controls in detailManual transmissionGearshift pattern for manual transmission
Shifting into reverse
Stop the vehicle completely.

Fully depress the clutch pedal.

Move the gearshift lever to the neutral
position (no gear selected).

Move the gearshift lever to the left until
you feel a certain resistance.

Push the gearshift lever past this resis-
tance.

Then move the gearshift lever forward
into positionR.
!When you are shifting into the 5th
or6th gear, make sure that you press
the gearshift lever to the right. Other-
wise, you could accidentally shift into
the3rd or4th gear and damage the
transmission.
Downshifting gears leading to overrev-
ving the engine can result in engine
damage that is not covered by the
Mercedes-Benz Limited Warranty.
Never hold the vehicle stopped on a hill
by using the clutch pedal. The clutch
may be damaged which is not covered
by the Mercedes-Benz Limited
Warranty.
Do not exceed the engine speed limits.
Refer to tachometer (
page 121) for
engine speeds.
!Only shift into reverse gearR when the
vehicle is stationary, as the transmis-
sion could otherwise be damaged.

157 Controls in detail
Automatic transmission*
Automatic transmission*
For more information on driving with an
automatic transmission, see “Automatic
transmission*” (
page 51).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current
operating and driving conditions.
If the operating conditions change, the
automatic transmission reacts by
adjusting its shift program.
Gearshift pattern for automatic
transmission
The automatic transmission selects indi-
vidual gears automatically, depending on:

the gear selector lever
positionD(
page 159) with
gear ranges (page 160)


the selected program mode:
(C/S) (
page 163)
or
(M/C/S) (SLK 55 AMG only)
(
page 169)


the position of the accelerator pedal
(page 162)


the vehicle speed
iDuring the brief warm-up, transmission
upshifting is delayed. This allows the
catalytic converter to heat up more
quickly to operating temperature.

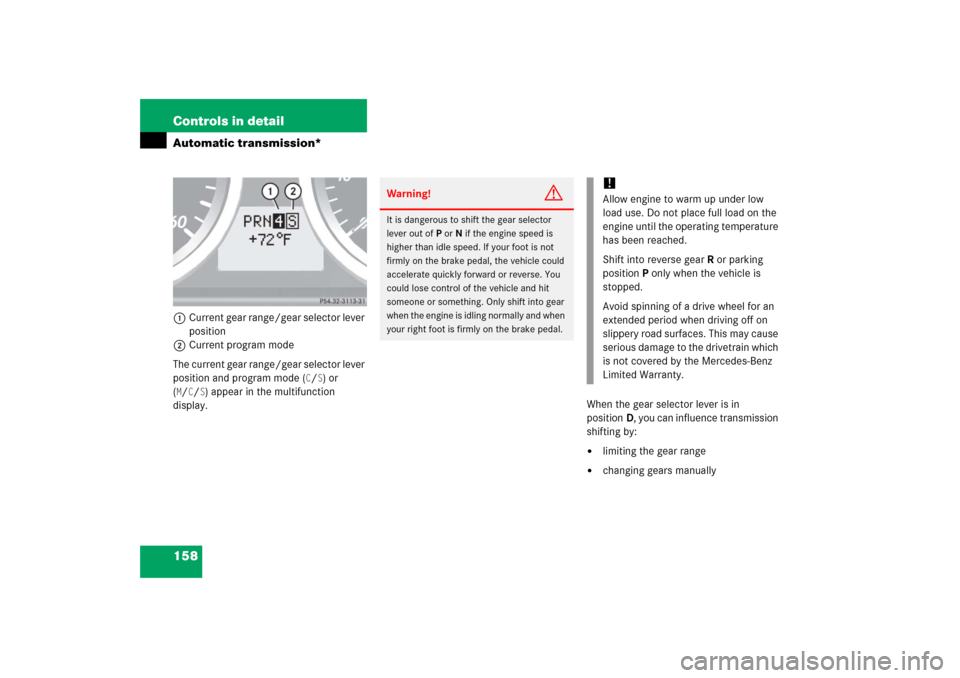

158 Controls in detailAutomatic transmission*1Current gear range/gear selector lever
position
2Current program mode
The current gear range/gear selector lever
position and program mode (
C/S) or
(
M/C/S) appear in the multifunction
display.When the gear selector lever is in
positionD, you can influence transmission
shifting by:


limiting the gear range


changing gears manually
Warning!
G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
!Allow engine to warm up under low
load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gearR or parking
positionP only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. This may cause
serious damage to the drivetrain which
is not covered by the Mercedes-Benz
Limited Warranty.

159 Controls in detail
Automatic transmission*

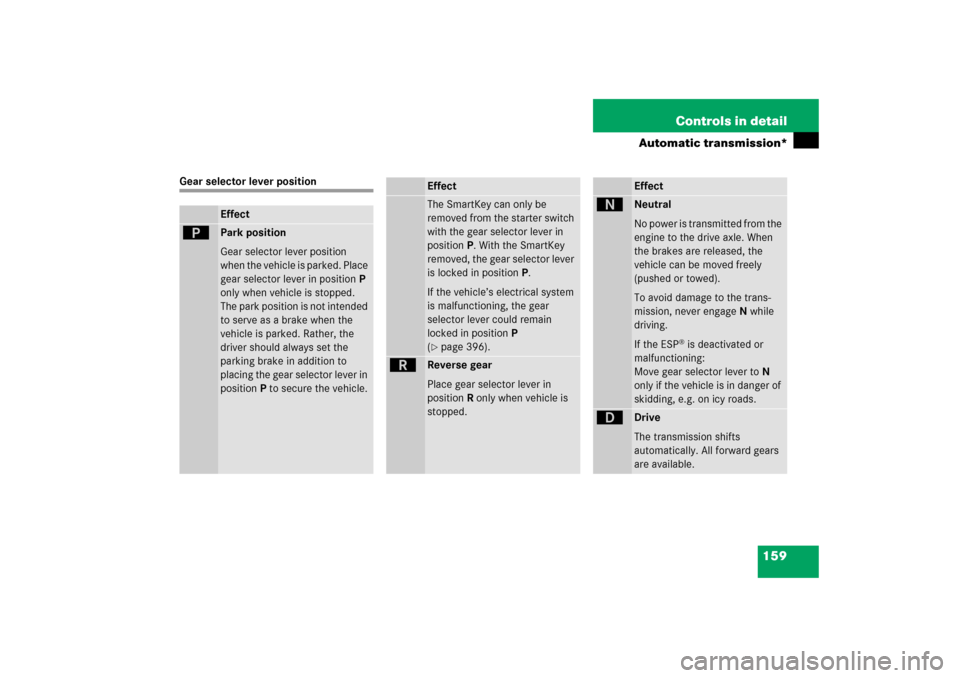

Gear selector lever position
Effect
ì
Park position
Gear selector lever position
when the vehicle is parked. Place
gear selector lever in positionP
only when vehicle is stopped.
The park position is not intended
to serve as a brake when the
vehicle is parked. Rather, the
driver should always set the
parking brake in addition to
placing the gear selector lever in
positionP to secure the vehicle.
EffectThe SmartKey can only be
removed from the starter switch
with the gear selector lever in
positionP. With the SmartKey
removed, the gear selector lever
is locked in positionP.
If the vehicle’s electrical system
is malfunctioning, the gear
selector lever could remain
locked in positionP
(page 396).
í
Reverse gear
Place gear selector lever in
positionR only when vehicle is
stopped.
Effect
ë
Neutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never engageN while
driving.
If the ESP
® is deactivated or
malfunctioning:
Move gear selector lever toN
only if the vehicle is in danger of
skidding, e.g. on icy roads.
ê
Drive
The transmission shifts
automatically. All forward gears
are available.
