2006 MERCEDES-BENZ SLK55AMG Owner's Manual

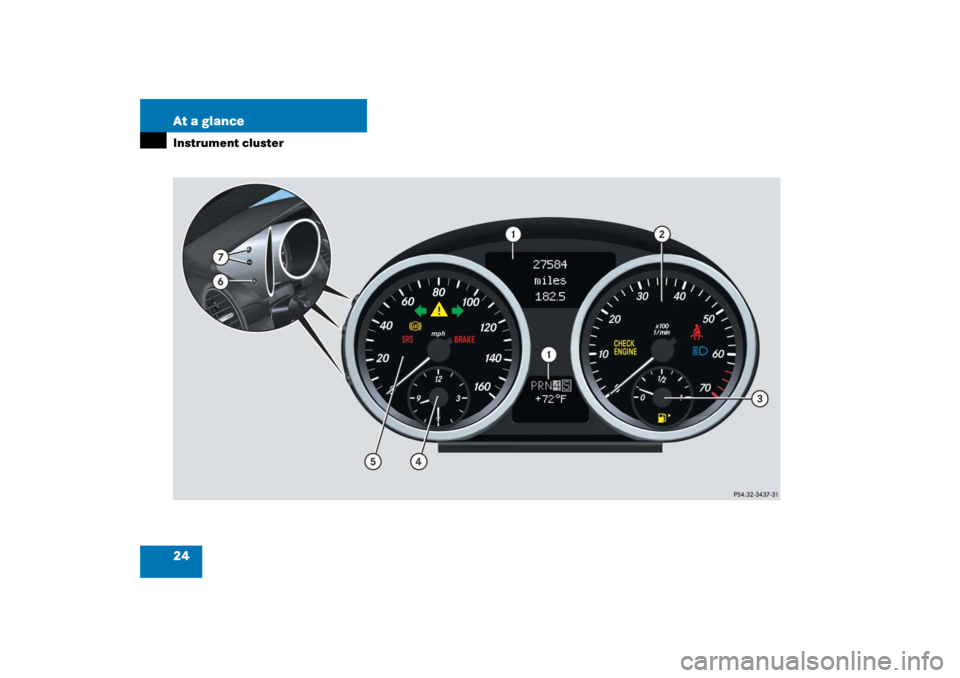

24 At a glanceInstrument cluster

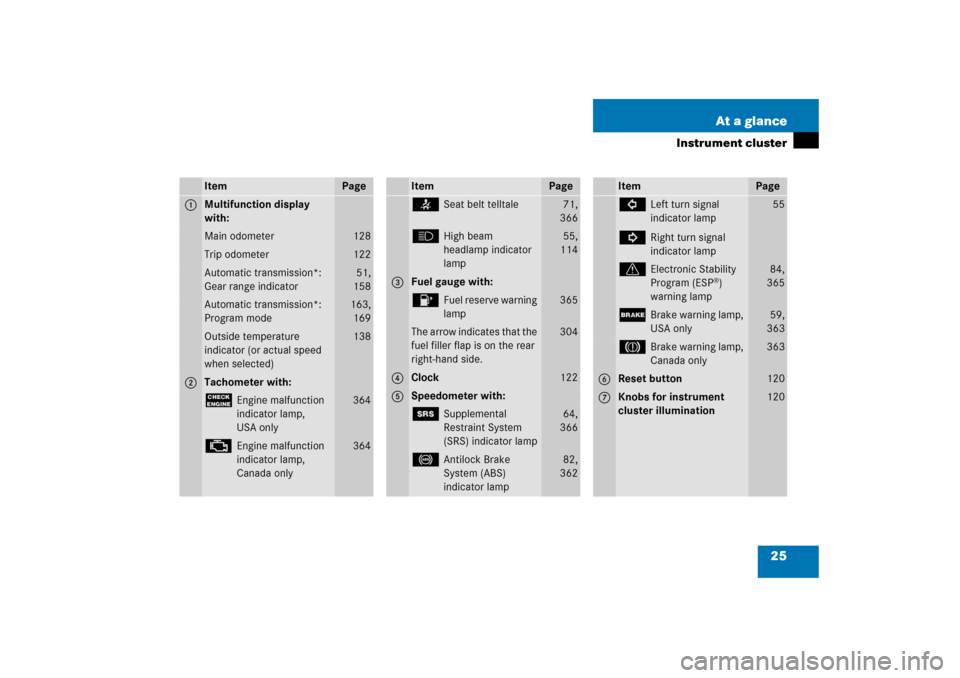

25 At a glance
Instrument cluster
Item
Page
1
Multifunction display
with:Main odometer
128
Trip odometer
122
Automatic transmission*:
Gear range indicator
51,
158
Automatic transmission*:
Program mode
163,
169
Outside temperature
indicator (or actual speed
when selected)
138
2
Tachometer with:?
Engine malfunction
indicator lamp,
USA only
364
±
Engine malfunction
indicator lamp,
Canada only
364
Item
Page
<
Seat belt telltale
71,
366
A
High beam
headlamp indicator
lamp
55,
114
3
Fuel gauge with:4
Fuel reserve warning
lamp
365
The arrow indicates that the
fuel filler flap is on the rear
right-hand side.
304
4
Clock
122
5
Speedometer with:1
Supplemental
Restraint System
(SRS) indicator lamp
64,
366
-
Antilock Brake
System (ABS)
indicator lamp
82,
362
Item
Page
L
Left turn signal
indicator lamp
K
Right turn signal
indicator lamp
55
v
Electronic Stability
Program (ESP
®)
warning lamp
84,
365
;
Brake warning lamp,
USA only
59,
363
3
Brake warning lamp,
Canada only
363
6
Reset button
120
7
Knobs for instrument
cluster illumination
120

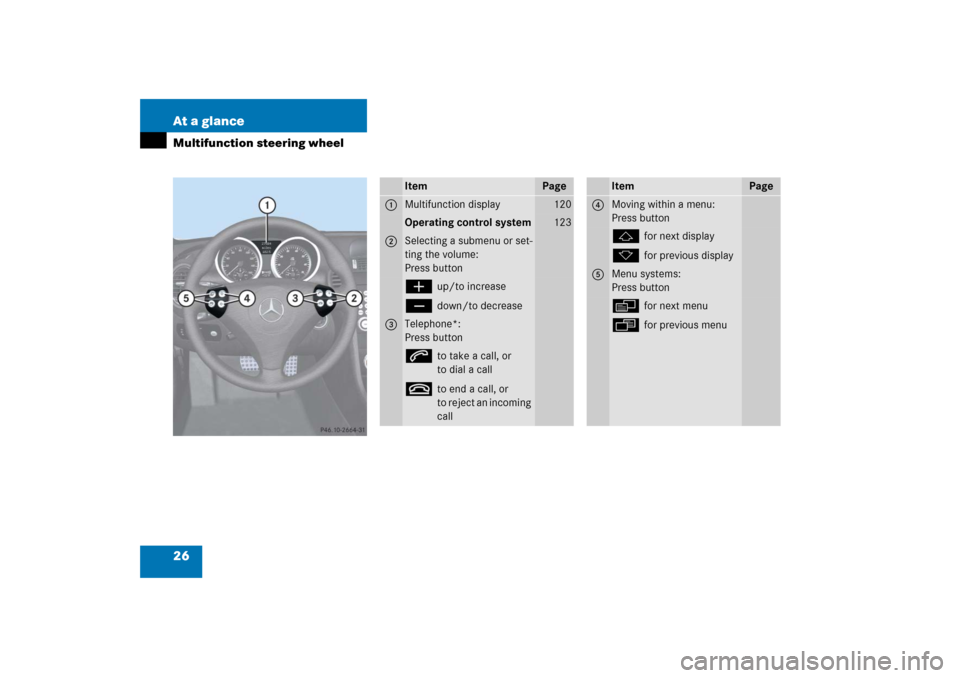

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
120
Operating control system
123
2
Selecting a submenu or set-
ting the volume:
Press buttonæ
up/to increase
ç
down/to decrease
3
Telephone*:
Press buttons
to take a call, or
to dial a call
t
to end a call, or
to reject an incoming
call
Item
Page
4
Moving within a menu:
Press buttonj
for next display
k
for previous display
5
Menu systems:
Press buttonè
for next menu
·
for previous menu

27 At a glance
Multifunction steering wheel
iSLK 55 AMG:
The steering wheel in this vehicle will
vary from steering wheel shown. How-
ever, multifunction steering wheel sym-
bols and feature description apply to
AMG vehicles as well.

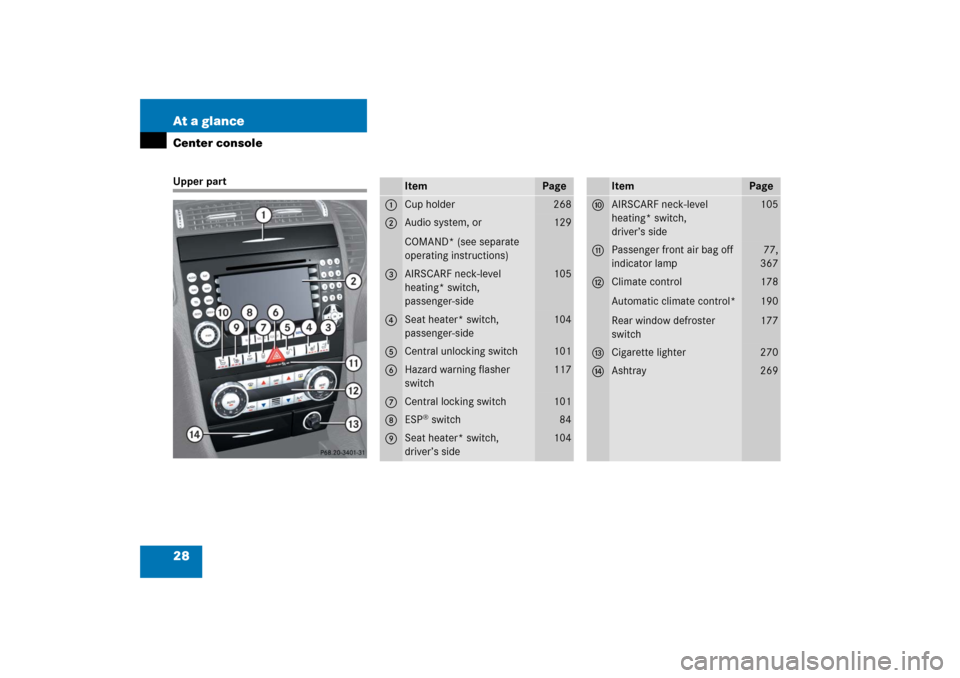

28 At a glanceCenter consoleUpper part
Item
Page
1
Cup holder
268
2
Audio system, or
COMAND* (see separate
operating instructions)
129
3
AIRSCARF neck-level
heating* switch,
passenger-side
105
4
Seat heater* switch,
passenger-side
104
5
Central unlocking switch
101
6
Hazard warning flasher
switch
117
7
Central locking switch
101
8
ESP
® switch
84
9
Seat heater* switch,
driver’s side
104
Item
Page
a
AIRSCARF neck-level
heating* switch,
driver’s side
105
b
Passenger front air bag off
indicator lamp
77,
367
c
Climate control
Automatic climate control*
Rear window defroster
switch
178
190
177
d
Cigarette lighter
270
e
Ashtray
269

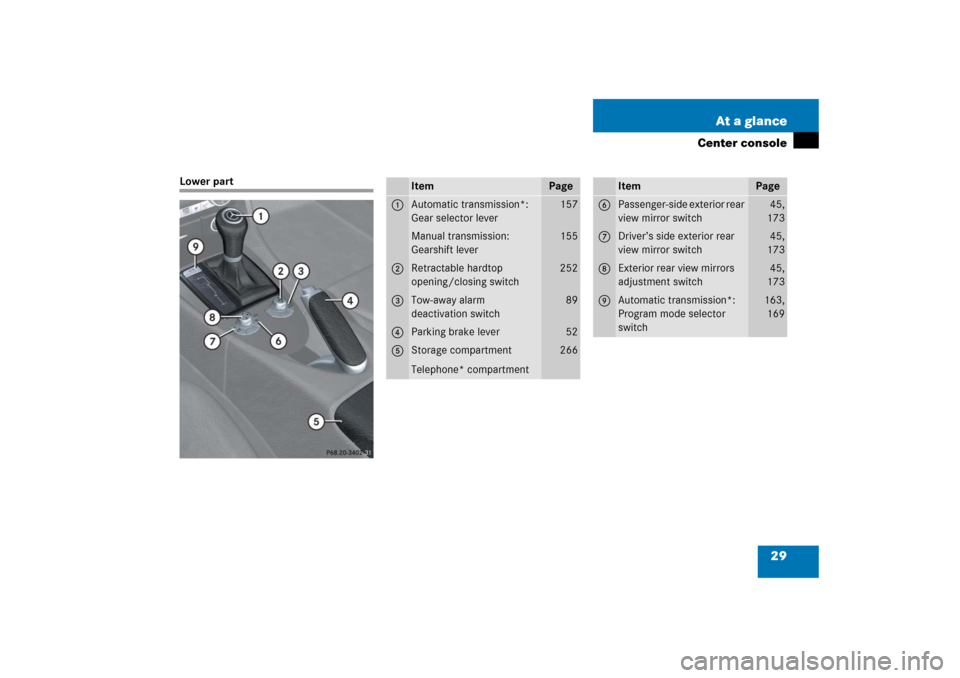

29 At a glance
Center console
Lower part
Item
Page
1
Automatic transmission*:
Gear selector lever
157
Manual transmission:
Gearshift lever
155
2
Retractable hardtop
opening/closing switch
252
3
Tow-away alarm
deactivation switch
89
4
Parking brake lever
52
5
Storage compartment
Telephone* compartment
266
Item
Page
6
Passenger-side exterior rear
view mirror switch
45,
173
7
Driver’s side exterior rear
view mirror switch
45,
173
8
Exterior rear view mirrors
adjustment switch
45,
173
9
Automatic transmission*:
Program mode selector
switch
163,
169

30 At a glanceOverhead control panel
Item
Page
1
Interior lighting on/off
117
2
Interior lighting automatic
control switch
119
3
Right reading lamp on/off
117
4
Tele Aid (emergency call
system) button
273
5
Garage door opener*
281
6
Sensor for auto-dimming
mirrors*
174
7
Interior rear view mirror
45,
173
8
Left reading lamp on/off
119

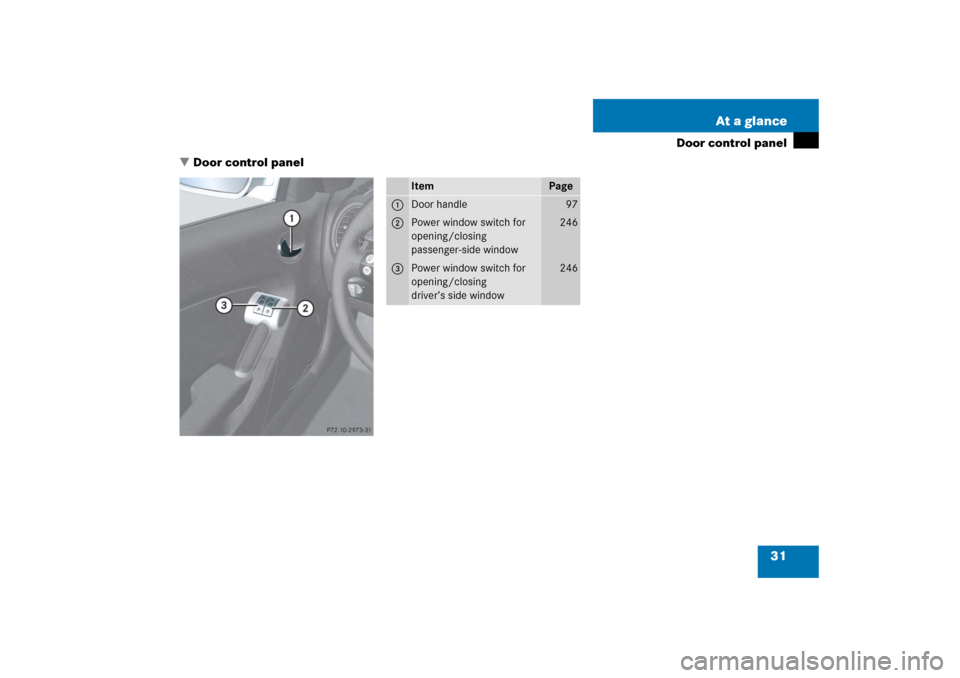

31 At a glance
Door control panel
Door control panel
Item
Page
1
Door handle
97
2
Power window switch for
opening/closing
passenger-side window
246
3
Power window switch for
opening/closing
driver’s side window
246
