2006 MERCEDES-BENZ SLK55AMG Owner's Manual

184 Controls in detailClimate controlHeating (summer)
Turn air temperature
control1and4 (
page 179) to the
desired position.

Turn air volume control2
(page 179) to level1 or higher.

Turn air distribution control3
(page 179) to positiona.

Open the center and side air vents.
Defrosting windshield
You can use this setting to defrost the
windshield, for example if it is iced up.
You can also defog the side windows.Activating

Press buttonP (
page 179).
The indicator lamp on the button
comes on.
The air conditioning switches
automatically to the following func-
tions:


cooling on to dehumidify


maximum blowing and heating
power


air flows onto the windshield
and the front side windows
iKeep this setting selected only until the
windshield or the side windows are
clear again.

185 Controls in detail
Climate control
Deactivating
Press buttonP (
page 179) again.
The indicator lamp on the button goes
out.
The previous settings are once again in
effect.Windshield fogged on the outside

Switch the windshield wipers on
(page 56).

Turn air distribution control3 to
positionaorY (
page 179).
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the interior.
iThe cooling remains switched on.
Warning!
G
Fogged windows impair visibility, endanger-
ing you and others. If the windows begin to
fog on the inside, switching off the air
recirculation mode immediately should clear
interior window fogging. If interior window
fogging persists, make sure the air
conditioning (
page 187) is activated, or
press buttonP.

186 Controls in detailClimate controlActivating
Briefly press button,
(page 179).
The indicator lamp on the button
comes on.Deactivating

Press button, (
page 179) again.
The indicator lamp on the button goes
out.
iThe air recirculation mode is activated
automatically at high outside tempera-
tures.
The indicator lamp on button, is
not lit when the air recirculation mode
is automatically switched on.
A quantity of outside air is added after
approximately 30 minutes.
Warning!
G
Never operate the side windows if there is
the possibility of anyone being harmed by
the closing procedure.
In the event that the closing procedure caus-
es potential danger, the closing of the door
windows can be immediately halted by re-
leasing the, button or by pressing the
respective power window switch.
The closing of the rear side windows can be
immediately halted by releasing the
,button.iIf you press button, and keep it
pressed, the side windows will close.
The closing of the side windows can be
immediately halted by releasing
button,.
iThe air recirculation mode is deactivat-
ed automatically:

after 5 minutes if the outside tem-
perature is below approximately
41°F (5°C)


after 5 minutes if the air condition-
ing is turned off


after 30 minutes if the outside tem-
perature is above approximately
41°F (5°C)
iIf you press button, and keep it
pressed, the side windows will open.
The opening of the side windows can
be immediately halted by releasing
button,.

187 Controls in detail
Climate control
Air conditioning
The cooling function, only operational
when the engine is running, cools the vehi-
cle interior down to the selected tempera-
ture. The cooling function also
dehumidifies the air in the vehicle interior,
thus preventing the windows from fogging
up.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the climate
control system. The air in the vehicle will
then no longer be cooled or dehumidified.

Press button9 (
page 179).
The indicator lamp on the button goes
out. The cooling function switches off
after a short delay.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

Press button9 (
page 179) again.
The indicator lamp on the button
comes on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iCondensation may drip from under-
neath the vehicle. This is normal and
not an indication of a malfunction.Warning!
G
If you turn off the cooling function, the vehi-
cle will not be cooled when the weather con-
ditions are warm. The windows can fog up
more quickly. Window fogging may impair
visibility and endanger you and others.

188 Controls in detailClimate controlMaximum cooling
Turn thumbwheels5and8
(page 178) upwards to the first stop.
The fixed center air vents4and9
(page 178) and the adjustable air
vents6and7 (
page 178) are
open.

For draft-free ventilation, move the
sliders for the center air vents
6and7 (
page 178) to the middle
position.

Turn thumbwheels1andc
(page 178) for the adjustable side air
vents2andb (
page 178) to the
fully open position.

Set air distribution control3
(page 182) to positiona.
The air distribution directs the air
through the center and side air vents.

Set air volume control2 (
page 183)
to position5.
The ventilation operates with maximum
blower speed.

Turn temperature controls1and4
(page 179) completely counterclock-
wise to their end stops.
The lowest temperature for both sides
is set.
Residual engine heat utilization
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
iWhen the vehicle’s interior has cooled
down enough, reduce the air volume
and increase the air temperature to
comfortable settings if desired.

189 Controls in detail
Climate control
Activating
Switch off the ignition (
page 36).

Press button9 (
page 179).
The indicator lamp on the button
comes on.Deactivating

Press button9 (
page 179) again.
The indicator lamp on the button goes
out.
iHow long the system will provide heat-
ing depends on

the coolant temperature


the temperature set by the operator
The blower will run at speed setting1
regardless of the air distribution con-
trol setting.
iThe residual heat is automatically
turned off

when the ignition is switched on
(page 36)


after about 30 minutes


if the battery voltage drops

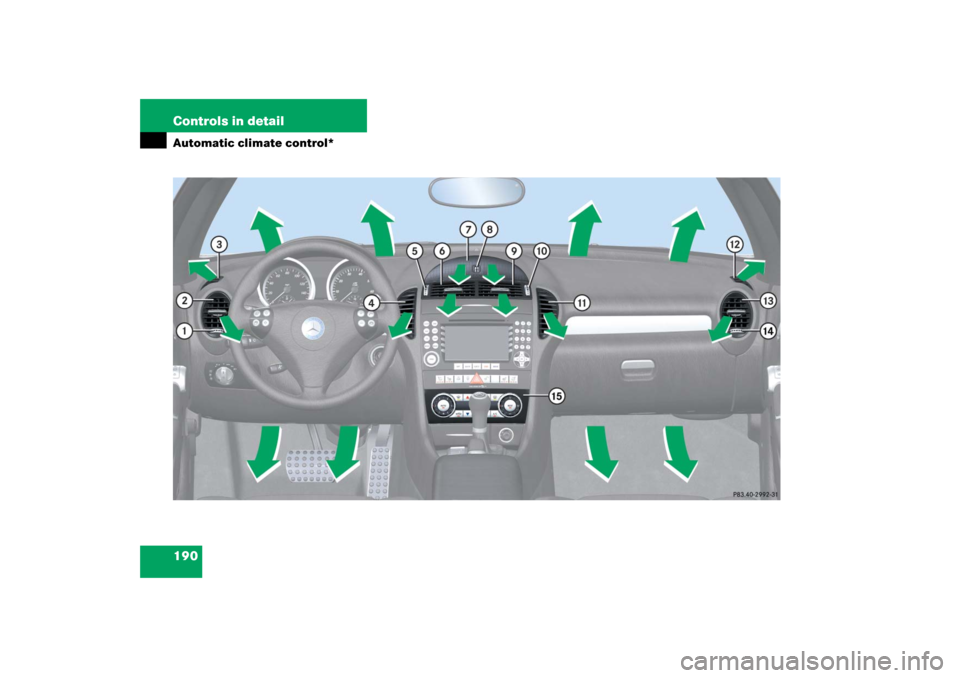

190 Controls in detailAutomatic climate control*

191 Controls in detail
Automatic climate control*
Item
1
Thumbwheel for air volume control
for adjustable left side air vent
2
Left side air vent, adjustable
3
Fixed air vent for defrosting left side
window
4
Left center air vent, fixed
5
Thumbwheel for air volume control
for fixed/adjustable left center air
vents
6
Left center air vent, adjustable
7
Cockpit air vent
8
Thumbwheel for air volume control
for cockpit air vent
9
Right center air vent, adjustable
a
Thumbwheel for air volume control
for fixed/adjustable right center air
vents
b
Right center air vent, fixed
c
Fixed air vent for defrosting right
side window
d
Right side air vent, adjustable
e
Thumbwheel for air volume control
for adjustable right side air vent
f
Automatic climate control paneliWhen you turn the thumbwheels5
and a upwards to the first stop, the
fixed center air vents4 andb and
the adjustable center air vents6
and9 are open.
When you turn the thumbwheels com-
pletely upwards, only the adjustable
center air vents6 and9 are open.
For draft-free ventilation, move the slid-
ers for the center air vents6 and9
to the middle position.Item
