SWITCHES
43
CAUTION
To avoid serious personal injury, you must do the
following.
Always make sure the hands and other parts of the
bodies of all occupants are kept completely inside
the vehicle before you close the power quarter
windows. If someone’s hands get caught in a closing
window, it could result in a serious injury. When
anyone closes the power quarter windows, make
sure he/she operates the windows safely.
 When small children are in the vehicle, never let them
use the power rear quarter window switches without
supervision.
 Be sure to remove the ignition key when you leave
your vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the power
quarter window switches and get trapped in a
window. Unattended person (particularly a small
child) can be involved in a serious accident.
EMERGENCY FLASHER SWITCH
12X503a
To turn on the emergency flashers, push the switch. To
turn them off, push the switch again.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.
NOTICE
To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.

SWITCHES
44
SEAT HEATER SWITCHES
12X025c
 1For driver’s seat 2For front passenger’s seat
3High heating temperature
4Low heating temperature
To turn on the seat heater, push the switch to “HI” (high
temperature) or “LO” (low heating temperature). To turn
off the seat heater, push the switch lightly on the opposite
side. At this time, the indicator light on either side will
illuminate to indicate the seat heater is operating.
The ignition key must be in the “ON” position to operate seat
heaters.
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
 Babies, small children, elderly persons, sick persons
or persons with physical disabilities
 Persons who have sensitive skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
 Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
 When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.
 To prevent the battery from being discharged, turn
the switches off when the engine is not running.

SWITCHES
45

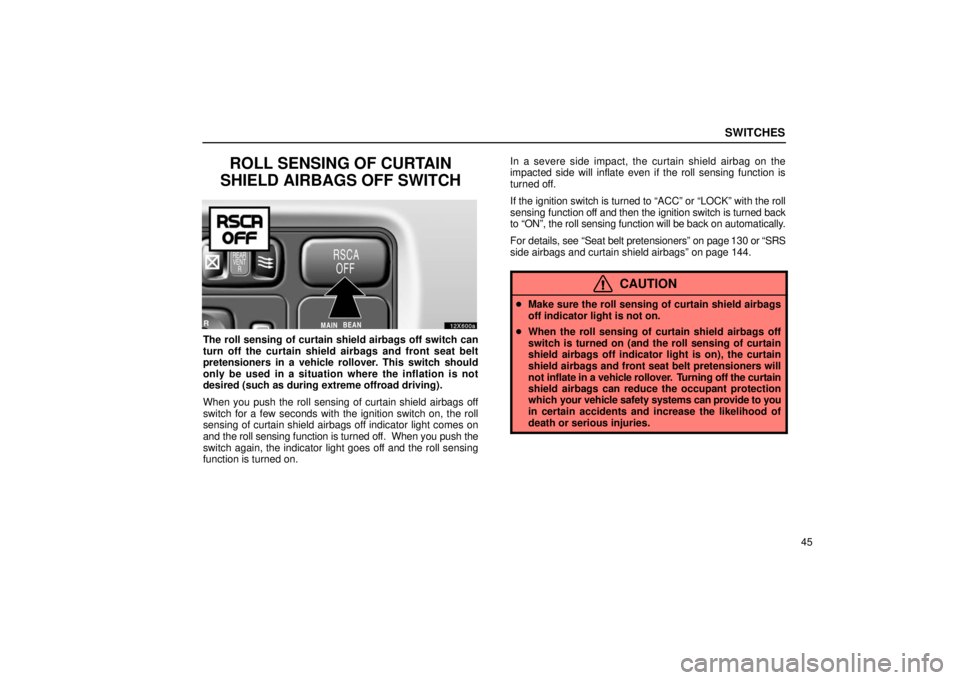

ROLL SENSING OF CURTAIN
SHIELD AIRBAGS OFF SWITCH
12x600a
The roll sensing of curtain shield airbags off switch can
turn off the curtain shield airbags and front seat belt
pretensioners in a vehicle rollover. This switch should
only be used in a situation where the inflation is not
desired (such as during extreme offroad driving).
When you push the roll sensing of curtain shield airbags off
switch for a few seconds with the ignition switch on, the roll
sensing of curtain shield airbags off indicator light comes on
and the roll sensing function is turned off. When you push the
switch again, the indicator light goes off and the roll sensing
function is turned on. In a severe side impact, the
curtain shield airbag on the
impacted side will inflate even if the roll sensing function is
turned off.
If the ignition switch is turned to “ACC” or “LOCK” with the r\
oll
sensing function off and then the ignition switch is turned back
to “ON”, the roll sensing function will be back on automatically.
For details, see “Seat belt pretensioners” on page 130 or “SRS
side airbags and curtain shield airbags” on page 144.
CAUTION
 Make sure the roll sensing of curtain shield airbags
off indicator light is not on.
 When the roll sensing of curtain shield airbags off
switch is turned on (and the roll sensing of curtain
shield airbags off indicator light is on), the curtain
shield airbags and front seat belt pretensioners will
not inflate in a vehicle rollover. Turning off the curtain
shield airbags can reduce the occupant protection
which your vehicle safety systems can provide to you
in certain accidents and increase the likelihood of
death or serious injuries.

SWITCHES
46

SECTION 1 – 3
47
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 48
. . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil pressure gauge 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltmeter 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tachometer 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 52
. . . . . . . . . . . . . .
Trip information display 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
48
FUEL GAUGE
13X500
Low fuel level warning light
The gauge indicates the approximate quantity of fuel
remaining in the tank when the ignition switch is on.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light\
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible. See the inner back cover for fuel capacity and recommended
fuel selection.
ENGINE COOLANT
TEMPERATURE GAUGE
13X501
 Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
49
Your vehicle may overheat during severe operating conditions,
such as:

Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.
 Idling for a long period with the air conditioning on in
stop−and−go traffic.
 Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
 Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 338.
ENGINE OIL PRESSURE GAUGE
13X623
 1
Normal driving 2Idling
The engine oil pressure gauge indicates engine oil
pressure when the ignition is on. Check it while driving to
make sure the needle is in the proper range.
If the engine oil pressure should stay below the normal range,
pull off the road to a safe place and stop the engine
immediately. Call a Lexus dealer or qualified repair shop for
assistance.
Engine oil pressure may not build up when the engine oil level
is too low. The engine oil pressure gauge is not designed to
indicate engine oil level, and the engine oil level must be
checked using the level dipstick.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
50
NOTICE
Do not drive the vehicle with the engine oil pressure
below the normal range until the cause is fixed it may
ruin the engine.
VOLTMETER
13X503a
 1 Normal range 2Charging system warning light
The voltmeter tells whether the battery is charged or
discharged. Check it while the engine is running the
needle should always indicate as shown above.
If the needle reads below or above the normal range while the
engine is running, it indicates the charging system needs
immediate repair.
However, it is normal for the needle to drop below the normal
range during engine starting.
