CHASSIS
524
The recommended cold tire inflation pressures,
tire sizes and the combined weight of occupants
and cargo (vehicle capacity weight) are described
on page 520 and 564. They are also described
on the tire and loading information label as
shown.
You should check the tire inflation pressure every two
weeks, or at least once a month. And do not forget
the spare!
The following instructions for checking tire
inflation pressure should be observed:
The pressure should be checked only when the
tires are cold. If your vehicle has been parked
for at least 3 hours and has not been driven for
more than 1.5 km or 1 mile since, you will get an
accurate cold tire inflation pressure reading.
 If you cannot adjust the tire pressure when the
tires are cold, add 20 kPa (0.2 kgf/cm
2 or bar, 2.9
psi) to 30 kPa (0.3 kgf/cm2 or bar, 4.3 psi) more
to the front tires and rear tires than the cold tire
pressure, but never exceed the maximum cold tire
pressure molded on the tire sidewall.
Always use a tire pressure gauge. The
appearance of a tire can be misleading. Besides,
tire inflation pressures that are even just a few
pounds off can degrade handling and ride.
 Do not bleed or reduce tire inflation pressure
after driving. It is normal for the tire inflation
pressure to be higher after driving.
 Never exceed the vehicle capacity weight.
Passengers and luggage weight should be located
so that the vehicle is balanced.

CHASSIS
525
Inspection and adjustment procedure
1Tire valve
2Tire pressure gauge
1. Remove the tire valve cap.
2. Press the tip of the tire pressure gauge to the tire
valve.
3. Read the pressure using the graduations of the
gauge.
4. In case the tire inflation pressure is not within the
prescribed range, insert the compressed air from the
valve. In case of applying too much air, press the
center of the valve and release the air to adjust. 5. After completing the tire inflation pressure
measurement and adjustment, apply soapy water to
the valve and check for leakage.
6. Install the tire valve cap.
If a gauge and air pump are not available, have your
vehicle checked by your Lexus dealer.
CAUTION
Be sure to reinstall the tire valve caps. Without
the valve caps, dirt or moisture could get into
the valve core and cause air leakage. If the caps
have been lost, have new ones put on as soon
as possible.
NOTICE
Use only the original valve cap. If any other
valve cap is used, it may corrode or melt and
become difficult or impossible to remove.

CHASSIS
526
Incorrect tire inflation pressure may waste fuel, reduce
the comfort of driving, reduce tire life and make your
vehicle less safe to drive.
If a tire frequently needs refilling, have it checked by
your Lexus dealer.
CAUTION
Keep your tires properly inflated. Otherwise, the
following conditions may occur and cause an
accident resulting in death or serious injuries.
Low tire pressure (underinflation) —
Excessive wear
 Uneven wear
 Poor handling
 Possibility of blowouts from an overheated
tire
 Poor sealing of the tire bead
 Wheel deformation and/or tire separation
 A greater possibility of tire damage from road
hazards
High tire pressure (overinflation) —
Poor handling
 Excessive wear
 Uneven wear
 A greater possibility of tire damage from road
hazards

CHASSIS
527
TIRE INFORMATION
Tire symbols
63PY018
The illustration indicates typical tire symbols.

CHASSIS
528
1Tire size: For details, see “Tire size” on page
529.
2DOT and Tire Identification Number (TIN): For
details, see “DOT and Tire Identification Number
(TIN)” on page 529.
3Location of the tread wear indicators: For
details, see “Checking and replacing tires” on
page 538.
4Tire ply composition and materials: Plies mean
a layer of rubber −coated parallel cords. Cords
mean the strands forming the plies in the tire.
5Radial tires or biasply tires: A radial tire has
“RADIAL” on the sidewall. A tire not marked with
“RADIAL” is a bias −ply tire.
6“TUBELESS” or “TUBE TYPE”: A tubeless tire
does not have a tube inside the tire. A tube type
tire has a tube inside the tire and the tube
maintains the air pressure.
7Load limit at maximum cold tire inflation
pressure: For details, see “Checking and
replacing tires” on page 538.
8Maximum cold tire inflation pressure: This
means the pressure to which a tire may be
inflated. For details about recommended cold tire
inflation pressure, see “Specifications” on page
518.
9Uniform tire quality grading: For details, see
“Uniform tire quality grading” that follows.
10Summer tire or all season tire: An all season
tire has “M+S” on the sidewall. The tire not
marked with “M+S” is a summer tire. For details,
see “Types of tires” on page 536.

CHASSIS
529
DOT and Tire Identification Number (TIN)
The illustration indicates typical DOT and Tire
Identification Number (TIN).
1“DOT” symbol
2Tire Identification Number (TIN)
3Tire manufacturer’s identification mark
4Tire size code
5Manufacturer’s optional tire type code
(3 or 4 letters)
6Manufacturing week
7Manufacturing year
The “DOT” symbol certifies that the tire conforms to
applicable Federal Motor Vehicle Safety Standards.
Tire size
 The illustration indicates typical tire size.
1Tire use (P=Passenger car, T=Temporary
use)
2Section width (in millimeters)
3Aspect ratio (tire height to section width)
4Tire construction code
(R=Radial, D=Diagonal)
5Wheel diameter (in inches)
6Load index (2 digits or 3 digits)
7Speed symbol (alphabet with one letter)

CHASSIS
530

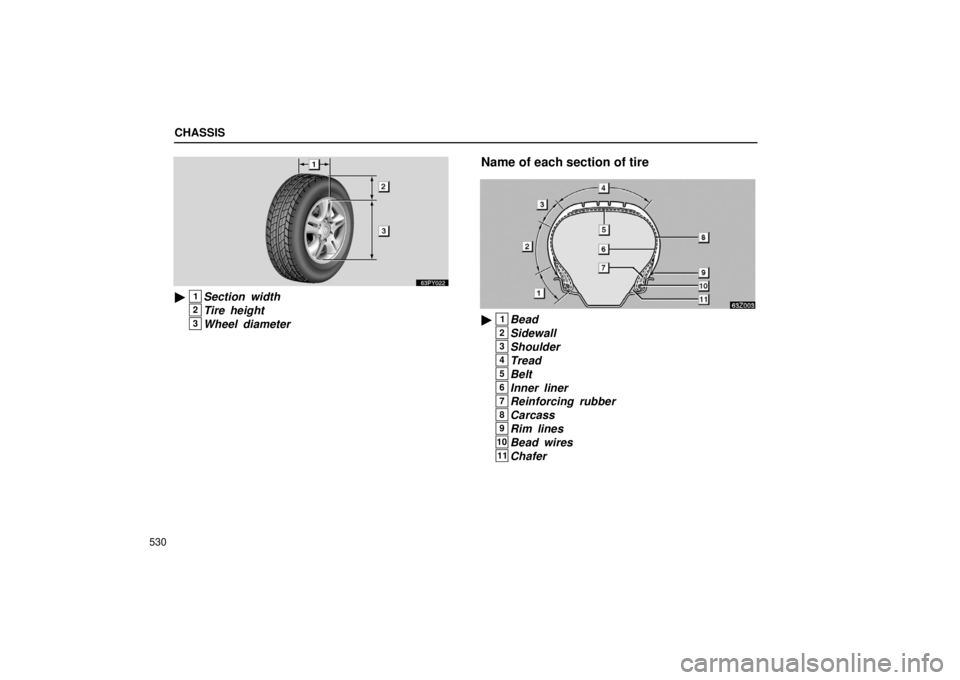

1Section width
2Tire height
3Wheel diameter
Name of each section of tire
1Bead
2Sidewall
3Shoulder
4Tread
5Belt
6Inner liner
7Reinforcing rubber
8Carcass
9Rim lines
10Bead wires
11Chafer

CHASSIS
531
Uniform tire quality grading
This information has been prepared in accordance
with regulations issued by the National Highway
Traffic Safety Administration of the U.S.
Department of Transportation. It provides the
purchasers and/or prospective purchasers of
Lexus vehicles with information on uniform tire
quality grading.
Your Lexus dealer will help answer any questions
you may have as you read this information.
DOT quality grades — All passenger car tires must
conform to Federal Safety Requirements in
addition to these grades. Quality grades can be
found where applicable on the tire sidewall
between tread shoulder and maximum section
width. For example: Treadwear 200 Traction AA
Temperature ATreadwear
— The treadwear grade is a comparative
rating based on the wear rate of the tire when tested
under controlled conditions on a specified government
test course. For example, a tire graded 150 would
wear one and a half (1 — 1/2) times as well on the
government course as a tire graded 100. The relative
performance of tires depends upon the actual
conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices and differences in road
characteristics and climate.
Traction AA, A, B, C — The traction grades, from
highest to lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is
based on braking (straight ahead) traction tests and
does not include cornering (turning) traction.
