IN CASE OF AN EMERGENCY
444

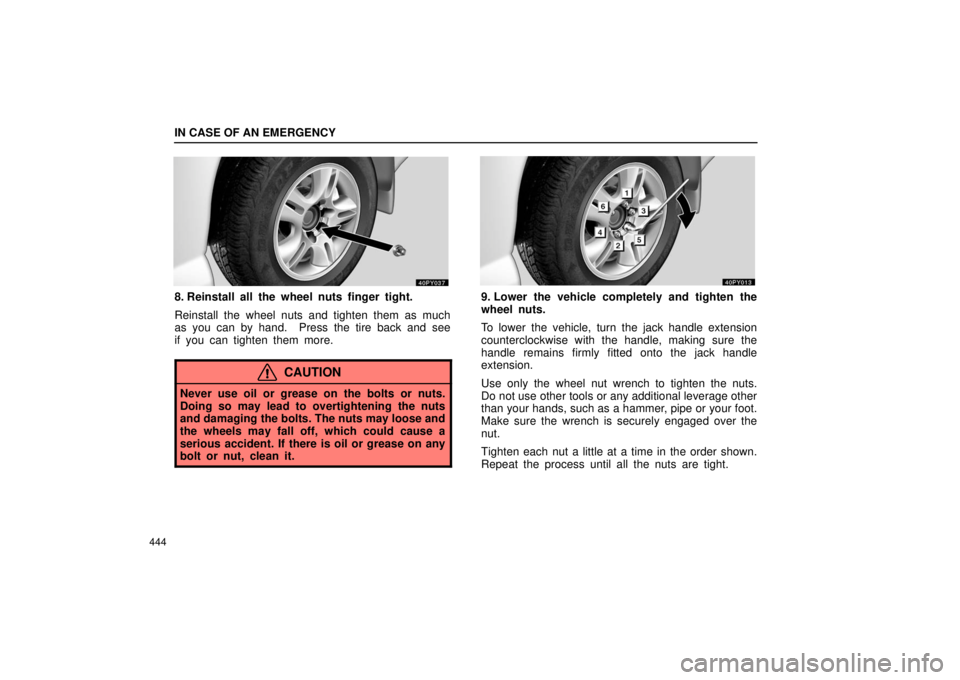

8. Reinstall all the wheel nuts finger tight.
Reinstall the wheel nuts and tighten them as much
as you can by hand. Press the tire back and see
if you can tighten them more.
CAUTION
Never use oil or grease on the bolts or nuts.
Doing so may lead to overtightening the nuts
and damaging the bolts. The nuts may loose and
the wheels may fall off, which could cause a
serious accident. If there is oil or grease on any
bolt or nut, clean it.
9. Lower the vehicle completely and tighten the
wheel nuts.
To lower the vehicle, turn the jack handle extension
counterclockwise with the handle, making sure the
handle remains firmly fitted onto the jack handle
extension.
Use only the wheel nut wrench to tighten the nuts.
Do not use other tools or any additional leverage other
than your hands, such as a hammer, pipe or your foot.
Make sure the wrench is securely engaged over the
nut.
Tighten each nut a little at a time in the order shown.
Repeat the process until all the nuts are tight.

IN CASE OF AN EMERGENCY
445
CAUTION
When lowering the vehicle, make sure all
portions of your body and all other persons
around will not be injured as the vehicle is
lowered to the ground.
 Have the wheel nuts tightened with torque
wrench to 112 N·m (11.5 kgf·m, 83 ft·lbf), as
soon as possible after changing wheels.
Otherwise, the nuts may loosen and the
wheels may fall off, which could cause a
serious accident.
10. Reinstall the wheel ornament.
Put the wheel ornament into position and then tap it
firmly with the side or heel of your hand to snap it
into place.
CAUTION
Take due care in handling the ornament to
avoid unexpected personal injury.
 Do not attach a heavily damaged plastic wheel
ornament. It may fly off the wheel and cause
accidents while the vehicle is moving.

IN CASE OF AN EMERGENCY
446
11. After changing the wheel, check the air
pressure of the replaced tire. Stow all the tools,
jack and flat tire securely.
If the pressure of the replaced tire is low, drive slowly
to the nearest service station and fill to the correct
pressure.
Do not forget to reinstall the tire valve cap as dirt and
moisture could get into the valve core and possible
cause air leakage. If the cap is missing, put a new
one on as soon as possible.
This is the same procedure for changing or rotating
your tires.
CAUTION
Before driving, make sure all the tools, jack and
flat tire are securely in place in their storage
location to reduce the possibility of personal
injury during a collision or sudden braking.
IF YOUR VEHICLE BECOMESSTUCK
If your vehicle becomes stuck in snow, mud, sand, etc.,
then you may attempt to rock the vehicle free by moving
it forward and backward.
In this situation, lock the center differential and turn off the
vehicle stability control system. (For details, see
“Fourwheel drive system” on page 356.)
CAUTION
Do not attempt to rock the vehicle free by moving it
forward and backward if people or objects are anywhere
near the vehicle. During the rocking operation the
vehicle may suddenly move forward or backward as it
becomes unstuck, causing injury or damage to nearby
people or objects.

IN CASE OF AN EMERGENCY
447
NOTICE
If you rock your vehicle, observe the following
precautions to prevent damage to the transmission and
other parts.
 Do not depress the accelerator pedal while shifting
the selector lever or before the transmission is
completely shifted to forward or reverse gear.
 Do not race the engine and avoid spinning the
wheels.
 If your vehicle remains stuck after rocking the vehicle
several times, consider other ways such as towing.
IF YOUR VEHICLE NEEDS TO BE
TOWED
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
In consultation with them, have your vehicle towed using
either (a) or (b).
(a) Towing with a wheel lift type truck
(b) Using a flat bed truck
(c) Never tow with a sling type truck
Only when you cannot receive a towing service from a
Lexus dealer or commercial tow truck service, tow your
vehicle carefully in accordance with the instructions
given in “(d) Emergency towing” on page 451.
Proper equipment will help ensure that your vehicle is not
damaged while being towed. Commercial operators are
generally aware of the state/provincial and local laws
pertaining to towing.
Your vehicle can be damaged if it is towed incorrectly. Although
most operators know the correct procedure, it is possible to
make a mistake. To avoid damage to your vehicle, make sure
the following precautions are observed. If necessary, show
this page to the tow truck driver.

IN CASE OF AN EMERGENCY
448TOWING PRECAUTIONS:
Use a safety chain system for all towing, and abide by the
state/provincial and local laws. The wheels and axle on the
ground must be in good condition. If they are damaged, use
a towing dolly.
CAUTION
When
your vehicle is towed, put the vehicle height in the
“N” (normal) mode and push the “HEIGHT CONTROL
OFF” switch to turn off the rear height control air
suspension. Otherwise, the vehicle height may be
changed in the automatic leveling function, resulting in
accident. For details, see “Rear height control air
suspension” on page 366.
(a) Towing with a wheel lift type truck
 From front
Use a towing dolly under the rear wheels.
NOTICE
Never tow a vehicle with an automatic transmission
from the front with rear wheels on the ground, as this
may cause serious damage to the transmission.

IN CASE OF AN EMERGENCY
449

From rear
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle with an automatic transmission
from the rear with front wheels on the ground, as this
may cause serious damage to the transmission.
(b) Using a flat bed truck
Tie down points

IN CASE OF AN EMERGENCY
450
Front
Rear
If your Lexus is transported by a flat bed, it should be tied
down at locations A, B and C as shown above.
Tie down angle
If you use chains or wires to tie down your vehicle, the
angles shaded black must be at 45.

IN CASE OF AN EMERGENCY
451
(c) Towing with a sling type truck
NOTICE
Do not tow with a sling type truck, either from the front
or rear. This may cause body damage.
(d) Emergency towing
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
If towing service is not available in an emergency, your
vehicle may be temporarily towed by a cable or chain
secured to the emergency towing eyelet. Use extreme
caution when towing the vehicle.
NOTICE
 Only use specified towing eyelet; otherwise your
vehicle may be damaged.
 Never tow a vehicle from the rear with four wheels on
the ground. This may cause serious damage to the
transmission.
