2006 Lexus GX470 Basic Functions In Frequent Use / LEXUS 2006 GX470 OWNER'S MANUAL (OM60B99U)

STARTING AND DRIVING
388If the low tire pressure warning light comes on or blinks,
do the following.
If the warning light comes on:
Stop your
vehicle in a safe place as soon as possible and
check that the inflation pressure of all tires (including the
spare tire) is as specified on the tire and loading
information label. (See “Checking tire inflation pressure”
on page 523.) If the warning light comes on even after tire
inflation pressure adjustment, you may have a flat tire. If
you have a flat tire, replace it with the spare tire. For
details, see “If you have a flat tire” on page 432.
The warning light goes off a few minutes after air is put into the
deflated tire.
This warning light may turn on due to natural causes such as
natural air leaks or tire pressure changes caused by
temperature. In this case, adjusting the tire pressure will turn
off the warning light.
CAUTION
When the low tire pressure warning light comes on,
observe the following instructions:
 Depending on the conditions, reduce to an
appropriate speed as soon as possible.
 Adjust the tire pressure to the specified level as soon
as possible.
 Avoid abrupt steering wheel maneuvering and
braking. Tire deterioration may reduce steering
wheel control and brake effectiveness. This may lead
to serious injury or death.
 The tire pressure warning system may not activate
immediately if sudden bursts of air leakage occur.

STARTING AND DRIVING
389
NOTICE
Do not use liquid sealants for a flat tire as air pressure
sensors will be damaged.
 When the tires must be repaired or replaced, have
them repaired or replaced by the nearest Lexus
dealer or authorized tire dealer. The tire pressure
sensors will be affected by the installation or removal
of tires.
 The tire pressure warning system is not to be used as
a substitute for regular inspections. Be sure to check
the air pressure in the tires on a regular basis.
 When the tires must be replaced, replace the
grommets for air pressure sensors as well.
If the warning light blinks:
The tire pressure warning system may be malfunctioning.
Contact your Lexus dealer.
System malfunction
The tire pressure warning system does not function
properly under certain circumstances. In the following
cases, the low tire pressure warning light may not come
on even if the tire inflation pressure is low, or it may come
on when the tire inflation pressure is actually normal.
Electric devices or facilities using similar radio wave
frequencies are nearby.
 A radio set to similar frequencies is in use.
 A lot of snow or ice covers the vehicle, in particular, around
the wheels or wheel housings.
 The tires are not equipped with an air pressure sensor.
 Tire chains are used.
 Non −genuine Lexus wheels are used.
 Although the tires are equipped with air pressure sensors,
the selector switch (see page 393.) is set to other tire setting.

STARTING AND DRIVING
390
CAUTION
The use of nongenuine wheels will cause the air
pressure sensors to transmit the electronic code in
different manner, resulting in the system failure.
 The use of different type of tires with genuine wheels
may also cause the malfunction of the system.
CAUTION
Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire
and load information label). (If your vehicle has tires of
a different size than the size indicated on the vehicle
placard or tire inflation pressure label (tire and load
information label), you should determine the proper tire
inflation pressure for those tires.)

STARTING AND DRIVING
391
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS — tire pressure warning system) that
illuminates a low tire pressure telltale (low tire
pressure warning light) when one or more of your
tires is significantly underinflated. Accordingly,
when the low tire pressure telltale (low tire pressure
warning light) illuminates, you should stop and check
your tires as soon as possible, and inflate them to the
proper pressure. Driving on a significantly
underinflated tire causes the tire to overheat and can
lead to tire failure. Underinflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning
system) is not a substitute for proper tire maintenance,
and it is the driver’s responsibility to maintain correct
tire pressure, even if underinflation has not reached
the level to trigger illumination of the TPMS low tire
pressure telltale (low tire pressure warning light).
For vehicles sold in U.S.A.
This device complies with Part 15 of the FCC Rules. Opera-
tion is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residen-
tial installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful in-
terference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of
the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and re-
ceiver.
 Connect the equipment into an outlet on a circuit dif ferent
from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician
for help.
FCC WARNING:
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.

STARTING AND DRIVING
392For vehicles sold in Canada
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this de-
vice must accept any interference, including interference
that may cause undesired operation of the device.
Replacing tires and wheels
When replacing the wheels, be sure to install air pressure
sensors on the wheels.
There are 3 ways to set up the air pressure sensors:
(a) Remove the sensor
from the old wheel and install it to the
new wheel.
(b) Keep the same wheel with air pressure sensor and replace
only the tire.
(c) Use a new wheel and sensor.
You have to register an ID code for a new sensor. Up to 2 sets
of codes can be registered. As one ID for the originally installed
sensor is registered at “MAIN” of the selector switch, use the
“2nd” position to register an ID for the new sensor.
You do not need to re −register the ID code for any other
replacements. For the use of the originally installed tires, put
the selector switch at “MAIN” and for the use of tires set
purchased later, put the switch at “2nd”. For the sensor
selector switch, see page 393.

STARTING AND DRIVING
393
CAUTION
Have the tires, wheels or sensors replaced and ID
codes registered by a Lexus dealer. If you need
sensors, purchase from a Lexus dealer.
 The use of nongenuine wheels will cause the air
pressure sensors to transmit the electronic code in
different manner, resulting in the failure of the
system.
Selector switch
1Main position22nd position
The selector switch is located in the lower part of the
driver’s side instrument panel.
The ID code is given in the sensor. To activate the air
pressure wa rning system, it is necessary to register the ID
code of the sensor on the selector switch in the vehicle.

STARTING AND DRIVING

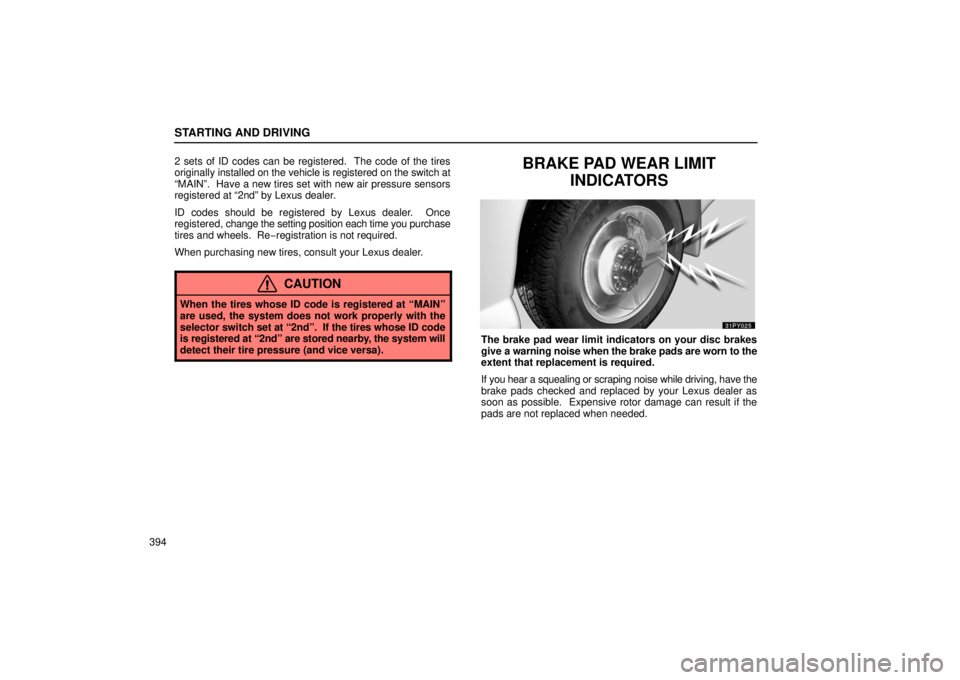

3942 sets of ID codes can be registered. The code of the tires
originally
installed on the vehicle is registered on the switch at
“MAIN”. Have a new tires set with new air pressure sensors
registered at “2nd” by Lexus dealer.
ID codes should be registered by Lexus dealer. Once
registered, change the setting position each time you purchase
tires and wheels. Re −registration is not required.
When purchasing new tires, consult your Lexus dealer.
CAUTION
When the tires whose ID code is registered at “MAIN”
are used, the system does not work properly with the
selector switch set at “2nd”. If the tires whose ID code
is registered at “2nd” are stored nearby, the system will
detect their tire pressure (and vice versa).
BRAKE PAD WEAR LIMIT INDICATORS
The brake pad wear limit indicators on your disc brakes
give a warning noise when the brake pads are worn to the
extent that replacement is required.
If you hear a squealing or scraping noise while driving, have the
brake pads checked and replaced by your Lexus dealer as
soon as possible. Expensive rotor damage can result if the
pads are not replaced when needed.

STARTING AND DRIVING
395
LIMITEDSLIP DIFFERENTIAL
Your Lexus is equipped with a limited−slip center differential
(transfer).
If one wheel — either front or rear — begins to spin, the transfer
(limited −slip center differential) is designed to aid traction by
automatically transmitting driving force to the wheels on the
other drive axle. It transmits driving force to the front wheels
if a rear wheel spins, and to the rear wheels if a front wheel
spins.
CAUTION
Do not start or run the engine while your vehicle is
supported by a jack. The vehicle could be driven off the
jack and could pose a danger or result in serious injury.
NOTICE
Use only a spare tire of the same size, construction and
load capacity as the original tires on your Lexus
because damage to the limitedslip differential could
possibly occur with another tire type.
