2006 INFINITI QX56 sensor

HARNESSPG-63
C
DE
F
G H
I
J
L
M A
B
PG
Revision: November 2009 2006 QX56
HORNWW Horn
HSEAT SE Heated Seat
ICC ACS Intelligent Cruise Control
ICCBOF EC ICC Brake Switch
ICC/BS EC ICC Steering Switch
ICC/SW EC ICC Brake Switch
I/MIRR GW Inside Mirror (Auto Anti-Dazzling Mirror)
IATS EC Intake Air Temperature Sensor
IGNSYS EC Ignition System
ILL LT Illumination
INJECT EC Injector
INT/L LT Room/Map, Vanity, Cargo, Personal, Foot, Step, and Puddle Lamps
KEYLES BL Remote Keyless Entry System
KS EC Knock Sensor
MAFS EC Mass Air Flow Sensor
MAIN EC Main Power Supply and Ground Circuit
METER DI Speedometer, Tachometer, Temp. and Fuel Gauges
MIL/DL EC Malfunction Indicator Lamp
MIRROR GW Door Mirror
NATS BL Nissan Anti-Theft System
NAVI AV Navigation System
O2H2B1 EC Rear Heated Oxygen Sensor 2 Heater Bank 1
O2H2B2 EC Rear Heated Oxygen Sensor 2 Heater Bank 2
O2S2B1 EC Heated Oxygen Sensor 2 Bank 1
O2S2B2 EC Heated Oxygen Sensor 2 Bank 2
P/SCKT WW Power Socket
PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve
PHASE EC Camshaft Position Sensor (PHASE) (Bank 1)
PNP/SW EC Park/Neutral Position Switch
POS EC Crankshaft Position Sensor (POS)
POWER PG Power Supply Routing
PRE/SE EC EVAP Control System Pressure Sensor
PS/SEN EC Power Steering Pressure Sensor
R/VIEW DI Rear View Monitor
RP/SEN EC Refrigerant Pressure Sensor
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SONAR DI Rear Sonar System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
START SC Starting System
STOP/L LT Stop Lamp
T/TOW LT Trailer Tow
T/WARN WT Low Tire Pressure Warning System
TAIL/L LT Parking, License and Tail Lamps
T/F TFTransfer Case
TPS1 EC Throttle Position Sensor
TPS2 EC Throttle Position Sensor
TPS3 EC Throttle Position Sensor
TRNSCV BL HOMELINK® Universal Transceiver
TURN LT Turn Signal and Hazard Warning Lamps
VDC BRC Vehicle Dynamic Control System

PS-1
POWER STEERING SYSTEM
G STEERING
CONTENTS
C
DE
F
H I
J
K L
M
SECTION
A
B
PS
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
Precautions for Steering System ......................... ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools (SST) ................................ ..... 3
Commercial Service Tools ................................... ..... 4
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 5
NVH Troubleshooting Chart ................................ ..... 5
POWER STEERING FLUID ................................... ..... 6
Checking Fluid Level ........................................... ..... 6
Checking Fluid Leakage ...................................... ..... 6
Air Bleeding Hydraulic System ............................ ..... 6
STEERING WHEEL .................................................... 7 On-Vehicle Inspection and Service ..................... ..... 7
CHECKING CONDITION OF INSTALLATION . ..... 7
CHECKING STEERING WHEEL PLAY ........... ..... 7
CHECKING NEUTRAL POSITION ON STEER-
ING WHEEL ..................................................... ..... 7
CHECKING STEERING WHEEL TURNING
FORCE ............................................................. ..... 7
CHECKING FRONT WHEEL TURNING ANGLE ..... 8
Removal and Installation ..................................... ..... 8
REMOVAL ........................................................ ..... 8
INSTALLATION ................................................ ..... 8
TILT SYSTEM ............................................................. 9 Removal and Installation ..................................... ..... 9
TILT MOTOR AND TILT SENSOR ................... ..... 9
STEERING COLUMN ............................................ ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 10
INSPECTION AFTER REMOVAL .................... .... 11
INSTALLATION ................................................ .... 11INSPECTION AFTER INSTALLATION .............
... 12
Disassembly and Assembly ................................. ... 13
DISASSEMBLY ................................................ ... 13
ASSEMBLY ...................................................... ... 14
INSPECTION AFTER ASSEMBLY ................... ... 14
POWER STEERING GEAR AND LINKAGE ......... ... 15
Removal and Installation ..................................... ... 15
REMOVAL ........................................................ ... 15
INSTALLATION ................................................ ... 16
INSPECTION AFTER INSTALLATION ............. ... 17
Disassembly and Assembly ................................. ... 17
DISASSEMBLY ................................................ ... 17
INSPECTION AFTER DISASSEMBLY ............. ... 18
ASSEMBLY ...................................................... ... 19
POWER STEERING OIL PUMP ............................ ... 21
On-Vehicle Inspection and Service ...................... ... 21
CHECKING RELIEF OIL PRESSURE ............. ... 21
Removal and Installation ..................................... ... 21
REMOVAL ........................................................ ... 21
INSTALLATION ................................................ ... 21
Disassembly and Assembly ................................. ... 22
INSPECTION BEFORE DISASSEMBLY .......... ... 22
DISASSEMBLY ................................................ ... 22
INSPECTION AFTER DISASSEMBLY ............. ... 22
ASSEMBLY ...................................................... ... 22
HYDRAULIC LINE ................................................. ... 23
Removal and Installation ..................................... ... 23
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 25
Steering Wheel .................................................... ... 25
Steering Column .................................................. ... 25
Steering Outer Socket and Inner Socket ............. ... 26
Steering Gear ...................................................... ... 27
Oil Pump ................................................................. 27
Steering Fluid .......................................................... 27

PS-8
STEERING WHEEL
Revision: November 20092006 QX56
CHECKING FRONT WHEEL TURNING ANGLE
When checking front wheel turning angle, refer to FSU-8, "FRONT WHEEL TURNING ANGLE" .
Removal and InstallationEGS000UD
REMOVAL
1. Set the front wheels in the straight-ahead position.
2. Remove the driver air bag module. Refer to SRS-46, "
Removal and Installation" .
3. Disconnect steering wheel switches.
4. Remove the steering wheel center nut.
5. Remove the steering wheel using Tools.
CAUTION:
Place a piece of tape across the spiral cable so it will not be
rotated out of position.
6. Inspect the steering wheel near the puller holes for damage. If damaged, replace the steering wheel.

Remove steering wheel rear cover and steering wheel
switches, if required.
INSTALLATION
Installation is in the reverse order of removal.

Align spiral cable correctly when installing steering wheel. Make
sure that the spiral cable is in the neutral position. The neutral
position is detected by turning left 2.6 revolutions from the right
end position and ending with the knob at the top.

If equipped with VDC, refer to BRC-62, "Adjustment of Steering
Angle Sensor Neutral Position" for steering angle sensor adjust-
ment.

After the work is completed, perform self-diagnosis to make sure
no malfunction is detected. Refer to SRS-20, "
SRS Operation
Check" .

Tighten steering wheel center nut to specification. Refer to PS-10, "Removal and Installation" .
CAUTION:

The spiral cable may snap due to steering operation if the
cable is not installed in the correct position.

With the steering linkage disconnected, the cable may snap
by turning the steering wheel beyond the limited number of
turns. The spiral cable can be turned counterclockwise
about 2.5 turns from the neutral position. Tool number A: KV481J0010 (J-1859-A)
B: KV481J0020 (J-42578)
WHIA0124E
WGIA0038E
PHIA0275E

TILT SYSTEMPS-9
C
DE
F
H I
J
K L
M A
B
PS
Revision: November 2009 2006 QX56
TILT SYSTEMPFP:48810
Removal and InstallationEGS000UE
TILT MOTOR AND TILT SENSOR
Removal
1. Remove the steering column cover and lower driver instrument panel. Refer to IP-10, "INSTRUMENT
PANEL ASSEMBLY" .
2. Remove knee protector.
3. Disconnect the tilt sensor electrical connector.
4. Remove the two tilt sensor screws and the tilt sensor.
5. Disconnect the tilt motor electrical connector.
6. Remove the tilt motor bolt and the tilt motor.
Installation
Installation is in reverse order of removal.
NOTE:
Make sure the tab in the tilt sensor is engaged in the bracket on the tilt motor.
BGIA0009E
1. Tilt sensor 2. Tilt motor
LGIA0026E

PS-10
STEERING COLUMN
Revision: November 20092006 QX56
STEERING COLUMNPFP:48810
Removal and InstallationEGS000UF
CAUTION:

Do not exert any load or impact in the axial direction immediately before or after column removal.

Do not to move steering gear during removal of steering column assembly.
REMOVAL
1. Remove combination switch and spiral cable from steering column assembly. Refer to SRS-48, "Removal
and Installation" .
2. Remove the tilt motor and tilt sensor. Refer to PS-9, "
Removal and Installation" .
3. Remove steering column cover, ADP steering switch and ignition key finisher. Refer to IP-10, "
Removal
and Installation" .
1. Driver air bag module2. Steering wheel 3. Steering wheel side cover
4. Combination switch and spiral cable 5. Steering column assembly 6. Collar
7. Hole cover seal 8. Clamp 9. Hole cover mounting plate
10. Hole cover 11. Upper joint 12. Upper shaft
13. Boot clamp 14. Lower joint shaft 15. Boot and clips (plastic)
WGIA0139E

PS-16
POWER STEERING GEAR AND LINKAGE
Revision: November 20092006 QX56
8. Remove oil piping (high pressure side and low pressure side)
from steering gear assembly, then drain fluid from piping.
9. Remove lower joint mounting bolt of lower joint shaft.
10. Remove nuts of steering gear assembly using power tool, then remove bolts and steering gear assembly.
INSTALLATION
Installation is in the reverse order of removal.

After removing/installing or replacing steering components, check wheel alignment. Refer to FSU-6,
"Front Wheel Alignment" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-62,
"Adjustment of Steering Angle Sensor Neutral Position" .

With steering wheel in straight ahead position, make sure slit of
lower joint fits with the projection on rear cover cap, while check-
ing that mark on steering gear assembly aligns with mark on
rear cover cap

After installation, bleed the air from the steering hydraulic system. Refer to PS-6, "Air Bleeding Hydraulic
System" .
LGIA0032E
LGIA0029E
LGIA0024E
SST491C

POWER STEERING OIL PUMPPS-21
C
DE
F
H I
J
K L
M A
B
PS
Revision: November 2009 2006 QX56
POWER STEERING OIL PUMPPFP:49110
On-Vehicle Inspection and ServiceEGS000UJ

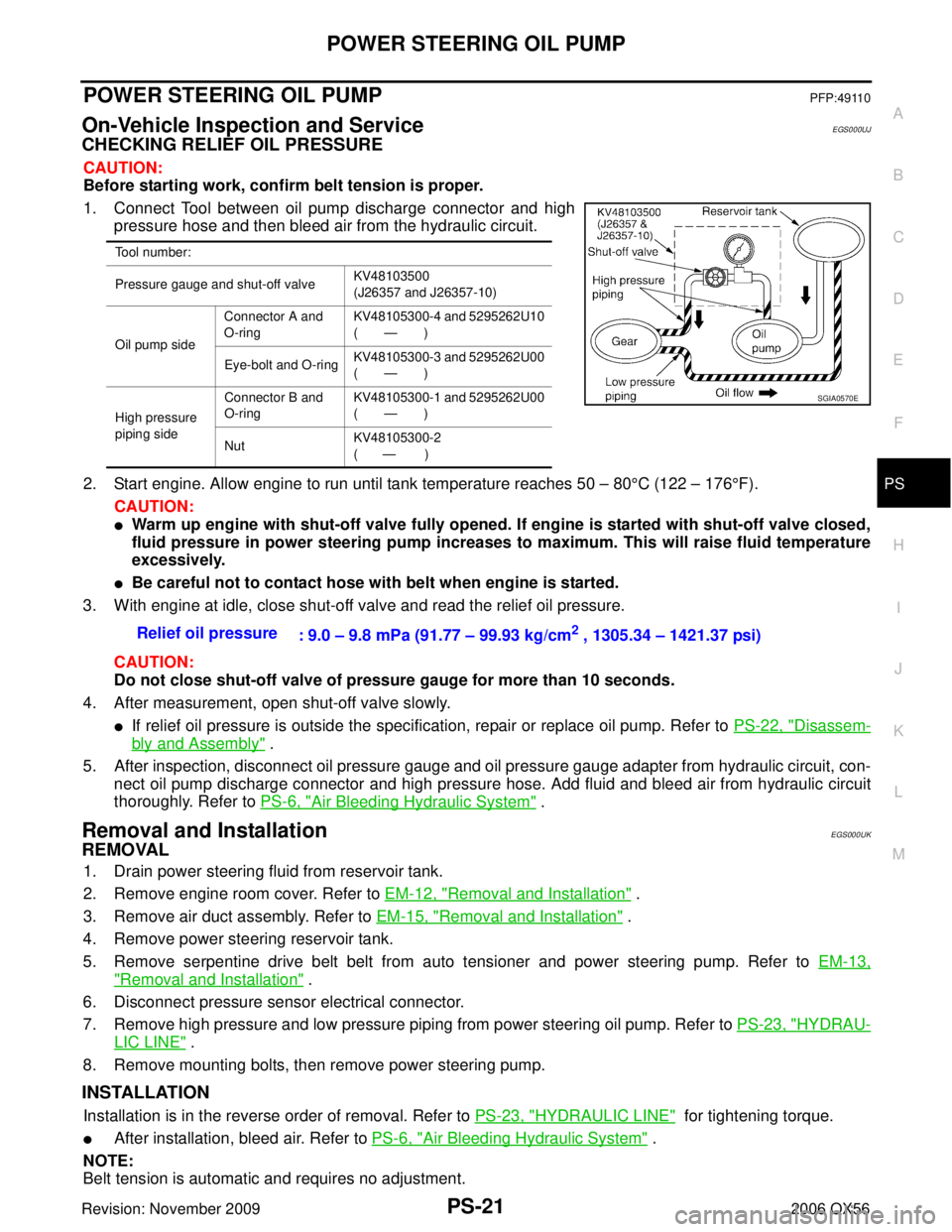

CHECKING RELIEF OIL PRESSURE
CAUTION:
Before starting work, confirm belt tension is proper.
1. Connect Tool between oil pump discharge connector and high
pressure hose and then bleed air from the hydraulic circuit.
2. Start engine. Allow engine to run until tank temperature reaches 50 – 80 °C (122 – 176°F).
CAUTION:

Warm up engine with shut-off valve fully opened. If engine is started with shut-off valve closed,
fluid pressure in power steering pump increases to maximum. This will raise fluid temperature
excessively.

Be careful not to contact hose with belt when engine is started.
3. With engine at idle, close shut-off valve and read the relief oil pressure.
CAUTION:
Do not close shut-off valve of pressure gauge for more than 10 seconds.
4. After measurement, open shut-off valve slowly.

If relief oil pressure is outside the specification, repair or replace oil pump. Refer to PS-22, "Disassem-
bly and Assembly" .
5. After inspection, disconnect oil pressure gauge and oil pressure gauge adapter from hydraulic circuit, con- nect oil pump discharge connector and high pressure hose. Add fluid and bleed air from hydraulic circuit
thoroughly. Refer to PS-6, "
Air Bleeding Hydraulic System" .
Removal and InstallationEGS000UK
REMOVAL
1. Drain power steering fluid from reservoir tank.
2. Remove engine room cover. Refer to EM-12, "
Removal and Installation" .
3. Remove air duct assembly. Refer to EM-15, "
Removal and Installation" .
4. Remove power steering reservoir tank.
5. Remove serpentine drive belt belt from auto tensioner and power steering pump. Refer to EM-13,
"Removal and Installation" .
6. Disconnect pressure sensor electrical connector.
7. Remove high pressure and low pressure piping from power steering oil pump. Refer to PS-23, "
HYDRAU-
LIC LINE" .
8. Remove mounting bolts, then remove power steering pump.
INSTALLATION
Installation is in the reverse order of removal. Refer to PS-23, "HYDRAULIC LINE" for tightening torque.

After installation, bleed air. Refer to PS-6, "Air Bleeding Hydraulic System" .
NOTE:
Belt tension is automatic and requires no adjustment.
Tool number:
Pressure gauge and shut-off valve KV48103500
(J26357 and J26357-10)
Oil pump side Connector A and
O-ring
KV48105300-4 and 5295262U10
(
— )
Eye-bolt and O-ring KV48105300-3 and 5295262U00
(
— )
High pressure
piping side Connector B and
O-ring
KV48105300-1 and 5295262U00
(
— )
Nut KV48105300-2
(
— )
Relief oil pressure
: 9.0 – 9.8 mPa (91.77 – 99.93 kg/cm2 , 1305.34 – 1421.37 psi)
SGIA0570E

WHEEL HUBRAX-5
CE F
G H
I
J
K L
M A
B
RAX
Revision: November 2009 2006 QX56
WHEEL HUBPFP:43202
On-Vehicle Inspection and ServiceEDS001XN
Inspect the components for any looseness or back lash. Inspect each component for any excessive wear or
damage. Replace any components as necessary.
WHEEL BEARING INSPECTION

Move the wheel hub and bearing assembly in the axial direction by hand to check the axial end play.
Check that the axial end play is with specification. Replace the wheel hub and bearing assembly as nec-
essary.

Rotate the wheel hub and bearing assembly to check that there are no unusual noises or other abnormal
conditions. Replace the wheel hub and bearing assembly as necessary.
Removal and InstallationEDS001XO
Rear Wheel Hub and Bearing Assembly
NOTE:
The rear ABS sensor is routed through the back of the rear backing plate and into the side of the wheel hub
and bearing assembly. It is necessary to remove the wheel hub and bearing assembly to remove the rear ABS
sensor.
REMOVAL
1. Remove the wheel and tire using power tool.
2. Remove the rear brake caliper, without disconnecting the hydraulic hose, using power tool. Reposition the
rear brake caliper aside using suitable wire. Refer to BR-28, "
Removal and Installation of Brake Caliper
and Disc Rotor" .
NOTE:

Do not depress the brake pedal while the brake caliper is removed.
3. Remove the rear disc rotor. Axial end play : 0 mm (0 in)
WDIA0189E
1. Back plate
2. Rear ABS sensor3. Wheel hub and bearing assembly
4. Wheel stud 5. Rear disc rotor6. Cotter pin
