PREPARATION
Revision: 2006 January2006 M35/M45
PREPARATIONPFP:00002
Special Service ToolsNBS004OE
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool nameDescription
KV10111100
(J–37228)
Seal cutterRemoving steel oil pan and front cover
KV10114400
(J-38365)
Heated oxygen sensor wrenchLoosening or tightening heated oxygen
sensors
a: 22 mm (0.87 in)
EG15050500
(J–45402)
Compression gauge adapterInspecting of compression pressure
KV10116200
(J–26336-A)
Valve spring compressor
1. KV10115900
(J–26336-20)
Attachment
2. KV10109220
(—)
AdapterDisassembling valve mechanism
Part (1) is a component of KV10116200
(J26336-A), but part (2) is not so.
KV101151S0
(J–38972)
Lifter stopper set
1. KV10115110
(J–38972-1)
Camshaft pliers
2. KV10115120
(J–38972-2)
Lifter stopperChanging valve lifter shims
KV10112100
(BT8653-A)
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc.
S-NT046
S-NT636
ZZA1225D
PBIC1650E
S-NT041
S-NT014

EM-170
[VK45DE]
PREPARATION
Revision: 2006 January2006 M35/M45
(—)
Valve guide driftRemoving and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
(—)
Valve guide reamer(1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d
1 : 6.0 mm (0.236 in) dia.
d
2 : 10.2 mm (0.402 in) dia.
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleanerReconditioning the exhaust system threads
before installing a new heated oxygen
sensor (Use with anti-seize lubricant shown
below.)
a: J-43897-18 (18 mm dia.) for zirconia
heated oxygen sensor and air fuel ratio
sensor
b: J-43897-12 (12 mm dia.) for titania
heated oxygen sensor and air fuel ratio
sensor
(—)
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL
specification MIL-A-907)Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads (Kent-Moore No.)
Tool nameDescription
S-NT015
S-NT016
AEM488
AEM489

ENGINE ROOM COVER
EM-173
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
ENGINE ROOM COVERPFP:14049
ComponentsNBS004OI
Removal and InstallationNBS004OJ
REMOVAL
CAUTION:
Do not damage or scratch cover when installing or removing.
Refer to EM-179, "INTAKE MANIFOLD" for removal and installation of engine cover.
Refer to EM-177, "AIR CLEANER AND AIR DUCT" for removal and installation of air duct (inlet).
Remove the washer tank cap before removing the engine room cover (RH).
Remove the engine room covers (RH and LH) by lifting the clipped point using a clip driver.
Major parts and inspection points under each cover are as follows; (numbered as in the figure)
1. Upper side of engine assembly
2. Battery, relay box
3. Power steering fluid reservoir tank, engine coolant reservoir tank, relay box
4. Engine assembly front side, drive belts, cooling fan
5. Mass air flow sensor, air cleaner case
6. Brake master cylinder, brake booster
INSTALLATION
Installation is the reverse order of removal.
1. Engine cover 2. Battery cover 3. Engine room cover (RH)
4. Air duct (inlet) 5. Engine room cover (LH) 6. Brake master cylinder cover
A. Clip (secure at back surface)
PBIC3294E

AIR CLEANER AND AIR DUCT
EM-177
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
AIR CLEANER AND AIR DUCTPFP:16500
ComponentsNBS004OQ
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004OR
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-173, "ENGINE ROOM COVER" .
2. Disconnect harness connector from mass air flow sensor.
3. Disconnect vacuum hose and PCV hose.
4. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator
assembly disconnecting their joints.
Add marks as necessary for easier installation.
5. Remove mass air flow sensor from air cleaner case, as necessary.
CAUTION:
Handle mass air flow sensor with following cares.
Do not shock it.
Do not disassemble it.
Do not touch its sensor.

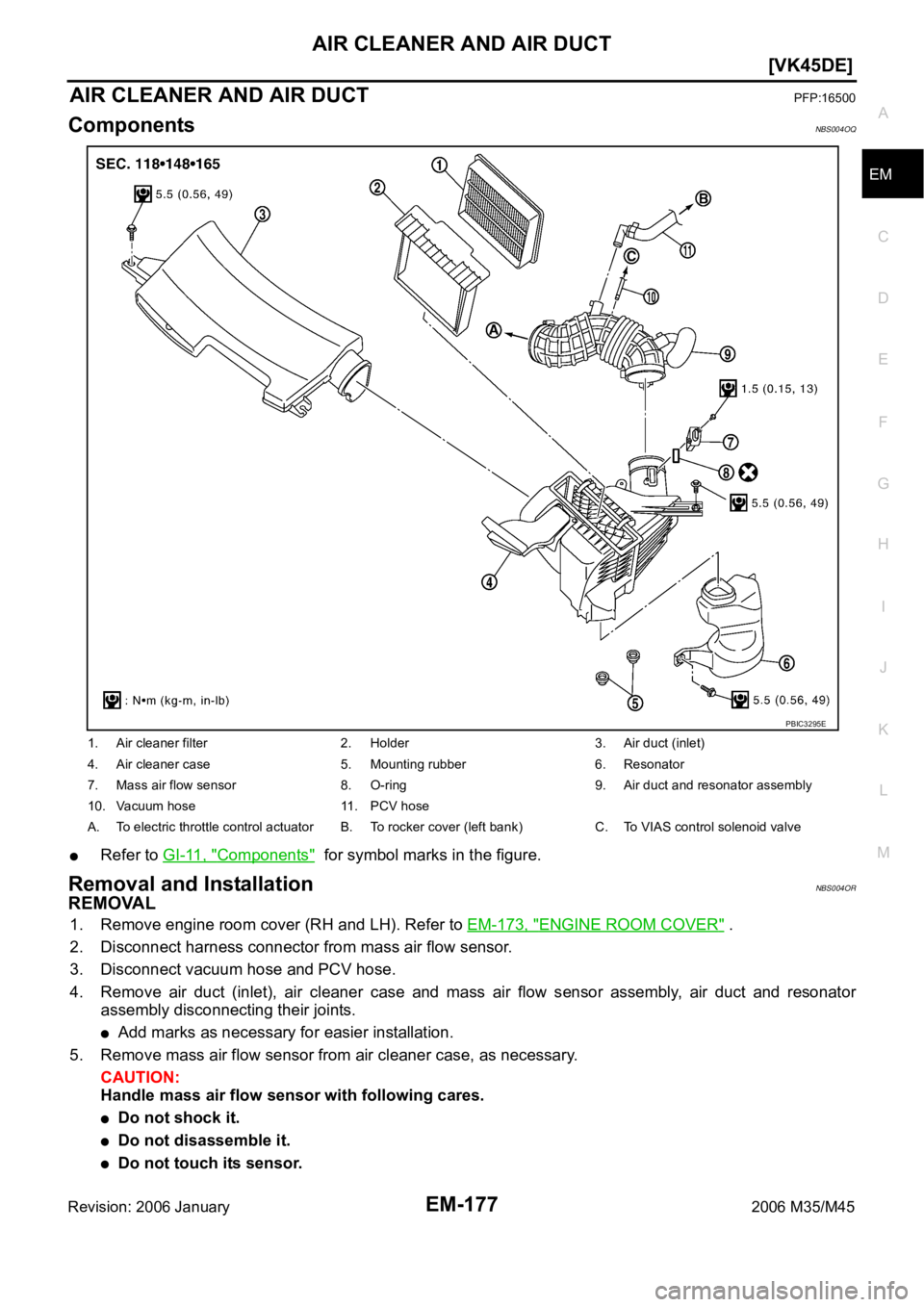

1. Air cleaner filter 2. Holder 3. Air duct (inlet)
4. Air cleaner case 5. Mounting rubber 6. Resonator
7. Mass air flow sensor 8. O-ring 9. Air duct and resonator assembly
10. Vacuum hose 11. PCV hose
A. To electric throttle control actuator B. To rocker cover (left bank) C. To VIAS control solenoid valve
PBIC3295E

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-183
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
ComponentsNBS004OV
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004OW
REMOVAL
WAR NING :
Perform the work when the exhaust and cooling system have completely cooled down.
1. Remove engine room cover (RH and LH). Refer to EM-173, "
ENGINE ROOM COVER" .
2. Remove engine cover with power tool. Refer to EM-179, "
INTAKE MANIFOLD" .
3. Remove air duct (inlet), air cleaner case and air duct and resonator assembly. Refer to EM-177, "
AIR
CLEANER AND AIR DUCT" .
4. Remove front and rear engine undercovers with power tool.
1. Harness bracket 2. Exhaust manifold cover (right bank) 3.Exhaust manifold and three way cat-
alyst (right bank)
4. Air fuel ratio sensor 1 (bank 2) 5. Gasket 6. Harness bracket
7. Air fuel ratio sensor 1 (bank 1) 8.Exhaust manifold and three way cat-
alyst (left bank)9. Exhaust manifold cover (left bank)
PBIC3299E

EM-184
[VK45DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 January2006 M35/M45
5. Drain engine coolant from radiator. Refer to CO-40, "Changing Engine Coolant" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
6. Remove radiator. Refer to CO-43, "
RADIATOR" .
7. Remove drive belts. Refer to EM-174, "
DRIVE BELTS" .
8. Remove exhaust front tube with power tool. Refer to EX-3, "
EXHAUST SYSTEM" .
9. Remove air fuel ratio sensor 1 as follows:
a. Disconnect harness connector of each air fuel ratio sensor 1.
b. Remove air fuel ratio sensor 1 on both bank with heated oxygen
sensor wrench (SST).
CAUTION:
Be careful not to damage air fuel ratio sensor 1.
Discard any air fuel ratio sensor 1 which has been
dropped onto a hard surface such as a concrete floor;
replace with a new one.
10. Remove exhaust manifold and three way catalyst (left bank) as follows:
a. Disconnect A/C piping from A/C compressor, then remove A/C compressor with power tool. Refer to AT C -
151, "REFRIGERANT LINES" .
b. Remove steering lower joint to enable steering shaft to move freely. Refer to PS-13, "
STEERING COL-
UMN" .
c. Remove starter motor. Refer to SC-10, "
STARTING SYSTEM" .
d. Remove nuts on bottom of engine mounting insulator (LH), and lift up left side of engine approximately 3
cm (1.18 in) with transmission jack. Refer to EM-244, "
ENGINE ASSEMBLY" .
e. Remove exhaust manifold cover (left bank).
f. Loosen nuts in the reverse order of figure to remove exhaust
manifold and three way catalyst (left bank) with power tool.
NOTE:
Disregard No. 9 to No. 12 when loosening.
11. Remove exhaust manifold and three way catalyst (right bank) as follows:
a. Remove alternator and bracket. Refer to SC-23, "
CHARGING SYSTEM" .
PBIC2333E
A : Left bank
B : Right bank
: Engine front
PBIC3300E

EM-186
[VK45DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 January2006 M35/M45
Exhaust Manifold Gasket
Install exhaust manifold gasket with its directional protrusion set
upward.
Exhaust Manifold
Install exhaust manifold and tighten mounting nuts in numerical
order as shown in the figure.
NOTE:
Tighten mounting nuts No. 1 to 4 in two steps. The numerical
order No. 9 to 12 shown second steps.
Air Fuel Ratio Sensor
CAUTION:
Before installing a new air fuel ratio sensor 1, clean exhaust system threads using oxygen sensor
thread cleaner (commercial service tool: J-43897-18 or J-43897-12), and apply anti-seize lubricant
(commercial service tool).
Do not over torque air fuel ratio sensor. Doing so may cause damage to the air fuel ratio sensor 1,
resulting in “MIL” coming on.
A : Protrusion for confirming installation
: Above
PBIC3301E
A : Left bank
B : Right bank
: Engine front
PBIC3300E

OIL PAN AND OIL STRAINER
EM-187
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
OIL PAN AND OIL STRAINERP F P : 1111 0
ComponentsNBS004OX
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004OY
REMOVAL
WAR NING :
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove front and rear engine undercovers with power tool.
2. Drain engine oil. Refer to LU-28, "
Changing Engine Oil" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine oil on drive belts.
3. Remove engine assembly from vehicle. Refer to EM-244, "
ENGINE ASSEMBLY" .
1. Oil pan 2. O-ring 3. Crankshaft position sensor (POS)
4. O-ring 5. Drain plug washer 6. Drain plug
7. Oil pressure switch 8. Gasket 9. Oil strainer
10. Harness bracket 11. Oil filter 12. Rear plate cover
A. Oil pan side B. Refer to LU-29

PBIC3326E
