2006 INFINITI M35 sensor

EM-14
[VQ35DE]
ENGINE ROOM COVER
Revision: 2006 January2006 M35/M45
ENGINE ROOM COVERPFP:14049
ComponentsNBS004MS
Removal and InstallationNBS004MT
REMOVAL
CAUTION:
Do not damage or scratch cover when installing or removing.
Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" for removal and installation of engine cover.
Refer to EM-17, "AIR CLEANER AND AIR DUCT" for removal and installation of air duct (inlet).
Remove the washer tank cap before removing the engine room cover (RH).
Remove the engine room covers (RH and LH) by lifting the clipped point using a clip driver.
Major parts and inspection points under each cover are as follows; (numbered as in figure)
1. Upper side of engine assembly
2. Battery, relay box
3. Power steering fluid reservoir tank, engine coolant reservoir tank, relay box
4. Engine assembly front side, drive belts, cooling fan
5. Mass air flow sensor, air cleaner case
6. Brake master cylinder, brake booster
INSTALLATION
Installation is the reverse order of removal.
1. Engine cover 2. Battery cover 3. Engine room cover (RH)
4. Air duct (inlet) 5. Engine room cover (LH) 6. Brake master cylinder cover
A. Clip (secure at back surface)
PBIC3824E

AIR CLEANER AND AIR DUCT
EM-17
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
AIR CLEANER AND AIR DUCTPFP:16500
ComponentsNBS004MX
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004MY
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-14, "ENGINE ROOM COVER" .
2. Remove air duct (inlet).
3. Disconnect mass air flow sensor harness connector.
4. Disconnect PCV hose.
5. Remove air cleaner case/mass air flow sensor assembly and air duct/air hose disconnecting their joints.
Add marks as necessary for easier installation.
6. Remove mass air flow sensor from air cleaner case, as necessary.
CAUTION:
Handle mass air flow sensor with the following cares.
Do not shock it.
Do not disassemble it.
Do not touch its sensor.
INSTALLATION
Note the following, and install in the reverse order of removal.
Align marks. Attach each joint. Screw clamps firmly.
1. Air cleaner filter 2. Holder 3. Air duct (inlet)
4. Grommet 5. Air cleaner case 6. O-ring
7. Mass air flow sensor 8. Air hose 9. Air duct
10. Air hose 11. PCV hose
A. To electric throttle control actuator B. To rocker cover (left bank)
KBIA3542J

EM-26
[VQ35DE]
EXHAUST MANIFOLD
Revision: 2006 January2006 M35/M45

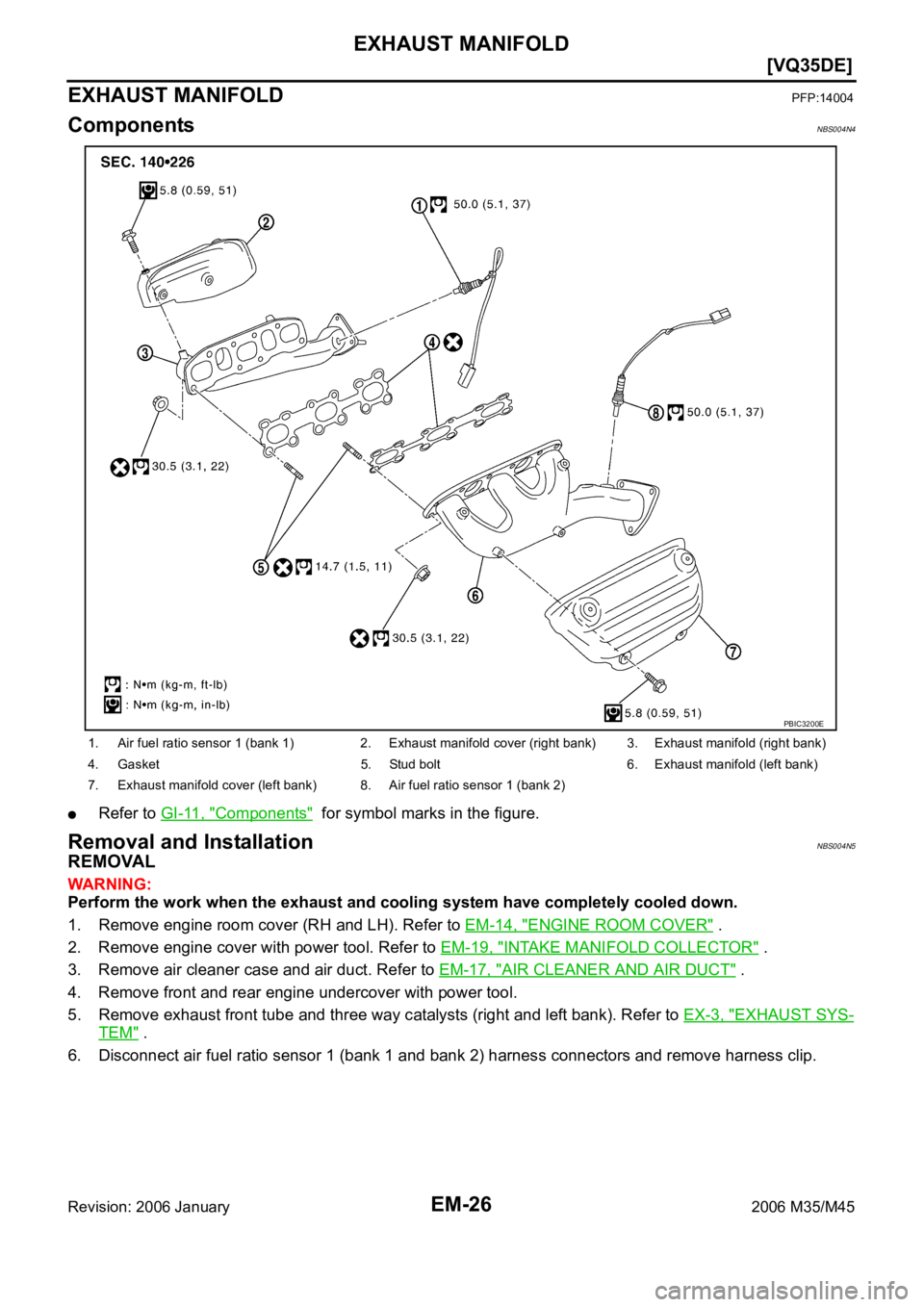

EXHAUST MANIFOLDPFP:14004
ComponentsNBS004N4
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004N5
REMOVAL
WAR NING :
Perform the work when the exhaust and cooling system have completely cooled down.
1. Remove engine room cover (RH and LH). Refer to EM-14, "
ENGINE ROOM COVER" .
2. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
3. Remove air cleaner case and air duct. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
4. Remove front and rear engine undercover with power tool.
5. Remove exhaust front tube and three way catalysts (right and left bank). Refer to EX-3, "
EXHAUST SYS-
TEM" .
6. Disconnect air fuel ratio sensor 1 (bank 1 and bank 2) harness connectors and remove harness clip.
1. Air fuel ratio sensor 1 (bank 1) 2. Exhaust manifold cover (right bank) 3. Exhaust manifold (right bank)
4. Gasket 5. Stud bolt 6. Exhaust manifold (left bank)
7. Exhaust manifold cover (left bank) 8. Air fuel ratio sensor 1 (bank 2)
PBIC3200E

EXHAUST MANIFOLD
EM-27
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
7. Using the heated oxygen sensor wrench (SST), remove air fuel
ratio sensor 1 (bank 1 and bank 2).
CAUTION:
Be careful not to damage air fuel ratio sensor 1.
Discard any air fuel ratio sensor 1 which has been
dropped onto a hard surface such as a concrete floor;
replace with a new sensor.
8. Remove exhaust manifold cover (right and left bank).
9. Loosen mounting nuts in the reverse order as shown in the fig-
ure to remove exhaust manifold with power tool.
NOTE:
Disregard the numerical order No. 7 and 8 in removal.
10. Remove gaskets.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of the exhaust manifold mating sur-
face with a straightedge and a feeler gauge.
If it exceeds the limit, replace exhaust manifold.
INSTALLATION
Note the following, and install in the reverse order of removal.
SBIA0575E
PBIC2042E
Limit : 0.3 mm (0.012 in)
PBIC1096E

EM-28
[VQ35DE]
EXHAUST MANIFOLD
Revision: 2006 January2006 M35/M45
Exhaust Manifold Gasket
Install in direction shown below. (Follow same procedure for
both banks.)
Locate thick side of port connecting part on right side from tech-
nician’s view.
Locate round press in thick side of port connecting part above
center level line of port.
Exhaust Manifold
If stud bolts were removed, install them and tighten to the specified torque below.
Install exhaust manifold and tighten mounting bolts in numerical
order as shown in the figure.
NOTE:
Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7
and 8 shows second step.
Air Fuel Ratio Sensor
CAUTION:
Before installing a new air fuel ratio sensor, clean exhaust system threads using heated oxygen
sensor thread cleaner tool (Commercial Service Tool: J-43897-18 or J-43897-12) and apply anti-
seize lubricant.
Do not over torque air fuel ratio sensor. Doing so may cause damage to air fuel ratio sensor,
resulting in the “MIL” coming on.
KBIA1051E
: 14.7 Nꞏm (1.5 kg-m, 11 ft-lb)
PBIC2042E

OIL PAN AND OIL STRAINER
EM-29
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
OIL PAN AND OIL STRAINERP F P : 1111 0
Components (2WD Models)NBS004N6
Removal and Installation (2WD Models)NBS004N7
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
When removing oil pan (lower) only, steps 2 to 6 are not necessary. Perform step 22 after completing step 7.
1. Remove front and rear engine undercover with power tool.
2. Remove front tire.
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil pressure switch 11. Bracket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Baffle plate 17. Rear plate cover 18. Crankshaft position sensor (POS)
19. Seal rubber 20. Rear cover plate
PBIC3877E

EM-30
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
3. Remove hood assembly. Refer to BL-15, "HOOD" .
4. Remove engine room cover (RH and LH). Refer to EM-14, "
ENGINE ROOM COVER" .
5. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
6. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
7. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
8. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
9. Remove air duct from air cleaner case. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
10. Remove stabilizer clamp, and then obtain the space under the oil pan (lower) by lowering the stabilizer.
Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
NOTE:
If the oil pan (upper) is removed, this procedure is not necessary.
11. Install engine slinger to sling engine assembly for positioning. Refer to EM-113, "
ENGINE ASSEMBLY" .
12. Remove front suspension member. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
13. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
14. Remove alternator stay. Refer to SC-23, "
CHARGING SYSTEM" .
15. Remove starter motor. Refer to SC-10, "
STARTING SYSTEM" .
16. Remove idler pulley and bracket assembly. Refer to EM-64, "
TIMING CHAIN" .
17. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
18. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 7 1 , "
TRANSMISSION
ASSEMBLY" .
19. Remove crankshaft position sensor (POS).
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
20. Remove oil filter, as necessary. Refer to LU-10, "
OIL FILTER" .
21. Remove oil cooler, as necessary. Refer to LU-14, "
OIL COOLER" .
22. Remove oil pan (lower) as follows:
a. Loosen mounting bolts in reverse order as shown in the figure to
remove.Slinger bolts:
: 28.0 Nꞏm (2.9 kg-m, 21 ft-lb)
PBIC0782E

OIL PAN AND OIL STRAINER
EM-35
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Components (AWD Models)NBS004N8
Refer to GI-11, "Components" for symbol marks in the figure.
1. Oil pressure switch 2. Oil filter bracket 3. Relief valve
4. O-ring 5. Oil cooler 6. Connector bolt
7. Oil filter 8. O-ring 9. Gasket
10. Oil pan gasket (front) 11. Oil strainer 12. Drain plug
13. Drain plug washer 14. Oil pan (lower) 15. Rear plate cover
16. O-ring (small) 17. Axle pipe 18 O-ring (large)
19. Crankshaft position sensor (POS) 20. Seal rubber 21. Oil pan (upper)
22. Oil pan gasket (rear)
A. Refer to LU-10
B. To oil pump C. Oil pan side
KBIA3553J
