2006 HONDA CR-V Owners Manual

Use a Phillips-head screwdriver to
remove the taillight assembly
mounting screw under each cover.
Pull the taillight assembly out of
the rear pillar.Remove the socket by turning it
one-quarter turn counterclockwise. Determine which of the f our bulbs
is burned out: stop/taillight, back-
up light, turn signal, or side
marker. Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Align the clips on the taillight
assembly with the holes in the
body, then push the taillight
assembly into place. Tighten the
two mounting screws securely and
reinstall the covers.
2.
3. 4.
5.6.
7.
8.
9.
Lights
206
BULBS
SCREW

Open the tailgate. Remove the
light assembly cover by pushing in
on the tabs on both sides and
pulling the cover of f .
Remove the socket f rom the light
assembly by turning it one-quarter
turn counterclockwise.Put the socket back into the light
assembly, and turn it clockwise to
lock it in place.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Press the brake pedal to make
sure the new bulb is working. Put the cover back on the light
assembly. Push it in until it locks
in place.
1.
2. 3.
4.5.
6.
Lights
Replacing a High-mount Brake
Light Bulb
Maint enance
207
COVER
BULB

If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry bef ore
you use the vehicle.Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s and the rear f loor mats
that came with your vehicle hook
over the f loor mat anchors. This
keeps the f loor mat f rom sliding
f orward and possibly interf ering with
the pedals or making the front
passenger’s weight sensors
inef f ective.
Cleaning the Seat Belts
Floor Mats
Cleaning the Seat Belts, Floor Mats
208
LOOP

This f ilter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system.
Have your dealer replace this filter
every 30,000 miles (48,000 km)
under normal conditions. It should
be replaced every 15,000 miles
(24,000 km) if you drive primarily in
urban areas that have high
concentrations of soot in the air, or if
the f low f rom the heating and
cooling system becomes less than
usual.
Make sure the rear f loor mats are
properly hooked to the f loor mat
anchors. Your vehicle is equipped
with f ront passenger’s seat weight
sensors. If the rear passenger’s f loor
mat is on the seat rail of the front
passenger’s seat, the sensors will
detect the decreased weight on the
seat, and they may not work properly. If you remove a f loor mat, make sure
tore-anchoritwhenyouputitback
in your vehicle.
If you use a non-Honda f loor mat,
make sure it f its properly and that it
canbeusedwiththefloormat
anchors. Do not put additional f loor
mats on top of the anchored mats. Dust and Pollen Filter
A udio A ntenna
Floor Mats, Audio Antenna, Dust and Pollen Filter
Maint enance
209
Your vehicle is equipped with an
antenna on the f ront right f ender.
Bef ore using a ‘‘drive-through’’ car
wash, make sure you remove the
antenna by unscrewing it by hand. This
prevents the antenna f rom being
damaged by the car wash brushes.

Check the condition of the wiper
blades at least every six months.
Replace them if you f ind signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
Raise the wiper arm of f the
windshield. Front: If you are changing the rear
wiperblade,gotostep6.
Raise the wiper arm of f the hatch
glass and hold it. Rear:
1. 2.
Wiper Blades
210
LOCK TAB
WIPER ARMS
FRONT REAR
Do not open the hood when the wiper
arms are raised, or you will damage
the hood and the wiper arms.

To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield or the hatch glass. Slide the new wiper blade into the
holder until the tabs lock.

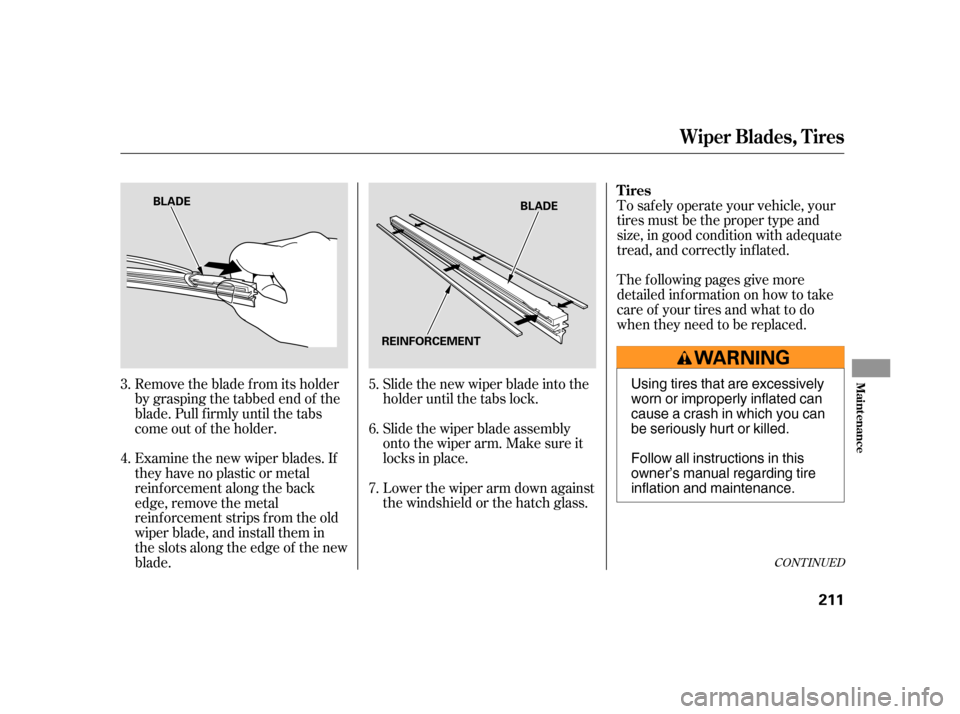

Remove the blade f rom its holder
by grasping the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.
Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade. 5.
6.
7.
3.
4.
CONT INUED
Tires
Wiper Blades, Tires
Maint enance
211
REINFORCEMENT BLADE
BLADE
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.

If you check air pressures when the
tires are hot [driven f or several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf /cm ) higher than the cold
readings. This is normal. Do not let
air out to match the recommended
cold air pressure. The tire will be
underinf lated.
Youshoulduseyourowntire
pressure gauge whenever you check
your tire pressures. This will make it
easier f or you to tell if a pressure
loss is due to a tire problem and not
due to a variation between gauges.
Check the air pressures when the
tires are cold. This means the
vehicle has been parked f or at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressures on page . Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf /cm ) per
month. Remember to check the
sparetireatthesametime.
Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
While tubeless tires have some
ability to self -seal if they are
punctured, you should look closely
f or punctures if a tire starts losing
pressure.
213
Tires
Inf lation Guidelines
212

Every time you check inf lation, you
should also examine the tires f or
damage, f oreign objects, and wear.

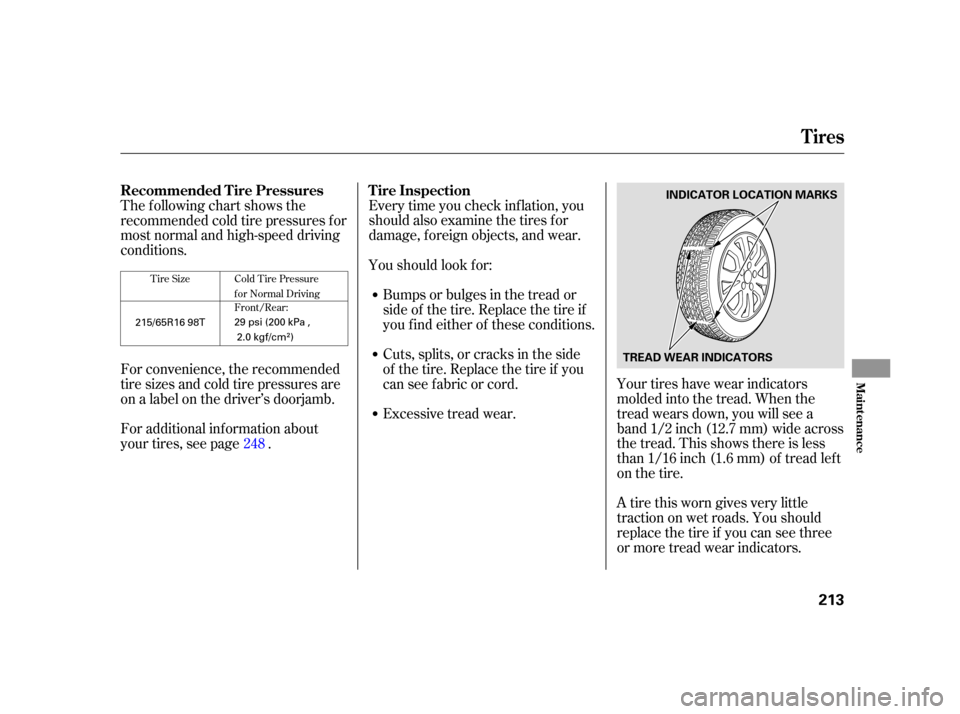

Youshouldlookfor:Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a
band 1/2 inch (12.7 mm) wide across
the tread. This shows there is less
than 1/16 inch (1.6 mm) of tread lef t
on the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
The following chart shows the
recommended cold tire pressures f or
most normal and high-speed driving
conditions.
For convenience, the recommended
tire sizes and cold tire pressures are
on a label on the driver’s doorjamb.
For additional inf ormation about
your tires, see page .
Excessive tread wear. Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see f abric or cord. Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherof theseconditions.
248
Tire Size Cold Tire Pressure for Normal Driving
Front/Rear:
Tire Inspection
Recommended Tire Pressures
Tires
Maint enance
213
INDICATOR LOCATION MARKS
TREAD WEAR INDICATORS
29 psi (200 kPa , 2.0 kgf/cm
)
215/65R16 98T
