2006 HONDA CR-V Owners Manual

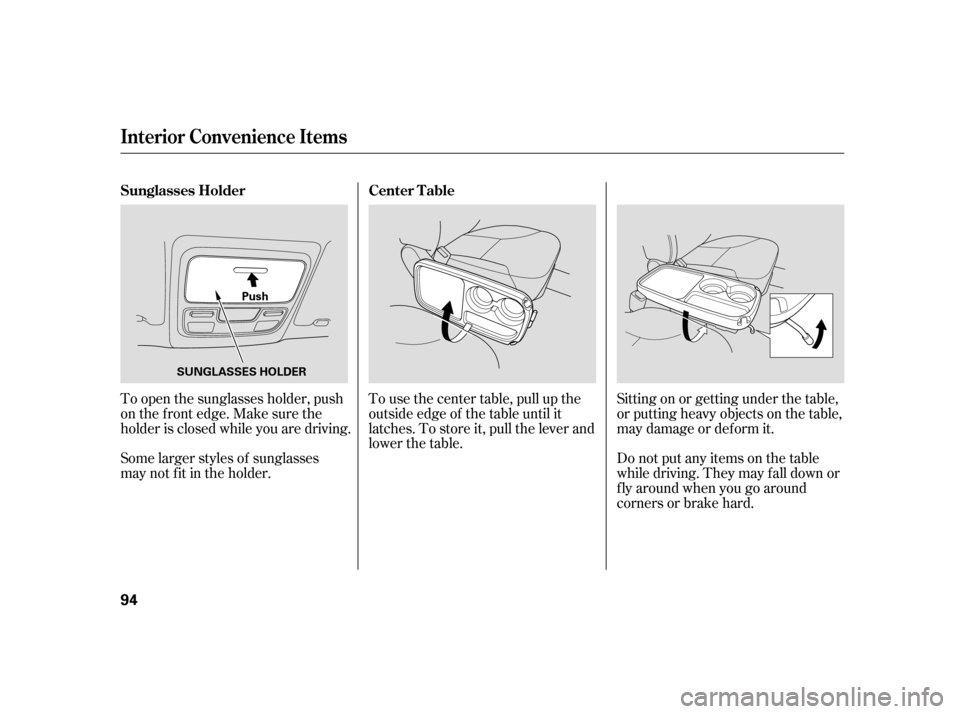

To open the sunglasses holder, push
on the f ront edge. Make sure the
holder is closed while you are driving.
Some larger styles of sunglasses
may not f it in the holder.To use the center table, pull up the
outside edge of the table until it
latches. To store it, pull the lever and
lower the table.
Sitting on or getting under the table,
or putting heavy objects on the table,
may damage or deform it.
Do not put any items on the table
while driving. They may f all down or
f ly around when you go around
corners or brake hard.
Interior Convenience Items
Sunglasses Holder
Center Table
94
SUNGLASSES HOLDERPush

These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
To use an accessory power socket,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less
(10 amps).Open the center pocket by pulling
the handle.
To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod

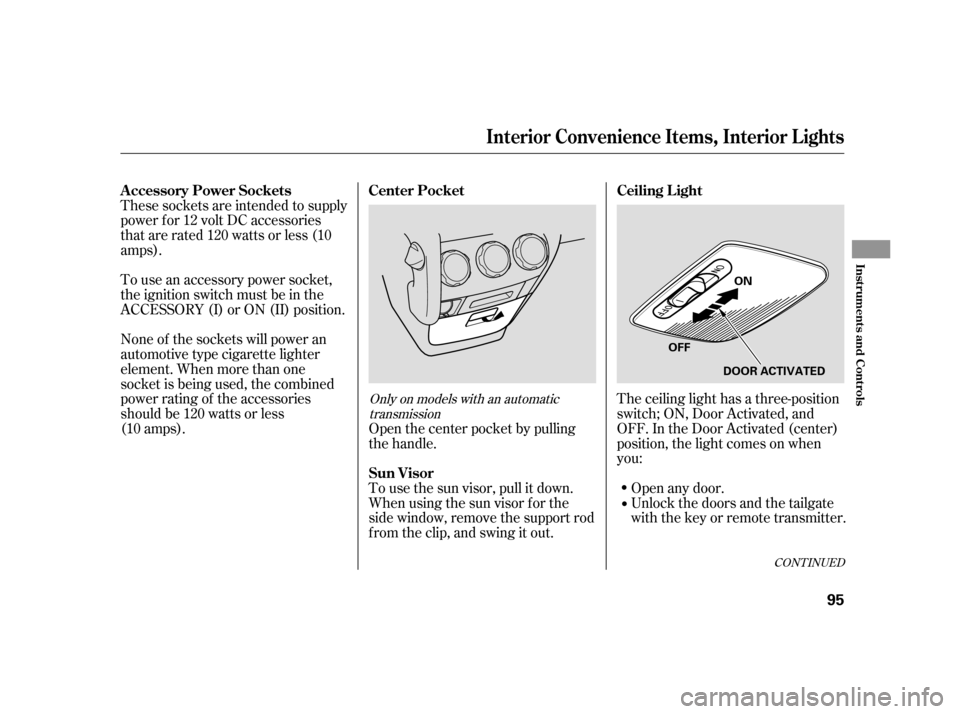

f rom the clip, and swing it out.The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:
Open any door.
Unlock the doors and the tailgate
with the key or remote transmitter.
Only on models with an automatictransmission
CONT INUED
A ccessory Power Sockets Center Pocket
Sun Visor Ceiling L ight
Interior Convenience Items, Interior L ights
Inst rument s and Cont rols
95
ON
OFF DOOR ACTIVATED

After all doors are closed tightly, the
light f ades out in about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light f ades out in about 30 seconds.
If you leave any door or the tailgate
open with the key not in the ignition
switch, the ceiling light will go of f
af ter 3 minutes.Turn on the spotlight by pushing the
button. Push the button again to turn
it of f . You can use the spotlights at
all times.
The ignition switch light comes on
when you open the driver’s door. It
f ades out in about 30 seconds af ter
the door is closed.The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, the light comes on
when you open the tailgate or the
hatch glass. In the ON position, the
light stays on continuously.
Interior Lights
Spotlights
Ignition Switch L ightCargo A rea L ight
96
OFF
ON
TAILGATE/HATCH GLASS ACTIVATED

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it................
Vents, Heating, and A/C . 98
................................
Audio System .103
...................
Playing the Radio . 105,116
..........................
Playing a Disc .109,124
..........................
Disc Changer .111,125
Disc Player/Changer Error .............................
Messages .112,128
.........................
Playing a Tape .113,129
Caring f or the Tape and ...................................
Player .115,131
.
Playing the XM
Satellite Radio . 120
............................
Radio Reception .132
..................
Protecting Your Discs . 134
................
Remote Audio Controls . 135
.................
Radio Thef t Protection . 136
..........................
Setting the Clock .137
...............................
Cruise Control .138
Features
Features
97

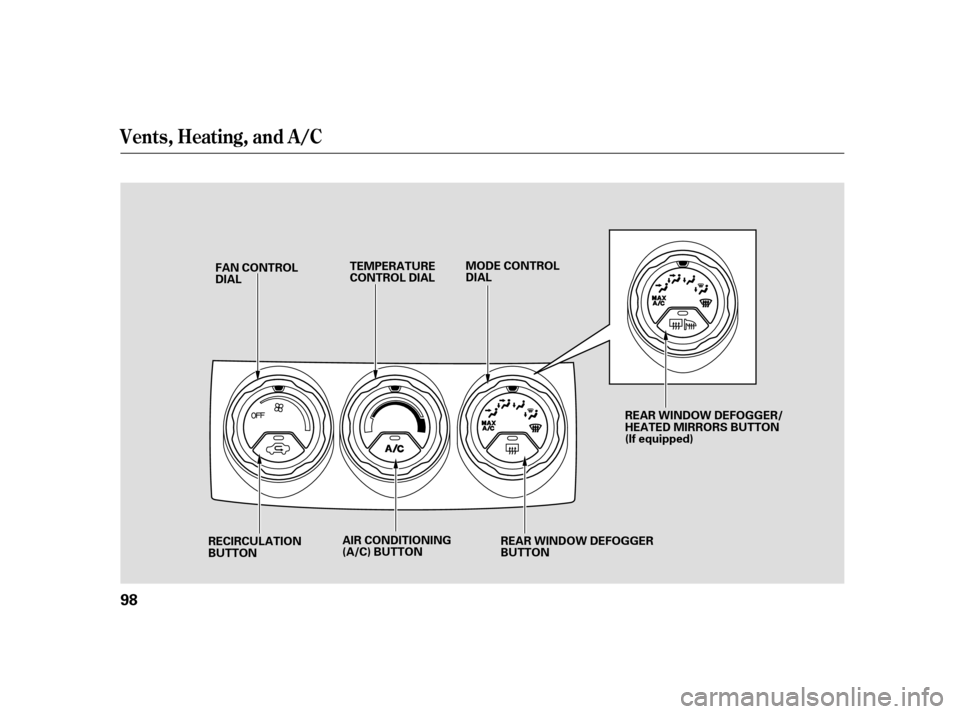

Vents, Heating, and A/C
98
FAN CONTROL
DIALTEMPERATURE
CONTROL DIAL
MODE CONTROL
DIAL
RECIRCULATION
BUTTON AIR CONDITIONING
(A/C) BUTTON
REAR WINDOW DEFOGGER
BUTTONREAR WINDOW DEFOGGER/
HEATED MIRRORS BUTTON
(If equipped)

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode). This button turns the air
conditioning on and of f . The
indicatorinthebuttonisonwhen
the A/C is on. Turning this dial clockwise increases
the temperature of the airflow. Turn this dial to increase or decrease
the fan speed and airflow. Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
f resh air mode.
On some models, this button also
controls the heated mirror function
(see page ). The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center and side vents in the
dashboard.
68
89
CONT INUED
Rear Window Def ogger Button
Recirculation Button Air Conditioning (A/C) Button T emperature Control Dial
Fan Control Dial A ir Flow Buttons Mode Control Dial
Vents, Heating, and A/C
Features
99

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the tailgate. Air f lows f rom the def roster
vents at the base of the windshield. Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C.
In this case, you cannot turn the A/C
off.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed. Select .
When you select , the system
automatically switches to f resh air
mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
1.
2.
3.
4. 1.
2.
3.
4.
5.
1.
2.
3.
62
Vents, Heating, and A/C
Using the Heater
Ventilation Using the A/C
100

To remove f og f rom the inside of the
windows:
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select MAX A/C mode.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode. Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
Set the f an to the desired speed or
high f or f aster def rosting.
Select . The system
automatically switches to fresh air
mode and turns on the A/C. The
A/C indicator will not come on, if
it was previously of f .
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window and the outside
mirrors (if equipped).
To increase airf low to the
windshield, close the corner vents.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
If the interior is very warm,
Vents, Heating, and A/C
To Def og and Def rost
To Dehumidify the Interior
Features
101
