2006 HONDA CR-V Owners Manual

µÓÓ µ
µ
µ
µ
Ó
Ó
´µ
´
µ
When the CD load indicator turns
green and ‘‘LOAD’’ appears in the
screen again, insert the next CD in
the slot. Do not try to insert a CD
until ‘‘LOAD’’ appears. You could
damage the audio unit.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last CD loaded.
You can also load a CD into an empty
position while a CD is playing by
pressing the appropriate preset
button. The system stops playing the
current CD and starts the loading
sequence. It plays the CD just loaded.
To listen to satellite radio when a CD
is playing, press the CD/XM button. Press and release the DISP
button to switch the display between
the track and disc numbers and the
elapsedtimeforthecurrentCD.
To move rapidly within a track, press
andholdthe or skipbutton. The SCAN f unction
samples all the tracks on the
selected disc in the order they are
recorded on the CD. To activate it,
press and hold the SCAN button.
You will see SCAN in the display.
You will get a 10 second sampling of
each track on the selected CD. Press
the SCAN button again to get out of
the system and play the last track
sampled.
To select a dif f erent CD, use the
appropriate preset buttons (1 to 6). This f eature plays the
tracks in random order. To activate
random play, press and release the
RDM button. You will see RDM in
the display. Press it again to return
to normal play.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f . Each time you press and
release the skip button the player
skips forward to the beginning of the
next track. Press and release the
skipbuttontoskipbackwardtothe
beginning of the current track. Press
it again to skip to the beginning of
the previous track.
4.
5.
For models with XM Radio
DISP
To Change or Select Tracks
SCAN RANDOM
REPEAT SK IP
Playing a Disc
126

You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst. To remove a dif f erent CD f rom the
changer,firstselectitwiththe
appropriate preset button. When that
CD begins playing, press the eject
button. Continue pressing the eject
button to remove all the discs from
the changer.
For inf ormation on how to handle
and protect discs, see page .
PresstheFM/AMorCDbuttonto
switch to the radio or satellite radio
while a CD is playing. To play the
CD, press the CD button again.
If a tape is in the tape player, press
the TAPE button to switch to the
tape while a CD is playing. Press the
CD button again to switch back to
theCDplayer/CDchanger.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . To remove the disc currently in play,
press the eject ( ) button. When
a disc is removed f rom a slot, the
system automatically begins the load
sequence so you can load another
CD in that position. If you do not
remove the disc f rom the changer
within 10 seconds, the system
returns to the previous mode (AM/
FM or satellite radio). The disc will
reload into the system and will
remainthereinapausemode.
134
T o Stop Playing a CD
Removing CDs f rom the In-dash
CD Changer
Protecting Discs
Playing a Disc
Features
127

If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
the vehicle to your dealer.Error
Message Solution
Cause
Press the CD eject button and pull out the CDs.
Check f or an error message, and insert the CDs
again. If the message does not disappear or the
CDs cannot be pulled out, see your dealer.
Insert CDs.
FOCUS Error
Mechanical Error
No CD in the CD
changer
Disc Changer Error Messages
CD Changer
128

Playing a T ape
Features
129

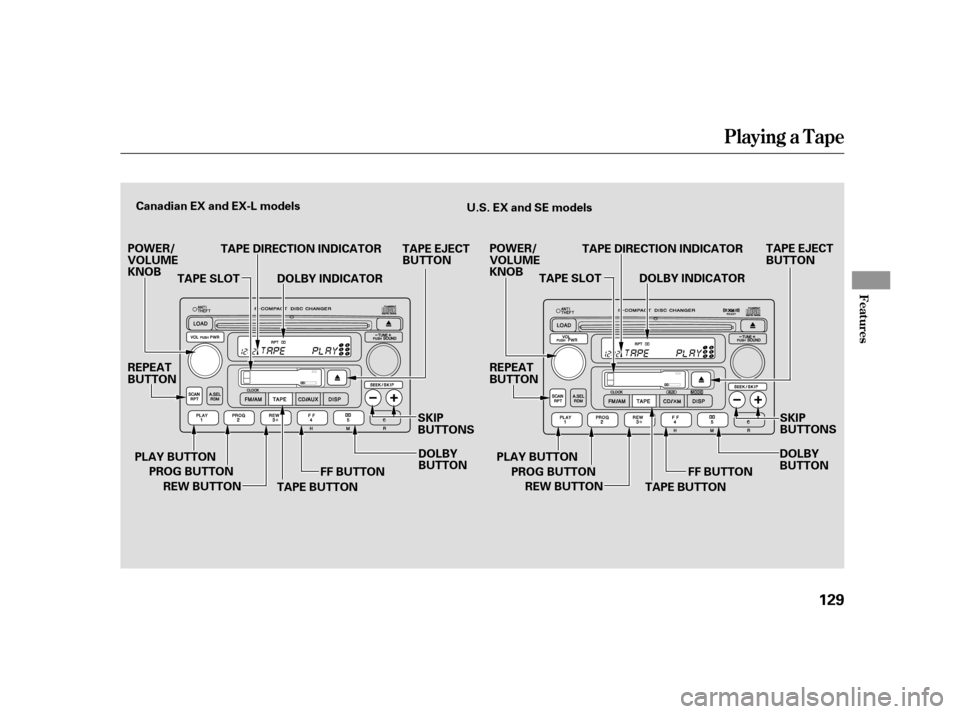

TAPE DIRECTION INDICATOR TAPE EJECTBUTTON
DOLBY
BUTTON
REPEAT
BUTTON
SKIP
BUTTONS
Canadian EX and EX-L models
U.S. EX and SE models
POWER/
VOLUME
KNOB
REW BUTTON FF BUTTON
TAPE BUTTON TAPE DIRECTION INDICATOR
DOLBY INDICATOR TAPE EJECT
BUTTON
DOLBY
BUTTON
REPEAT
BUTTON
SKIP
BUTTONS
POWER/
VOLUME
KNOB
TAPE SLOT
FF BUTTON
TAPE BUTTON
TAPE SLOT DOLBY INDICATOR
PLAY BUTTONPROG BUTTON
PLAY BUTTON
PROG BUTTON REW BUTTON

Î
Î
Ûµ
µÓ Ó
µ
´
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Dolby noise reduction turns on
when you insert a tape. The indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the button. Dolby remains of f until
you press the button again.
To remove the tape, press the eject
button. If you want to turn the player
off, press the PWR/VOL knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it lef t of f .
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PROG
button. When the player reaches the
end of the tape, it will automatically
reverse direction and play the other
side.
To switch to the radio, XM Radio
(optional on U.S. EX and SE models),
or CD changer while a Tape is
playing, press the FM/AM or CD/
XM button. To change back to the
tape player, press the TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To fast forward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY button to take the
system out of rewind or f ast f orward.
Press the button to find
the beginning of the current song or
passage. Press the button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
To Play a Tape
To Stop Playing a TapeT ape Search Functions
FF/REW
SK IP
Playing a T ape
130

µThetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive. Store tapes in their cases to protect
them f rom dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in the player.
Never try to insert f oreign objects
into the tape player.
If you see the error message
‘‘ ’’ on the display, press the
tape eject button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error message stays on
after the tape ejects, take your
vehicle to your dealer.
Press the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Caring f or the T ape and Player
REPEAT
Playing a T ape
Features
131
NOTE:

The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’ Radio Frequencies
Radio Reception
Radio Reception
132

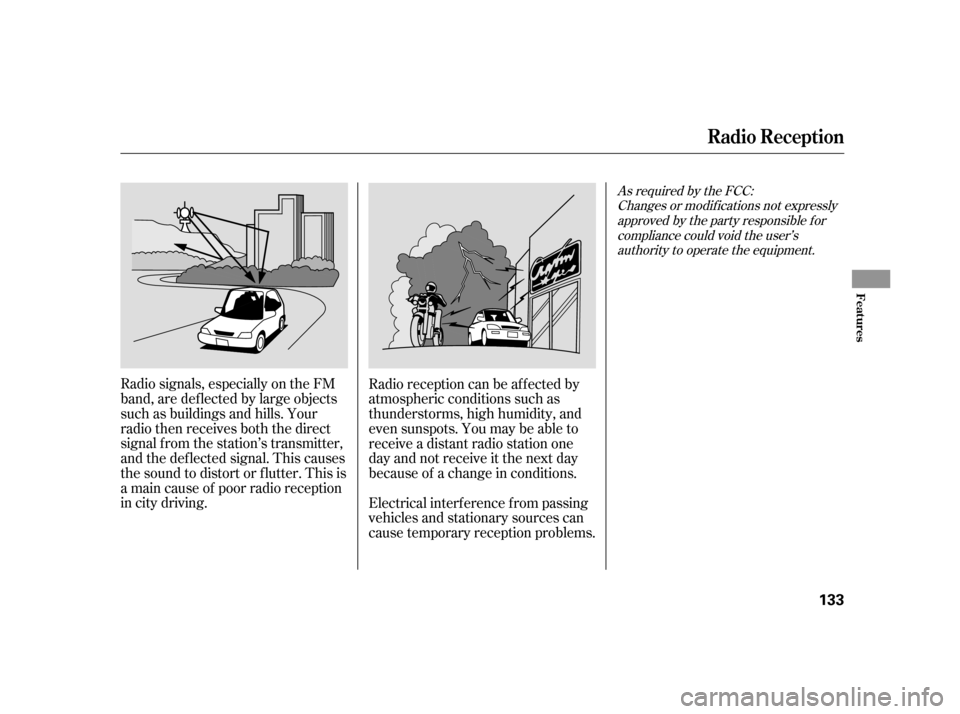

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Radio Reception
Features
133
