2006 HONDA CR-V Owners Manual

Do not use the seat heaters when the
engine is of f or when idling f or a
long period of time. They can drain
the battery, making your vehicle
hard to start.Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down and hold it. Release
the switch when you want to stop the
window. Pull back on the switch and
hold it to close the window.
Both f ront seats are equipped with
seat heaters in the seat bottoms only.
Because of sensors f or the side
airbag system, there are no heaters
in the seat-back in either the driver
or passenger seats. The ignition
switch must be in the ON (II)
position to use them. Push the
heater switch to turn the power on or
of f . The indicators will come on and
remain on while the heaters are on.
If equipped
Seat Heaters, Power Windows
Seat Heaters
Power Windows
86
DRIVER’S SEAT HEATER SWITCH
PASSENGER’S SEAT HEATER SWITCH DRIVER’S WINDOW SWITCH
MAIN SWITCH

µ
µ If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction will be disabled. The
power window system needs to be
reset after reconnecting the battery
or installing the f use.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or about 2 seconds.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by your dealer.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it. If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
When you push the MAIN switch in,
the switch is OFF, and the passenger
windows cannot be raised or lowered.
To cancel this f eature, push on the
switch again to get it to pop out.
Keep the MAIN switch of f when you have children in the vehicle so they
do not injure themselves by
operating the windows
unintentionally.
To open or close the
driver’s window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go up
or down all the way. To stop the
window, pull or push the window
switch brief ly. 1.
2.
Power Windows
AUTO REVERSE
AUTOInst rument s and Cont rols
87
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.

If equippedKeep the inside and outside mirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Turn the ignition switch to the ON
(II) position, and use the switch
under the lef t dashboard vent to
operate the moonroof .
To tilt up the back of the moonroof ,
press and hold the center button
().
To close the moonroof , press and
hold the top of the switch ( ).
To open the moonroof , press and hold the bottom of the switch
().
Moonroof
Mirrors
Moonroof , Mirrors
88
TABOpening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.

Turn the ignition switch to the ON
(II) position.Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the rear window def ogger
button. The indicator in the button
comesonasareminder.Pressthe
button again to turn the heaters and
the def ogger of f .

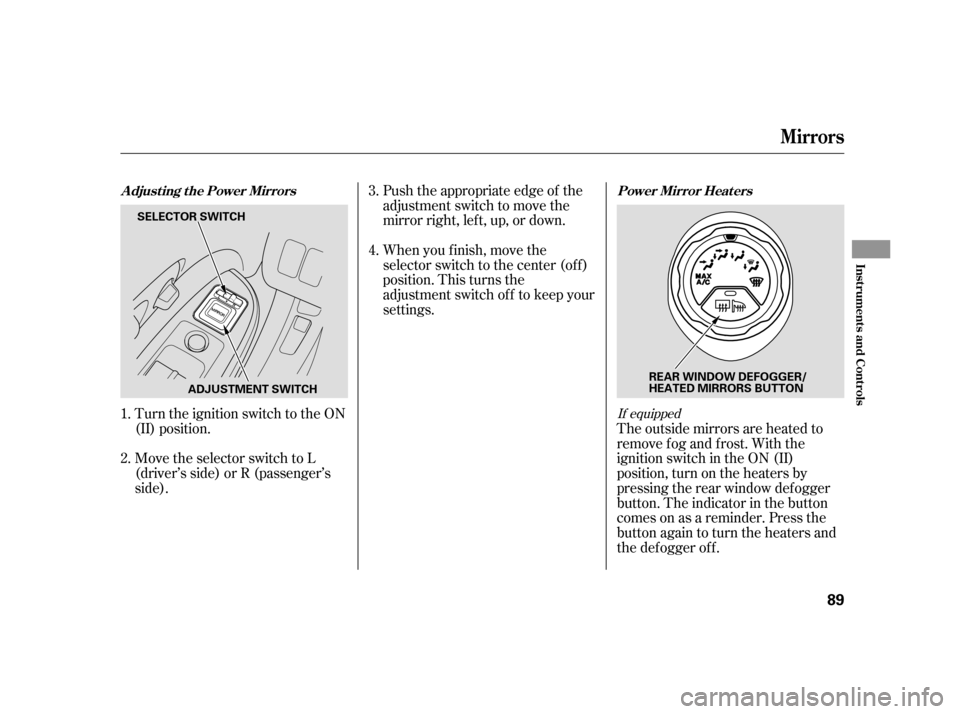

Move the selector switch to L
(driver’s side) or R (passenger’s
side).
2. 1. 3.
4.If equipped
Mirrors
Adjusting the Power Mirrors
Power Mirror Heaters
Inst rument s and Cont rols
89
SELECTOR SWITCH
ADJUSTMENT SWITCH REAR WINDOW DEFOGGER/
HEATED MIRRORS BUTTON

Î
Î
Î
Î
Î

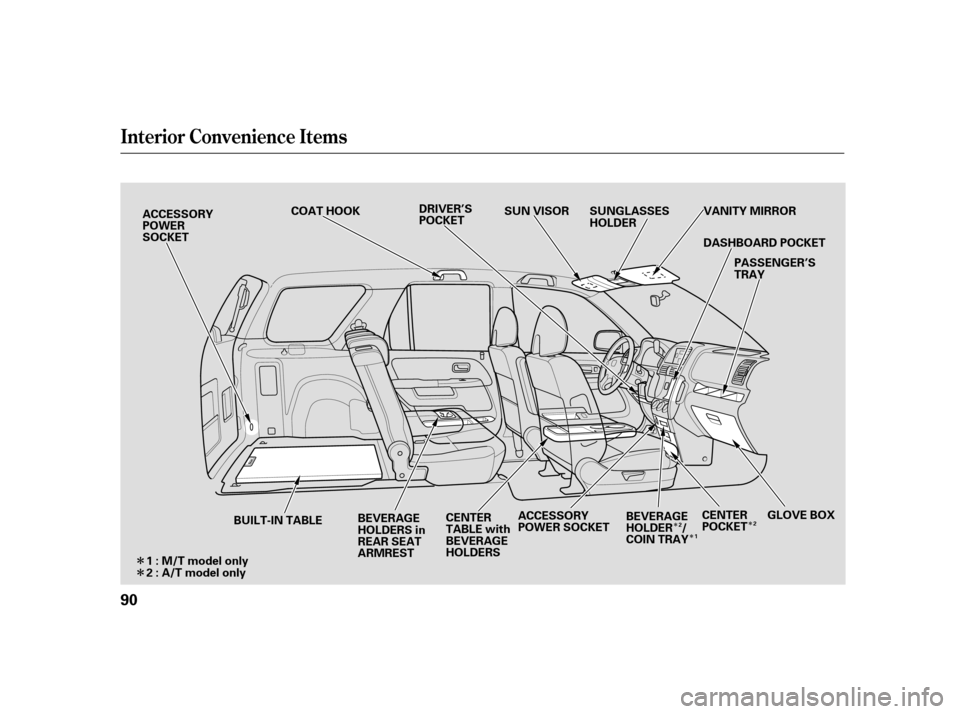

Interior Convenience Items
90
BUILT-IN TABLE
ACCESSORY
POWER
SOCKET
CENTER
TABLE with
BEVERAGE
HOLDERSCENTER
POCKET
GLOVE BOX
ACCESSORY
POWER SOCKET
SUN VISOR
COAT HOOK SUNGLASSES
HOLDER
DRIVER’S
POCKET
1 : M/T model only
2 : A/T model only BEVERAGE
HOLDERS in
REAR SEAT
ARMREST
BEVERAGE
HOLDER /
COIN TRAYPASSENGER’S
TRAY
VANITY MIRROR
DASHBOARD POCKET2
2
1

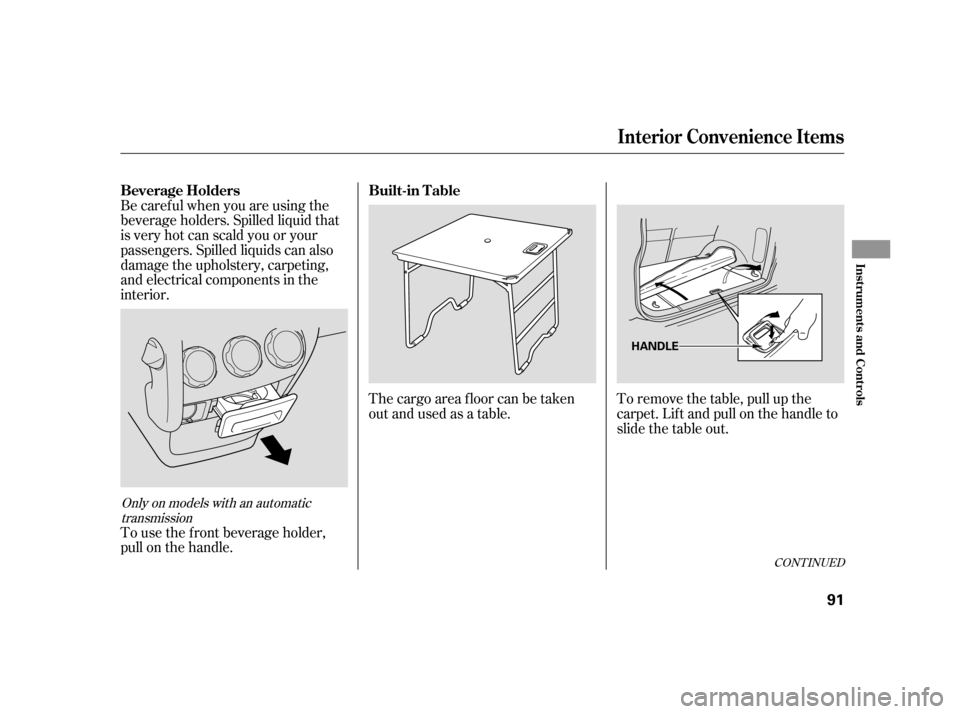

The cargo area floor can be taken
out and used as a table.To remove the table, pull up the
carpet. Lif t and pull on the handle to
slidethetableout.
To use the f ront beverage holder,
pull on the handle. Be caref ul when you are using the
beverage holders. Spilled liquid that
is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
CONT INUED
Only on models with an automatic transmission
Built-in T able
Beverage Holders
Interior Convenience Items
Inst rument s and Cont rols
91
HANDLE

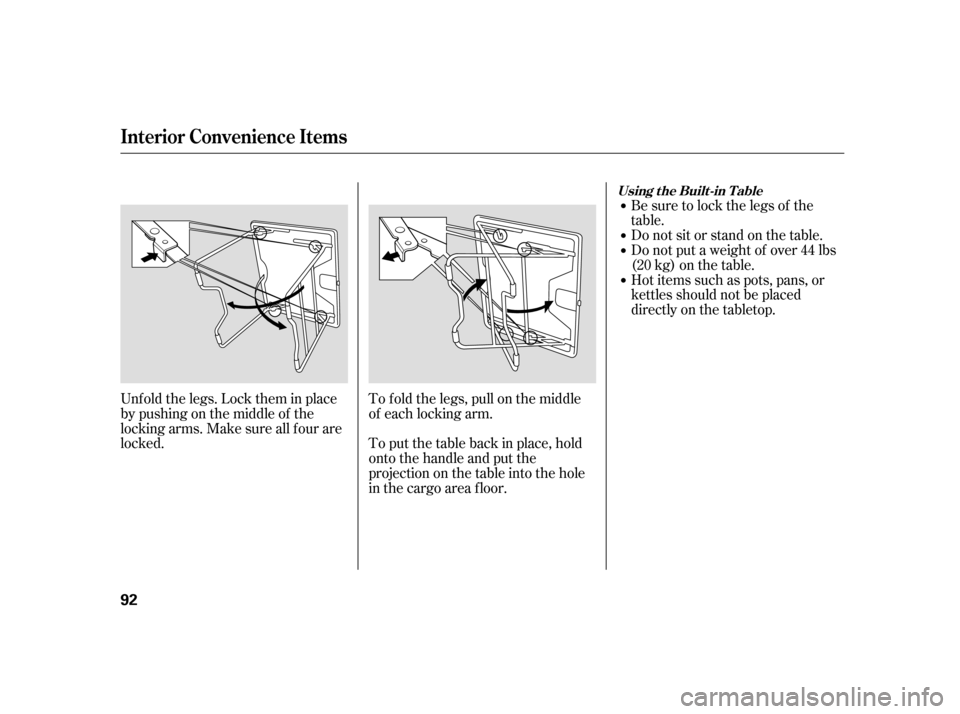

Unf old the legs. Lock them in place
by pushing on the middle of the
locking arms. Make sure all f our are
locked.To f old the legs, pull on the middle
of each locking arm. Be sure to lock the legs of the
table.
Do not put a weight of over 44 lbs
(20 kg) on the table. Donotsitorstandonthetable.
To put the table back in place, hold
onto the handle and put the
projection on the table into the hole
in the cargo area floor. Hot items such as pots, pans, or
kettles should not be placed
directly on the tabletop.
Using the Built-in T able
Interior Convenience Items
92

Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.
The glove box light comes on only
when the parking lights are on.Toopenthecointray,pullonthe
bottom edge. The light in the tray
comes on when the parking lights
are on.Only on models with a manual
transmission
Glove Box Coin T ray
Interior Convenience Items
Inst rument s and Cont rols
93
Lock
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
