Use a Phillips–head screwdriver.
—Parking lights
Use a Phillips–head screwdriver.
—Front turn signal and front
side marker lights

320
Use a Phillips–head screwdriver.

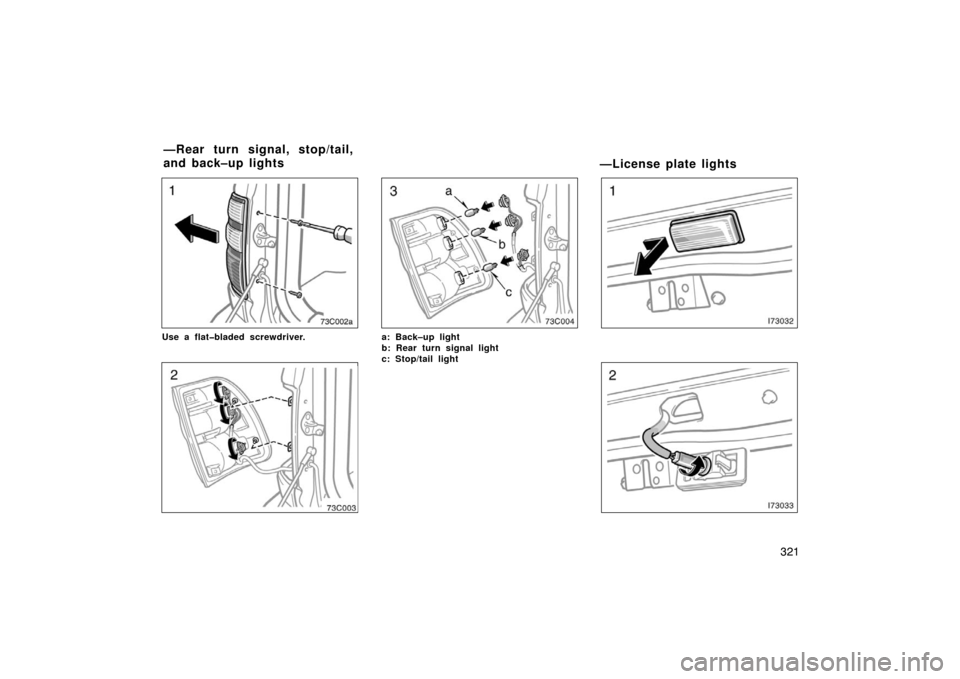

—Stop and tail lights

321
Use a flatbladed screwdriver.a: Back–up light
b: Rear turn signal light
c: Stop/tail light

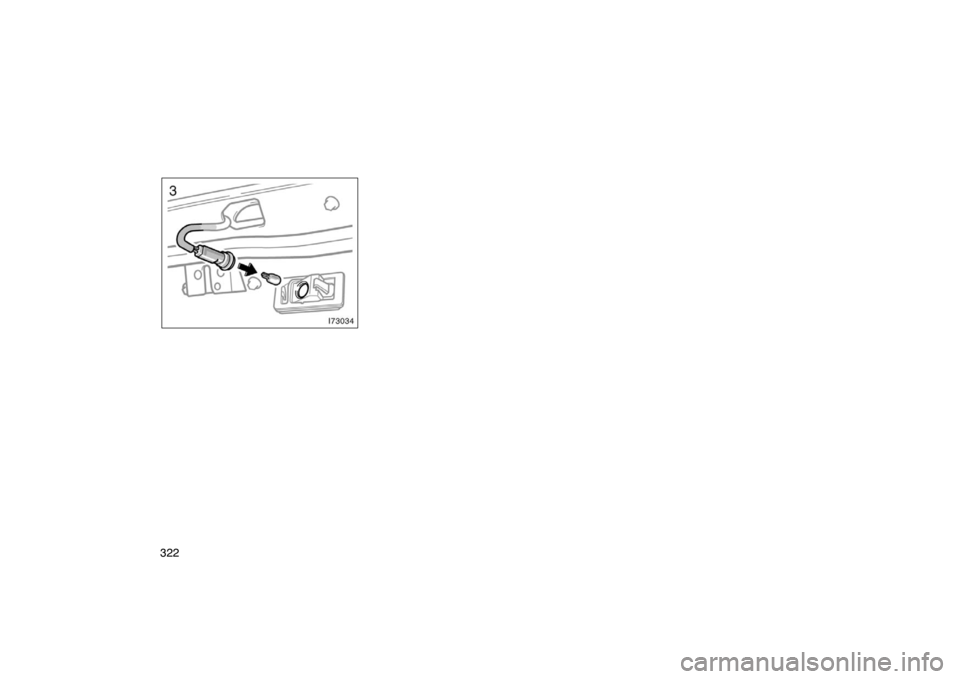

—License plate lights

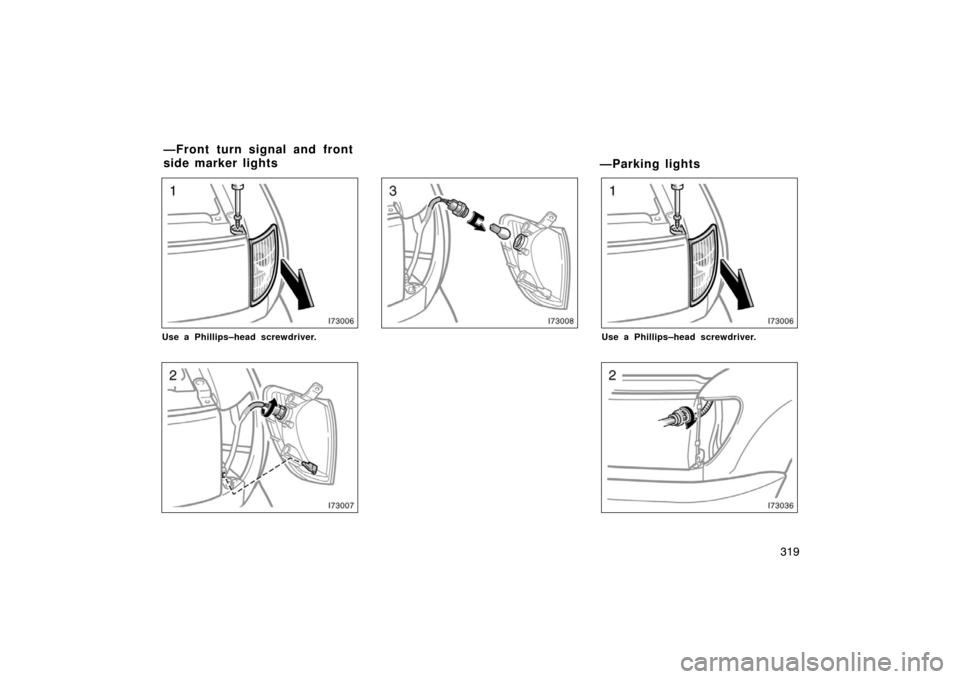

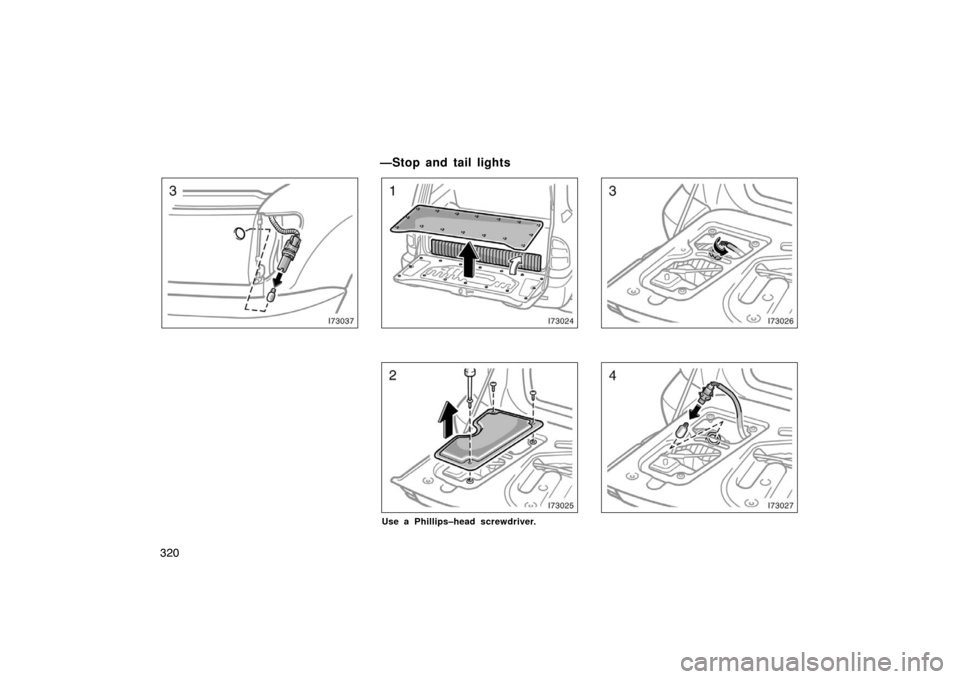

—Rear turn signal, stop/tail,
and back–up lights

322

323
SPECIFICATIONS
Dimensions and weights324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 325
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 329
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

324
Dimensions and weights
Overall length mm (in.) 4890 (192.5)
Overall width mm (in.) 1940 (76.4)
Overall height mm (in.) 1875 (73.8)
∗1
Wheelbase mm (in.) 2850 (112.2)
Front tread mm (in.) 1620 (63.8)
Rear tread mm (in.) 1615 (63.6)
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 545 (1200)
Towing capacity
(trailer weight + cargo weight) kg (lb.) 2948 (6500)
∗1: Unladen vehicle
Engine
Model:
2UZ− FE
Type: 8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0  84.0 (3.70  3.30)
Displacement, cm
3 (cu. in.):
4664 (284.6)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp.gal.): 96 (25.4, 21.1)

325
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15 – 0.25 (0.006 – 0.010)
Exhaust 0.25 – 0.35 (0.010 – 0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt.,
Imp.qt.) With filter 6.8 (7.2, 6.0)
Without filter 6.4 (6.8, 5.6)
Oil grade:
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota ap-
proved “Toyota Genuine Motor Oil” or
equivalent to satisfy the following grade
and viscosity.
Oil grade:
API grade, SL “Energy −Conserving” or
ILSAC multigrade engine oil Recommended viscosity:
SAE 5W
−30

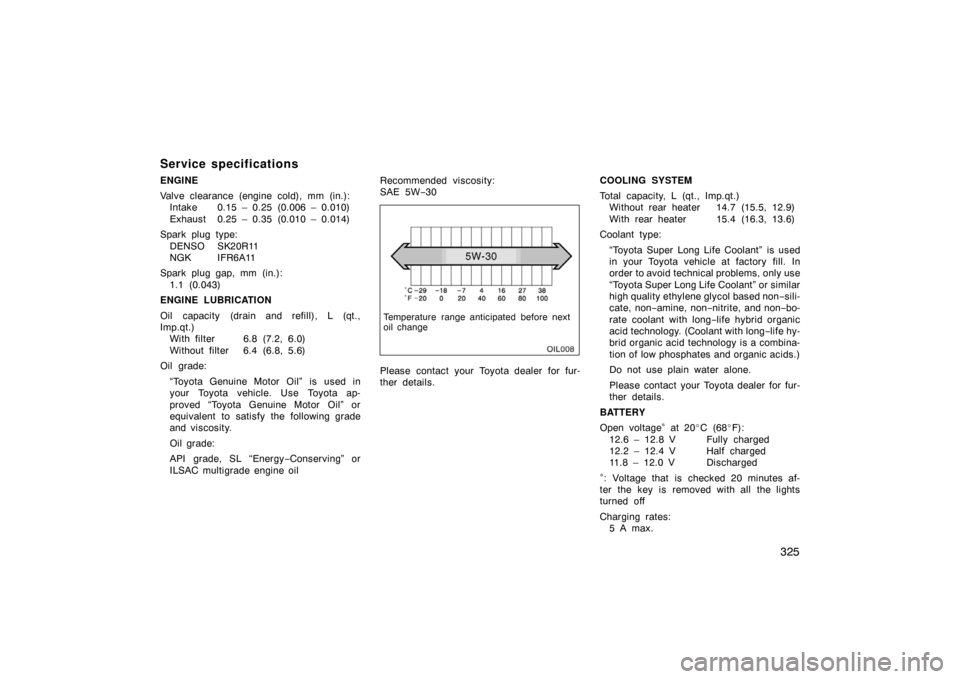

Temperature range anticipated before next
oil change
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp.qt.)
Without rear heater 14.7 (15.5, 12.9)
With rear heater 15.4 (16.3, 13.6)
Coolant type:
“Toyota Super Long Life Coolant” is used
in your Toyota vehicle at factory fill. In
order to avoid technical problems, only use
“Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non −sili-
cate, non −amine, non− nitrite, and non− bo-
rate coolant with long −life hybrid organic
acid technology. (Coolant with long −life hy-
brid organic acid technology is a combina-
tion of low phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6 – 12.8 V Fully charged
12.2 – 12.4 V Half charged
11.8 – 12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

326
AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill), L (qt.,
Imp.qt.) Up to 3.0 (3.2, 2.6)
Fluid type: “Toyota Genuine ATF WS”
Change automatic transmission fluid
only as necessary.
Generally, it is necessary to change au-
tomatic transmission fluid only if your
vehicle is driven under one of the Spe-
cial Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission
fluid, use only “Toyota Genuine ATF
WS” (ATF JWS3324 or NWS9638) to aid
in assuring maximum transmission per-
formance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmis-
sion accompanied by vibration, and
ultimately damage the automatic
transmission of your vehicle. TRANSFER
Oil capacity, L (qt., Imp.qt.)
1.3 (1.4, 1.1)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp.qt.): Front 1.6 (1.7, 1.4)
Rear 3.3 (3.5, 2.9)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above –18 C (0 F)
SAE 90
Below –18 C (0 F)
SAE 80W or 80W −90 CHASSIS LUBRICATION
Wheel bearings:
Lithium base wheel bearing grease,
NLGI No.2
Front drive shaft thrust bushings: Synthetic oil and lithium soap base
chassis grease, NLGI No.1
Propeller shafts: SpidersLithium base chassis grease, NLGI
No.2
Slide yoke Lithium base chassis grease, NLGI
No.2 or Molybdenum—disulfide lithium
base chassis grease, NLGI No.2
