2005 TOYOTA LAND CRUISER Owners Manual

15
To lock and unlock all the side doors
and back door, push the switches slow-
ly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time, turn signal
lights flash once.*
NOTE: *The turn signal lights can be set
not to flash. Ask your Toyota dealer for
details.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously.* At this time, turn signal
lights flash twice.**
NOTE: *The 2step unlocking function can
be changed. **The turn signal lights can
be set not to flash. Ask your Toyota deal-
er for details.Together with the activation of unlocking,
the interior light comes on for 15 seconds
if the interior light switch is in “DOOR”
position.* However, this function does not
work when the ignition key is in the “ACC”
or “ON” position. (For detailed information,
see “Interior light” on page 111.)
You have 30 seconds to open a door after
using the wireless remote unlock fea-
ture.** If a door is not opened by then, all
the side doors and back door will be auto-
matically locked again.
NOTE: *The interior light can be set not
to come on or the duration of lighting can
be changed. **The time before automatic
relocking can be changed. Ask your
Toyota dealer for details.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
Pushing the “PANIC” switch for 1 sec-
ond blows the horn intermittently and
flashes the headlights, tail lights and
interior lights.*
NOTE: *This feature can be deactivated.
Ask your Toyota dealer for details.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
—Activating panic mode

16
The alarm will last for 1 minute. To stop
the alarm midway, push the “PANIC”,
“LOCK” or “UNLOCK” switch, or unlock
any side door or back door with key. You
can also stop the alarm by turning the
ignition key from “LOCK” to the “ON” posi-
tion.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.
For vehicles sold in U.S.A.

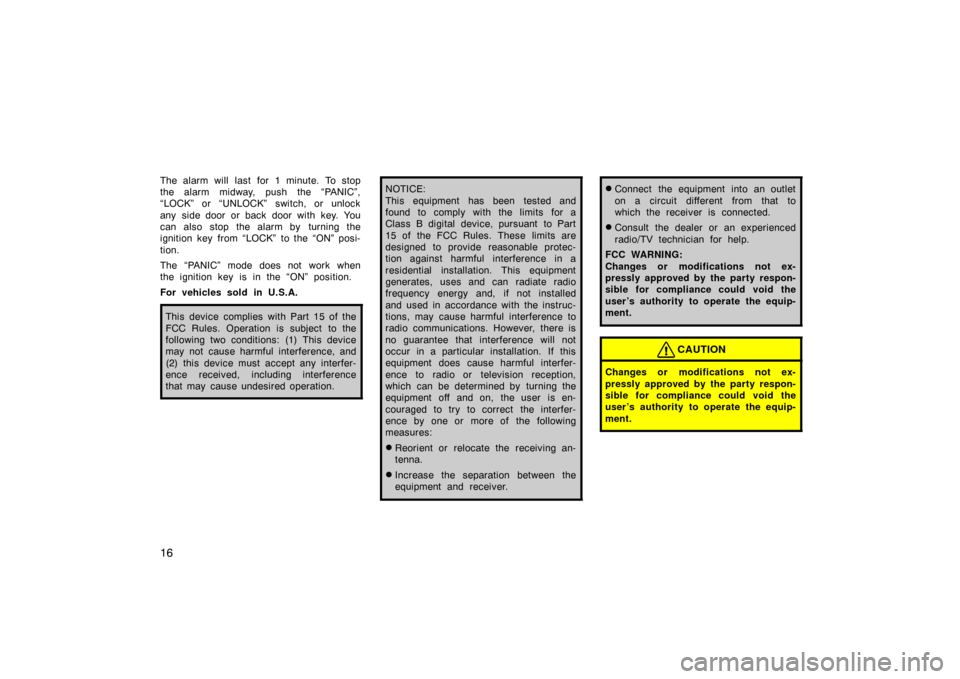

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

17
For replacement, use a CR1616 lithium
battery or equivalent and a special screw-
driver.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used battery according
to the local laws.
Replace the battery by following these
procedures:
1. Remove the screw, and then the cover.2. Remove the module from the key
frame.
—Replacing battery

18
3. Remove the 2 screws to take out thelid of the module. Take out the dis-
charged battery and put in a new bat-
tery with the positive side up.
NOTICE
Do not bend the terminals.
4. Install the lid with the 2 screws.
5. Install the module into the key frameand secure the cover with the screw.
6. When pushing any switch on the wire- less key, make sure the indicator light
comes on.
NOTICE
Make sure the positive side and
negative side of the battery are
faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the battery and that
dust or oils do not adhere to the
case.
 Take care not to lose the screws.
 Close the cover securely.
Side doors—
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
side door. In the driver’s door lock, turn-
ing the key once will unlock the driver’s
door and twice in succession will unlock
all the side doors and back door simulta-
neously.*
NOTE: *The 2step unlocking function can
be changed. Ask your Toyota dealer for
details.

19
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knob
are in the lock position.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
Front side doors cannot be locked when
either front side door is open and the key
is in the ignition.
l12093a
Driver’s side
l12046a
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the side doors and back door lock or
unlock simultaneously.
When the front doors are locked from the
outside or locked with the wireless remote
control key, the power door lock switch
will not work until the either front door is
unlocked with the key, lock knob, or wire-
less remote control key.

20
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
You can select the following modes of
the automatic locking and unlocking
functions. The initial mode is mode 1.
Mode 1—Automatic locking operation
linked to shift lever position
All doors are automatically locked when
the shift lever is moved out of “P”
position, the engine is running and all
the doors are closed.
Mode 2—Automatic locking operation
linked to vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
Mode 3—Automatic unlocking opera-
tion linked to the ignition switch
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the ignition switch is
turned to the “ACC” or “LOCK” posi-
tion, or the key is removed.
Mode 4—Automatic unlocking opera-
tion linked to shift lever position
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
—Automatic door locking and
unlocking functions

21
SETTING FUNCTIONS
You can set the following functions by
yourself.
To set the mode 1 (the automatic lock-
ing operation linked to shift lever posi-
tion):1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the front of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 2 (the automatic lock-
ing operation linked to vehicle speed): 1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever from the “P” into the “N” position. 3. Within 10 seconds of turning the igni-
tion switch to the “ON” position, press
and hold the front of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 3 (the automatic un-
locking operation linked to the ignition
switch): 1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” into the “N” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the rear of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again. To set the mode 4 (the automatic un-
locking operation linked to shift lever
position):
1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the rear of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
CAUTION
To prevent an accident, set and can-
cel the function with the parking
brake set securely.

22
Power windows
12C010a
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
12C011a
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: If something
gets caught between the window and win-
dow frame during automatic closing opera-
tion or key off closing operation, the win-
dow stops and opens halfway.
If the window receives a strong impact,
this function may work even if nothing is
caught.
l12088a
Window lock
switch
OPERATING THE PASSENGERS’ WIN-
DOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
The indicator lights on the switch tell you
which of the switches can be operated.
