2005 TOYOTA LAND CRUISER Owners Manual

87
13c568
Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicle with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar, front, center or rear
garnish or roof interior from which
the side airbags or curtain shield
airbags deploy even if the child is
seated in a child restraint system.
It is dangerous if the side airbag
and curtain shield airbag inflate,
and the impact could cause death
or serious injury to the child.
13c501b
Do not install a child restraint sys-
tem on the third seat if it interferes
with the lock mechanism of the sec-
ond seats. Otherwise, the child or
second seat occupant(s) may be
killed or serious injured in case of
sudden braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.

88

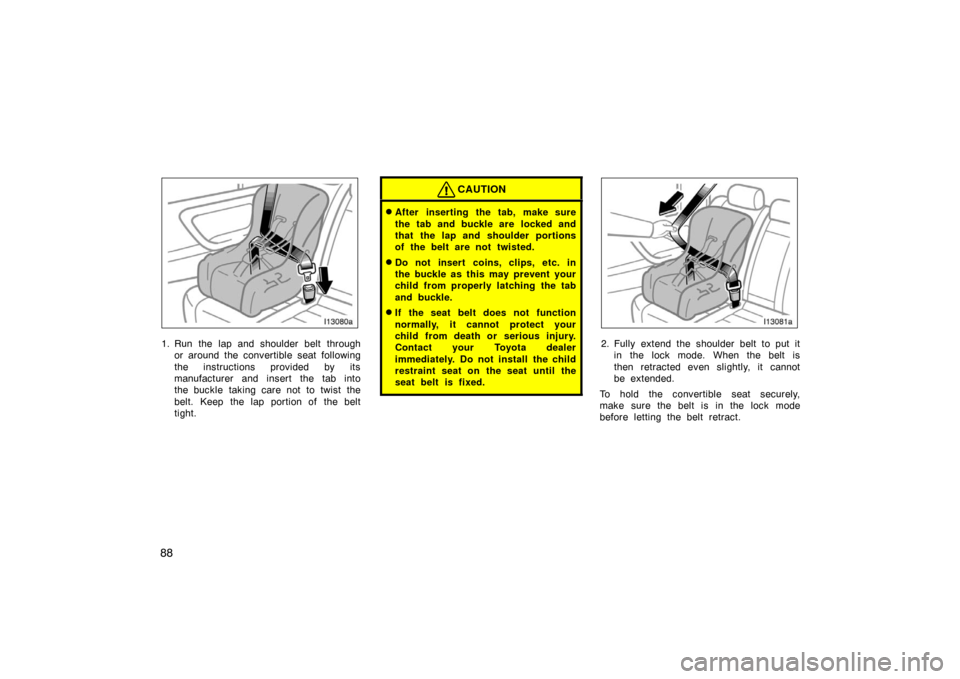

1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer
immediately. Do not install the child
restraint seat on the seat until the
seat belt is fixed.

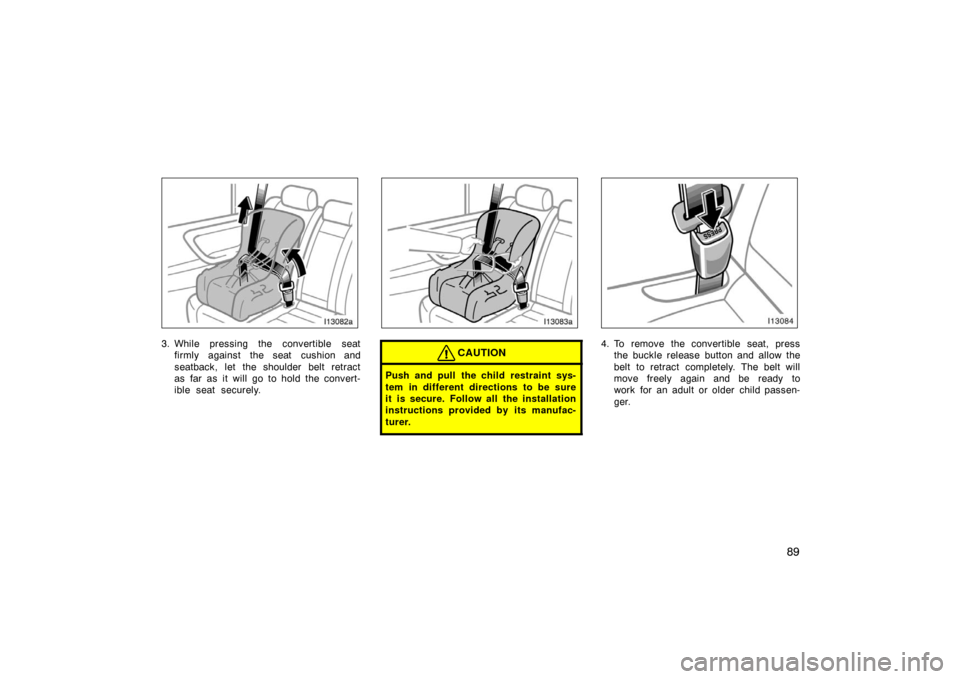

2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

89
3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

9013c569

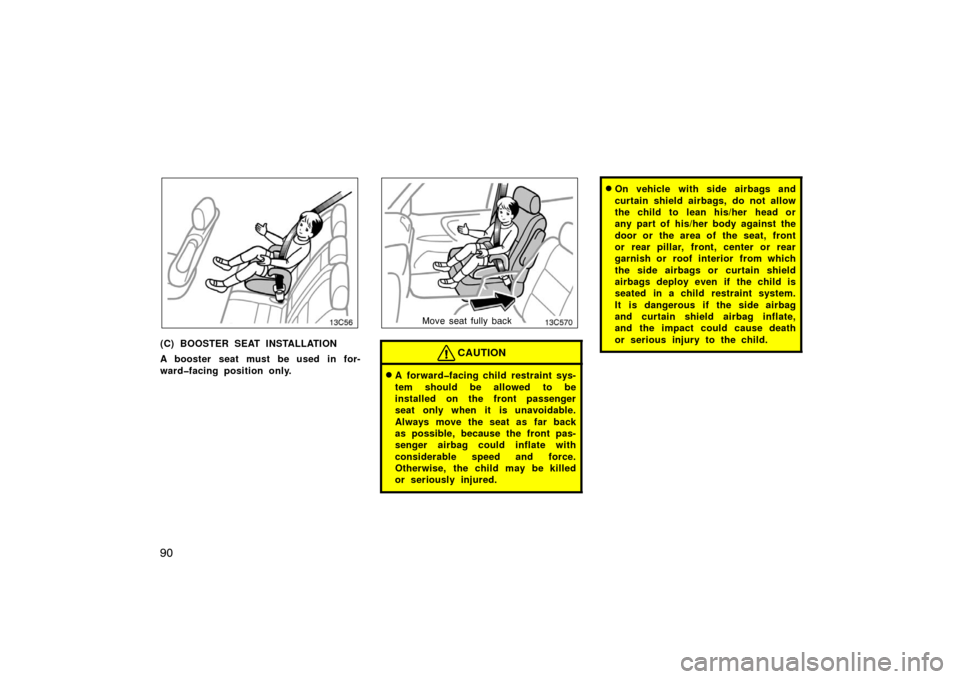

(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
13c570
Move seat fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicle with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar, front, center or rear
garnish or roof interior from which
the side airbags or curtain shield
airbags deploy even if the child is
seated in a child restraint system.
It is dangerous if the side airbag
and curtain shield airbag inflate,
and the impact could cause death
or serious injury to the child.

91
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 48 for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer
immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

92

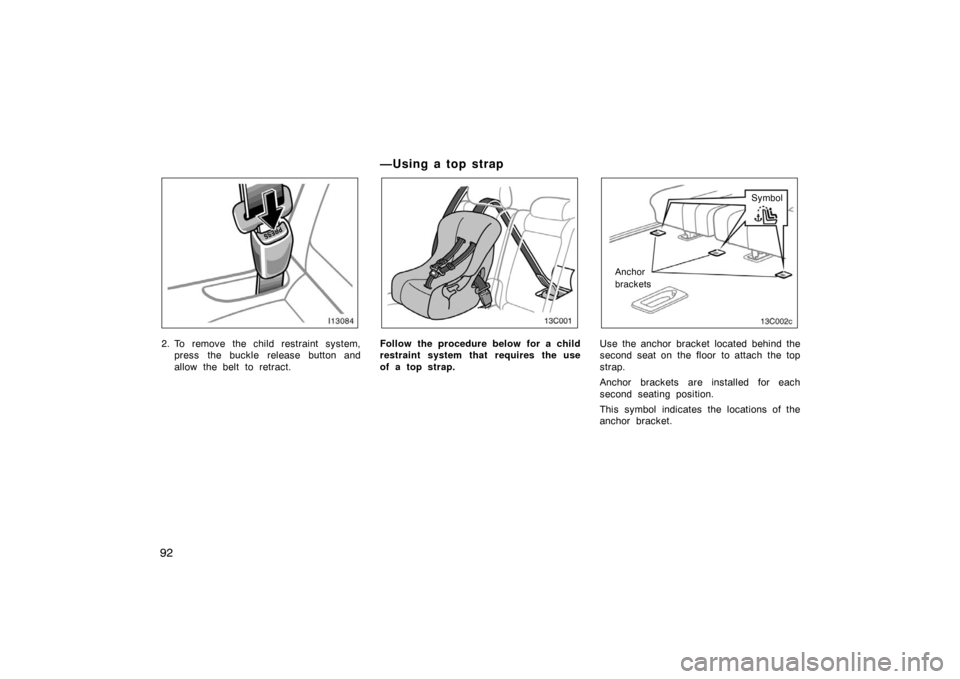

2. To remove the child restraint system,press the buckle release button and
allow the belt to retract.
— U sin g a to p st rap
13C001
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Symbol
Anchor
brackets
Use the anchor bracket located behind the
second seat on the floor to attach the top
strap.
Anchor brackets are installed for each
second seating position.
This symbol indicates the locations of the
anchor bracket.

93

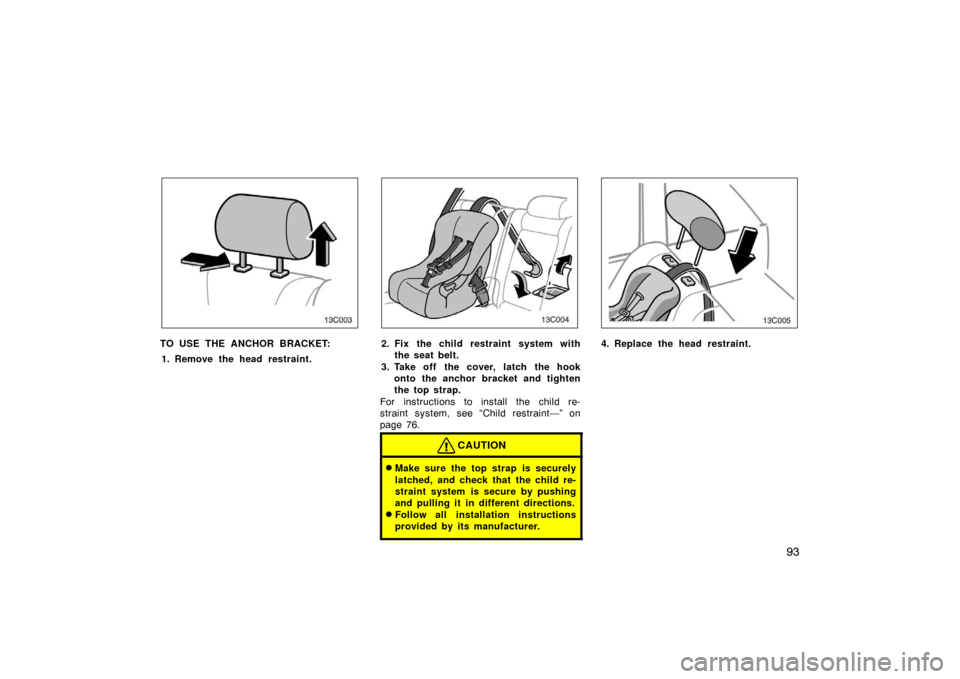

13C003
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
13C004
2. Fix the child restraint system with the seat belt.
3. Take off the cover, latch the hook onto the anchor bracket and tighten
the top strap.
For instructions to install the child re-
straint system, see “Child restraint—” on
page 76.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all installation instructions
provided by its manufacturer.
13C005
4. Replace the head restraint.

94

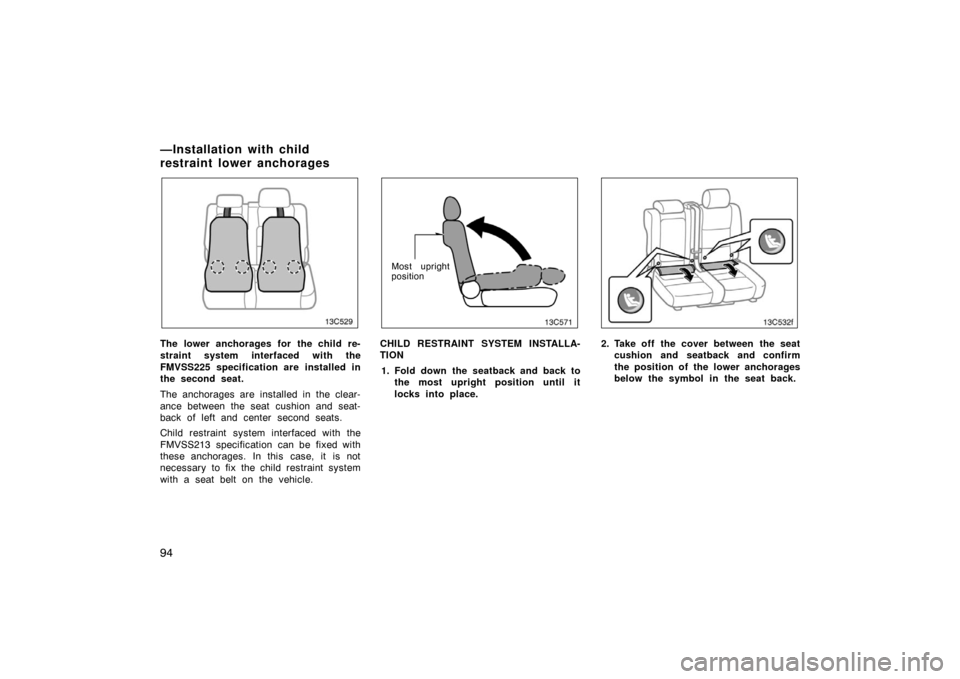

13C529
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the second seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of left and center second seats.
Child restraint system interfaced with the
FMVSS213 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
13c571
Most upright
position
CHILD RESTRAINT SYSTEM INSTALLA-
TION1. Fold down the seatback and back to the most upright position until it
locks into place.
13C532f
2. Take off the cover between the seatcushion and seatback and confirm
the position of the lower anchorages
below the symbol in the seat back.
—Installation with child
restraint lower anchorages
