2005 TOYOTA AVENSIS sensor




H42510
Airbag
Sensor
Assy
Center
Airbag Sensor
Front LH
SL+SL± A
B
C
D
E
F

\b\b




\b\b


  H42120
Airbag
Sensor
Assy
CenterAirbag
Front
RH Sensor
DLC3
CGTC DTC B1148/36
DTC B1149/37
DC
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1301
AVENSIS REPAIR MANUAL (RM1018E)
5CHECK FRONT AIRBAG SENSOR (LH) CIRCUIT (TO GROUND)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Measure the resistance between the body ground and each of SL+ and SL± of the connector ºBº.
OK:
Resistance: 1 M or Higher
NGGo to step 9
OK
6CHECK AIR BAG SENSOR FRONT LH
(a)Connect the connector to the airbag sensor assy center.
(b)Interchange the airbag front sensor RH with the airbag sensor front LH and connect the connectors to them.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f)Turn the ignition switch to the LOCK position.
(g)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
A: DTC B1148/36 is not output.
B: DTC B1149/37 is not output.
NG:A REPLACE AIR BAG SENSOR ASSY CENTER
NG:B REPLACE AIR BAG SENSOR FRONT LH
OK
USE SIMULATION METHOD TO CHECK





H42524
Engine Room
Main Wire
SL± SL+
Service Wire
Airbag
Sensor
Assy
Center
Airbag Sensor
Front LH
A
B C
D E FInstrument Panel Wire
SL±
SL+



H42512
Engine Room
Main Wire
SL± SL+Airbag
Sensor
Assy
Center
Airbag Sensor
Front LH
A
B C
D E FInstrument Panel Wire

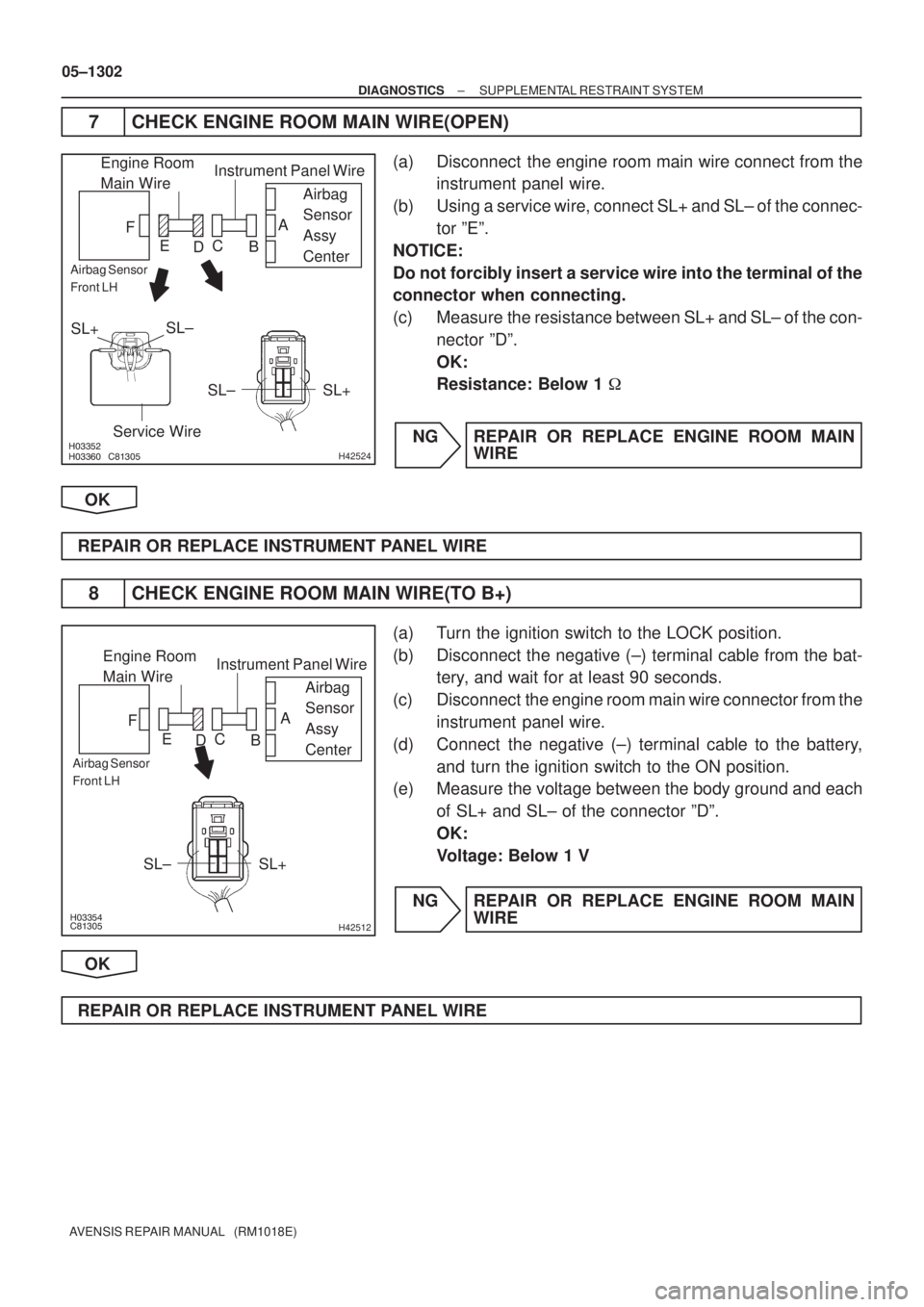

05±1302
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
7 CHECK ENGINE ROOM MAIN WIRE(OPEN)
(a) Disconnect the engine room main wire connect from the
instrument panel wire.
(b) Using a service wire, connect SL+ and SL± of the connec-
tor ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c) Measure the resistance between SL+ and SL± of the con-
nector ºDº.
OK:
Resistance: Below 1

NG REPAIR OR REPLACE ENGINE ROOM MAIN
WIRE
OK
REPAIR OR REPLACE INSTRUMENT PANEL WIRE
8 CHECK ENGINE ROOM MAIN WIRE(TO B+)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the engine room main wire connector from the
instrument panel wire.
(d) Connect the negative (±) terminal cable to the battery,
and turn the ignition switch to the ON position.
(e) Measure the voltage between the body ground and each
of SL+ and SL± of the connector ºDº.
OK:
Voltage: Below 1 V
NG REPAIR OR REPLACE ENGINE ROOM MAIN
WIRE
OK
REPAIR OR REPLACE INSTRUMENT PANEL WIRE



H42512
Engine Room
Main Wire
SL± SL+Airbag
Sensor
Assy
Center
Airbag Sensor
Front LH
A
B C
D E FInstrument Panel Wire
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM

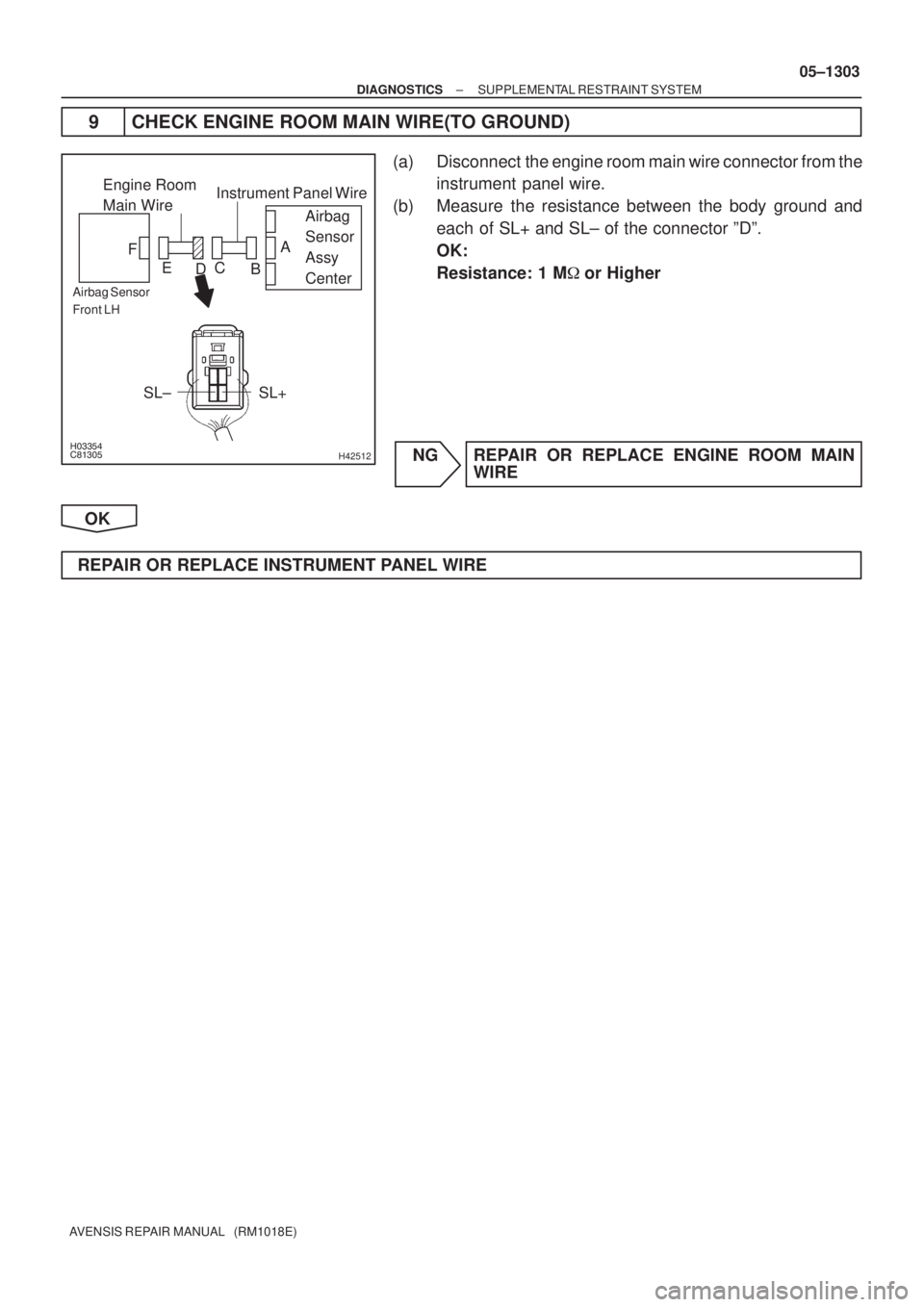

05±1303
AVENSIS REPAIR MANUAL (RM1018E)
9 CHECK ENGINE ROOM MAIN WIRE(TO GROUND)
(a) Disconnect the engine room main wire connector from the
instrument panel wire.
(b) Measure the resistance between the body ground and
each of SL+ and SL± of the connector ºDº.
OK:
Resistance: 1 Mor Higher
NG REPAIR OR REPLACE ENGINE ROOM MAIN
WIRE
OK
REPAIR OR REPLACE INSTRUMENT PANEL WIRE

H17182
Airbag Sensor Assy Center
SR+
SR± A27
A279
20 IO3
2 1
G
R 2
1 SR+
SR± A10
Airbag Front RH Sensor
G
R IE71
2
IO3 IE7
*1: LHD
*2: RHD(*1) (*2)(*1) (*2) 05±1292
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DTC B1148/36 FRONT AIRBAG SENSOR (RH)
MALFUNCTION
CIRCUIT DESCRIPTION
The airbag front RH sensor circuit consists of the diagnosis circuit and the frontal deceleration sensor, etc.
If the airbag sensor assy center receives signals from the frontal deceleration sensor, it judges whether or
not the SRS should be activated.
DTC B1148/36 is recorded when a malfunction in the airbag front RH sensor is detected.
DTC No.DTC Detecting ConditionTrouble Area
B1148/36

Open circuit in SR+ wire harness or SR± wire harness of
front airbag sensor RH

Short circuit in airbag front RH sensor wire harness (to B+)

Short circuit in airbag front RH sensor wire harness (to
ground)

Airbag front RH sensor malfunction

Airbag sensor assy center malfunction

Airbag front RH sensor

Airbag sensor assy center

Instrument panel wire

Engine room main wire
WIRING DIAGRAM
05C60±01

\b\b






\b\b




 H42117
Airbag
Front
RH
SensorAirbag
Sensor
Assy
Center
DLC3
CG TC DTC B1148/36
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1293
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1CHECK DTC
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B1148/36 is not output.
HINT:
Codes other than code B1148/36 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy center and t\
he airbag front RH sensor.
OK:
The connectors are connected.
NG CONNECT CONNECTORS
OK




H42523
Airbag
Sensor
Assy
CenterAirbag
Front
RH Sensor
Service Wire
SR+
SR±
A
B
C
D E F


H42510
Airbag
Sensor
Assy
CenterAirbag
Front
RH Sensor
SR+
SR±
A
B
C
D E F
05±1294
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK FRONT AIRBAG SENSOR (RH) CIRCUIT (OPEN)
(a) Disconnect the connectors from the airbag sensor assy
center and the airbag front RH sensor.
(b) Using a service wire, connect SR+ and SR± of the con-
nector ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c) Measure the resistance between SR+ and SR± of the
connector ºBº.
OK:
Resistance: Below 1

NG Go to step 7
OK
4 CHECK FRONT AIRBAG SENSOR (RH) CIRCUIT (TO B+)
(a) Disconnect the service wire from the connector ºEº.
(b) Connect the negative (±) terminal cable to the battery,
and turn the ignition switch to the ON position.
(c) Measure the voltage between the body ground and each
of SR+ and SR± of the connector ºBº.
OK:
Voltage: Below 1 V
NG Go to step 8
OK




H42510
Airbag
Sensor
Assy
CenterAirbag
Front
RH Sensor
SR+SR±
A
B
C
D
E
F

\b\b


  H42118
Airbag
Sensor
Assy
CenterAirbag
Sensor
Front LH
DLC3
CG TC DTC B1148/36
DTC B1149/37
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1295
AVENSIS REPAIR MANUAL (RM1018E)
5CHECK FRONT AIRBAG SENSOR (RH) CIRCUIT (TO GROUND)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Measure the resistance between the body ground and each of SR+ and SR± of the connector ºBº.
OK:
Resistance: 1 M or Higher
NGGo to step 9
OK
6CHECK AIR BAG FRONT RH SENSOR
(a)Connect the connector to the airbag sensor assy center.
(b)Interchange the airbag front RH sensor with the airbag sensor front LH and connect the connectors to them.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
A: DTC B1148/36 is not output.
B: DTC B1149/37 is not output.
NG:A REPLACE AIR BAG FRONT RH SENSOR
NG:B REPLACE AIR BAG SENSOR ASSY CENTER
OK
USE SIMULATION METHOD TO CHECK





H42524
Engine Room
Main Wire
Airbag
Sensor
Assy
CenterAirbag
Front
RH
Sensor
Instrument Panel Wire
SR±SR+
Service Wire
A
B
C D E F
SR± SR+



H42512
Engine Room
Main Wire
Airbag
Sensor
Assy
CenterAirbag
Front
RH
Sensor
Instrument Panel Wire
SR±SR+
A
B
C D E F

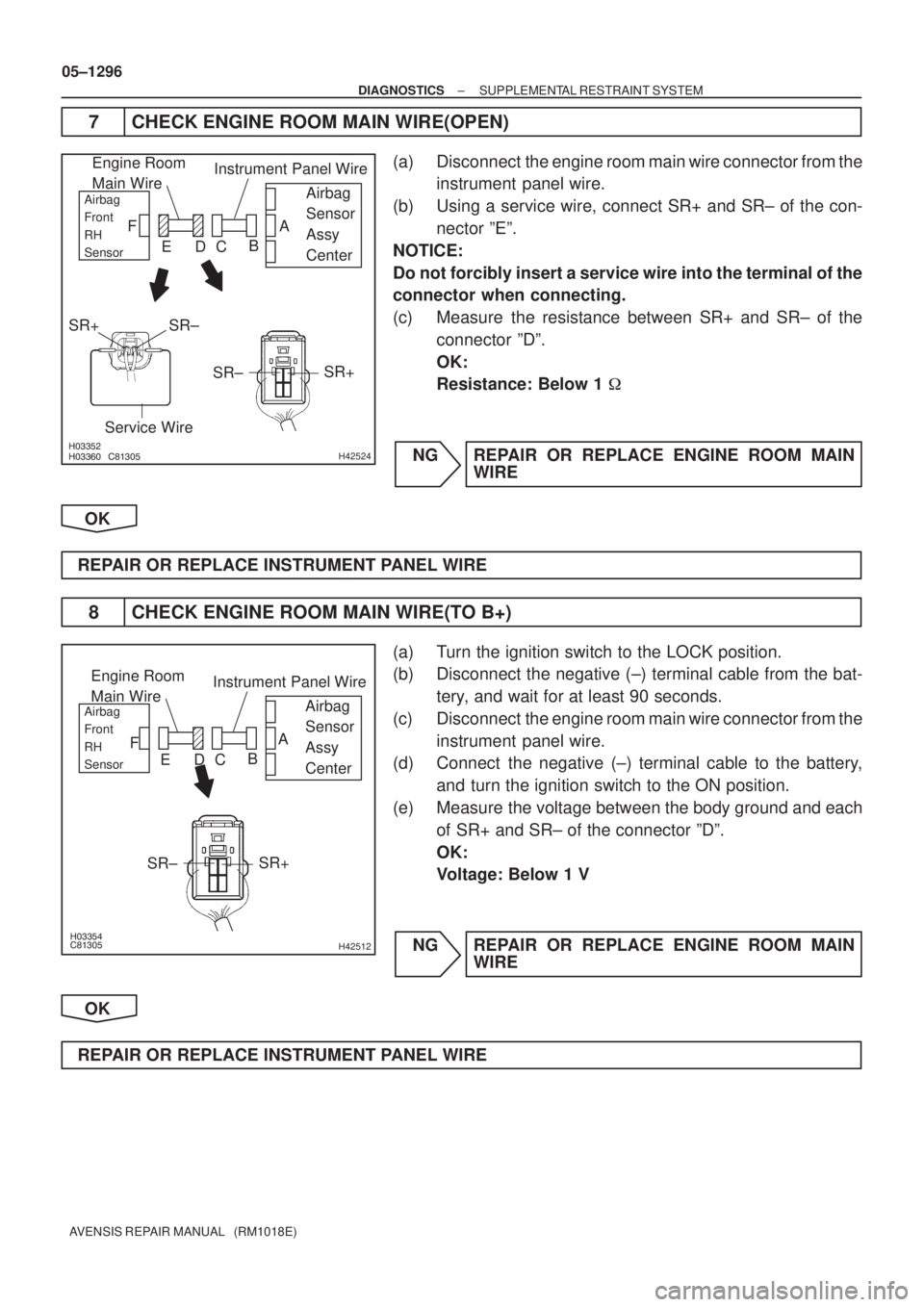

05±1296
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
7 CHECK ENGINE ROOM MAIN WIRE(OPEN)
(a) Disconnect the engine room main wire connector from the
instrument panel wire.
(b) Using a service wire, connect SR+ and SR± of the con-
nector ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c) Measure the resistance between SR+ and SR± of the
connector ºDº.
OK:
Resistance: Below 1

NG REPAIR OR REPLACE ENGINE ROOM MAIN
WIRE
OK
REPAIR OR REPLACE INSTRUMENT PANEL WIRE
8 CHECK ENGINE ROOM MAIN WIRE(TO B+)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the engine room main wire connector from the
instrument panel wire.
(d) Connect the negative (±) terminal cable to the battery,
and turn the ignition switch to the ON position.
(e) Measure the voltage between the body ground and each
of SR+ and SR± of the connector ºDº.
OK:
Voltage: Below 1 V
NG REPAIR OR REPLACE ENGINE ROOM MAIN
WIRE
OK
REPAIR OR REPLACE INSTRUMENT PANEL WIRE
