2005 TOYOTA AVENSIS wheel torque

14±236
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
77. INSTALL ENGINE COVER SUB±ASSY NO.1
Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
78. INSTALL FRONT WHEEL RH
Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)

141BM±01
A77339
A77301
14±204
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±33)
2.REMOVE FRONT WHEELS
3.REMOVE RADIATOR SUPPORT OPENING COVER
4.REMOVE ENGINE ROOM COVER SIDE
5.REMOVE ENGINE UNDER COVER RH
6.REMOVE ENGINE UNDER COVER LH
7.DRAIN COOLANT (See page 16±31)
8.DRAIN ENGINE OIL
(a)Install a new gasket and the drain plug after draining engine oil. Torque: 25 N
m (255 kgf
cm,18 ft
lbf)
9.DRAIN MANUAL TRANSAXLE OIL (M/T TRANSAXLE) Torque: 49 N
m (500 kgf
cm,36 ft
lbf)
10.DRAIN AUTOMATIC TRANSAXLE FLUID (A/T TRANSAXLE) (See page 40±2)
11.REMOVE ENGINE COVER SUB±ASSY NO.1
(a)Remove the 2 nuts and the cylinder head cover No. 1.
12.DISCONNECT RADIATOR HOSE INLET
13.DISCONNECT RADIATOR HOSE OUTLET 14.SEPARATE RADIATOR RELAY BLOCK
(a)Remove the 2 bolts and separate the radiator relay block.
15.SEPARATE COOLER REFRIGERANT SUCTION HOSE NO.1 (RHD STEERING POSITION TYPE)
(a)Remove the bolt and separate the suction hose No. 1.
16.REMOVE RADIATOR ASSY (See page 16±36)
17.REMOVE FAN AND GENERATOR V BELT (See page 14±185)
18.REMOVE GENERATOR ASSY (See page 19±20)
19. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
(a) Remove the 4 bolts and separate the compressor and magnetic clutch.
HINT:
Secure the hoses off to the side instead of detaching.
20. REMOVE BATTERY

A77333SST
A77403
15
3
7
2
6
4 8
A63273
14±214
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
121.INSTALL DRIVE PLATE AND RING GEAR OR FLYWHEEL
(a)Hold the crankshaft with SST.
SST09213±54015 (91651±60855), 09330±00021
Adhesive:
Part No. 08833±00070, THREE BOND or equivalent
(b)Install the drive plate. (A/T) (1)Clean the bolt and bolt hole.
(2)Apply adhesive to the bolts.
(3)Using several steps, install and tighten the 8 bolts
uniformly in the sequence shown in the illustration.
Torque: 98 N
m (1,000 kgf
cm, 72 ft
lbf)
(c)Install the flywheel. (M/T) (1)Clean the bolt hole.
(2)Using several steps, install and tighten the 8 boltsuniformly in the sequence shown in the illustration.
Torque: 130 N
m (1,327 kgf
cm, 96 ft
lbf)
NOTICE:
Do not reuse the flywheel bolt.
122.INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26)
123.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
124.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
125.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
126.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
127.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
128.INSTALL FRONT SUSPENSION CROSSMEMBER W/CENTER MEMBER
(a)Install the engine mounting insulator FR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
(b)Install the engine mounting insulator RR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
129.INSTALL STARTER ASSY (See page 19±12)
130. INSTALL VANE PUMP ASSY Torque: 37 N
m (370 kgf
cm, 27 ft
lbf)
131. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Install the 2 bolts and 2 nuts as shown in the illustration. Torque:
Bolt 45 N
m (459 kgf
cm, 33 ft
lbf)
Nut 133 N
m (1,356 kgf
cm, 98 ft
lbf)

±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FSE)
14±217
AVENSIS REPAIR MANUAL (RM1018E)
158.INSTALL OIL RESERVOIR BRACKET NO.1
Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
159.INSTALL RETURN TUBE SUB±ASSY
Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
160.INSTALL RADIATOR RESERVE TANK SUB±ASSY Torque: 5.0 N
m (51 kgf
cm,44 in.
lbf)
161.INSTALL BATTERY CARRIER
162.INSTALL AIR CLEANER ASSEMBLY WITH HOSE
Torque: 5.0 N
m (51 kgf
cm,44 in.
lbf)
163.INSTALL COMPRESSOR AND MAGNETIC CLUTCH Torque: 25 N
m (255 kgf
cm,18 in.
lbf)
164.INSTALL GENERATOR ASSY (See page 19±20)
165.INSTALL FAN AND GENERATOR V BELT (See page 14±185)
166.INSTALL RADIATOR ASSY (See page 16±36)
167. INSTALL RADIATOR RELAY BLOCK Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
168. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
169. ADD MANUAL TRANSAXLE OIL (M/T TRANSAXLE)
170. ADD AUTOMATIC TRANSAXLE FLUID (A/T TRANSAXLE)
171. ADD ENGINE OIL
172.ADD COOLANT (See page 16±31)
173.ADD POWER STEERING FLUID (See page 51±4)
174. BLEED POWER STEERING FLUID
175. CHECK FOR ENGINE OIL LEAKS
176.CHECK FOR ENGINE COOLANT LEAKS (See page 16±25)
177.CHECK FOR FUEL LEAKS (See page 11±30)
178. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
179.ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)
180.INSPECT CHECK IDLE SPEED AND IGNITION TIMING (See page 14±204)
181. INSPECT CO/HC
182. CHECK ABS SPEED SENSOR SIGNAL

A77371
Engine Assy
Drive Shaft Bearing Bracket
Wire Clamp Bracket
Manual Transaxle Assy
Starter AssyClutch Disc Assy Flywheel Sub±Assy
8

7
Clutch Cover Assy
N´m (kgf´cm, ft´lbf)
: Specified torque M/T:
34 (347, 25)
46 (470, 34)
13 (130, 9)
39 (398, 29)
64 (650, 47)
19 (194, 14)
44 (440, 32)
46 (470, 34)
130 (1327, 96)
14±198
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

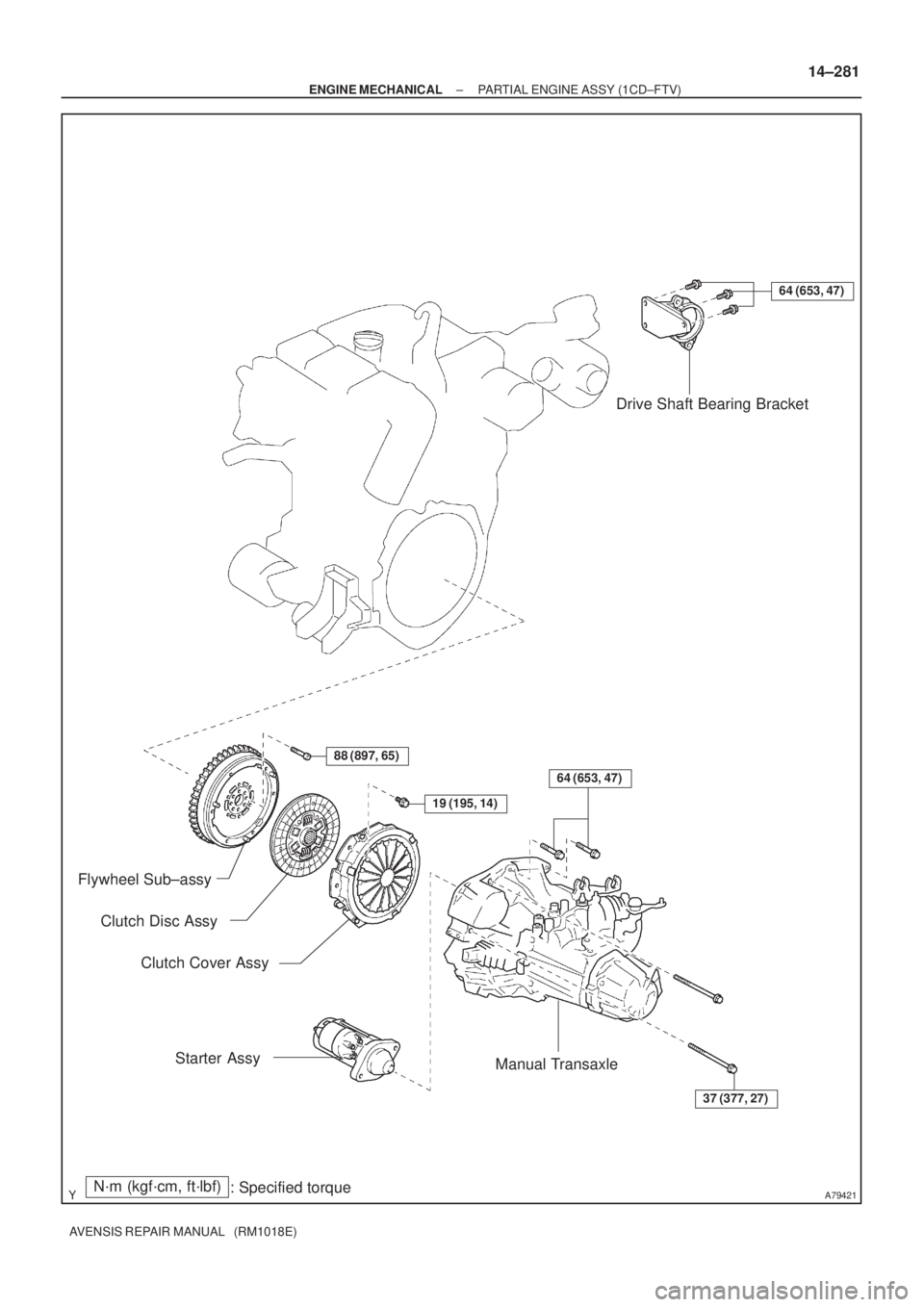

A79421N´m (kgf´cm, ft´lbf)
: Specified torque
88 (897, 65)
19 (195, 14)
64 (653, 47)
37 (377, 27)
Drive Shaft Bearing Bracket
Flywheel Sub±assy
Clutch Cover Assy
Starter Assy
Manual Transaxle
Clutch Disc Assy
64 (653, 47)
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±281
AVENSIS REPAIR MANUAL (RM1018E)

14±274
±
ENGINE MECHANICAL VALVE CLEARANCE(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
(d)Using SST, tighten the nut of the injection pipe to the injec- tor side.
SST09023±12700
Torque:
42 N
m (428 kgf
cm, 31 ft
lbf) for a used pipe using SST
46 N
m (469 kgf
cm, 34 ft
lbf) for a used pipe not using
SST
31 N
m (316 kgf
cm, 23 ft
lbf) for a new pipe using SST
34 N
m (347 kgf
cm, 25 ft
lbf) for a new pipe not using
SST
HINT:

Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)

Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
(e)Install the 2 upper injection pipe clamps with the 2 nuts. Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
21.INSTALL INJECTION PIPE SUB±ASSY NO.2
SST09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
22.INSTALL INJECTION PIPE SUB±ASSY NO.3 SST09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
23.INSTALL INJECTION PIPE SUB±ASSY NO.4 SST09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
24.INSTALL TIMING BELT NO.2 COVER (See page 11±60)
25. INSTALL AIR TUBE NO.1 Torque: 25 N
m (255 kgf
cm, 18 ft
lbf)
26. INSTALL ENGINE COVER NO.1 Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
27. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
28.ADD ENGINE COOLANT (See page 16±44)
29.CHECK FOR ENGINE COOLANT LEAKS (See page 16±44)
30.CHECK FOR FUEL LEAKS (See page 11±60)

Cut Position
A13332
A77419
SST
A13697
SST
SST
14±264
±
ENGINE MECHANICAL TIMING GEAR CASE OR TIMING CHAIN CASE OIL
SEAL(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
8.REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
(a)Using a screwdriver with tip wrapped in the tape, pry out
the oil seal.
HINT:
After removal, check if the crankshaft is not damaged.
If it is damaged, smooth the surface with 400±grit sandpaper.
9.INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
(a)Apply MP grease to a new oil seal lip.
NOTICE:
Keep the lip off foreign materials.
(b)Using SST and a hammer, tap in the oil seal until its sur- face is flush with the rear oil seal retainer edge.
SST09223±22010
NOTICE:
Wipe off extra grease on the crankshaft.
10.INSTALL CRANKSHAFT PULLEY
(a)Align the pulley set key with the key groove of the pulley.
(b)Using SST, install the pulley bolt. SST09213±54015 (91651±60855), 09330±00021
Torque: 170 N
m (1,733 kgf
cm, 125 ft
lbf)
11.INSTALL FAN AND GENERATOR V BELT (See page 14±185) SST 09249±63010
12. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
13. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
14. CHECK FOR ENGINE OIL LEAKS
