2005 TOYOTA AVENSIS manual transmission

±
DIAGNOSTICS SFI SYSTEM (1AZ±FSE)
05±315
AVENSIS REPAIR MANUAL (RM1018E)


\f
*
1
CHK ENG

 \b
P0746 *3,4
(05±954)
Pressure Control Solenoid ºAº
Performance (Shift Solenoid
Valve SL1)

Electronic controlled automatic transmission (ECT)
P0748 *4
(05±956)
Pressure Control Solenoid ºAº
Electrical (Shift Solenoid Valve
SL1)

Electronic controlled automatic transmission (ECT)
P0766 *3,4
(05±962)
Shift Solenoid ºDº Performance
(Shift Solenoid Valve S4)
Electronic controlled automatic transmission (ECT)
P0776 *3,4
(05±963)
Pressure Control Solenoid ºBº
Performance (Shift Solenoid
Valve SL2)

Electronic controlled automatic transmission (ECT)
P0778 *4
(05±956)
Pressure Control Solenoid ºBº
Electrical (Shift Solenoid Valve
SL2)

Electronic controlled automatic transmission (ECT)
P0793 *4
(05±965)
Intermediate Shaft Speed Sen-
sor ºAº Circuit No Signal
Electronic controlled automatic transmission (ECT)
P0982 *4
(05±956)Shift Solenoid ºDº Control Low
Electronic controlled automatic transmission (ECT)
P0983 *4
(05±956)Shift Solenoid ºDº Control High
Electronic controlled automatic transmission (ECT)
P1235
(05±477)High Pressure Fuel Pump Circuit

Open or short in fuel pump (high pressure)

Fuel pump (high pressure)

ECM

P2008
(05±480)Intake Manifold Runner Control
Circuit/Open (Bank 1)
Open of short in VSV for IACV circuit

VSV for IACV

ECM

P2102
(05±483)Throttle Actuator Control Motor
Circuit Low
Open in throttle control motor circuit

Throttle control motor

ECM

P2103
(05±483)Throttle Actuator Control Motor
Circuit High
Short in throttle control motor circuit

Throttle control motor

ECM

P2111
(05±485)Throttle Actuator Control System
± Stuck Open
Throttle control motor circuit

Throttle control motor
P2112
(05±485)Throttle Actuator Control System
± Stuck Closed
Throttle body

Throttle valve
P2118
(05±487)Actuator Control Motor Current
Range/Performance
Open in ETCS power source circuit

ECM
P2119
(05±490)Throttle Actuator Control Throttle
Body Range/Performance
Electric throttle control system

ECM
P2120
(05±492)Throttle/Pedal Position Sensor/
Switch ºDº Circuit
Open or short in accelerator pedal position sensor circuit

Accelerator pedal position sensor

ECM

P2121
(05±499)Throttle/Pedal Position Sensor/
Switch ºDº Circuit Range/Perfor-
mance
Open or short in accelerator pedal position sensor circuit

Accelerator pedal position sensor

ECM


05±316
±
DIAGNOSTICS SFI SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)


\f
*
1
CHK ENG

 \b
P2122
(05±492)Throttle/Pedal Position Sensor/
Switch ºDº Circuit Low Input
P2123
(05±492)Throttle/Pedal Position Sensor/
Switch ºDº Circuit High Input
P2125
(05±492)Throttle/Pedal Position Sensor/
Switch ºEº Circuit
Same as DTC No. P2120
P2127
(05±492)Throttle/Pedal Position Sensor/
Switch ºEº Circuit Low Input
P2128
(05±492)Throttle/Pedal Position Sensor/
Switch ºEº Circuit High Input
P2135
(05±356)Throttle Pedal Position Sensor/
Switch ºAº/ºBº Voltage Correla-
tion
VTA1 and VTA2 circuit are short±circuited

Throttle position sensor (built in throttle body)

ECM

P2138
(05±492)Throttle Pedal Position Sensor/
Switch ºDº/ºEº Voltage Correla-
tion

Same as DTC No. P2120
P2195 *3
(05±363)
Oxygen Sensor Signal Stuck
Lean (Bank 1 Sensor 1)
Open or short in heated oxygen sensor (bank 1, 2 sensor 1)
circuit
P2196 *3
(05±363)
Oxygen Sensor Signal Stuck
Rich (Bank 1 Sensor 1)
Heated oxygen sensor (bank 1, 2 sensor 1)

Heated oxygen sensor heater (bank 1, 2 sensor 1)

EFI relay

P2197 *3
(05±363)
Oxygen Sensor Signal Stuck
Lean (Bank 2 Sensor 1)
EFI relay

Air induction system

Fuel pressure

P2198 *3
(05±363)
Oxygen Sensor Signal Stuck
Rich (Bank 2 Sensor 1)

Fuel ressure

Injector

ECM
P2716 *4
(05±967)
Pressure Control Solenoid ºDº
Electrical
Electronic controlled automatic transmission (ECT)
B2799
(05±1625)Engine Immobiliser System Mal-
function
Immobiliser system

*1: CHK ENG (Check engine warning light) is illuminated
*
2: CHK ENG (Check engine warning light) is illuminated or blinks
*
3: For Euro±OBD vehicles only.
*
4: For A/T only.

3 2 1 45678
9 1 0 111 21 31 41 51 6
DLC33 2 1 45678
9 1 0 111 21 31 41 51 6
DLC3
A04550
± DIAGNOSTICSSFI SYSTEM (1AZ±FSE)
05±297
AVENSIS REPAIR MANUAL (RM1018E)

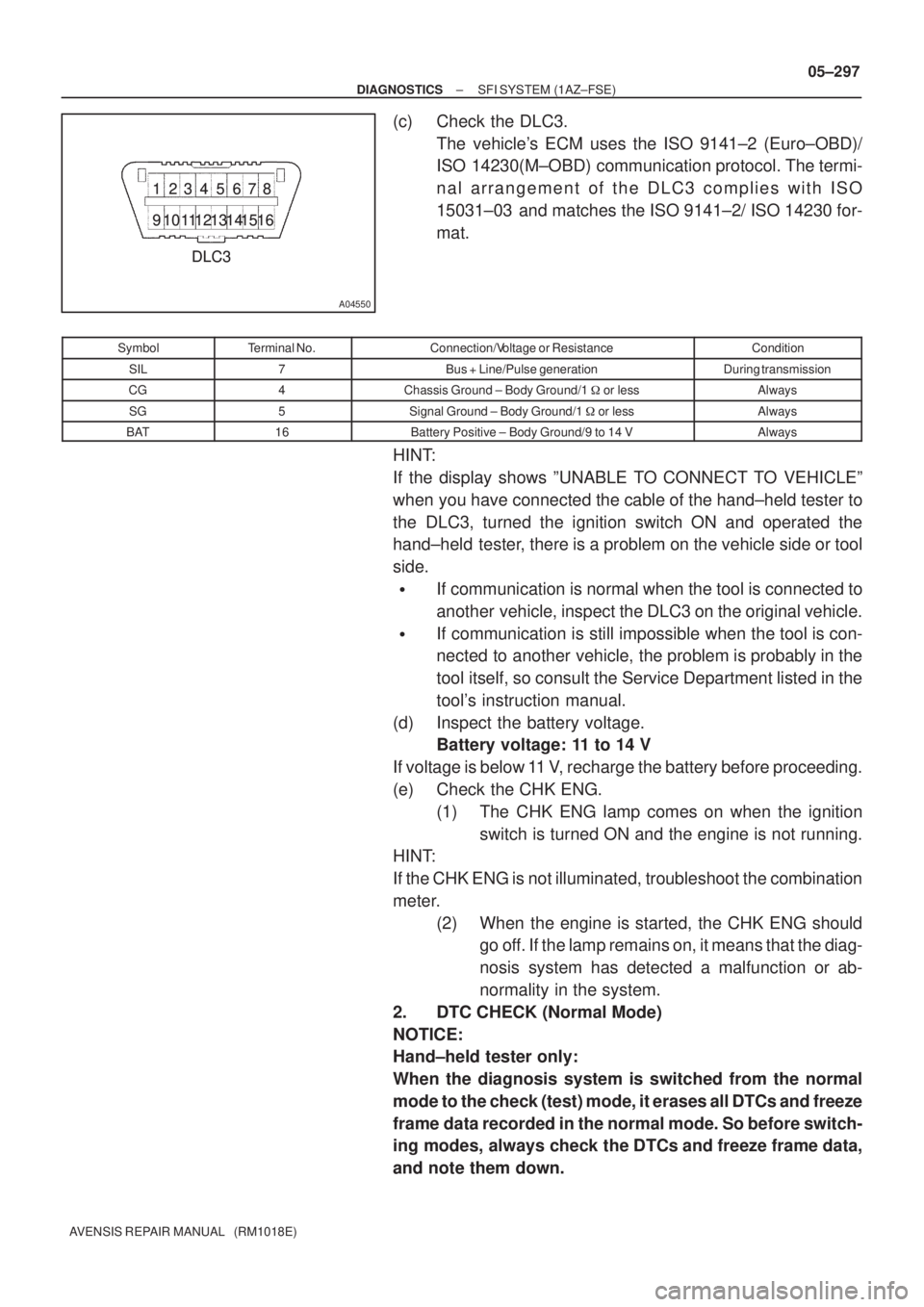

(c) Check the DLC3.
The vehicle's ECM uses the ISO 9141±2 (Euro±OBD)/
ISO 14230(M±OBD) communication protocol. The termi-
nal arrangement of the DLC3 complies with ISO
15031±03 and matches the ISO 9141±2/ ISO 14230 for-
mat.
SymbolTerminal No.Connection/Voltage or ResistanceCondition
SIL7Bus + Line/Pulse generationDuring transmission
CG4Chassis Ground ± Body Ground/1
or lessAlways
SG5Signal Ground ± Body Ground/1
or lessAlways
BAT16Battery Positive ± Body Ground/9 to 14 VAlways
HINT:
If the display shows ºUNABLE TO CONNECT TO VEHICLEº
when you have connected the cable of the hand±held tester to
the DLC3, turned the ignition switch ON and operated the
hand±held tester, there is a problem on the vehicle side or tool
side.

If communication is normal when the tool is connected to
another vehicle, inspect the DLC3 on the original vehicle.

If communication is still impossible when the tool is con-
nected to another vehicle, the problem is probably in the
tool itself, so consult the Service Department listed in the
tool's instruction manual.
(d) Inspect the battery voltage.
Battery voltage: 11 to 14 V
If voltage is below 11 V, recharge the battery before proceeding.
(e) Check the CHK ENG.
(1) The CHK ENG lamp comes on when the ignition
switch is turned ON and the engine is not running.
HINT:
If the CHK ENG is not illuminated, troubleshoot the combination
meter.
(2) When the engine is started, the CHK ENG should
go off. If the lamp remains on, it means that the diag-
nosis system has detected a malfunction or ab-
normality in the system.
2. DTC CHECK (Normal Mode)
NOTICE:
Hand±held tester only:
When the diagnosis system is switched from the normal
mode to the check (test) mode, it erases all DTCs and freeze
frame data recorded in the normal mode. So before switch-
ing modes, always check the DTCs and freeze frame data,
and note them down.

A76859
Hand±Held Tester
DLC3
05±298
±
DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
(a)Checking the DTCs using the hand±held tester. (1)Connect the hand±held tester to the DLC3.
(2)Turn the ignition switch ON and switch the hand±held tester main switch ON.
(3)Use the hand±held tester to check the DTCs and freeze frame data and note them down (for operat-
ing instructions, see the hand±held tester's instruc-
tion book).
(4)See page 05±309 to confirm the details of the DTCs.
HINT:
In the event that 2 or more DTCs are detected, the CHK ENG
lamp will indicate the smaller number DTC first.
(b) Clearing the DTCs using the hand±held tester. (1) Connect the hand±held tester to the DLC3.
(2) Turn the ignition switch ON.
(3) When operating the hand±held tester to erase thecodes, the DTCs and freeze frame data will be
erased. (See the hand±held tester's instruction
book for operating instructions.)
(c) Clearing the DTCs not using the hand±held tester. (1) Disconnect the battery terminal or remove the EFIand THROTTLE fuses from the engine room R/B
No. 1 for more than 60 seconds.
3. DTC CHECK (Check Mode)
HINT:
Hand±held tester only:
Compared to the normal mode, the check mode has more sens-
ing ability to detect malfunctions.
Furthermore, the same diagnostic items which are detected in
the normal mode can also be detected in the check (test) mode.
(a) Procedure for check mode using the hand±held tester.
(1) Check the initial conditions

Battery positive voltage 11 V or more.

Throttle valve fully closed.

Transmission in the ºPº or ºNº position.

Air conditioning switched OFF.
(2) Turn the ignition switch OFF.
(3) Connect the hand±held tester to the DLC3.
(4) Turn the ignition switch ON and switch the hand±
held tester main switch ON.

05±474
±
DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0705TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT)
CIRCUIT DESCRIPTION
The park/neutral position switch goes on when the shift lever is in the N o\
r P shift position. If the shift lever
is moved from the N position to the D position, this signal is used for \
air±fuel ratio correction and for idle speed
control (estimated control), etc.
DTC No.DTC Detection ConditionTrouble Area
P07052 or more switches are ON simultaneously for N, P, D and R
positions (2 trip detection logic)
Short in park/neutral position switch circuit

Park/neutral position switch

ECM
HINT:
After confirming DTC P0705, use the hand±held tester to confirm the park/n\
eutral position switch signal from
the ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALLº.
WIRING DIAGRAM
Refer to DTC P0705 on page 05±938.
INSPECTION PROCEDURE
Refer to DTC P0705 on page 05±938.
05CJ8±01

3 2 1 45678
9 1 0 111 21 31 41 51 6
DLC3
A04550
± DIAGNOSTICSECD SYSTEM (1CD±FTV)
05±529
AVENSIS REPAIR MANUAL (RM1018E)

* 2 trip detection logic
When a logic malfunction is first detected, the pend-
ing fault code is stored in the ECM memory (1st trip).
If the same malfunction is detected again during the
second drive test, this second detection causes the
CHK ENG to illuminate (2nd trip) (However, the igni-
tion switch must be turned OFF between the 1st trip
and 2nd trip).

Freeze frame data:
The freeze frame data records the engine condi-
tions (fuel system, calculator load, engine coolant
temperature, engine speed, vehicle speed, etc.)
when the malfunction is detected. When trouble-
shooting, it is useful for determining whether the ve-
hicle was running or stopped, the engine was
warmed up or not, etc. at the time of the malfunc-
tion.

Priorities for troubleshooting:
If troubleshooting priorities for multiple DTCs are
given in the applicable DTC chart, these should be
followed.
(b) Check the DLC3.
The vehicle's ECM uses the ISO 9141±2(Euro±OBD)
communication protocol. The terminal arrangement of
the DLC3 complies with ISO 15031±03 and matches the
ISO 9141±2 format.
Terminal No.Connection / Voltage or ResidenceCondition
7Bus + Line / Pulse generation+During transmission
4Chassis Ground ± Body Ground / 1
or lessAlways
16Battery Positive ± Body Ground / 9 to 14 VAlways
HINT:
If the display shows ºUNABLE TO CONNECT TO VEHICLEº
when you have connected the cable of the hand±held tester to
the DLC3, turned the ignition switch ON and operated the
hand±held tester, there is a problem on the vehicle side or tool
side.

If communication is normal when the tool is connected to
another vehicle, inspect the DLC3 on the original vehicle.

If communication is still impossible when the tool is con-
nected to another vehicle, the problem is probably in the
tool itself, so consult the Service Deparment listed in the
tool's instruction manual.

A76900
ON
OFF
0.13 Sec0.13 Sec
± DIAGNOSTICSECD SYSTEM (1CD±FTV)
05±531
AVENSIS REPAIR MANUAL (RM1018E)
3. DTC CHECK (Check Mode):
HINT:
Hand±held tester only:
Compared to the normal mode, the check mode has more sens-
ing ability to detect malfunctions. Furthermore, the same diag-
nostic items which are detected in the normal mode can also be
detected in the check mode.
(a) Procedure for Check Mode using the hand±held tester.
(1) Check the initial conditions.

Battery positive voltage 11V or more.

Throttle valve fully closed.

Transmission in the ºNº position.

A/C switched OFF.
(2) Turn the ignition switch OFF.
(3) Connect the hand±held tester to the DLC3.
(4) Turn the ignition switch ON and switch the hand±
held tester main switch ON.
(5) Switch the hand±held tester from the normal mode
to the check mode. The CHK ENG blinks in 0.13 sec
intervals as shown in the illustration.
NOTICE:
If the hand±held tester switches the ECM from the normal
mode to the check mode or vice±versa, or if the ignition
switch is turned from ON to ACC or OFF during the check
mode, the DTC and freeze frame data will be erased.
(6) Start the engine. (The CHK ENG goes off after the
engine start.)
(7) Simulate the conditions of the malfunction de-
scribed by the customer.
NOTICE:
Leave the ignition switch ON until you have checked the
DTC, etc.
(8) After simulating the malfunction conditions, use the
hand±held tester diagnosis selector to check the
DTCs and freeze frame data, etc.
HINT:
Be sure not to turn the ignition switch OFF, because the diagno-
sis system is changed from the check mode to the normal mode
and will result in all of the DTCs and freeze frame data being
erased.
(9) After checking the DTC, inspect the applicable cir-
cuit.
(b) Clearing the DTCs using the hand±held tester:
(1) Connect the hand±held tester to the DLC3.
(2) Turn the ignition switch ON.
(3) When operating the hand±held tester to erase the
codes, the DTCs and freeze frame data will be
erased. (See the hand±held tester's instruction
book for operating instructions.)

A80462
SP1E2ECM Connector
E13
E10
A62954
Turn Wheel
4.5
to 5.5V
0V
05±642
±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

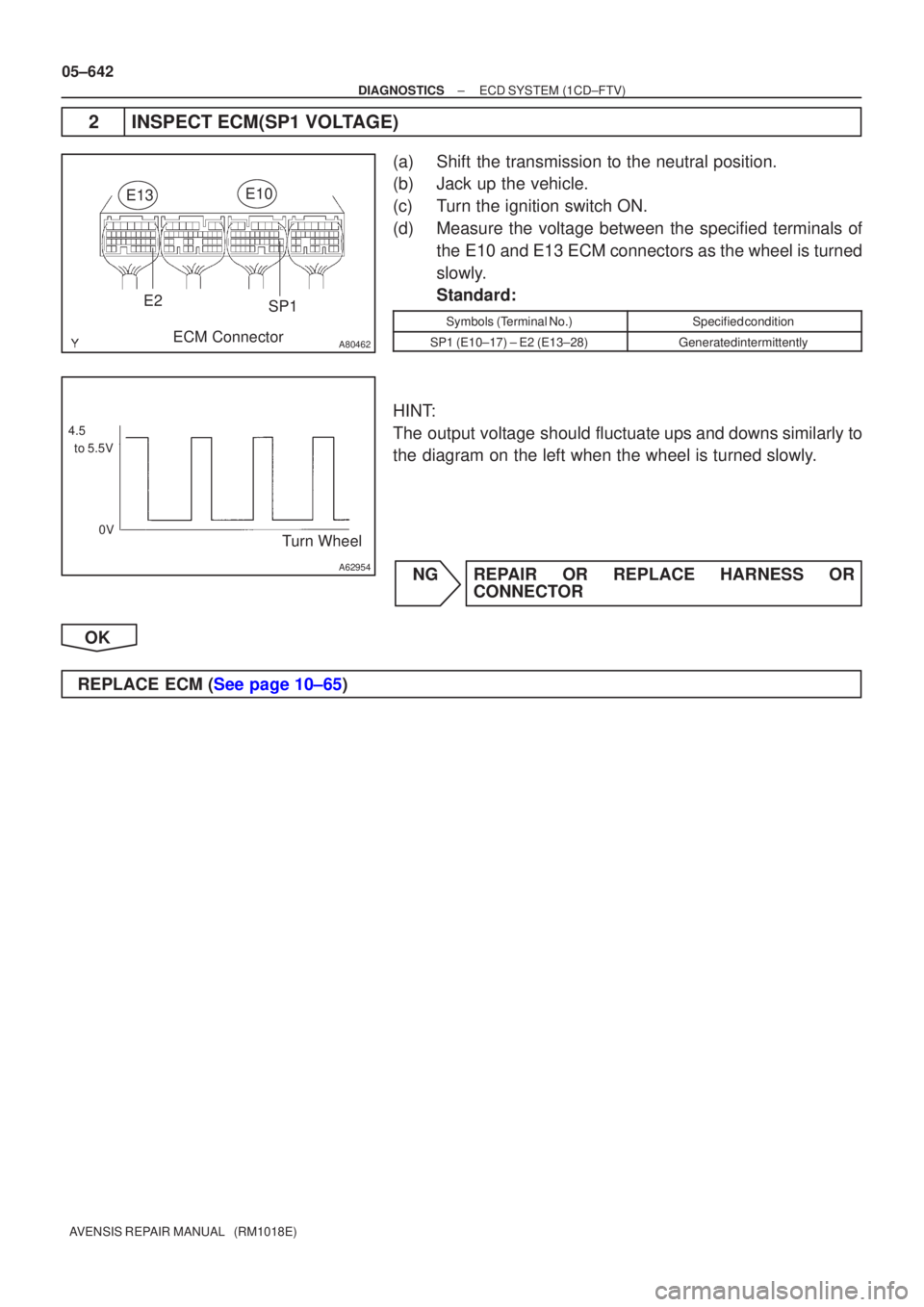

2INSPECT ECM(SP1 VOLTAGE)
(a)Shift the transmission to the neutral position.
(b)Jack up the vehicle.
(c)Turn the ignition switch ON.
(d)Measure the voltage between the specified terminals of the E10 and E13 ECM connectors as the wheel is turned
slowly.
Standard:
Symbols (Terminal No.)Specified condition
SP1 (E10±17) ± E2 (E13±28)Generated intermittently
HINT:
The output voltage should fluctuate ups and downs similarly to
the diagram on the left when the wheel is turned slowly.
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
REPLACE ECM (See page 10±65)
