141CC±01
A61182
SST
A09447
SST
A09448
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1CD±FTV)
14±345
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE REAR OIL SEAL(1CD±FTV)
REPLACEMENT
1.REMOVE MANUAL TRANSAXLE ASSY (See page 41±33)
SST 09930±00010, 09628±62011, 09520±01010, 09520±24010 (09520±32040)
2.REMOVE CLUTCH COVER ASSY (See page 42±26)
3.REMOVE CLUTCH DISC ASSY (See page 42±26)
4. REMOVE FLYWHEEL SUB±ASSY
(a) Hold the crankshaft with SST.SST 09213±54015 (90105±08076), 09330±00021
(b) Using a torx socket wrench (T55), remove the 8 torx screws and the flywheel.
5. REMOVE REAR END PLATE
(a) Remove the 2 bolts and the rear end plate. 6. REMOVE ENGINE REAR OIL SEAL
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE:
After the removal, check if the crankshaft is not damaged.
If it is damaged, smooth the surface with 400±grit sandpa-
per.
7. INSTALL ENGINE REAR OIL SEAL
(a) Apply MP grease to a new oil seal lip.
NOTICE:
Keep the lip free of foreign objects.
(b) Using SST and a hammer, tap in the oil seal until its sur-face is flush with the rear oil seal retainer edge.
SST 09223±15030, 09950±70010 (09951±07100)
NOTICE:
Wipe off extra grease on the crankshaft.
8. INSTALL REAR END PLATE Torque: 8.4 N
m (86 kgf
cm, 74 in.
lbf)

A61186
SST
A79183
1
7
5
8
4
3
26

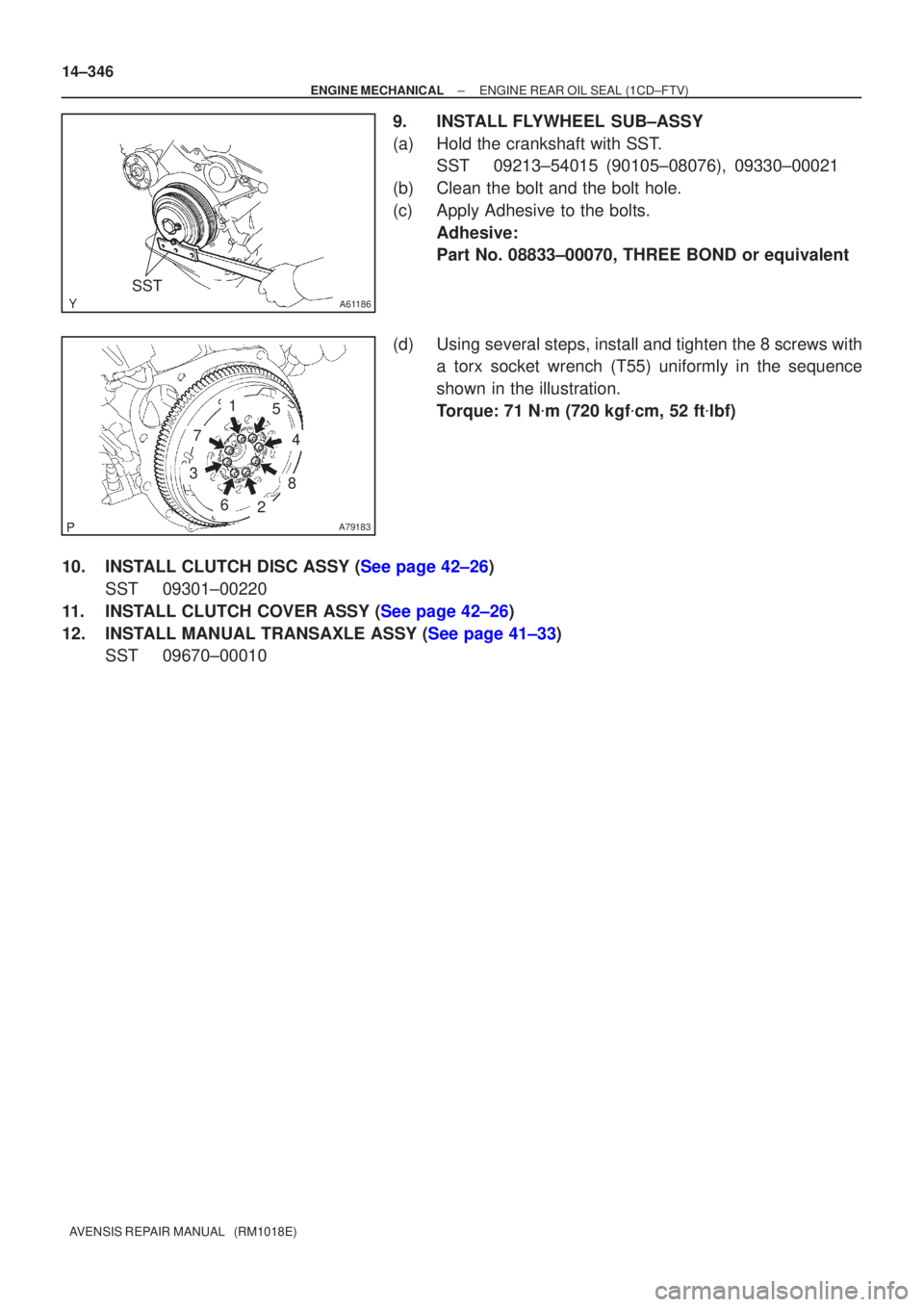

14±346
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
9.INSTALL FLYWHEEL SUB±ASSY
(a)Hold the crankshaft with SST. SST09213±54015 (90105±08076), 09330±00021
(b)Clean the bolt and the bolt hole.
(c)Apply Adhesive to the bolts. Adhesive:
Part No. 08833±00070, THREE BOND or equivalent
(d)Using several steps, install and tighten the 8 screws with a torx socket wrench (T55) uniformly in the sequence
shown in the illustration.
Torque: 71 N
m (720 kgf
cm, 52 ft
lbf)
10.INSTALL CLUTCH DISC ASSY (See page 42±26) SST 09301±00220
11.INSTALL CLUTCH COVER ASSY (See page 42±26)
12.INSTALL MANUAL TRANSAXLE ASSY (See page 41±33) SST 09670±00010

141CB±01
A61184
A79179
14±342
±
ENGINE MECHANICAL CRANKSHAFT SEAL(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
CRANKSHAFT SEAL(1CD±FTV)
REPLACEMENT
1.DRAIN ENGINE OIL
(a)Install a new gasket and the drain plug after draining engine oil. Torque: 34 N
m (350 kgf
cm,25 ft
lbf)
2.REMOVE FRONT WHEEL RH
3.REMOVE ENGINE UNDER COVER RH
4.REMOVE RADIATOR SUPPORT OPENING COVER
5.REMOVE ENGINE ROOM COVER SIDE
6.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
7.REMOVE INJECTOR DRIVER (See page 14±286)
8.REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
9.REMOVE GENERATOR V BELT (See page 14±269)
10.REMOVE POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
11.REMOVE ENGINE MOUNTIN G INSULATOR
SUB±ASSY RH
(a)Place a wooden block on a jack underneath the engine.
(b)Remove the 3 bolts and 3 nuts, and then detach the en- gine mounting insulator sub assy.
12.REMOVE CRANKSHAFT PULLEY (See page 14±307) SST 09213±54015 (90105±08076), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05031)
13.REMOVE IDLER PULLEY SUB±ASSY(See page 14±307)
14.REMOVE TIMING BELT NO.2 COVER(See page 14±307)
15.REMOVE TIMING BELT NO.1 COVER(See page 14±307)
16. REMOVE TIMING BELT GUIDE
17.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307)
18.SET NO. 1 CYLINDER TO TDC/COMPRESSION(See page 14±307)
19.REMOVE TIMING CHAIN COVER PLATE (See page 14±307)

141C8±01
SSTA61187
14±318
±
ENGINE MECHANICAL CAMSHAFT(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
3.ENGINE UNDER COVER RH
4.REMOVE RADIATOR SUPPORT OPENING COVER
5.REMOVE ENGINE ROOM COVER SIDE
6.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
7.REMOVE AIR CLEANER ASSY (See page 11±60)
8.REMOVE VACUUM RESERVOIR SUB±ASSY
(a)Disconnect the 2 vacuum hoses and the connector.
(b)Remove the 2 bolts and the vacuum reservoir.
9.REMOVE AIR TUBE NO.1 (See page 14±270)
10.REMOVE INJECTOR DRIVER (See page 14±286)
11. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
12.REMOVE GENERATOR V BELT (See page 14±269)
13.SEPARATE POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
14.REMOVE ENGINE MOUNTING INSULATOR SUB±ASSY RH (See page 14±307)
15.REMOVE CRANKSHAFT PULLEY (See page 14±307) SST 09213±54015 (90105±08076), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05031)
16.REMOVE IDLER PULLEY SUB±ASSY (See page 14±307)
17.REMOVE TIMING BELT NO.2 COVER (See page 14±307)
18.REMOVE TIMING BELT NO.1 COVER (See page 14±307)
19. REMOVE TIMING BELT GUIDE
20.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (See page 14±307)
21.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±307)
22.REMOVE TIMING CHAIN COVER PLATE (See page 14±307)
23.REMOVE TIMING BELT (See page 14±307)
24.REMOVE CAMSHAFT POSITION SENSOR (See page 10±63)
25. REMOVE CAMSHAFT TIMING PULLEY
(a) Using SST, remove the pulley bolt.SST 09960±10010 (09962±01000, 09963±01000)
(b) Remove the timing pulley.
HINT:
Using a plastic±faced hammer, tap out the pulley.
(c) Remove the set key.

141C6±01
A61184
A79179
A61182
SST (B)
SSTSST (A)
±
ENGINE MECHANICAL TIMING BELT(1CD±FTV)
14±307
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
3.REMOVE ENGINE UNDER COVER RH
4.REMOVE RADIATOR SUPPORT OPENING COVER
5.REMOVE ENGINE ROOM COVER SIDE
6.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
7.REMOVE INJECTOR DRIVER (See page 14±286)
8.REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(See page 14±269)
9.REMOVE GENERATOR V BELT (See page 14±269)
10.SEPARATE POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
11. REMOVE ENGINE MOUNTING INSULATORSUB±ASSY RH
(a) Place a wooden block on a jack underneath the engine.
(b) Remove the 3 bolts and 3 nuts, and then detach the en- gine mounting insulator sub assy RH.
12. REMOVE CRANKSHAFT PULLEY
(a) Using SSTs, remove the pulley bolt. SST 09213±54015 (90105±08076), 09330±00021
HINT:
When using SST (A) (90105±08076), a plate washer (5 mm or
0.20 in.) must be inserted between SST (A) and SST (B).

141C4±01
A80094
14±286
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FRONT WHEELS
2.REMOVE ENGINE UNDER COVER LH
3.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
4.REMOVE ENGINE UNDER COVER RH
5.REMOVE RADIATOR SUPPORT OPENING COVER
6.REMOVE ENGINE ROOM COVER SIDE
7.DRAIN ENGINE COOLANT (See page 16±44)
8.DRAIN ENGINE OIL (See page 14±342)
9.DRAIN MANUAL TRANSAXLE OIL Torque: 49 N
m (500 kgf
cm,36 ft
lbf)
10.REMOVE ENGINE COVER NO.1
(a)Remove the 5 nuts and the engine cover.
11.REMOVE BATTERY
12.REMOVE AIR CLEANER ASSY
(a)Disconnect the connector.
(b)Remove the air cleaner cap together with the air cleaner hose.
(c)Remove the air cleaner filter element.
(d)Remove the 3 bolts and the air cleaner case.
13.DISCONNECT UNION TO CONNECTOR TUBE HOSE
14.REMOVE FUEL FILTER ASSY
(a)Disconnect the 2 fuel hose from the fuel filter (STD).
(b)Disconnect the 3 fuel hose from the fuel filter (COLD).
(c)Disconnect the connector (STD).
(d)Disconnect the 2 connectors (COLD).
(e)Remove the 2 bolts and the fuel filter.
15.REMOVE RADIATOR HOSE INLET
16.REMOVE RADIATOR HOSE OUTLET
17.DISCONNECT WATER BY±PASS HOSE NO.2
18.REMOVE ENGINE ROOM RELAY BLOCK NO.3
(a)Remove the 2 bolts and the engine room relay block.
19.REMOVE RADIATOR ASSY (W/ AIR CONDITIONING) (See page 16±51)
20. DISCONNECT HEATER INLET WATER HOSE
21. DISCONNECT HEATER OUTLET WATER HOSE
22. DISCONNECT FUEL HOSE NO.2
23. REMOVE AIR TUBE NO.2
(a) Loosen the hose clamp and disconnect the air hose No.3.
(b) Remove the 2 bolts and the air tube No. 2.

A62711
A79180
A61186
SST
14±290
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
(i)Attach the engine sling and hang the engine with the chain block.
44.REMOVE FRONT SUSPENSION CROSSMEMBER SUB±ASSY
(a)Remove the through bolt and nut, detach the engine mounting insulator FR from the engine mounting bracket.
(b)Remove the through bolt, detach the engine mounting in- sulator RR from the suspension crossmember.
(c)Separate the engine and transaxle assembly from the suspension crossmember and engine mounting member.
45.REMOVE STARTER ASSY (See page 19±24)
46.REMOVE MANUAL TRANSAXLE (See page 41±33)
47.REMOVE CLUTCH DISC ASSY (See page 42±26) 48. REMOVE FLYWHEEL SUB±ASSY
(a) Hold the crank shaft with SST.SST 09213±54015 (90105±08076), 09330±00021
(b) Using a torx socket wrench (T55), remove the 8 torx
screws and the flywheel.
49. REMOVE REAR END PLATE
(a) Remove the 2 bolts and the rear end plate.
50. REMOVE DRIVE SHAFT BEARING BRACKET
51. REMOVE ENGINE MOUNTING BRACKET FR
52. REMOVE ENGINE MOUNTING BRACKET RR
53.REMOVE GLOW PLUG ASSY (See page 19±33)
54.REMOVE GENERATOR V BELT (See page 14±269)
55.REMOVE CRANKSHAFT PULLEY (See page 14±307) SST 09213±54015 (90105±08076), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05031)

A61186
SST
A57108
Adhesive

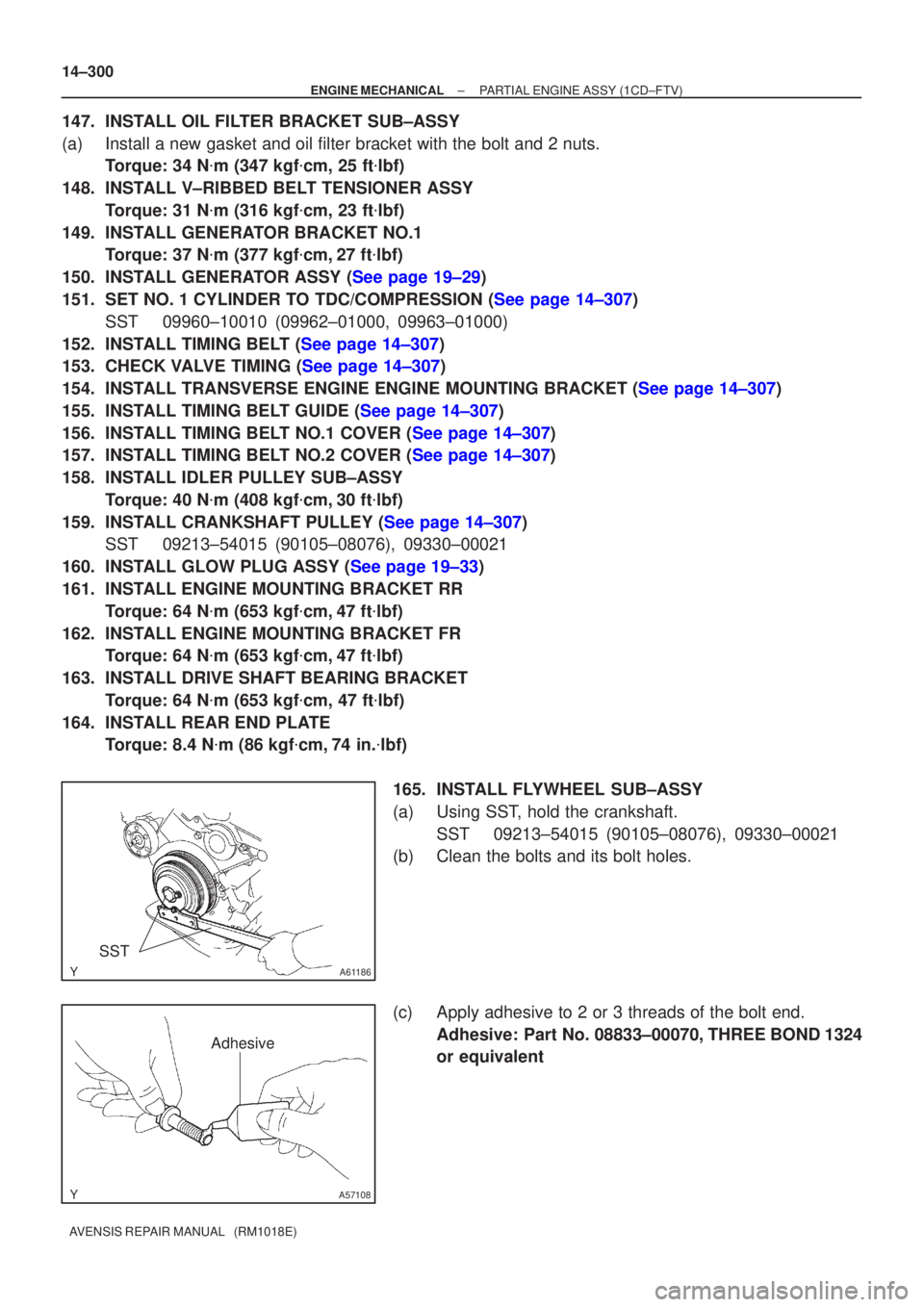

14±300
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
147. INSTALL OIL FILTER BRACKET SUB±ASSY
(a) Install a new gasket and oil filter bracket with the bolt and 2 nuts. Torque: 34 N
m (347 kgf
cm, 25 ft
lbf)
148. INSTALL V±RIBBED BELT TENSIONER ASSY Torque: 31 N
m (316 kgf
cm, 23 ft
lbf)
149. INSTALL GENERATOR BRACKET NO.1 Torque: 37 N
m (377 kgf
cm, 27 ft
lbf)
150.INSTALL GENERATOR ASSY (See page 19±29)
151.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±307) SST 09960±10010 (09962±01000, 09963±01000)
152.INSTALL TIMING BELT (See page 14±307)
153.CHECK VALVE TIMING (See page 14±307)
154.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (See page 14±307)
155.INSTALL TIMING BELT GUIDE (See page 14±307)
156.INSTALL TIMING BELT NO.1 COVER (See page 14±307)
157.INSTALL TIMING BELT NO.2 COVER (See page 14±307)
158. INSTALL IDLER PULLEY SUB±ASSY Torque: 40 N
m (408 kgf
cm, 30 ft
lbf)
159.INSTALL CRANKSHAFT PULLEY (See page 14±307) SST 09213±54015 (90105±08076), 09330±00021
160.INSTALL GLOW PLUG ASSY (See page 19±33)
161. INSTALL ENGINE MOUNTING BRACKET RR Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
162. INSTALL ENGINE MOUNTING BRACKET FR Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
163. INSTALL DRIVE SHAFT BEARING BRACKET Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
164. INSTALL REAR END PLATE Torque: 8.4 N
m (86 kgf
cm, 74 in.
lbf)
165. INSTALL FLYWHEEL SUB±ASSY
(a) Using SST, hold the crankshaft. SST 09213±54015 (90105±08076), 09330±00021
(b) Clean the bolts and its bolt holes.
(c) Apply adhesive to 2 or 3 threads of the bolt end.
Adhesive: Part No. 08833±00070, THREE BOND 1324
or equivalent
