2005 TOYOTA AVENSIS wheel bolts

A77403
15
3
7
2
6
4 8
A63273
A77404
B
A
BBBB
A
B
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FE)
14±131
AVENSIS REPAIR MANUAL (RM1018E)
(b)Install the drive plate. (A/T)
(1)Clean the bolt and bolt hole.
(2)Apply adhesive to the bolts.
(3)Using several steps, install and tighten the 8 boltsuniformly in the sequence shown in the illustration.
Torque: 98 N
m (1,000 kgf
cm, 72 ft
lbf)
(c)Install the flywheel. (M/T)
(1)Clean the bolt hole.
(2)Using several steps, install and tighten the 8 boltsuniformly in the sequence shown in the illustration.
Torque: 130 N
m (1,327 kgf
cm, 96 ft
lbf)
NOTICE:
Do not reuse the flywheel bolt.
110.INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26)
111.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
112.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
113.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
114.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
115.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
116.INSTALL FRONT SUSPENSION CROSSMEMBER W/CENTER MEMBER
(a)Install the engine mounting insulator FR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
(b)Install the engine mounting insulator RR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
117.INSTALL STARTER ASSY (See page 19±12)
118. INSTALL VANE PUMP ASSY
Torque: 37 N
m (370 kgf
cm, 27 ft
lbf)
119. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Install the 2 bolts and 2 nuts as shown in the illustration. Torque:
Bolt 45 N
m (459 kgf
cm, 33 ft
lbf)
Nut 133 N
m (1,356 kgf
cm, 98 ft
lbf)
(b) Install the front suspension member braces with the 8 bolts.
Torque:
Bolt A 133 N
m (1,356 kgf
cm, 98 ft
lbf)
Bolt B 80 N
m (816 kgf
cm, 59 ft
lbf)

141CO±01
A62838SST
A62838SST
A62202
Cut Position
A62203
SST
14±98
±

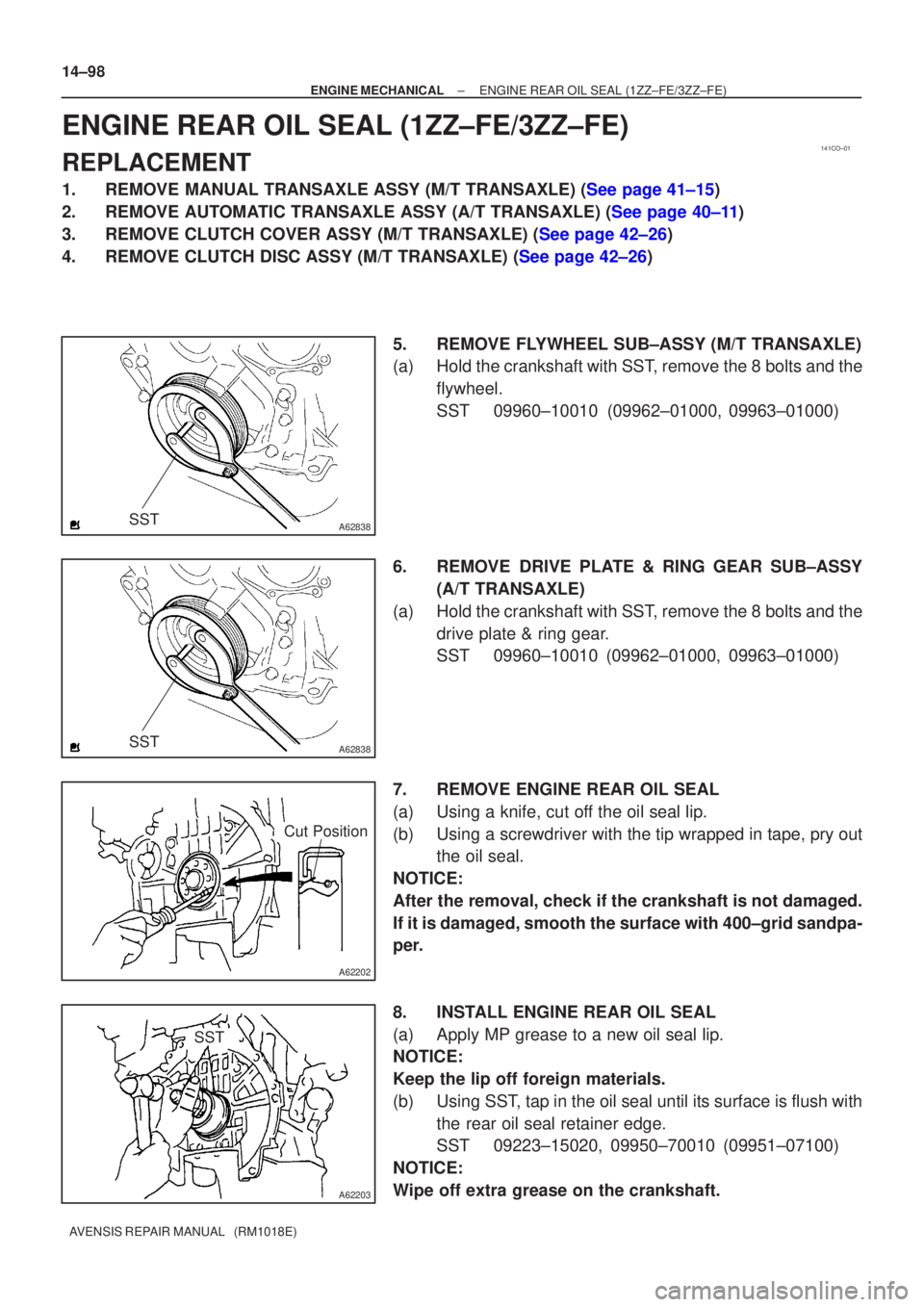

ENGINE MECHANICAL ENGINE REAR OIL SEAL(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE REAR OIL SEAL(1ZZ±FE/3ZZ±FE)
REPLACEMENT
1.REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±15)
2.REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±11)
3.REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
4.REMOVE CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26) 5. REMOVE FLYWHEEL SUB±ASSY (M/T TRANSAXLE)
(a) Hold the crankshaft with SST, remove the 8 bolts and theflywheel.
SST 09960±10010 (09962±01000, 09963±01000)
6. REMOVE DRIVE PLATE & RING GEAR SUB±ASSY (A/T TRANSAXLE)
(a) Hold the crankshaft with SST, remove the 8 bolts and the drive plate & ring gear.
SST 09960±10010 (09962±01000, 09963±01000)
7. REMOVE ENGINE REAR OIL SEAL
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver with the tip wrapped in tape, pry out the oil seal.
NOTICE:
After the removal, check if the crankshaft is not damaged.
If it is damaged, smooth the surface with 400±grid sandpa-
per.
8. INSTALL ENGINE REAR OIL SEAL
(a) Apply MP grease to a new oil seal lip.
NOTICE:
Keep the lip off foreign materials.
(b) Using SST, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
SST 09223±15020, 09950±70010 (09951±07100)
NOTICE:
Wipe off extra grease on the crankshaft.

A62838SST
A62205
1
5
3
82
6
4
7
A62206
90

A62838SST
A62204
1
5
3
82
6
4
7
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1ZZ±FE/3ZZ±FE)
14±99
AVENSIS REPAIR MANUAL (RM1018E)
9.INSTALL FLYWHEEL SUB±ASSY (M/T TRANSAXLE)
(a)Fix the crankshaft with SST.
SST09960±10010 (09962±01000, 09963±01000)
(b)Clean the bolt and bolt hole.
(c)Apply adhesive to the bolts. Adhesive:
Part No. 09330±00070, THREE BOND or equivalent.
(d)Using several steps, Install and tighten the 8 bolts uni- formly in the sequence shown in the illustration.
Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
(e)Mark the bolts with paint as shown in the illustration.
(f)Retighten the bolts by an additional 90
in the same se-
quence as step (d).
(g)Check that the paint marks of each bolt are at 90
angle
from the original position.
10.INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26)
11. INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
12. INSTALL DRIVE PLATE & RING GEAR SUB±ASSY (A/T TRANSAXLE)
(a) Fix the crankshaft with SST. SST 09960±10010 (09962±01000, 09963±01000)
(b) Clean the bolt and bolt hole.
(c) Apply adhesive to the bolts. Adhesive:
Part No. 09330±00070, THREE BOND or equivalent.
(d) Using several steps, install and tighten the 8 bolts uni- formly in the sequence shown in the illustration.
(e) Fix the crankshaft with SST.
Torque: 88 N
m (897 kgf
cm, 65 ft
lbf)

141CN±01
A60622
A01045
A64005
A62837SST
14±96±
ENGINE MECHANICAL TIMING CHAIN OR BELT COVER OIL
SEAL(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
TIMING GEAR COVER OIL SEAL(1ZZ±FE/3ZZ±FE)
REPLACEMENT
1.REMOVE FRONT WHEEL RH (See page 14±27)
2.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1 (See page 14±27)
3.REMOVE ENGINE UNDER COVER RH (See page 14±27)
4.REMOVE RADIATOR SUPPORT OPENING COVER (See page 14±27)
5.REMOVE ENGINE ROOM COVER SIDE (See page 14±27) 6. REMOVE FAN AND GENERATOR V BELT
(a) Turn the V±ribbed belt tensioner clockwise slowly andloosen it. Then, remove the fan and generator V belt and
put back the V±ribbed belt tensioner carefully.
7. REMOVE ENGINE MOUNTING INSULATOR SUB±ASSY RH
(a) Place a wooden block on a jack underneath the engine. Remove the 4 bolts and 2 nuts and detach the engine
mounting insulator RH.
8. REMOVE CRANKSHAFT PULLEY
(a) Using SST, remove the crankshaft pulley bolt. SST 09960±10010 (09962±01000, 09963±01000)
(b) Remove the crankshaft pulley from the crankshaft.

A62183
Cut Position
Pry
A62184
SST
A62837SST
A64005
± ENGINE MECHANICALTIMING CHAIN OR BELT COVER OIL
SEAL (1ZZ±FE/3ZZ±FE)14±97
AVENSIS REPAIR MANUAL (RM1018E)
9. REMOVE TIMING GEAR COVER OIL SEAL
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver with the tip wrapped in tape, pry out
the oil seal.
NOTICE:
After the removal, check if the crankshaft is not damaged.
If it is damaged, smooth the surface with 400±grit sandpa-
per.
10. INSTALL TIMING GEAR COVER OIL SEAL
(a) Apply MP grease to a new oil seal lip.
NOTICE:
Keep the lip free of foreign objects.
(b) Using SST, tap in the oil seal until its surface is flush with
the timing chain cover edge.
SST 09223±22010
NOTICE:
Wipe off extra grease on the crankshaft.
11. INSTALL CRANKSHAFT PULLEY
(a) Align the keyway of the pulley with the key located on the
crankshaft and slide the pulley into place.
(b) Using SST, install the crankshaft pulley bolt.
SST 09960±10010 (09962±01000, 09963±01000)
Torque: 138 N
m (1,407 kgf
cm, 102 ft
lbf)
12. INSTALL ENGINE MOUNTING INSULATOR
SUB±ASSY RH
(a) Install the engine mounting insulator with the 4 bolts and
2 nuts.
Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)
13. INSTALL FRONT WHEEL RH
Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
14. CHECK FOR ENGINE OIL LEAKS

141CM±01
A78459
A78461
1ZZ±FE
A78497
3ZZ±FE
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1ZZ±FE/3ZZ±FE)
14±81
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE(See page 11±1)
2.REMOVE RADIATOR SUPPORT OPENING COVER (See page 14±27)
3.REMOVE ENGINE ROOM COVER SIDE (See page 14±27)
4.REMOVE FRONT WHEEL RH
5.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1 (See page 14±27)
6.REMOVE ENGINE UNDER COVER RH (See page 14±27)
7.DRAIN ENGINE COOLANT(See page 16±7)
8.REMOVE CYLINDER HEAD COVER NO.2
(a)Remove the 2 nuts and 2 clips and detach the cylinderhead cover No.2.
9.SEPARATE ACCELERATOR CONTROL CABLE ASSY
(a)Loosen the nut and separate the accelerator control cable.
10.REMOVE AIR CLEANER HOSE NO.1
(a)Disconnect the VSV connector.
(b)Disconnect the fuel vapor feed No. 1 hose from the VSV.
(c)Disconnect the fuel vapor feed hose from the VSV.
(d)Loosen the 2 air cleaner hose clamp bolts and remove the air cleaner hos\
e.
11.DISCONNECT WATER BY±PASS HOSE
(a)Disconnect the water by±pass hose from the throttle body.
12.DISCONNECT WATER BY±PASS HOSE NO.2
(a)Disconnect the water by±pass hose from the throttle body.
13.REMOVE EFI FUEL PIPE CLAMP (See page 11±11)

A64023
A76713
A79324
A78459
±
ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE)
14±95
AVENSIS REPAIR MANUAL (RM1018E)
75. INSTALL IGNITION COIL ASSY
(a) Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
(b) Install the engine wire with the 2 nuts. Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
76.INSTALL GENERATOR ASSY (See page 19±7)
77. INSTALL V±RIBBED IDLER ASSY NO.1
(a) Install the tube and idler with the nut and bolt. Torque: 39.2 N
m (400 kgf
cm, 29 ft
lbf)
78. INSTALL ACCELERATOR CONTROL CABLE ASSY (1ZZ±FE ENGINE TYPE) (See page 10±9)
79. INSTALL ACCELERATOR CONTROL CABLE ASSY (3ZZ±FE ENGINE TYPE) (See page 10±15)
80. INSTALL AIR CLEANER HOSE NO.1 Torque: 1.5 N
m (15 kgf
cm, 13 in.
lbf)
81. INSTALL CYLINDER HEAD COVER NO.2
(a) Install the cylinder head cover with the 2 nuts and 2 clips. Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
82. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
83.ADD ENGINE COOLANT(See page 16±7)
84.INSPECT COMPRESSION (See page 14±1)
SST 09992±00500
85.INSPECT CO/HC (See page 14±1)
86.INSPECT IGNITION TIMING (See page 14±1) SST 09843±18040
87.CHECK FOR ENGINE COOLANT LEAKS (See page 16±7)
88. CHECK FOR ENGINE OIL LEAKS

141BB±01
A77292
A77299
14±160
±
ENGINE MECHANICAL CYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2. REMOVE FRONT WHEEL RH
3. REMOVE RADIATOR SUPPORT OPENING COVER
4. REMOVE ENGINE ROOM COVER SIDE
5. REMOVE ENGINE UNDER COVER RH
6. REMOVE ENGINE UNDER COVER LH
7.DRAIN COOLANT (See page 16±19)
8. DRAIN ENGINE OIL
(a) Install a new gasket and the drain plug after draining engine oil. Torque: 25 N
m (255 kgf
cm, 18 ft
lbf)
9.REMOVE ENGINE COVER SUB±ASSY NO.1 (See page 14±121)
10.REMOVE FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
11.REMOVE GENERATOR ASSY (See page 19±20)
12.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±7)
13. SEPARATE VANE PUMP ASSY
(a) Remove the 2 bolts and separate the vane pump.
14. REMOVE IGNITION COIL ASSY
(a) Remove the 4 bolts and 4 ignition coils. 15. SEPARATE RETURN TUBE SUB±ASSY
(a) Remove the 3 bolts and separate the return tube asshown in the illustration.
