2005 TOYOTA AVENSIS Circuit

BR3904
0.13 sec.
ON
OFF 0.13 sec.
±
DIAGNOSTICS ABS WITH EBD SYSTEM
05±703
AVENSIS REPAIR MANUAL (RM1018E)Hand±held tester display
Measurement ItemReference Value*
VEHICLE SPDVehicle speedSpeed indication of a meter
STOP LIGHT SWStop light switch signalStop light switch ON: ON, OFF: OFF
# IG ONNumbers of operations of ignition switch ON after
memorizing freeze frame data0 to 31
SYSTEMOperate systemABS operate: ABS
*: If no conditions are specifically stated for ºIdlingº, it means t\
he shift lever is at N or P position, the A/C switch
is OFF and all accessory switches are OFF.
5.SPEED SENSOR SIGNAL CHECK
HINT:
If the ignition switch is turned from ON to ACC or LOCK during
the test mode, the DTCs of the sensor check function will be
erased.
(a)Check the sensor signal.(1)Start the engine.
(2)Connect the hand±held tester to the DLC3.
(3)Select the TEST MODE.
(4)Check that the ABS warning light blinks.
HINT:
If the ABS warning light does not blink, inspect the ABS warning
light circuit (See page 05±737). (5) Drive the vehicle straight forward.
HINT:

Drive the vehicle faster than 45 km/h (28 mph) for several
sec.

There is a case that the sensor check is not completed if
the vehicle has its wheels spun or its steering wheel
steered during this check.
(6) Stop the vehicle.
(7) Using SST, connect the terminals Tc and CG of the DLC3.
(b) Read the DTC from the hand±held tester screen.
HINT:

See the list of DTCs shown on the 05±704.

Please refer to the hand±held tester operator's manual
for further details.

050YD±14
05±696
±
DIAGNOSTICS ABS WITH EBD SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

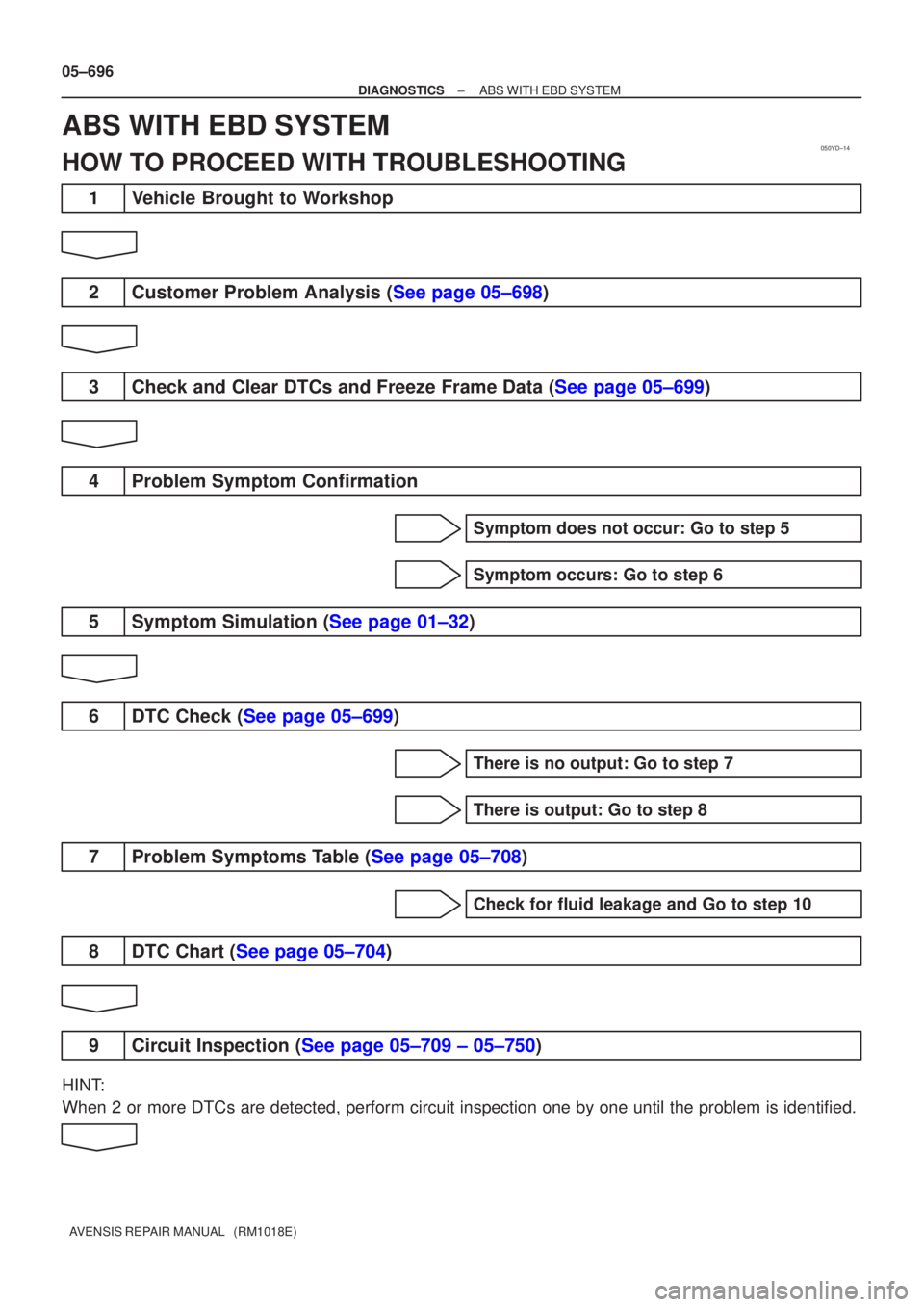

ABS WITH EBD SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
1Vehicle Brought to Workshop
2Customer Problem Analysis (See page 05±698)
3Check and Clear DTCs and Freeze Frame Data (See page 05±699)
4Problem Symptom Confirmation
Symptom does not occur: Go to step 5
Symptom occurs: Go to step 6
5Symptom Simulation (See page 01±32)
6DTC Check (See page 05±699)
There is no output: Go to step 7
There is output: Go to step 8
7Problem Symptoms Table (See page 05±708)
Check for fluid leakage and Go to step 10
8DTC Chart (See page 05±704)
9Circuit Inspection (See page 05±709 ± 05±750)
HINT:
When 2 or more DTCs are detected, perform circuit inspection one by one \
until the problem is identified.

0542Q±04
05±766
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
HINT:

Using SST 09843±18040, connect the terminal Tc and CG of the DLC3.

If malfunction is not found when inspecting parts, inspect the ECU and grou\
nd points for poor contact.

If a malfunction code is displayed during the DTC check, check the circuit\
listed for that code. For de-
tails of each code, refer to the ºSee pageº for respective ºDTC No.º\
in the DTC chart.

When 2 or more DTCs are detected, perform circuit inspection one by one unti\
l the problem is identi-
fied.
DTC chart of ABS system:
DTC No.
(See Page)Detection ItemTrouble Area
C0200 / 31 (05±774)Right front wheel speed sensor signal malfunction

Right front speed sensor

Right front speed sensor circuit

Right front speed sensor rotor
C0205 / 32
(05±774)Left front wheel speed sensor signal malfunction

Left front speed sensor

Left front speed sensor circuit

Left front speed sensor rotor
C0210 / 33
(05±778)Right rear wheel speed sensor signal malfunction

Right rear speed sensor

Right rear speed sensor circuit

Right rear speed sensor rotor
C0215 / 34
(05±778)Left rear wheel speed sensor signal malfunction

Left rear speed sensor

Left rear speed sensor circuit

Left rear speed sensor rotor
C0226 / 21
(05±782)Open or short circuit in brake actuator
Brake actuator

SFRR or SFRH circuit
C0236 / 22
(05±782)Open or short circuit in brake actuator
Brake actuator

SFLR or SFLH circuit
C0246 / 23
(05±782)Open or short circuit in brake actuator
Brake actuator

SRRR or SRRH circuit
C0256 / 24
(05±782)Open or short circuit in brake actuator
Brake actuator

SRLR or SRLH circuit
C0273 / 13
(05±784)Open or short circuit in ABS motor relay circuit
ABS motor relay

ABS motor relay circuit
C0278 / 11
(05±787)Open or short circuit in ABS solenoid relay circuit
ABS solenoid relay

ABS solenoid relay circuit
C1237 / 37
(05±807)Wrong tire size
Tire size

Speed sensor rotor
C1241 / 41
(05±808)Low battery positive voltage or abnormally high battery positive
voltage
Battery

Charging system

Power source circuit
C1249 / 58
(05±815)Open circuit in stop light switch circuit
Stop lamp switch

Stop lamp switch circuit
C1300 / 62
(05±819)Malfunction in skid control ECU
Battery

Skid control ECU
C1330 / 35
(05±774)Open circuit in right front speed sensor circuit
Right front speed sensor

Right front speed sensor circuit
C1331 / 36
(05±774)Open circuit in left front speed sensor circuit
Left front speed sensor

Left front speed sensor circuit
C1332 / 38
(05±778)Open circuit in right rear speed sensor circuit
Right rear speed sensor

Right rear speed sensor circuit

±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
05±767
AVENSIS REPAIR MANUAL (RM1018E)C1333 / 39
(05±778)
Open circuit in left rear speed sensor circuit
Left rear speed sensor

Left rear speed sensor circuit
Always ON
(05±827)Malfunction in skid control ECU
Open circuit in ABS warning light circuit

Battery

Charging system

Power source circuit

Skid control ECU
DTC chart of VSC system:
DTC No.
(See Page)Detection ItemTrouble Area
C0365 / 43 (05±790)Malfunction in lateral acceleration sensor (combined in yaw
rate sensor)
Yaw rate sensor

Yaw rate sensor circuit
C0371 / 55
(05±793)Malfunction in yaw rate sensor circuit
Yaw rate sensor

Yaw rate sensor circuit
C1224 / 44
(05±797)Open or short circuit in NE signal circuit

NEO circuit

ECM

Skid control ECU
C1201/45
(05±796)VSC shut down due to ECM failure
ECM
C1203 / 59
(05±799)ECM communication circuit malfunction

TRC+ or TRC± circuit

ENG+ or ENG± circuit

ECM
C1208 / 54
(05±801)Malfunction in steering angle sensor
Steering angle sensor

Steering angle sensor circuit
C1225 / 25
(05±805)Open or short circuit in brake actuator solenoid circuit (SMC1
circuit)
Brake actuator

SMC1 circuit
C1226 / 26
(05±805)Open or short circuit in brake actuator solenoid circuit (SMC2
circuit)
Brake actuator

SMC2 circuit
C1227 / 27
(05±805)Open or short circuit in brake actuator solenoid circuit (SRC1
circuit)
Brake actuator

SRC1 circuit
C1228 / 28
(05±805)Open or short circuit in brake actuator solenoid circuit (SRC2
circuit)
Brake actuator

SRC2 circuit
C1246 / 53
(05±812)Malfunction in master cylinder pressure sensor
Master cylinder pressure sensor

Master cylinder pressure sensor circuit
C1288 / 88
(05±818)Malfunction in ECM version
Steering angle sensor zero point calibration
C1301 / 42
(05±821)Malfunction in CAN communication circuit
(steering angle sensor circuit, yaw rate sensor circuit)
Steering angle sensor circuit

Yaw rate sensor circuit
C1350 / 51
(05±825)Pump motor is locked
Open circuit in pump motor ground
Brake actuator pump motor
Always ON
(05±831)Malfunction in skid control ECU
Open circuit in VSC warning light circuit

Battery

Charging system

Power source circuit

Skid control ECU

0577Y±02
F45094
ABS Warning LightBRAKE Warning
Light
VSC Warning Light SLIP Indicator Light
TRC OFF Indicator
Light
C52361
DLC3 Tc
CG
05±756
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PRE±CHECK
1.DIAGNOSIS SYSTEM
(a)Check the warning lights. (1)Release the parking brake lever.
(2)When the ignition switch is turned ON, check thatthe ABS warning light, Brake warning light, VSC
warning light, TRC OFF indicator light and SLIP in-
dicator light come on for approx. 3 seconds.
HINT:

When the parking brake is applied or brake fluid level is
low, the Brake warning light comes on.

If the ECU stores DTC, the ABS warning light , VSC warn-
ing light and TRC OFF indicator light come on.

If the indicator check result is not normal, proceed to trou-
bleshooting for the light circuit.
Trouble AreaSee page
ABS warning light circuit05±827
Brake warning light circuit05±840
VSC warning light circuit05±831
TRC OFF indicator light circuit05±844
SLIP indicator light circuit05±848
(b) Without using hand±held tester: Check the DTC.
(1) Using SST, connect terminal Tc and CG of theDLC3.
SST 09843±18040
(2) Turn the ignition switch ON.
(3) Read the DTC from the ABS warning light or VSC warning light on the combination meter.
HINT:

If no code appears, inspect the diagnostic circuit, ABS
warning light circuit or VSC warning light circuit.
Trouble AreaSee page
Tc terminal circuit05±852
ABS warning light circuit05±827
VSC warning light circuit05±831

C52361
DLC3Ts
CG
C52361
DLC3 Tc
CG
−
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
05−763
5. Without using hand −held tester:
ABS SENSOR SIGNAL CHECK (TEST MODE)
NOTICE:
After replacing the steering angle sensor and/or ECU, per-
form zero point calibration of the steering angle sensor or
system decision (When replacing the ECU) (See step 7.).
HINT:
If the ignition switch is turned from ON to ACC or LOCK during
test mode, the DTCs will be erased.
(a) Procedures for test mode:
(1) Turn the ignition switch OFF.
(2) Using SST, connect terminal Ts and CG of the DLC3.
SST 09843 −18040
(3) Check that the steering wheel is in the straight −
ahead position and shift the shift lever to P range.
(4) Turn the ignition switch ON.
(5) Check that the ABS warning light blinks.
HINT:
If the ABS warning light does not blink, inspect the ABS warning
light circuit or Ts terminal circuit.
Trouble areaSee Page
Ts terminal circuit05− 854
ABS warning light circuit05−827
(b) Check the speed sensor signal.
(1) Drive the vehicle straight forward at the speed of 45
km/h (28 mph) or over for several seconds and
check that the ABS warning light goes off.
HINT:
The sensor check may not be completed if the wheels spin or
the steering wheels are steered during this check.
(c) Stop the vehicle.
(d) Using SST, connect terminal Tc and CG of the DLC3. SST 09843 −18040
(e) Read the number of blinks of the ABS warning light.
HINT:
S See the list of DTCs on page 05− 766.
SIf every sensor is normal, the normal code is output (A
cycle of 0.25 second ON and 0.25 second OFF is re-
peated).

0542N±04
05±752
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

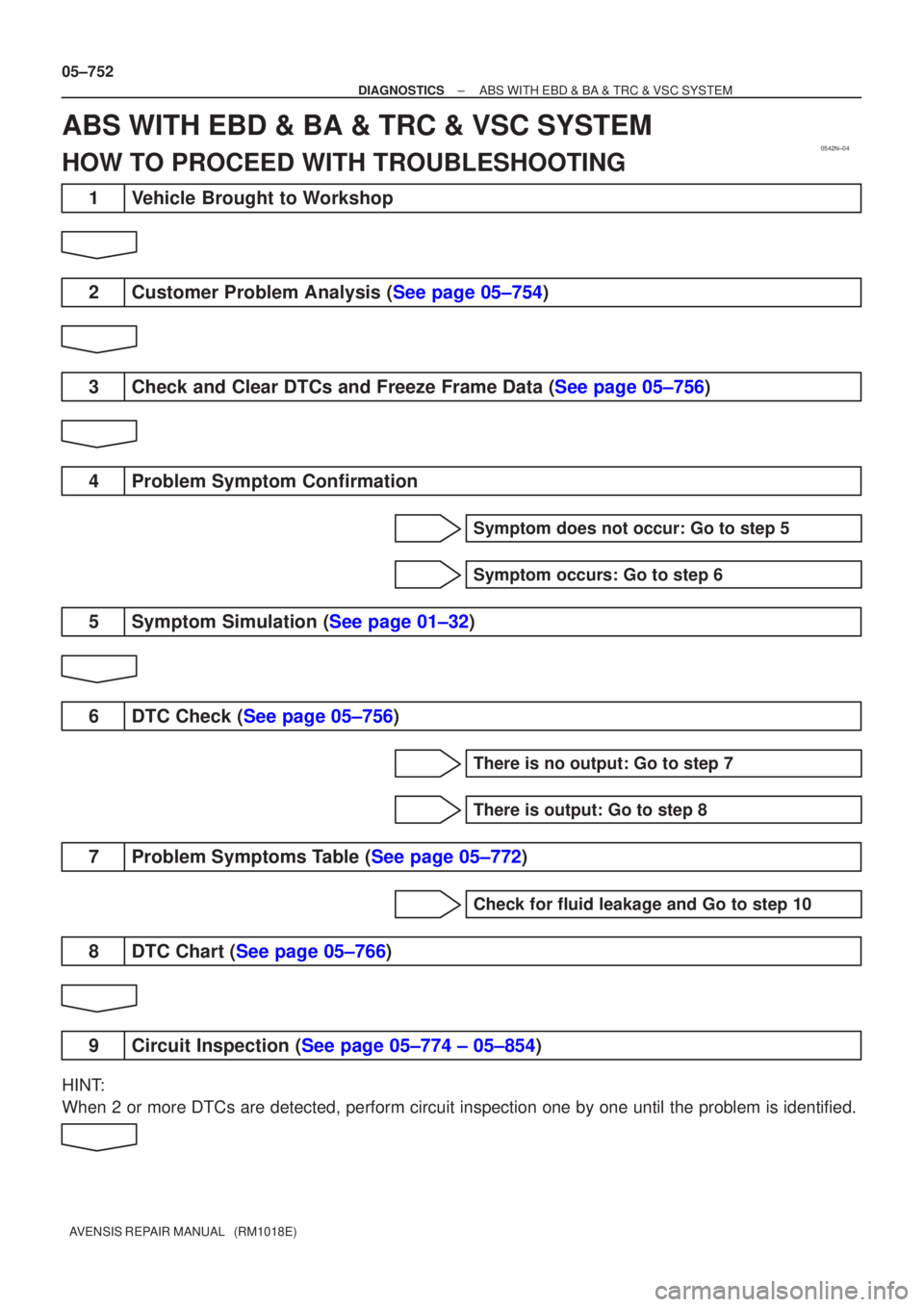

ABS WITH EBD & BA & TRC & VSC SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
1Vehicle Brought to Workshop
2Customer Problem Analysis (See page 05±754)
3Check and Clear DTCs and Freeze Frame Data (See page 05±756)
4Problem Symptom Confirmation
Symptom does not occur: Go to step 5
Symptom occurs: Go to step 6
5Symptom Simulation (See page 01±32)
6DTC Check (See page 05±756)
There is no output: Go to step 7
There is output: Go to step 8
7Problem Symptoms Table (See page 05±772)
Check for fluid leakage and Go to step 10
8DTC Chart (See page 05±766)
9Circuit Inspection (See page 05±774 ± 05±854)
HINT:
When 2 or more DTCs are detected, perform circuit inspection one by one \
until the problem is identified.

F45137
Skid Control ECU
with Actuator
W±B (*1) W±B (*1)W±B (*2)W (*2) W (*1) W (*1) W
S2 TS13
W±B (*2)
CB CA6 3IE2 12 J8
J/C
D
A
IO IP CG TS D5
DLC3 1AZ±FE:
4 12
D
ACenter J/B
J16
J/C
*1: LHD
*2: RHD
C87489
Skid Control ECU
with Actuator
W±B (*1) W±B (*1)W±B (*2) W (*2)W (*1) W (*1) W
S2 TS13
W±B (*2)
CB CA6 3IE2 12 J8
J/C
D
A
IP CG TS D5
DLC3 Except 1AZ±FE:
4 12 D
ACenter J/B
J16
J/C
*1: LHD
*2: RHDIO: Gasoline
IL: 1CD±FTV D
B
J20 J21W (*2) J/C
05±750
± DIAGNOSTICSABS WITH EBD SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
TS TERMINAL CIRCUIT
CIRCUIT DESCRIPTION
The sensor check circuit detects troubles in the sensor signal which cannot be detected by the DTC check.
Connecting terminals Ts and CG of the DLC3 starts the check.
WIRING DIAGRAM
05C5D±01
