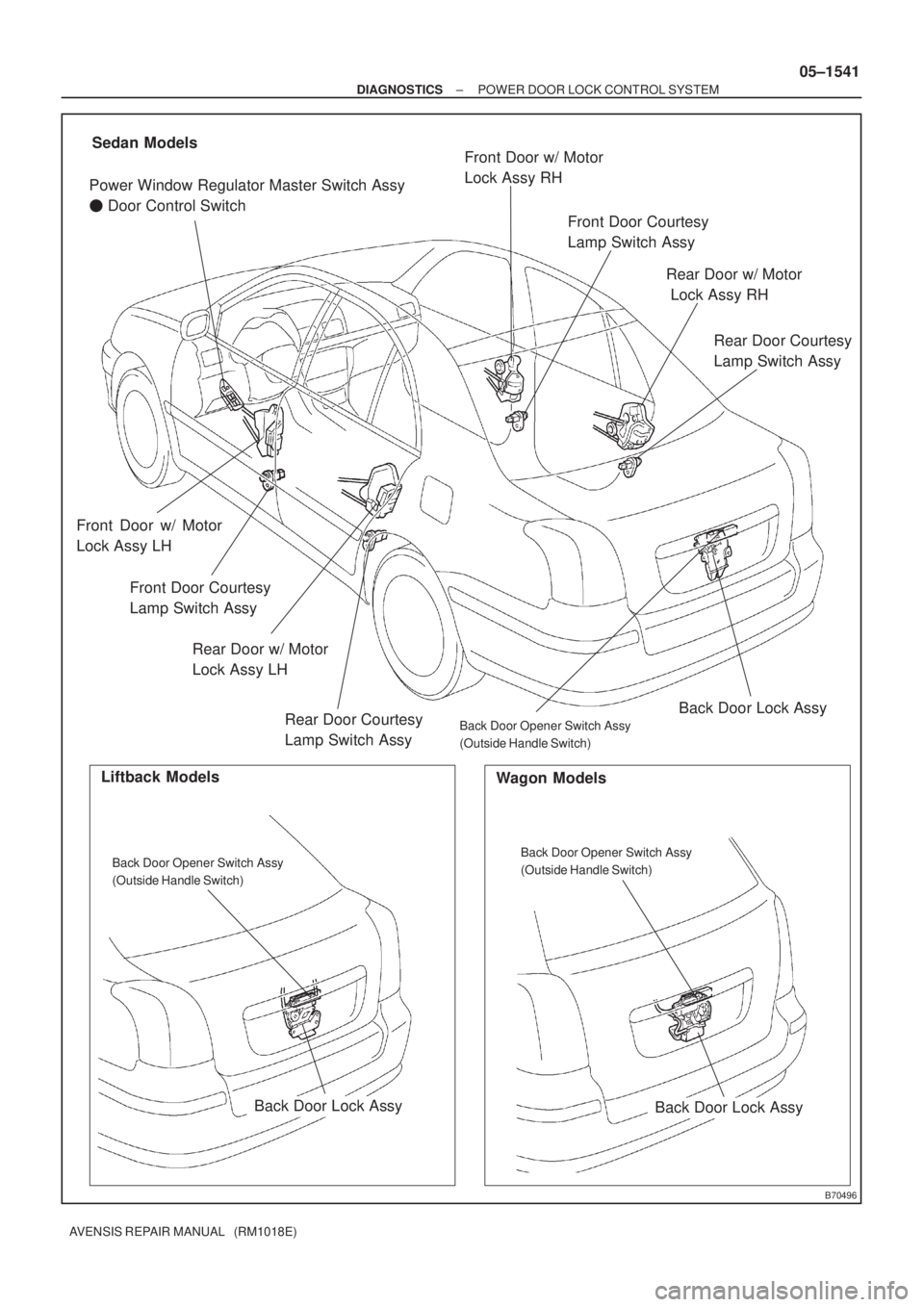

2005 TOYOTA AVENSIS door lock

B70496
Front Door w/ Motor
Lock Assy LH
Front Door Courtesy
Lamp Switch Assy
Rear Door w/ Motor
Lock Assy LH
Rear Door Courtesy
Lamp Switch AssyFront Door Courtesy
Lamp Switch Assy
Rear Door w/ Motor
Lock Assy RH
Rear Door Courtesy
Lamp Switch Assy Front Door w/ Motor
Lock Assy RH
Sedan Models
Wagon Models Liftback Models
Back Door Lock Assy Power Window Regulator Master Switch Assy

Door Control SwitchBack Door Lock Assy
Back Door Opener Switch Assy
(Outside Handle Switch)
Back Door Lock Assy
Back Door Opener Switch Assy
(Outside Handle Switch)Back Door Opener Switch Assy
(Outside Handle Switch)
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1541
AVENSIS REPAIR MANUAL (RM1018E)

05C87±01
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1539
AVENSIS REPAIR MANUAL (RM1018E)

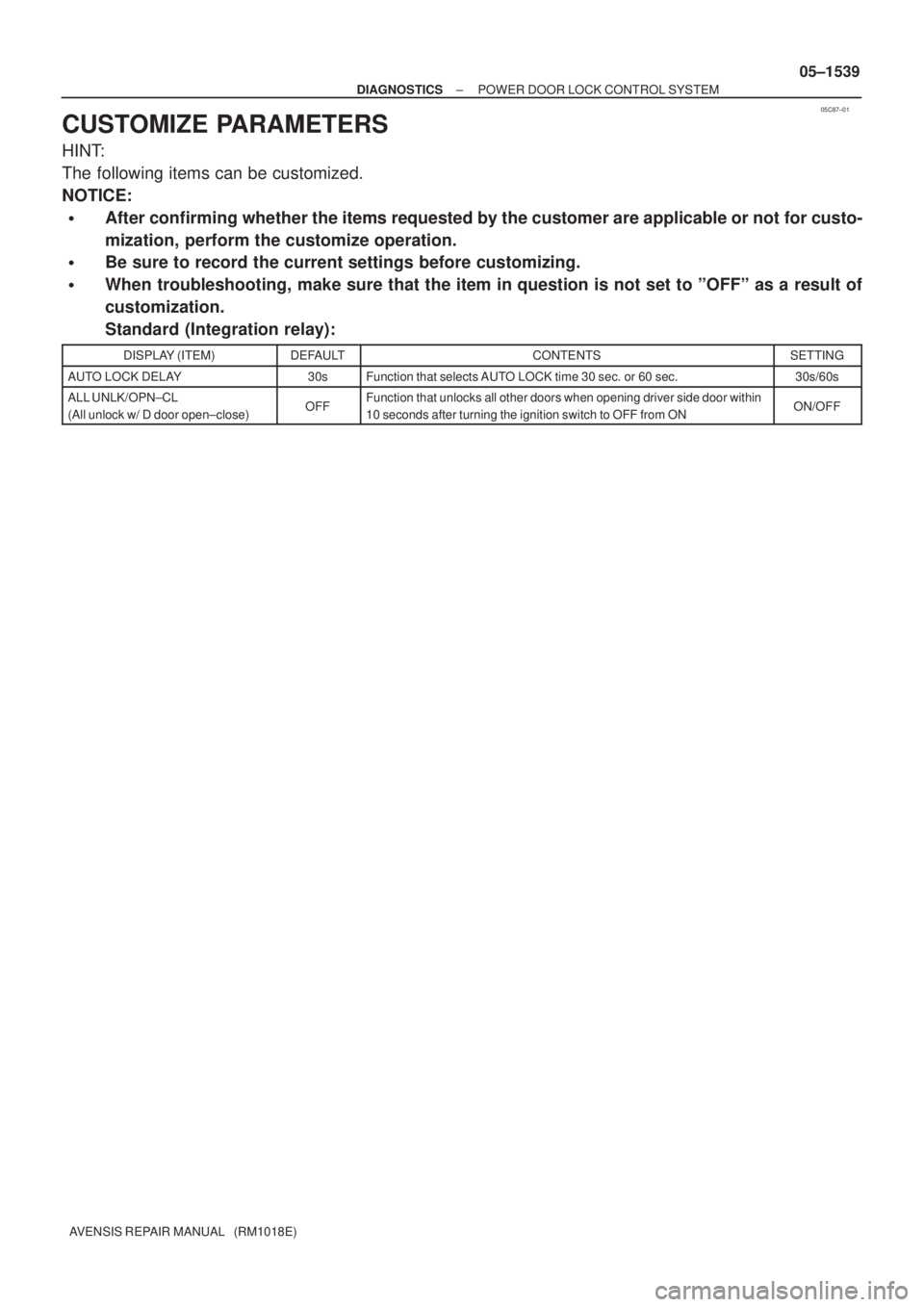

CUSTOMIZE PARAMETERS
HINT:
The following items can be customized.
NOTICE:

After confirming whether the items requested by the customer are applicable or not for custo-
mization, perform the customize operation.

Be sure to record the current settings before customizing.

When troubleshooting, make sure that the item in question is not set to ºOFFº as a result of
customization.
Standard (Integration relay):
DISPLAY (ITEM)DEFAULTCONTENTSSETTING
AUTO LOCK DELAY30sFunction that selects AUTO LOCK time 30 sec. or 60 sec.30s/60s
ALL UNLK/OPN±CL
(All unlock w/ D door open±close)OFFFunction that unlocks all other doors when opening driver side door within
10 seconds after turning the ignition switch to OFF from ONON/OFF

05C86±01
B50154
12 345 67 8
9 11121314 151610
DLC3
A82518
Hand±held Tester
05±1536
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

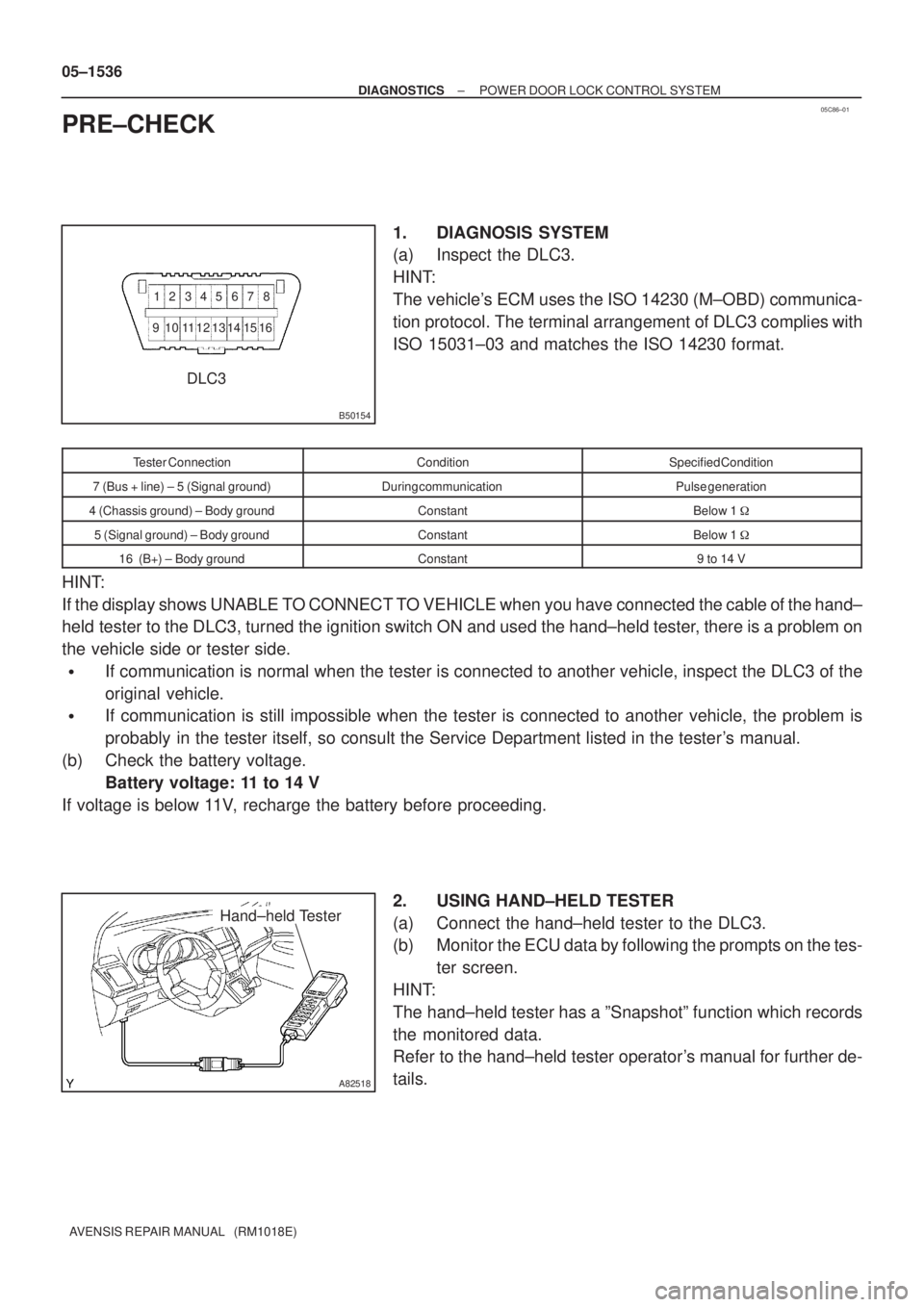

PRE±CHECK
1. DIAGNOSIS SYSTEM
(a) Inspect the DLC3.
HINT:
The vehicle's ECM uses the ISO 14230 (M±OBD) communica-
tion protocol. The terminal arrangement of DLC3 complies with
ISO 15031±03 and matches the ISO 14230 format.
Tester ConnectionConditionSpecified Condition
7 (Bus + line) ± 5 (Signal ground)During communicationPulse generation
4 (Chassis ground) ± Body groundConstantBelow 1

5 (Signal ground) ± Body groundConstantBelow 1

16 (B+) ± Body groundConstant9 to 14 V
HINT:
If the display shows UNABLE TO CONNECT TO VEHICLE when you have connected the cable of the hand±
held tester to the DLC3, turned the ignition switch ON and used the hand±held tester, there is a problem on
the vehicle side or tester side.

If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the
original vehicle.

If communication is still impossible when the tester is connected to another vehicle, the problem is
probably in the tester itself, so consult the Service Department listed in the tester's manual.
(b) Check the battery voltage.
Battery voltage: 11 to 14 V
If voltage is below 11V, recharge the battery before proceeding.
2. USING HAND±HELD TESTER
(a) Connect the hand±held tester to the DLC3.
(b) Monitor the ECU data by following the prompts on the tes-
ter screen.
HINT:
The hand±held tester has a ºSnapshotº function which records
the monitored data.
Refer to the hand±held tester operator's manual for further de-
tails.

± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1537
AVENSIS REPAIR MANUAL (RM1018E)
3. DATA LIST
HINT:
According to the DATA LIST displayed by the hand±held tester, you can read the value of the switch, sensor,
actuator, etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way
to shorten the labor time.
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Read the DATA LIST according to the display on the tester.
Standard (Integration relay):
ItemMeasurement Item/Display
(Range)Normal ConditionDiagnostic
Note
KEY UNLK WRN SWUnlock warning switch signal
/ON or OFFON: Key is in ignition key cylinder
OFF: No key is in ignition key cylinder±
D DOR CTY SW
Driver side door courtesy switch
signal
/ON or OFFON: Driver side door is open
OFF: Driver side door is closed±
P DOR CYT SW
Passenger side door courtesy
switch signal
/ON or OFFON: Passenger side door is open
OFF: Passenger side door is closed±
Rr DOR CTY SWRear door courtesy switch signal
/ON or OFFON: Either right or left rear door is open
OFF: Both right and left rear doors are closed±
P LOCK POS SW
Passenger side door lock position
switch signal
/ON or OFFON: Passenger side door lock is in unlock position
OFF: Passenger side door lock is in lock position±
Rr LOCK POS SW
Rear door lock position switch sig-
nal
/ON or OFFON: Rear door lock is in unlock position
OFF: Rear door lock is in lock position±
IG SWIG switch signal
/ON or OFFON: Key is in ON or START position
OFF: Key is in OFF or ACC position±
D LOCK POS SW
Driver side door lock position
switch signal
/ON or OFFON: Driver side door lock is in unlock position
OFF: Driver side door lock is in lock position±
D/L SW±LOCK
Manual door lock switch LOCK
signal
/ON or OFFON: Manual door lock switch is in lock position
OFF: Manual door lock switch is in original position
(Common to driver side and passenger side model)
±
D/L SW±UNLOCK
Manual door lock switch UNLOCK
signal
/ON or OFFON: Manual door lock switch is in unlock position
OFF: Manual door lock switch is in original position
(Common to driver side and passenger side model)
±
DOR KEY SW±LOCK
Key operation door lock switch sig-
nal
/ON or OFFON: Key operation door lock switch is in lock position
OFF: Key operation door lock switch is in original position
(Common to driver side and passenger side model)
±
P DOR KEY SW±UL
Key operation passenger door un-
lock switch signal
/ON or OFFON: Passenger key operation door lock switch is in unlock position
OFF: Passenger key operation door lock switch is in neutral position±
D DOR KEY SW±UL
Key operation driver door unlock
switch signal
/ON or OFFON: Driver key operation door lock switch is in unlock position
OFF: Driver key operation door lock switch is in original position±
ALL UNLK/OPN±CL
Driver side door courtesy switch
signal
/ON or OFFON: All doors unlock when driver side door is opened
OFF: Other doors do not unlock when driver side door is opened±
OPEN DOOR WARNDoor courtesy switch signal
/ON or OFFON: Either door is open
OFF: All doors are closed±
AUTO LOCK DELAYDoor courtesy switch signal
/60s or 30s60s: Door auto locking time is 60 sec.
30s: Door auto locking time is 30 sec.±

05±1538
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)ItemDiagnostic
Note Normal Condition Measurement Item/Display
(Range)
DOOR HANDLE SW
Back door opener switch signal
(Outside handle switch)
/ON or OFFON: Back door opener switch is pushed
OFF: Back door opener switch is not pushed±
LOCK STATUSBack door position switch signal
/UNLOCK or LOCKUNLOCK: Back door is unlock
LOCK: Back door is lock±
4. ACTIVE TEST
HINT:
Performing the ACTIVE TEST using the hand±held tester allows you to operate the relay, VSV, actuator,
etc. without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to
shorten the labor time. It is possible to display the DATA LIST during the ACTIVE TEST.
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON.
(c) According to the display on the tester, perform the ACTIVE TEST.
Standard (Integration relay):
ItemTest DetailsDiagnostic Note
DOOR LOCKOperate door lock motor for all doors LOCK/OFF±
DOOR LOCKOperate door lock motor for all doors UNLOCK/OFF±

05C85±01
POWER DOOR LOCK CONTROL SYSTEM Check Sheet
Inspector 's name:
Customer 's Name
Date Vehicle
Brought inOdometer Reading / /
Weather Conditions
When Problem
Occurred Frequency Problem OccursWeather
Outdoor temperature
/ /
 Constant  Sometimes ( Times per day, month)
 Once only
Malfunction in Door Lock/Unlock
Operation Using Door Lock Con-
trol SwitchDriver side door lock control
switch
 Others
Date Problem First Occurred
 Fine  Cloudy  Rainy  Snowy
 Various/Others
 Hot  Warm  Cool
 Cold (Approx.
C (
F))
Problem Symptoms
 Driver side door
 Passenger side door
 Rear left door
 Rear right door
 Luggage door
 Back door
Malfunction in Door Lock/Unlock
Operation Using KeyDriver side door key lock and
unlock control switch Driver side door
 Passenger side door
 Rear left door
 Rear right door
 Luggage door
 Back door
 Malfunction in Key Lock±in Prevention Function

km
miles
 w/ Double Lock:
Malfunction in Double Locking Function System
VIN
Production Date
Licence No.
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1535
AVENSIS REPAIR MANUAL (RM1018E)
CUSTOMER PROBLEM ANALYSIS CHECK

05C84±01
05±1534
±
DIAGNOSTICS POWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
POWER DOOR LOCK CONTROL SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
Troubleshoot in accordance with the procedures on the following pages.
1 VEHICLE BROUGHT TO WORKSHOP
2 CUSTOMER PROBLEM ANALYSIS CHECK AND PROBLEM SYMPTOM
3PROBLEM SYMPTOMS TABLE (See page 05±1545)
(a) When problem is not listed on problem symptoms table, proceed to A.
(b) When problem is listed on problem symptoms table, proceed to B. B Go to step 6
A
4 PERFORM TROUBLESHOOTING ACCORDING TO MALFUNCTION SYMPTOM
(a)Pre±check (See page 05±1536). (1) Inspection with the hand±held tester (ECU DATA LIST).
(2) Inspection with the hand±held tester (ACTIVE TEST).
(b)On±vehicle inspection (See page 73±1).
(c)Inspection (See page 73±3).
(d)Terminals of ECU (See page 05±1542).
5 ADJUST, REPAIR OR REPLACE
END

I36641
14
C10 1
IC1
P±B MPX2
P±B 22
DCTY KSW
13
DB8
DA
B
J10B
J10 J/C
R
R14
IC2R
1 D9 Door Courtesy SWY1 2U1
Unlock Warning SW
W±B
(*7) W±B
(*5)
IL IO MPX1 11
P 10
IC1 29
A13 20
A15
3 24
A16 MPX±
PBLT A/C Control Assembly
F19 Front Passenger's
Seat Belt Warning Light
B10 Front Seat Inner Belt Assy
(Occupant Detection Sensor)
*1: Except Automatic A/C
*2: Automatic A/C
*3: 1AZ±FSE
*4: 1AZ±FE, 1ZZ±FE, 3ZZ±FE
*5: 1CD±FTV
*6: Except 1AZ±FE
*7: Except (*5) B±PBEW
PBEWA13 (*2) (*1)
(*1) (*2)P
B9
Buckle SwitchAirbag Sensor AssemblyDriver Side J/B
12
IC114
DB2
DD
L±R L±R
G±Y
W±B 3
1BKL 9
4
19
A26
2
A26L±R
GSWA27
LBE+
LBE±
G±Y (*6)14
IM1
G±Y (*6)3
1
W±B (*6)
W±B
BU BVI14
Driver Side J/B (Body ECU)Combination Meter Assy LHD Models:
6
7L±R (*6) 05±1530
± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)
WARNING BUZZER DOES NOT SOUND
WIRING DIAGRAM
05C4P±01
