NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.13
5.13

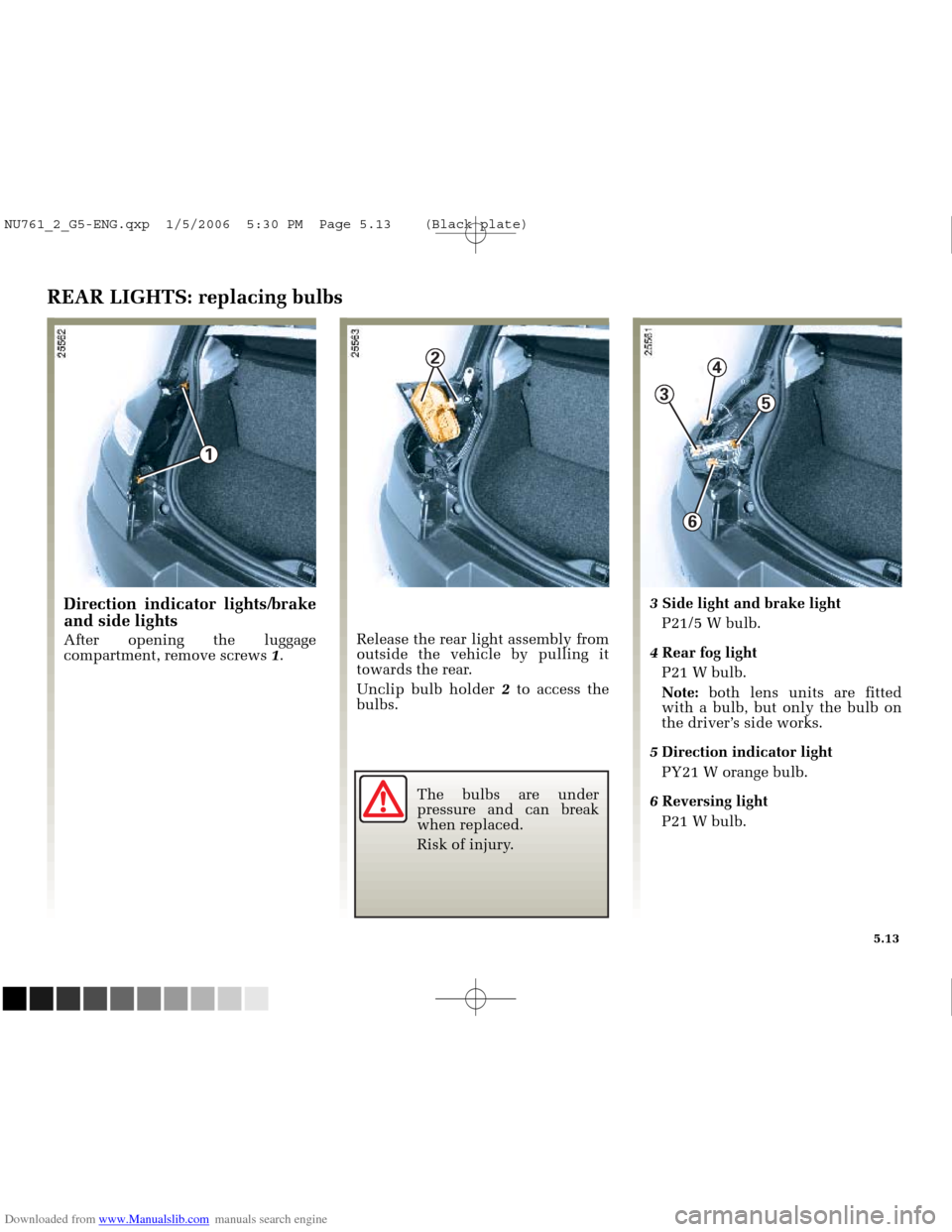

REAR LIGHTS: replacing bulbs
Release the rear light assembly from
outside the vehicle by pulling it
towards the rear.
Unclip bulb holder 2to access the
bulbs.
Direction indicator lights/brake
and side lights
After opening the luggage
compartment, remove screws 1. 3
Side light and brake light
P21/5 W bulb.
4 Rear fog light
P21 W bulb.
Note: both lens units are fitted
with a bulb, but only the bulb on
the driver’s side works.
5 Direction indicator light
PY21 W orange bulb.
6 Reversing light
P21 W bulb.
The bulbs are under
pressure and can break
when replaced.
Risk of injury.
NU761_2_G5-ENG.qxp 1/5/2006 5:30 PM Page 5.13 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
7

9

8

10

NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.14
5.14

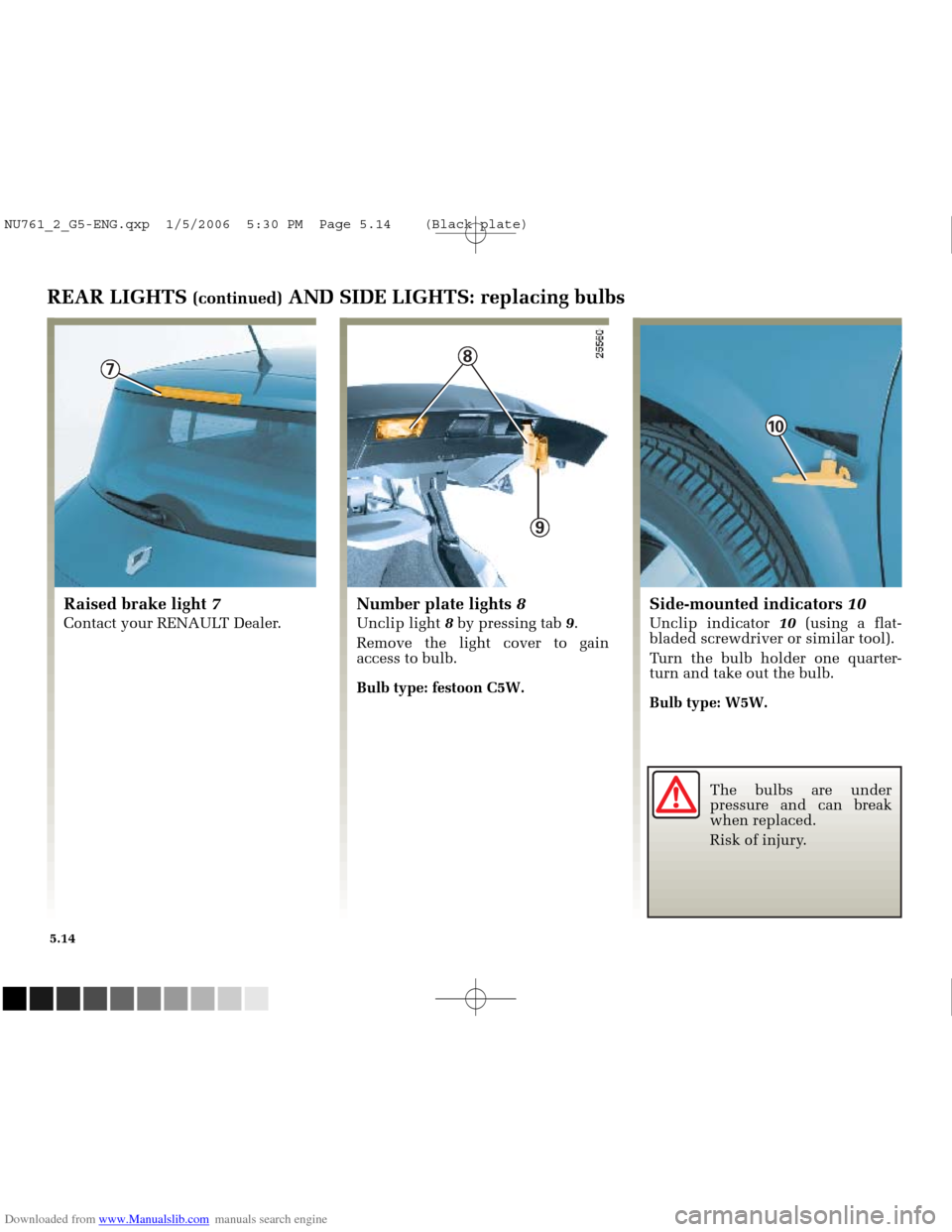

REAR LIGHTS (continued)AND SIDE LIGHTS: replacing bulbs
Raised brake light 7
Contact your RENAULT Dealer.
Number plate lights 8
Unclip light 8by pressing tab 9.
Remove the light cover to gain
access to bulb.
Bulb type: festoon C5W.
Side-mounted indicators 10
Unclip indicator 10(using a flat-
bladed screwdriver or similar tool).
Turn the bulb holder one quarter-
turn and take out the bulb.
Bulb type: W5W.
The bulbs are under
pressure and can break
when replaced.
Risk of injury.
NU761_2_G5-ENG.qxp 1/5/2006 5:30 PM Page 5.14 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

2

NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.15
5.15

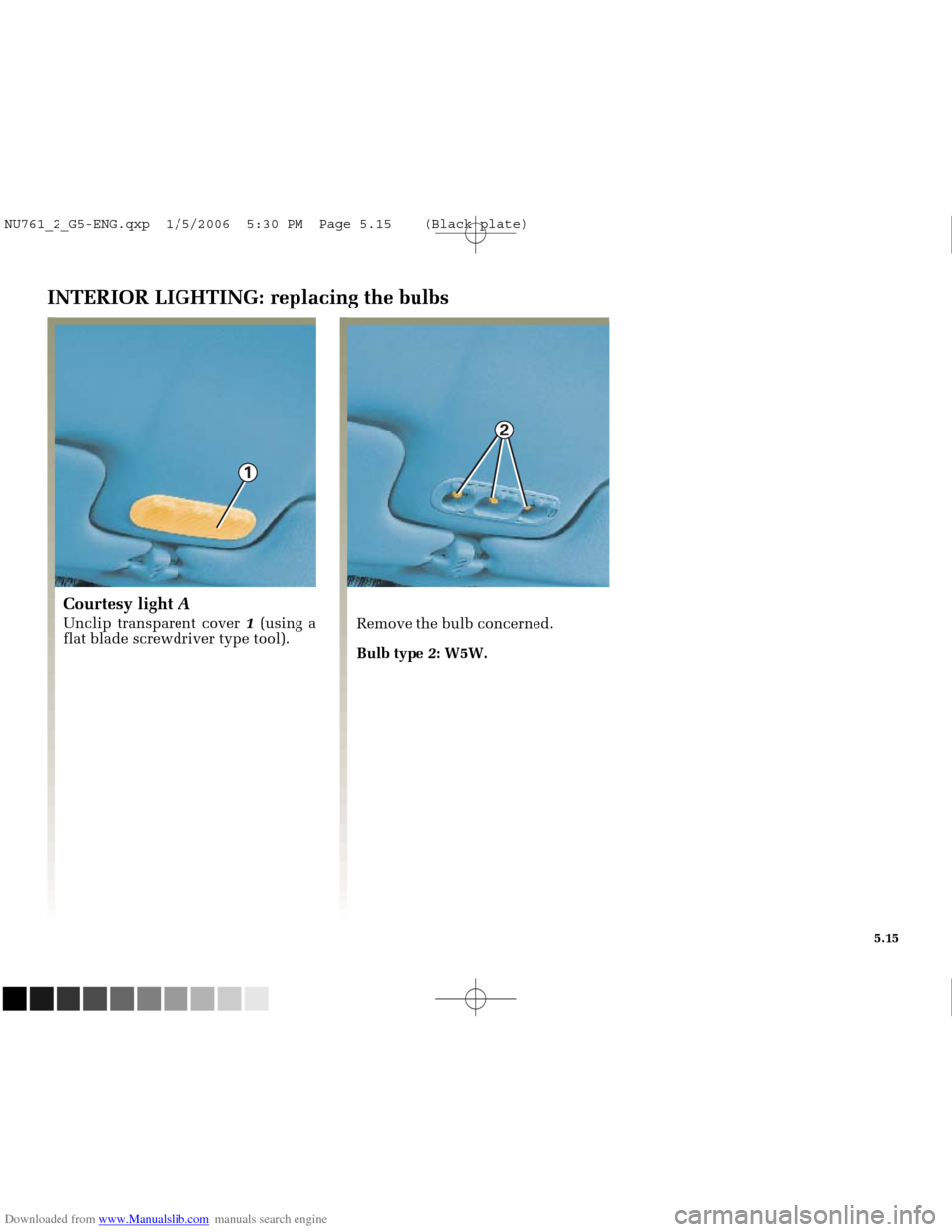

INTERIOR LIGHTING: replacing the bulbs
Courtesy light A
Unclip transparent cover 1 (using a
flat blade screwdriver type tool). Remove the bulb concerned.
Bulb type
2: W5W.
NU761_2_G5-ENG.qxp 1/5/2006 5:30 PM Page 5.15 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
B

4

3

5

NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.16
5.16

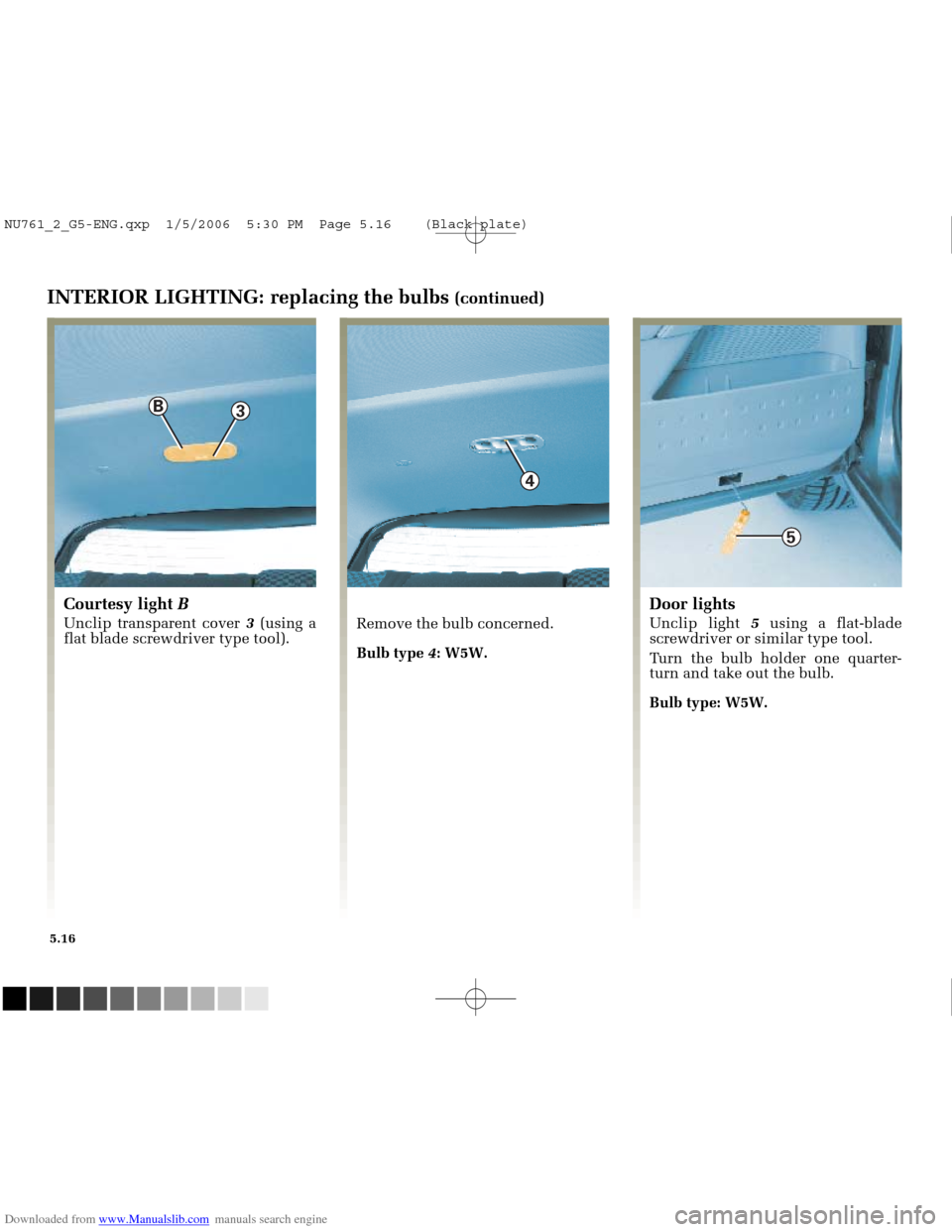

INTERIOR LIGHTING: replacing the bulbs (continued)
Courtesy light B
Unclip transparent cover 3 (using a
flat blade screwdriver type tool). Remove the bulb concerned.
Bulb type
4: W5W.
Door lights
Unclip light 5using a flat-blade
screwdriver or similar type tool.
Turn the bulb holder one quarter-
turn and take out the bulb.
Bulb type: W5W.
NU761_2_G5-ENG.qxp 1/5/2006 5:30 PM Page 5.16 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
7

8

9

NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.17
5.17

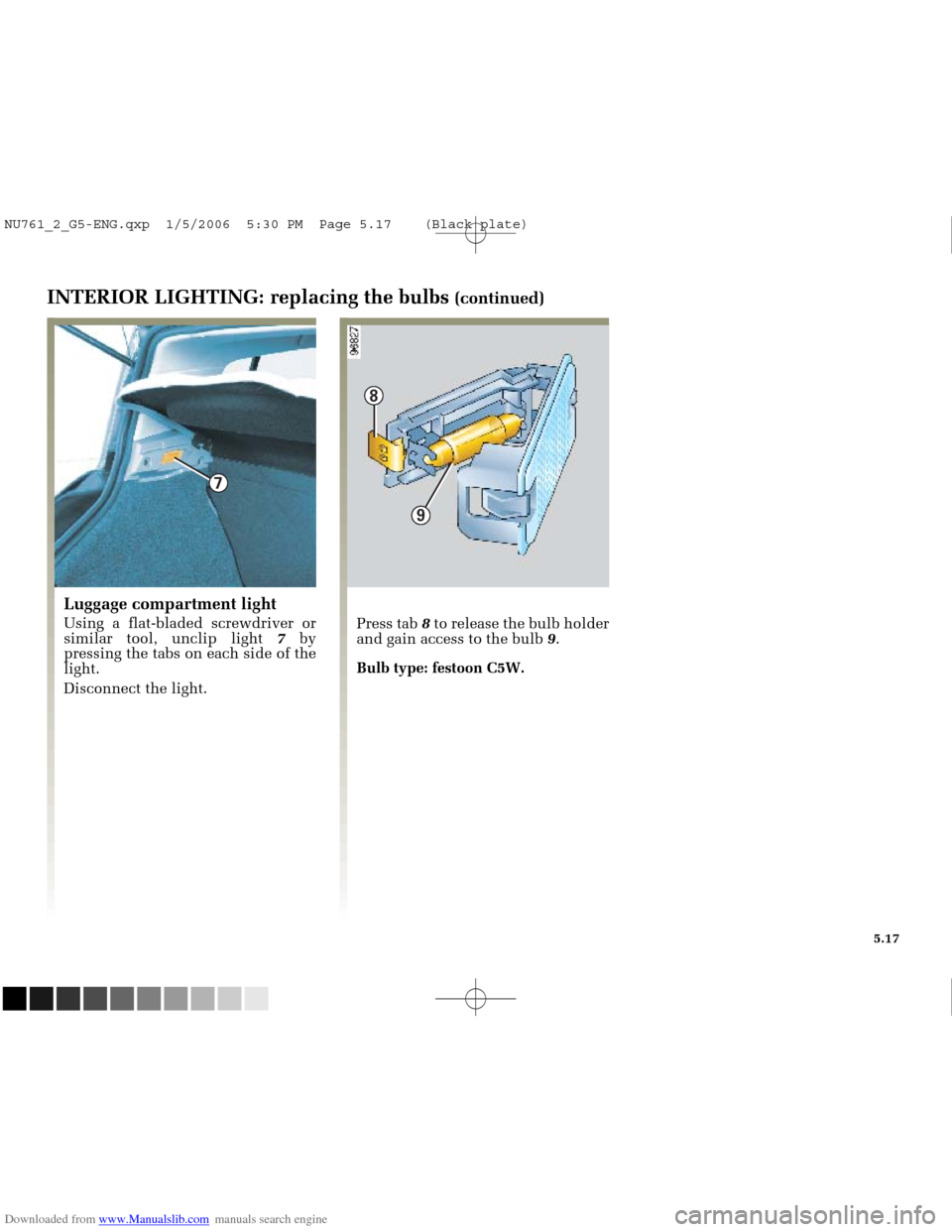

INTERIOR LIGHTING: replacing the bulbs (continued)
Luggage compartment light
Using a flat-bladed screwdriver or
similar tool, unclip light 7by
pressing the tabs on each side of the
light.
Disconnect the light. Press tab
8to release the bulb holder
and gain access to the bulb 9.
Bulb type: festoon C5W.
NU761_2_G5-ENG.qxp 1/5/2006 5:30 PM Page 5.17 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1
3

2

1

2

NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.18
5.18
FUSES
Fuse box 1
If electrical equipment does not
work, check the condition of the
fuses.
Open cover 2(underneath the
steering wheel or inside the glove
box).
To identify the fuses, refer to the
fuse allocation sticker (shown on the
following page).
In accordance with local
legislation or as a precautionary
measure:
Obtain an emergency kit of spare
bulbs and fuses from your
RENAULT Dealer.
Take out the fuse using tweezers 3,
located on the cover 2.
To remove the fuse from the
tweezers, slide the fuse to the side.
It is not advisable to use the free fuse
locations.
CORRECT INCORRECT
Check the fuse in question
and, if necessary, replace it
with a fuse of the same
rating.
If you fit a higher-amp fuse, it may
cause the electrical circuit to
overheat (risk of fire) in the event of
a consumer drawing an excessive
current.
NU761_2_G5-ENG.qxp 1/5/2006 5:30 PM Page 5.18 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
A

NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.19
5.19
FUSES (continued)Allocation of fuses (the presence of fuses depends on the vehicle equip\
ment level)
SymbolAllocation
ZPassenger compartment
ventilation
VElectric windows
[Electric sunroof
XABS
ÎRadio
×Stop lights
ÈAccessory cut-off
SymbolAllocation
ÌHorn
ERear screen wiper.
ÔGeneral supply
ÑHeated seats
]Central door locking
SHeated door mirrors
Certain functions are protected by
fuses located inside the engine
compartment (fusebox A).
However, because they can be
difficult to access, you are advised
to have your fuses replaced by a
RENAULT Dealer .
NU761_2_G5-ENG.qxp 1/5/2006 5:30 PM Page 5.19 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G5-FRA.qxd 4/11/05 11:09 Page 5.20
5.20
BATTERY: troubleshooting
To avoid all risk of sparks:
- Ensure that any consumers(courtesy lights etc.) are switched
off before disconnecting or
reconnecting the battery.
- When charging, stop the charger before connecting or disconnecting
the battery.
- Do not place metal objects on the battery to avoid creating a short
circuit between the terminals.
- Never disconnect a battery less than twenty seconds after the
engine has been switched off.
- Make sure that you reconnect the battery terminals after refitting. Handle the battery with care
as it contains sulphuric acid
which must not come into
contact with the eyes or
skin. If it does, wash the affected
area with plenty of cold water.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
Take care when working in the
engine compartment as the engine
cooling fan may start to operate at
any moment without warning.
Risk of injury.
