BONNET (continued)
Lift the bonnet, release stay 4from
its holder 5and, for your own safety,
it is very important to fix it into
retainer 3in the bonnet.
Closing the bonnet
Before closing the bonnet, check to
make sure that nothing has been left
in the engine compartment.
To close the bonnet, replace stay 4in
its holder 5, hold the bonnet in the
middle and lower it 12 inches (30
cm) above the closed position, then
release it. It will latch automatically
under its own weight.
Check that the bonnet is
correctly locked.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.03 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
23532

23507
NU761_2_G4-FRA.qxd 14/11/05 10:10 Page 4.04
4.04
ENGINE OIL LEVEL
It is normal for an engine to use oil
for lubrication and cooling of
moving parts and it is normal to top
up the level between oil changes.
However, contact your RENAULT
Dealer if more than 0.5 litres is being
consumed every 600 miles (1,000
km) after the running in period.
Oil change frequency: check the oil
level from time to time and
certainly before any long journey to
avoid the risk of damaging your
engine.
Reading the oil level
The vehicle must be parked on level
ground and the engine should have
been switched off for some time
beforehand to obtain an accurate
reading.
To be able to read the exact oil level
and make sure that the maximum
level has not been exceeded (risk of
engine damage), the dipstick must
be used.
In the following pages, see Engine
oil level: topping up/filling.
The instrument panel display only
shows a warning when the
minimum oil level has been reached.Minimum oil level warning on the
instrument panel
When ignition has been switched on
for approximately 30 seconds:
-
if the level is above the minimum
level, the display indicates “oil
level correct”: message 1.
To gain a more precise indication
of the level, press the trip mileage
reset button or the information
scroll button on the trip computer. The squares which appear on the
display indicate the level. They
disappear as the oil level drops and
they are replaced by dashes.
To advance to trip computer
reading, press the button again.
-
if the level is at the minimum
level: the message “top up oil
level” appears on the display; the
squares are replaced by dashes
(message 2) and the warning light
is illuminated on the
instrument panel.
It is vital to top up the oil as soon
as possible.
Message 1
Level
above
minimum
Message 2
Minimum
level
The display only shows a
warning when the
minimum level has been
reached, not when the
maximum has been exceeded.
This can only be detected with
the dipstick.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.04 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
A

B

A

B

C

NU761_2_G4-FRA.qxd 14/11/05 10:10 Page 4.05
4.05
ENGINE OIL LEVEL (continued)

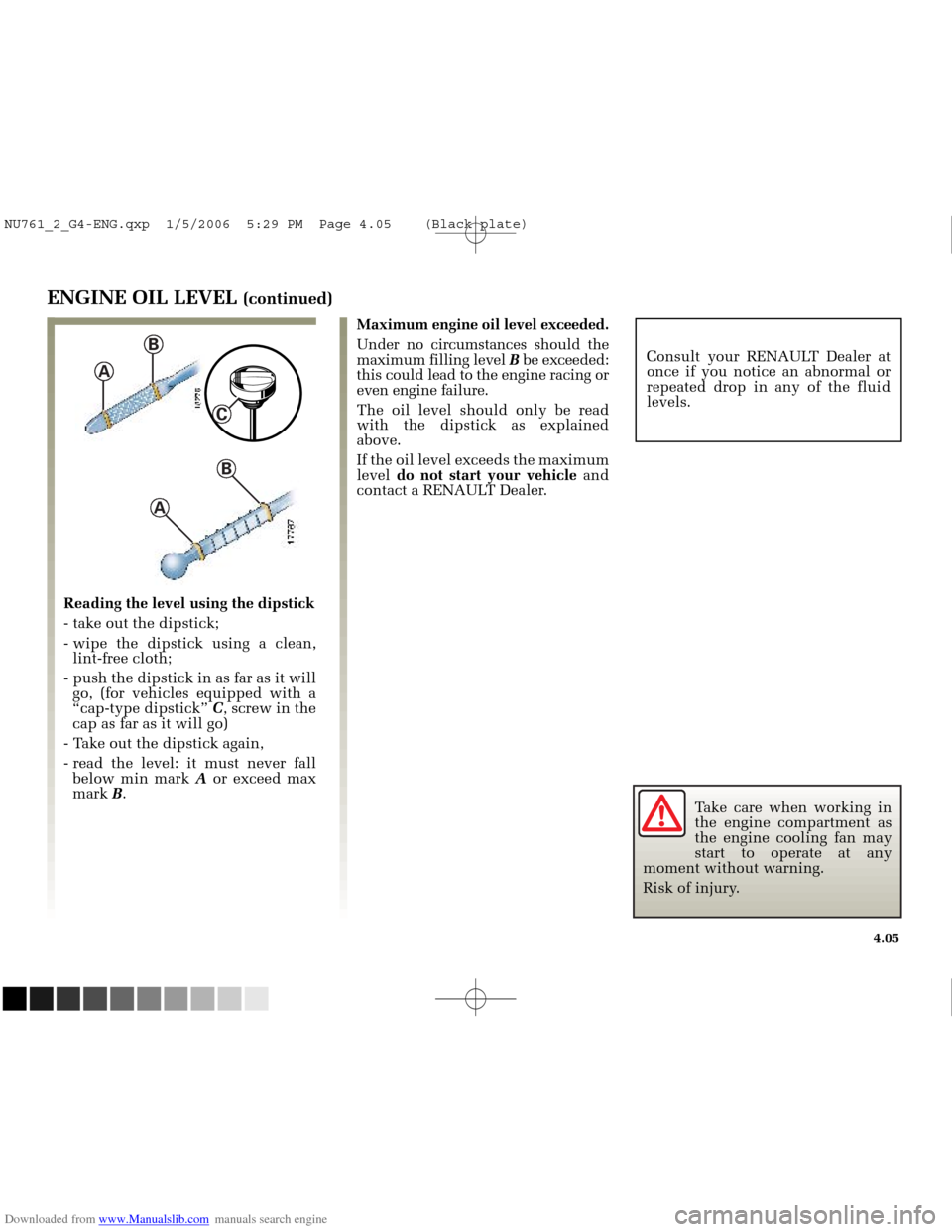

Reading the level using the dipstick
- take out the dipstick;
- wipe the dipstick using a clean,lint-free cloth;
- push the dipstick in as far as it will go, (for vehicles equipped with a
“cap-type dipstick” C, screw in the
cap as far as it will go)
- Take out the dipstick again,
- read the level: it must never fall below min mark Aor exceed max
mark B. Consult your RENAULT Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
Maximum engine oil level exceeded.
Under no circumstances should the
maximum filling level
Bbe exceeded:
this could lead to the engine racing or
even engine failure.
The oil level should only be read
with the dipstick as explained
above.
If the oil level exceeds the maximum
level do not start your vehicle and
contact a RENAULT Dealer.
Take care when working in
the engine compartment as
the engine cooling fan may
start to operate at any
moment without warning.
Risk of injury.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.05 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
2
2.0 T

1

2

1

2
1.4 16V - 1.6 16V
2.0 16V

1

1
2
1.5 dCi

NU761_2_G4-FRA.qxd 14/11/05 10:11 Page 4.06
4.06
ENGINE OIL LEVEL (continued)
- Unscrew cap 1.
- top-up the level (for information, the capacity between the minimum
and maximum readings on the
dipstick 2is 1.5-2 litres depending
on the engine);
- wait for approximately 10 minutes to allow the oil to drain into the
engine;
- check the level using the dipstick 2
(as explained above);
Do not exceed the Maximumlevel
and do not forget to refit cap 1.
Topping up/filling
The vehicle must be parked on level
ground and the engine should be off
and cold (for instance, before the
engine is started up for the first time
in the day).
Engine oil grade
Refer to the warranty and servicing
booklet for your vehicle for
information regarding which grade
of oil to use.
Consult your RENAULT Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.06 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

2.0 dCi

1

NU761_2_G4-FRA.qxd 14/11/05 10:11 Page 4.07
4.07
ENGINE OIL LEVEL (continued)/OIL CHANGE

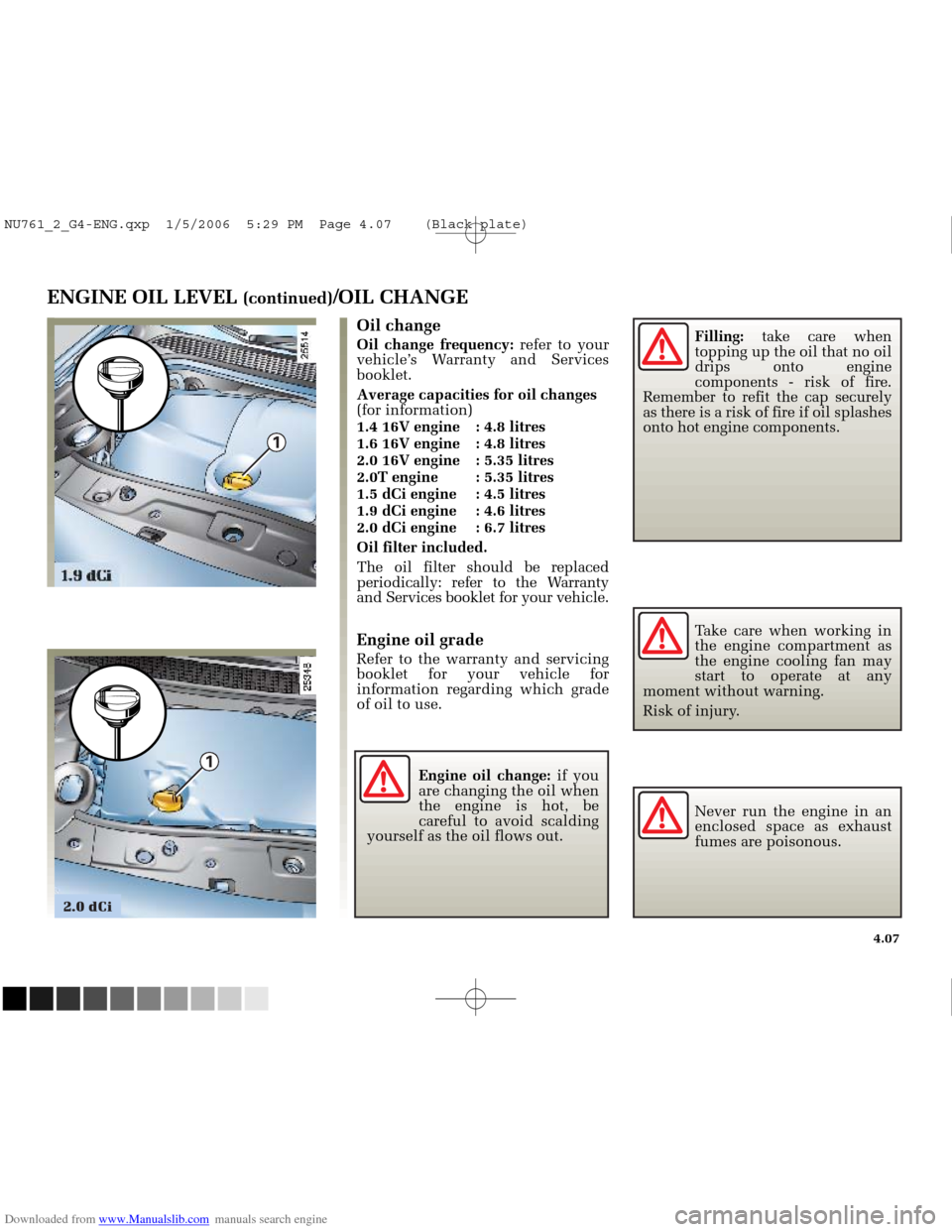

Oil change
Oil change frequency: refer to your
vehicle’s Warranty and Services
booklet.
Average capacities for oil changes
(for information)
1.4 16V engine : 4.8 litres
1.6 16V engine : 4.8 litres
2.0 16V engine : 5.35 litres
2.0T engine : 5.35 litres
1.5 dCi engine : 4.5 litres
1.9 dCi engine : 4.6 litres
2.0 dCi engine : 6.7 litres
Oil filter included.
The oil filter should be replaced
periodically: refer to the Warranty
and Services booklet for your vehicle.
Engine oil grade
Refer to the warranty and servicing
booklet for your vehicle for
information regarding which grade
of oil to use.
Engine oil change: if you
are changing the oil when
the engine is hot, be
careful to avoid scalding
yourself as the oil flows out. Never run the engine in an
enclosed space as exhaust
fumes are poisonous. Take care when working in
the engine compartment as
the engine cooling fan may
start to operate at any
moment without warning.
Risk of injury. Filling:
take care when
topping up the oil that no oil
drips onto engine
components - risk of fire.
Remember to refit the cap securely
as there is a risk of fire if oil splashes
onto hot engine components.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.07 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

NU761_2_G4-FRA.qxd 14/11/05 10:11 Page 4.08
4.08
LEVELS
Frequency for checking coolant level
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If topping up is required, only use
products approved by RENAULT’s
Technical Department:
- anti-freeze protection;
- anti-corrosion protection of thecooling system. Replacement interval
Refer to the Warranty and Services
booklet for your vehicle.
Coolant level
The level
when cold should be
between the MIN and MAX marks
on the expansion bottle 1.
Top this level up when coldbefore it
reaches the MIN mark.
Consult your RENAULT Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Danger of burns.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.08 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

NU761_2_G4-FRA.qxd 14/11/05 10:11 Page 4.09
4.09
LEVELS (continued)
Brake fluid level
This should be checked frequently,
and immediately if you notice even
the slightest loss in braking
efficiency.
Level 1
The level normally goes down at the
same time as the brake shoe wear,
but, it must never go below the MIN
warning level.
Due to the fact that it is difficult to
access, we recommend that you
have it checked and if necessary,
have the brake fluid level topped up
by a specialist. Filling
After any operation on the hydraulic
circuit, a specialist must replace the
brake fluid.
Only use fluids approved by
RENAULT’s Technical Department
(and taken from a sealed container).
Replacement interval
Refer to the Warranty and Services
booklet for your vehicle.
Take care when working in
the engine compartment as
the engine cooling fan may
start to operate at any
moment without warning.
Risk of injury.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.09 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
1

NU761_2_G4-FRA.qxd 14/11/05 10:11 Page 4.10
4.10
LEVELS (continued)FILTERS
The replacement of filter elements
(air filter, passenger compartment
filter, diesel filter, etc.) is scheduled
in the servicing and maintenance
operations for your vehicle.
Frequency for replacing filter
elements: refer to the Warranty and
Services booklet for your vehicle.

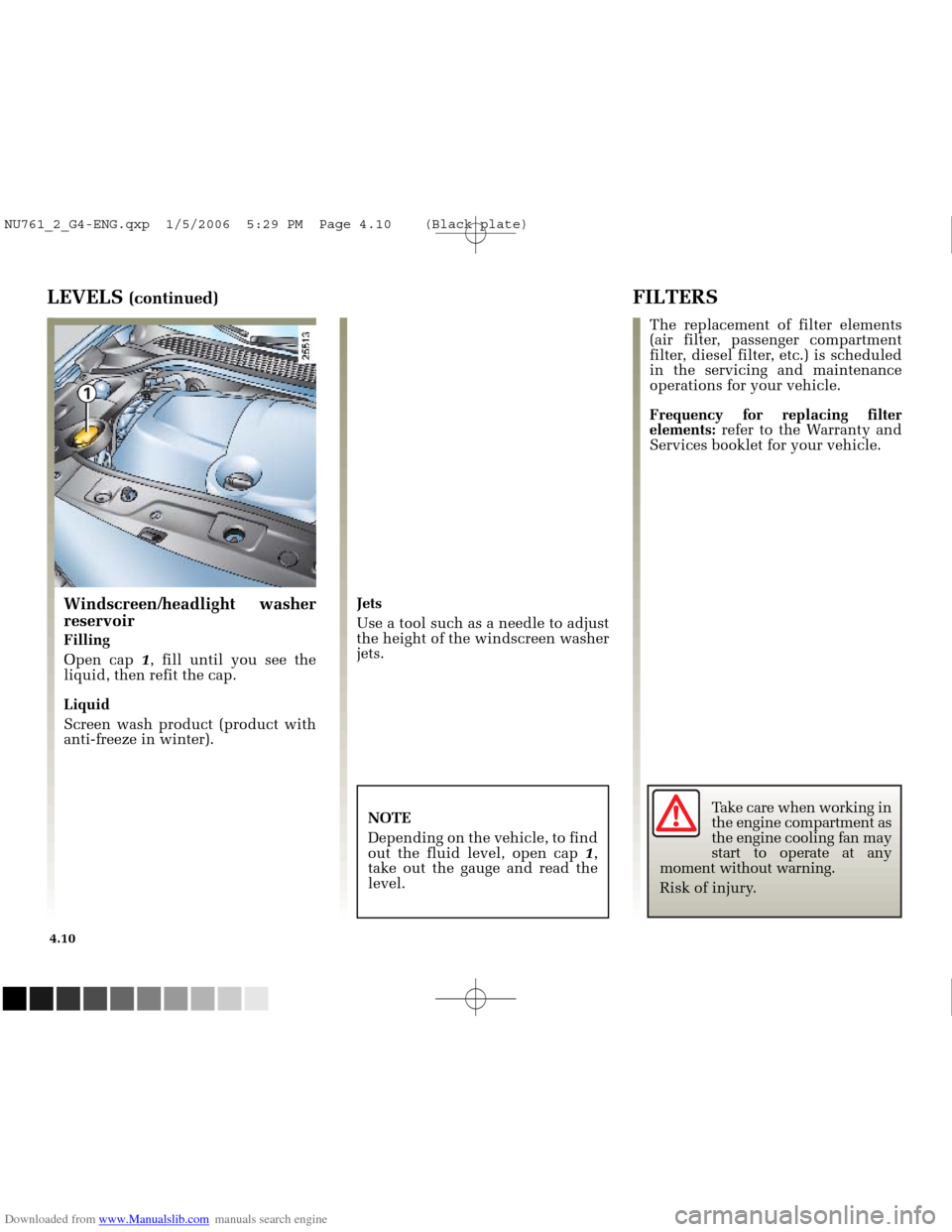

Windscreen/headlight washer
reservoir
Filling
Open cap 1, fill until you see the
liquid, then refit the cap.
Liquid
Screen wash product (product with
anti-freeze in winter). Jets
Use a tool such as a needle to adjust
the height of the windscreen washer
jets.
NOTE
Depending on the vehicle, to find
out the fluid level, open cap 1,
take out the gauge and read the
level.
Take care when working in
the engine compartment as
the engine cooling fan may
start to operate at any
moment without warning.
Risk of injury.
NU761_2_G4-ENG.qxp 1/5/2006 5:29 PM Page 4.10 (Black plate)
