TROUBLE DIAGNOSIS
EC-101
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

84 L/YElectrical load signal
(Headlamp signal)[Ignition switch: ON]

Lighting switch: 2ND position (placed in LOW
position for models with Xenon headlamp)BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Lighting switch: OFFApproximately 0V
85 LG DATA link connector[Ignition switch: ON]

CONSULT-II or GST is disconnectedBATTERY VOLTAGE
(11 - 14V)
86 GY/R CAN communication line[Ignition switch: ON]1.0 - 2.5V
89 G Cooling fan relay (High)[Engine is running]

Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is high speed operating0 - 1.0V
90 RSensor power supply
(Accelerator pedal position
sensor 1)[Ignition switch: ON]Approximately 5V
91 BR/YSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]Approximately 5V
93 BRElectrical load signal
(Rear window defogger
signal)[Ignition switch: ON]

Rear window defogger switch: ONBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Rear window defogger switch: OFFApproximately 0V
94 G/R CAN communication line[Ignition switch: ON]2.5 - 4.0V
96 LG/B Heater fan switch[Engine is running]

Heater fan switch: ONApproximately 0V
[Engine is running]

Heater fan switch: OFFBATTERY VOLTAGE
(11 - 14V)
97 PU Cooling fan relay (Low)[Ignition switch: ON]

Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Cooling fan is operating0 - 1.0V
98 B/WAccelerator pedal position
sensor 2[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released0.15 - 0.6V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed1.95 - 2.4V
99*
1W/R ASCD steering switch[Ignition switch: ON]

ASCD steering switch: OFFApproximately 4V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 2V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

EC-102
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)101 P Stop lamp switch[Ignition switch: OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
102 G/OR PNP switch[Ignition switch: ON]

Shift lever: P or N (A/T), Neutral (M/T)Approximately 0V
[Ignition switch: ON]

Except above positionA/T models
BATTERY VOLTAGE
(11 - 14V)
M/T models
Approximately 5V
104 W/BThrottle control motor
relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed3.9 - 4.7V
108*
1GY/L ASCD brake switch[Ignition switch: ON]

Brake pedal: Slightly depressed

Clutch pedal: Slightly depressed (M/T)Approximately 0V
[Ignition switch: ON]

Brake pedal: Fully released

Clutch pedal: Fully released (M/T)BATTERY VOLTAGE
(11 - 14V)
109 B/R Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 G/WECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition switch
OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds after turning ignition
switch OFFBATTERY VOLTAGE
(11 - 14V)
114 B/OR Fuel pump relay[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.0V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
11 5
11 6B
BECM ground[Engine is running]

Idle speedBody ground
11 9
120SB
GYPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

EC-104
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: ApplicableItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*
1FREEZE
FRAME
DATA*
2
SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor (PHASE)×××
Mass air flow sensor×××
Engine coolant temperature sensor×××××
Heated oxygen sensor 1×××××
Heated oxygen sensor 2×××××
Vehicle speed signal××××
Accelerator pedal position sensor×××
Throttle position sensor×××
Intake air temperature sensor××××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch
(accelerator pedal position sensor
signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Electrical load signal××
ASCD steering switch*
3×××
ASCD brake switch*
3×××
ASCD clutch switch*
3×××
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector×××
Power transistor (Ignition timing)×××
Throttle control motor relay×××
Throttle control motor×
EVAP canister purge volume control
solenoid valve××××
Air conditioner relay××
Fuel pump relay××××
Cooling fan relay××××
Heated oxygen sensor 1 heater××××
Heated oxygen sensor 2 heater××××
Intake valve timing control solenoid
valve××××
VIAS control solenoid valve×××
Calculated load value×××

TROUBLE DIAGNOSIS
EC-105
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-56, "
FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME
DATA" .
*3: For QR25DE engine models

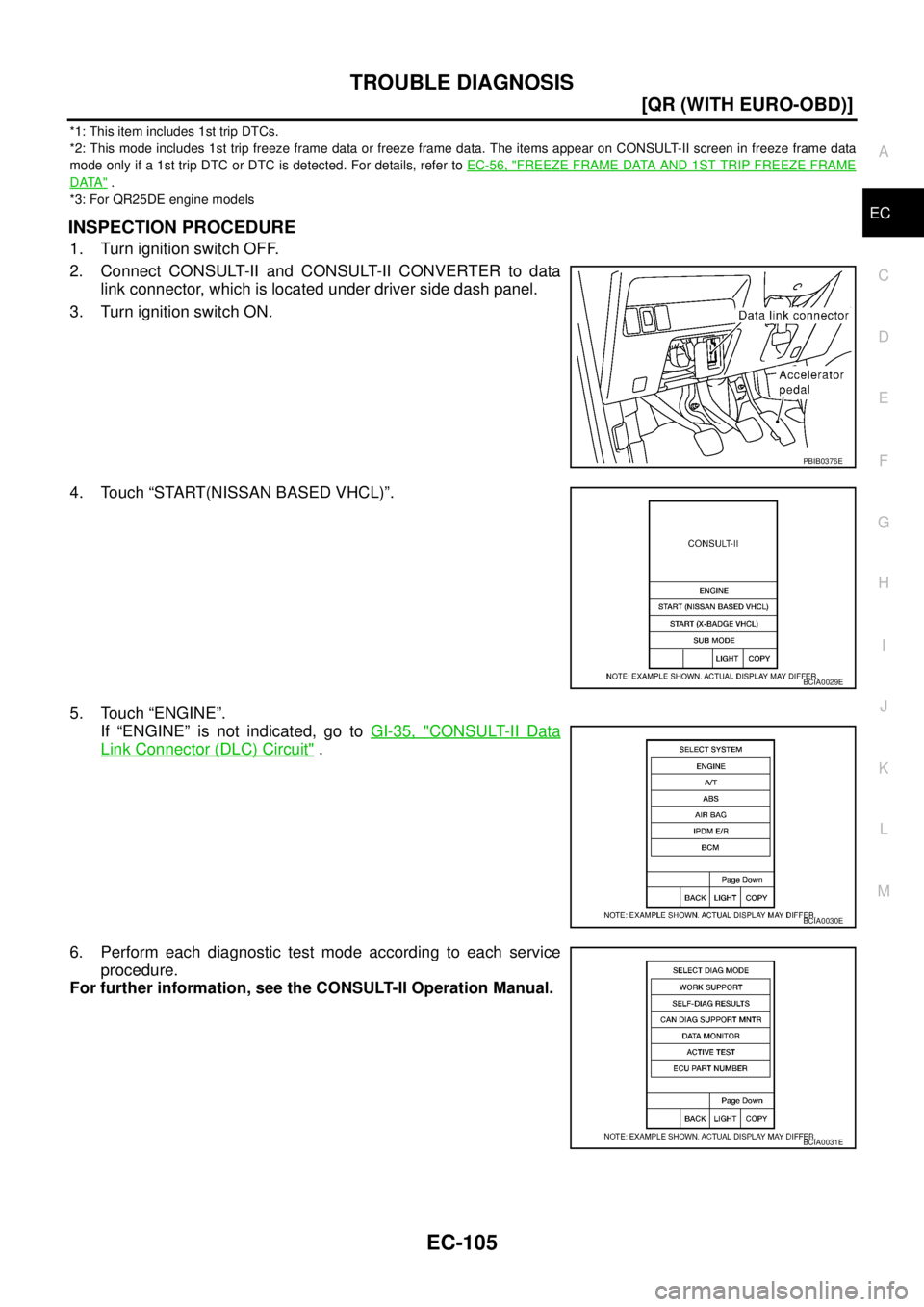

INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, which is located under driver side dash panel.
3. Turn ignition switch ON.
4. Touch “START(NISSAN BASED VHCL)”.
5. Touch “ENGINE”.
If “ENGINE” is not indicated, go to GI-35, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
PBIB0376E
BCIA0029E
BCIA0030E
BCIA0031E

EC-106
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-19, "INDEX FOR DTC" .
Freeze Frame Data and 1st Trip Freeze Frame Data
*: The items are the same as those of 1st trip freeze frame data.WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE

FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN

THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT

THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing the coefficient of
self-learning control value
TARGET IDLE RPM ADJ*

IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*

IDLE CONDITION When adjusting target ignition tim-
ing
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as PXXXX. (Refer to
EC-19, "
INDEX FOR DTC" .)
FUEL SYS-B1

“Fuel injection system status” at the moment a malfunction is detected is displayed.

One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP
[°C] or [°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]

“Long-term fuel trim” at the moment a malfunction is detected is displayed.

The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim.
S-FUEL TRM-B1 [%]

“Short-term fuel trim” at the moment a malfunction is detected is displayed.

The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule.
ENGINE SPEED
[rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE
[°C] or [°F]

The intake air temperature at the moment a malfunction is detected is displayed.

TROUBLE DIAGNOSIS
EC-107
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks
ENG SPEED [rpm]××

Indicates the engine speed computed from the
signals of the crankshaft position sensor
(POS) and camshaft position sensor (PHASE).

Accuracy becomes poor if engine
speed drops below the idle rpm.

If the signal is interrupted while
the engine is running, an abnor-
mal value may be indicated.
MAS A/F SE-B1 [V]××

The signal voltage of the mass air flow sensor
is displayed.
When the engine is stopped, a
certain value is indicated.
B/FUEL SCHDL
[msec]×

“Base fuel schedule” indicates the fuel injec-
tion pulse width programmed into ECM, prior
to any learned on board correction.
A/F ALPHA-B1 [%]×

The mean value of the air-fuel ratio feedback
correction factor per cycle is indicated.

When the engine is stopped, a
certain value is indicated.

This data also includes the data
for the air-fuel ratio learning con-
trol.
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (determined
by the signal voltage of the engine coolant
temperature sensor) is displayed.

When the engine coolant temper-
ature sensor is open or short-cir-
cuited, ECM enters fail-safe
mode. The engine coolant tem-
perature determined by the ECM
is displayed.
HO2S1 (B1) [V]××

The signal voltage of the heated oxygen sen-
sor 1 is displayed.
HO2S2 (B1) [V]×

The signal voltage of the heated oxygen sen-
sor 2 is displayed.
HO2S1 MNTR (B1)
[RICH/LEAN]××

Display of heated oxygen sensor 1 signal dur-
ing air-fuel ratio feedback control:
RICH: means the mixture became “rich”, and
control is being affected toward a leaner mix-
ture.
LEAN: means the mixture became “lean”, and
control is being affected toward a rich mixture.
After turning ON the ignition
switch, “RICH” is displayed until
air-fuel mixture ratio feedback
control begins.

When the air-fuel ratio feedback
is clamped, the value just before
the clamping is displayed contin-
uously.
HO2S2 MNTR (B1)
[RICH/LEAN]×

Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three
way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.

When the engine is stopped, a
certain value is indicated.
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed from the vehicle
speed signal is displayed.
BATTERY VOLT [V]××

The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]××

The accelerator pedal position sensor signal
voltage is displayed.

ACCEL SEN 2 signal is con-
verted by ECM internally. Thus, it
differs from ECM terminal voltage
signal. ACCEL SEN 2 [V]×
THRTL SEN 1 [V]××

The throttle position sensor signal voltage is
displayed.

THRTL SEN 2 signal is con-
verted by ECM internally. Thus, it
differs from ECM terminal voltage
signal. THRTL SEN 2 [V]×

EC-108
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

INT/A TEMP SE [°C]
or [°F]××
The intake air temperature (determined by the
signal voltage of the intake air temperature
sensor) is indicated.
START SIGNAL
[ON/OFF]××

Indicates start signal status [ON/OFF] com-
puted by the ECM according to the signals of
engine speed and battery voltage.
After starting the engine, [OFF] is
displayed regardless of the
starter signal.
CLSD THL POS
[ON/OFF]××

Indicates idle position [ON/OFF] computed by
the ECM according to the accelerator pedal
position sensor signal.
AIR COND SIG
[ON/OFF]××

Indicates [ON/OFF] condition of the air condi-
tioner switch as determined by the air condi-
tioner signal.
P/N POSI SW
[ON/OFF]××

Indicates [ON/OFF] condition from the park/
neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××

[ON/OFF] condition of the power steering
pressure sensor as determined by the power
steering pressure sensor is indicated.
LOAD SIGNAL [ON/
OFF]××

Indicates [ON/OFF] condition from the electri-
cal load signal.
ON: Rear window defogger switch is ON and/
or lighting switch is in 2nd position (placed in
LOW position for models with Xenon head-
lamp).
OFF: Both rear window defogger switch and
lighting switch are OFF.
IGNITION SW
[ON/OFF]×

Indicates [ON/OFF] condition from ignition
switch.
HEATER FAN SW
[ON/OFF]×

Indicates [ON/OFF] condition from the heater
fan switch signal.
BRAKE SW
[ON/OFF]×

Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1
[msec]×

Indicates the actual fuel injection pulse width
compensated by ECM according to the input
signals.
When the engine is stopped, a
certain computed value is indi-
cated.
IGN TIMING [BTDC]×

Indicates the ignition timing computed by ECM
according to the input signals.
When the engine is stopped, a
certain value is indicated.
CAL/LD VALUE [%]

“Calculated load value” indicates the value of
the current airflow divided by peak airflow.
MASS AIRFLOW
[g·m/s]

Indicates the mass airflow computed by ECM
according to the signal voltage of the mass air
flow sensor.
PURG VOL C/V [%]

Indicates the EVAP canister purge volume
control solenoid valve control value computed
by the ECM according to the input signals.

The opening becomes larger as the value
increases.
INT/V TIM (B1)
[°CA]

Indicates [°CA] of intake camshaft advanced
angle.
INT/V SOL (B1) [%]

The control value of the intake valve timing
control solenoid valve (determined by ECM
according to the input signal) is indicated.

The advance angle becomes larger as the
value increases Monitored item
[Unit]ECM
INPUT
SIGNALSMAIN
SIG-
NALSDescription Remarks

TROUBLE DIAGNOSIS
EC-111
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
*1:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-56, "SYSTEM READINESS TEST (SRT) CODE" .
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJECTION

Engine: Return to the original
trouble condition

Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Harness and connectors

Fuel injector

Heated oxygen sensor 1
IGNITION TIMING

Engine: Return to the original
trouble condition

Timing light: Set

Retard the ignition timing using
CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Perform Idle Air Volume Learning.
POWER BALANCE

Engine: After warming up, idle
the engine.

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

Cut off each injector signal one at
a time using CONSULT-II.Engine runs rough or dies.

Harness and connectors

Compression

Fuel injector

Power transistor

Spark plug

Ignition coil
COOLING FAN*
1

Ignition switch: ON

Turn the cooling fan LOW, HI,
OFF with CONSULT-II.Cooling fan moves and stops.

Harness and connectors

Cooling fan relay

Cooling fan motor
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector
FUEL PUMP RELAY

Ignition switch: ON (Engine
stopped)

Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the oper-
ating sound.
Harness and connectors

Fuel pump relay
VIAS SOL VALVE*
2

Ignition switch: ON

Turn solenoid valve ON and OFF
with CONSULT-II and listen for
operating sound.Solenoid valve makes an operat-
ing sound.
Harness and connectors

Solenoid valve
PURG VOL CONT/V

Engine: After warming up, run
engine at 1,500 rpm.

Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according
to the opening percent.
Harness and connectors

Solenoid valve
V/T ASSIGN ANGLE

Engine: Return to the original
trouble condition

Change intake valve timing using
CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Harness and connectors

Intake valve timing control sole-
noid valve
