2005 NISSAN X-TRAIL ignition

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING ...................................... 2
Schematic ................................................................ 2
Wiring Diagram — POWER — ................................. 3
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 3
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” ......................................... 7
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” .................................... 8
Fuse ....................................................................... 12
Fusible Link ............................................................ 12
Circuit Breaker ....................................................... 12
GROUND .................................................................. 13
Ground Distribution ................................................ 13
MAIN HARNESS/LHD MODELS ........................ 13
MAIN HARNESS/RHD MODELS ........................ 16
ENGINE ROOM HARNESS/LHD MODELS ....... 19
ENGINE ROOM HARNESS/RHD MODELS ....... 21
ENGINE ROOM HARNESS ................................ 23
ENGINE CONTROL HARNESS/GASOLINE
ENGINE MODELS .............................................. 24
ENGINE CONTROL HARNESS/DIESEL
ENGINE MODELS .............................................. 25
BODY HARNESS/LHD MODELS ....................... 26
BODY HARNESS/RHD MODELS ....................... 27
BODY NO. 2 HARNESS/LHD MODELS ............. 28
BODY NO. 2 HARNESS/RHD MODELS ............ 29
ROOM LAMP HARNESS .................................... 30
BACK DOOR SUB HARNESS/REAR WINDOW
DEFOGGER HARNESS ..................................... 31
HARNESS ................................................................. 32
Harness Layout ...................................................... 32
HOW TO READ HARNESS LAYOUTS ............... 32
OUTLINE/LHD MODELS .................................... 33
OUTLINE/RHD MODELS .................................... 34
MAIN HARNESS/LHD MODELS ........................ 35MAIN HARNESS/RHD MODELS ........................ 37
ENGINE ROOM HARNESS/LHD MODELS ........ 39
ENGINE ROOM HARNESS/RHD MODELS ....... 45
ENGINE CONTROL HARNESS .......................... 51
BODY HARNESS/LHD MODELS ....................... 56
BODY HARNESS/RHD MODELS ....................... 57
BODY NO. 2 HARNESS/LHD MODELS ............. 58
BODY NO. 2 HARNESS/RHD MODELS ............. 59
ROOM LAMP HARNESS .................................... 60
FRONT DOOR HARNESS/LHD MODELS .......... 61
FRONT DOOR HARNESS/RHD MODELS ......... 62
REAR DOOR HARNESS .................................... 63
BACK DOOR HARNESS .................................... 64
Wiring Diagram Codes (Cell Codes) ...................... 65
ELECTRICAL UNITS LOCATION ............................ 69
Electrical Units Location ......................................... 69
ENGINE COMPARTMENT .................................. 69
PASSENGER COMPARTMENT/LHD MODELS ... 70
PASSENGER COMPARTMENT/RHD MODELS ... 72
HARNESS CONNECTOR ......................................... 74
Description .............................................................. 74
HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 74
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 75
ELECTRICAL UNITS ................................................ 76
Terminal Arrangement ............................................ 76
STANDARDIZED RELAY .......................................... 77
Description .............................................................. 77
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 77
TYPE OF STANDARDIZED RELAYS ................. 77
FUSE BLOCK - JUNCTION BOX (J/B) .................... 79
Terminal Arrangement ............................................ 79
FUSE AND FUSIBLE LINK BOX .............................. 80
Terminal Arrangement ............................................ 80

POWER SUPPLY ROUTING
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG

Wiring Diagram — POWER — EKS00323
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWA1634E

POWER SUPPLY ROUTING
PG-7
C
D
E
F
G
H
I
J
L
MA
B
PG

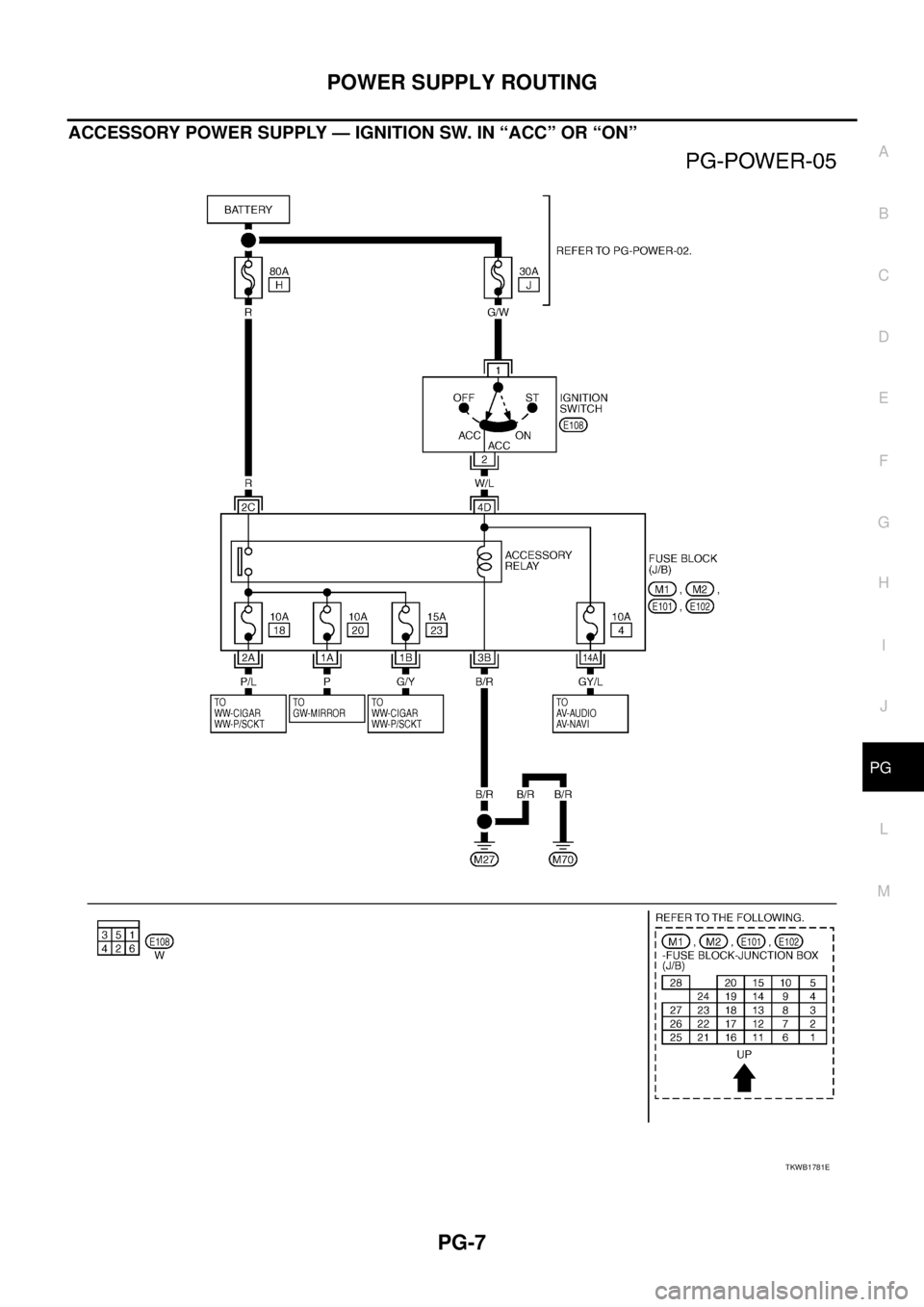

ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON”
TKWB1781E

PG-8
POWER SUPPLY ROUTING

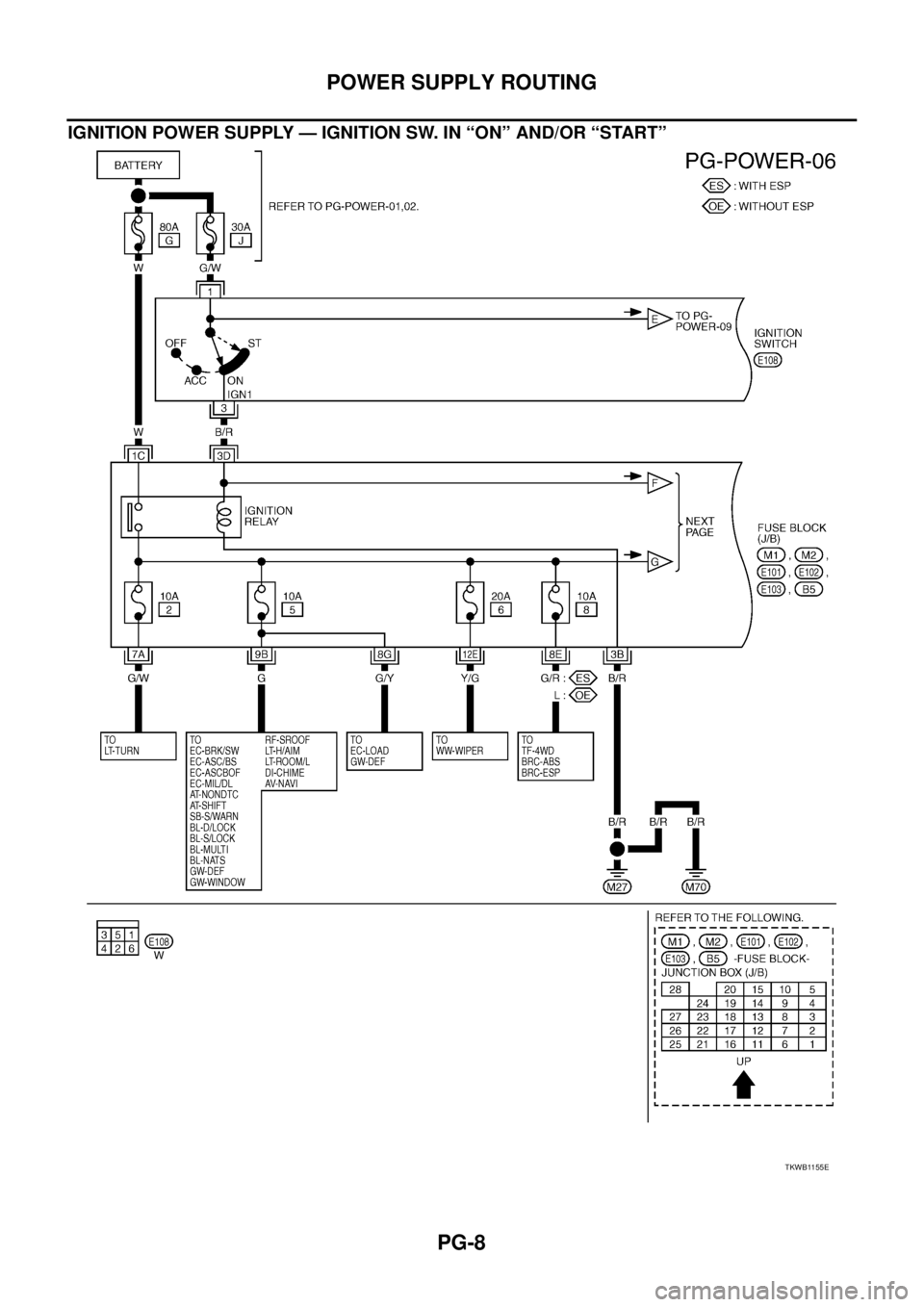

IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START”
TKWB1155E

PG-66
HARNESS

ESP BRC ESP/TCS/ABS Control System
ETC1 EC Electric Throttle Control Function
ETC2 EC Electric Throttle Control Motor Relay
ETC3 EC Electric Throttle Control Motor
F/FOG LT Front Fog Lamp
F/PUMP EC Fuel Pump
FIAR EC Fuel Injector Adjustment Resistor
FRO2 EC Front Heated Oxygen Sensor
FRO2/H EC Front Heated Oxygen Sensor Heater
FRPS EC Fuel Rail Pressure Sensor
FTP EC Fuel Transport Pump
FTS AT A/T Fluid Temperature Sensor Circuit
FTS EC Fuel Temperature Sensor
FUEL EC Fuel Injection System Function
GLORLY EC Glow Relay
GLOW EC Glow Control System
H/AIM LT Headlamp Aiming Control System
H/LAMP LT Headlamp
HEATER MTC Heater System
HLC WW Headlamp Cleaner
HO2S1 EC Heated Oxygen Sensor 1
HO2S1H EC Heated Oxygen Sensor 1 Heater
HO2S2 EC Heated Oxygen Sensor 2
HO2S2H EC Heated Oxygen Sensor 2 Heater
HORN WW Horn
HSEAT SE Heated Seat
IATS EC Intake Air Temperature Sensor
IATSEN EC Intake Air Temperature Sensor
IGNSYS EC Ignition System
ILL LT Illumination
INJ/PW EC Fuel Injector Power Supply Circuit
INJECT EC Fuel Injector
INT/L LT Map Lamp
IVC EC Intake Valve Timing Control Solenoid Valve
KS EC Knock Sensor
LOAD EC Electrical Load Signal
LPSV AT Line Pressure Solenoid Valve
MAFS EC Mass Air Flow Sensor
MAIN AT Main Power Supply and Ground Circuit
MAIN EC Main Power Supply and Ground Circuit
METER DI Speedometer, Tachometer, Temp. and Fuel Gauges
MIL/DL EC MIL & Data Link Connector
MIRROR GW Door Mirror
MULTI BL Multi-Remote Control SystemCode Section Wiring Diagram Name

MA-26
ENGINE MAINTENANCE (QR20DE·QR25DE)

3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
INSPECTION AFTER INSTALLATION
1. Start engine, and make sure there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and adjust engine oil. Refer to MA-24, "
Changing Engine Oil" .
Checking and Changing Spark PlugsELS000ZK
REMOVAL
1. Remove ignition coil. Refer to EM-31, "IGNITION COIL" .
2. Remove spark plug with spark plug wrench (commercial service
tool).
CAUTION:
Do not drop or shock it.
INSPECTION AFTER REMOVAL (EXCEPT FOR RUSSIA)
Use standard type spark plug for normal condition.
Hot type spark plug is suitable when fouling occurs with standard type spark plug under conditions such as:

Frequent engine starts

Low ambient temperatures
Cold type spark plug is suitable when spark plug knock occurs with standard type spark plug under conditions
such as:

Extended highway driving

Frequent high engine revolution

Check plug gap of each spark plug.

If out of standard, adjust or replace spark plug.

Use a wire brush for cleaning, if necessary.Oil filter:
: 17.6 N·m (1.8 kg-m, 13 ft-lb)
SMA229B
SEM294A
MakeNGK
Standard typeLFR5A-11
Hot typeLFR4A-11
Cold typeLFR6A-11
Standard :1.0 - 1.1 mm (0.039 - 0.043 in)
SMA476
