2005 NISSAN X-TRAIL change time

TF-34
TROUBLE DIAGNOSIS

ACTIVE TEST MODE
Description
Use this mode to determine and identify the details of a malfunction based on self-diagnostic results or data
monitor. 4WD control unit gives drive signal to actuator with receiving command from CONSULT-II to check
operation of actuator.
Test Item
CAUTION:
Do not continuously energize for a long time.
4WD CONTROL UNIT PART NUMBER
Ignore the 4WD control unit part number displayed in the “ECU PART NUMBER”.
Refer to parts catalog to order the 4WD control unit.
4WD MODE MON [2WD/AUTO/LOCK] – –×Control status of 4WD is displayed.
(Output condition of 4WD LOCK indicator
lamp signal)
DIS-TIRE MONI [mm] – –×Improper size tire installed condition is dis-
played.
P BRAKE SW [ON/OFF] – –×Parking switch signal status via CAN com-
munication line is displayed.
Voltage [V] – –×The value measured by the voltage probe
is displayed.
Frequency [Hz] – –×
The value measured by the pulse probe is
displayed. DUTY-HI (high) [%] – –×
DUTY-LOW (low) [%] – –×
PLS WIDTH-HI [msec] – –×
PLS WIDTH-LOW [msec] – –× Monitor item (Unit)SELECT MONITOR ITEM
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
Test item Condition Description
ETS S/V
(Detects 4WD solenoid)

Vehicle stopped

Engine running

No DTC detected

Change command current value to 4WD solenoid, and then change driv-
ing mode. (Monitor value is normal if it is within approximately ±10% of
command value.)
Qu: Increase current value in increments of 0.20A
Qd: Decrease current value in increments of 0.20A
UP: Increase current value in increments of 0.02A
DOWN: Decrease current value in increments of 0.02A

TRANSFER ASSEMBLY
TF-63
C
E
F
G
H
I
J
K
L
MA
B
TF

4. Using the preload gauge, measure the preload torque of the pin-
ion bearing.
CAUTION:
Every rotational part shall rotate smoothly with the speci-
fied gear oil.

If measured value is out of the specification, disassemble the
pinion sleeve assembly to check and adjust each part.
Total Preload Torque
1. Measure pinion bearing preload torque (P1 ). Refer to TF-62, "Pinion Bearing Preload Torque" .
2. Install the pinion sleeve shims and pinion sleeve assembly.
3. Rotate the companion flange at least 20 times to check for smooth operation of the bearing.
4. Using the preload gauge, measure the total preload torque.

If measured value is out of the specification, disassemble it to
check and adjust each part. If measuring the total preload
torque after the disassembly, measure it with the transfer case oil seals and gear ring oil seals
removed, then install the oil seals.
Companion Flange Runout
1. Fit a dial indicator onto the companion flange face (inner side of
the propeller shaft mounting bolt holes).
2. Rotate the companion flange to check for runout.
3. Fit a test indicator to the inner side of the companion flange
(socket diameter).
4. Rotate the companion flange to check for runout.
5. If the runout value is outside the repair limit, follow the procedure
below to adjust.
a. While changing the phase between companion flange and drive pinion gear by 90° at a time, check runout
and determine which phase angle minimizes the runout.
b. If the runout value is still outside of the limit after the phase has been changed, replace the companion
flange.
c. If the runout is out of the specification after replacement of companion flange, adjust the assembly status
of the pinion bearings and drive pinion gear, or replace the pinion bearings.Tool number : ST3127S000
Preload torque
: 0.10 - 0.39 N·m (0.01 - 0.04 kg-m, 1 - 3 in-lb)
SDIA2076E
Pinion bearing preload torque (P1)
: 0.10 - 0.39 N·m (0.01 - 0.04 kg-m, 1 - 3 in-lb)
Tool number : ST3127S000
Total preload torque
With all oil seals
: P
1 + 0.16 - 0.22 N·m (0.016 - 0.023 kg-m, 1.4 - 1.9 in-lb)
Without transfer case oil seal and adapter case oil seal
: P
1 + 0.06 - 0.12 N·m (0.006 - 0.013 kg-m, 0.6 - 1.1 in-lb)
SDIA2077E
Runout limit : 0.1 mm (0.004 in)
Runout limit : 0.1 mm (0.004 in)
SDIA2078E

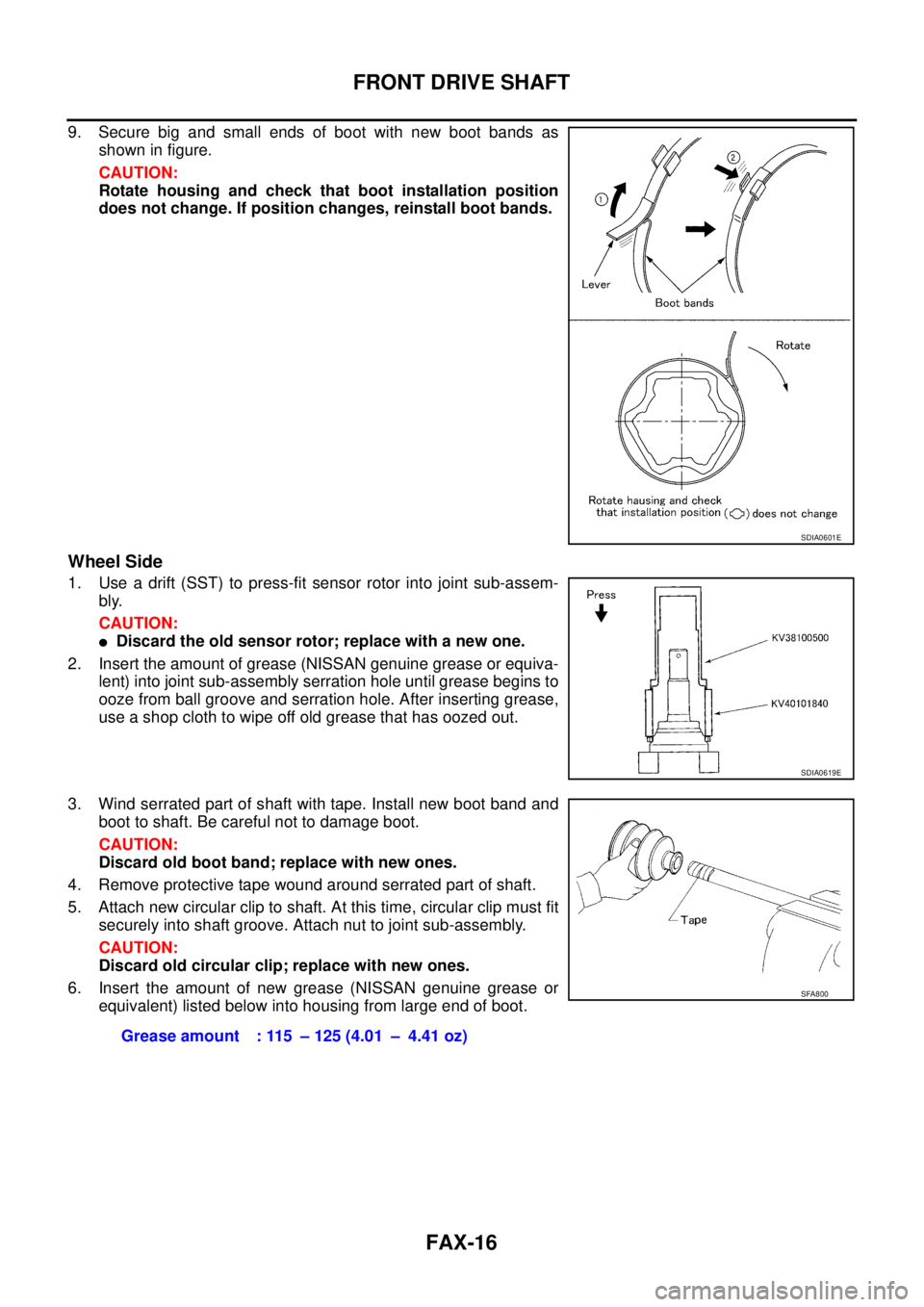

FAX-16
FRONT DRIVE SHAFT

9. Secure big and small ends of boot with new boot bands as
shown in figure.
CAUTION:
Rotate housing and check that boot installation position
does not change. If position changes, reinstall boot bands.
Wheel Side
1. Use a drift (SST) to press-fit sensor rotor into joint sub-assem-
bly.
CAUTION:

Discard the old sensor rotor; replace with a new one.
2. Insert the amount of grease (NISSAN genuine grease or equiva-
lent) into joint sub-assembly serration hole until grease begins to
ooze from ball groove and serration hole. After inserting grease,
use a shop cloth to wipe off old grease that has oozed out.
3. Wind serrated part of shaft with tape. Install new boot band and
boot to shaft. Be careful not to damage boot.
CAUTION:
Discard old boot band; replace with new ones.
4. Remove protective tape wound around serrated part of shaft.
5. Attach new circular clip to shaft. At this time, circular clip must fit
securely into shaft groove. Attach nut to joint sub-assembly.
CAUTION:
Discard old circular clip; replace with new ones.
6. Insert the amount of new grease (NISSAN genuine grease or
equivalent) listed below into housing from large end of boot.
SDIA0601E
SDIA0619E
Grease amount : 115 – 125 (4.01 – 4.41 oz)
SFA800

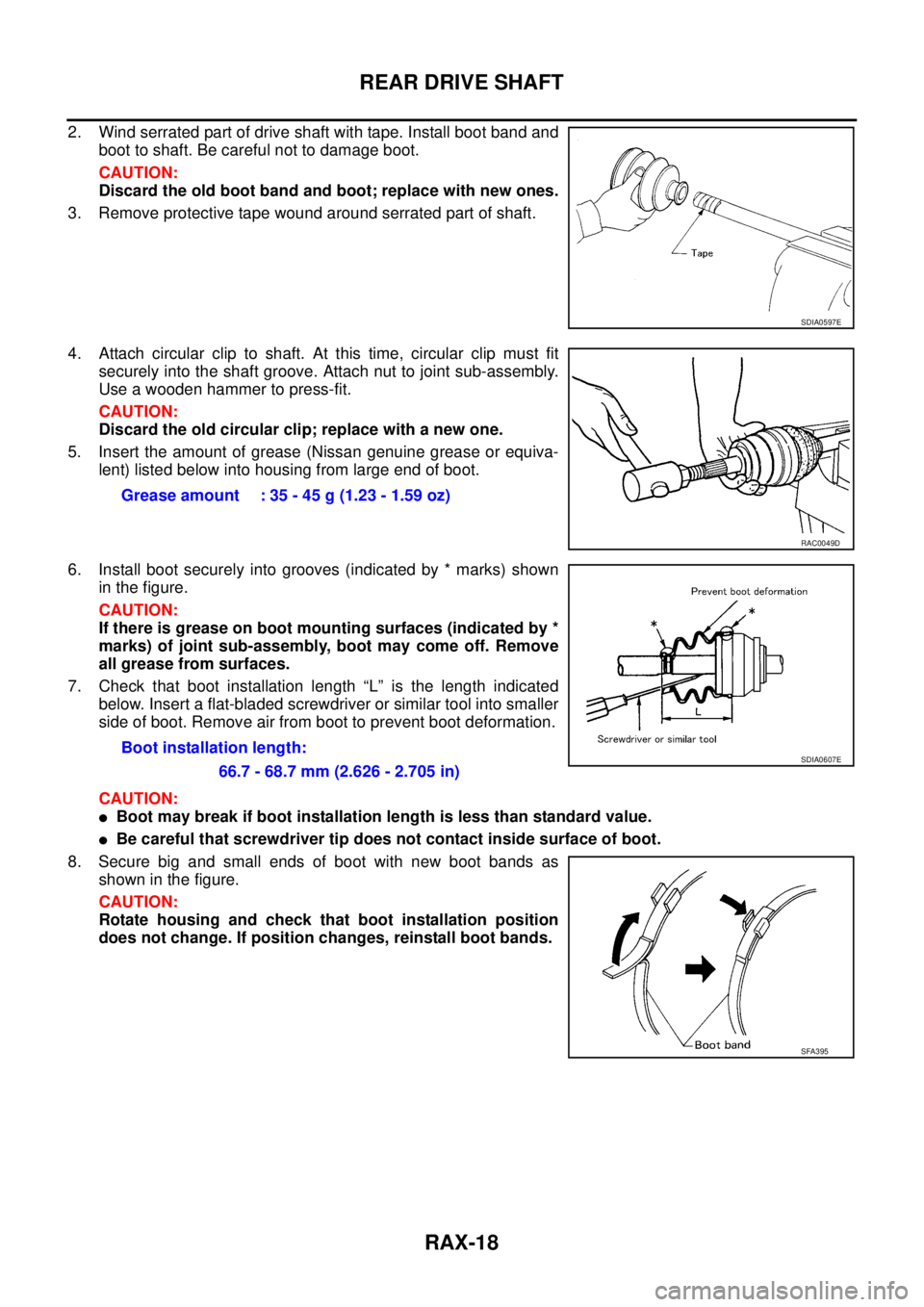

RAX-18
REAR DRIVE SHAFT

2. Wind serrated part of drive shaft with tape. Install boot band and
boot to shaft. Be careful not to damage boot.
CAUTION:
Discard the old boot band and boot; replace with new ones.
3. Remove protective tape wound around serrated part of shaft.
4. Attach circular clip to shaft. At this time, circular clip must fit
securely into the shaft groove. Attach nut to joint sub-assembly.
Use a wooden hammer to press-fit.
CAUTION:
Discard the old circular clip; replace with a new one.
5. Insert the amount of grease (Nissan genuine grease or equiva-
lent) listed below into housing from large end of boot.
6. Install boot securely into grooves (indicated by * marks) shown
in the figure.
CAUTION:
If there is grease on boot mounting surfaces (indicated by *
marks) of joint sub-assembly, boot may come off. Remove
all grease from surfaces.
7. Check that boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Remove air from boot to prevent boot deformation.
CAUTION:

Boot may break if boot installation length is less than standard value.

Be careful that screwdriver tip does not contact inside surface of boot.
8. Secure big and small ends of boot with new boot bands as
shown in the figure.
CAUTION:
Rotate housing and check that boot installation position
does not change. If position changes, reinstall boot bands.
SDIA0597E
Grease amount : 35 - 45 g (1.23 - 1.59 oz)
RAC0049D
Boot installation length:
66.7 - 68.7 mm (2.626 - 2.705 in)SDIA0607E
SFA395

BRAKE BOOSTER
BR-23
C
D
E
G
H
I
J
K
L
MA
B
BR

BRAKE BOOSTERPFP:47200
On-Vehicle Inspection and ServiceEFS000CC
FUNCTION INSPECTION
With engine stopped, discharge stored vacuum by depressing brake
pedal several times at 5 second intervals. With brake pedal fully
depressed, start the engine. Confirm that clearance between brake
pedal and floor panel decreases when engine vacuum stabilizes.
AIRTIGHTNESS INSPECTION

Run engine at idle for approximately 1 minute. Stop it after
applying vacuum to the booster. Depress brake pedal several
times with normal force to discharge the stored vacuum. Con-
firm that clearance between brake pedal and floor panel gradu-
ally increases as the brake pedal is depressed.

Run engine. Depress and hold brake pedal then stop engine.
Keep brake pedal depressed for 30 seconds or more and make
sure the pedal stroke does not change.
Removal and InstallationEFS000CD
REMOVAL
CAUTION:

Be careful not to deform or bend brake piping while remov-
ing and installing brake booster.

Replace clevis pin if it is damaged.

Be careful not to damage brake booster stud bolt threads. If
brake booster is tilted or inclined during installation, dash
panel may damage the threads.

Be sure to install check valve in the correct orientation.
1. Remove vacuum piping from the brake booster.
2. Remove master cylinder.
3. Remove snap pin and clevis pin on the clevis of input rod. Remove input rod from the brake pedal.
4. Remove brake booster and brake pedal assembly mounting nuts.
5. Remove booster assembly from the engine compartment.
BRA0037D
SBR365AA
SFIA0139E

FRONT DISC BRAKE
BR-31
C
D
E
G
H
I
J
K
L
MA
B
BR

2. Apply brake fluid or rubber lubricant to piston boots. Cover pis-
ton end with piston boot. Install cylinder side boot lip properly
into groove on cylinder body.
CAUTION:
Do not reuse piston boot.
3. Apply brake fluid to piston. Press piston into cylinder body by
hand. Assemble piston side boot lip properly into groove on pis-
ton.
CAUTION:
Press piston evenly and change pressing point to prevent
cylinder inner wall from being rubbed.
BRAKE BURNISHING PROCEDURE
Burnish the brake pad contact surfaces according to the following procedure after refinishing or replacing
drums or rotors, after replacing pads or linings, or if a soft pedal occurs at very low mileage.
CAUTION:
Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1. Drive vehicle on a straight smooth road at 50 km/h (31 MPH).
2. Use medium brake pedal/foot effort to bring vehicle to a complete stop from 50 km/h (31 MPH).
Adjust brake pedal/foot pressure such that vehicle stopping time equals 3 to 5 seconds.
3. To cool the brake system, drive vehicle at 50 km/h (31 MPH) for 1 minute without stopping.
4. Repeat steps 1 to 3, 10 times or more to complete the burnishing procedure.
SFIA0155E
SBR574

BRC-88
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS

For Fast and Accurate DiagnosisEFS005W4
PRECAUTIONS FOR DIAGNOSIS

Before performing diagnosis, always read precautions. Refer to BRC-60, "How to Proceed With Diagno-
sis" .

If ESP/TCS/ABS control unit steering angle sensor, steering system parts or suspension system parts
have been replaced, or if alignment has been adjusted, be sure to adjust neutral position of steering angle
sensor before driving. Refer to BRC-52, "
Adjustment of Steering Angle Sensor Neutral Position" .

After diagnosis is finished, be sure to erase memory. Refer to BRC-81, "SELF-DIAGNOSIS" .

When checking continuity and voltage between units, be sure to check for disconnection, looseness,
bend, or collapse of connector terminals. If any malfunction is found, repair or replace connector termi-
nals.

For intermittent symptoms, possible cause is malfunction in harness, harness connector, or terminals.
Move harness, harness connector, and terminals to check for poor connections.

If a circuit tester is used for the check, be careful not to forcibly extend any connector terminal.

To use CONSULT-II to perform self-diagnosis of ESP/TCS/ABS control unit active tests, or work support,
first stop work, then connect CONSULT-II and select “ABS”.

While self-diagnostic results of CONSULT-II shows malfunction, if CONSULT-II active test is performed,
an engine system malfunction may be indicated. In this case, start engine to resume the normal screen.

ESP/TCS/ABS system electronically controls brake operation and engine output. The following symptoms
may be caused by normal operations:
ON and OFF Timing for ABS Warning Lamp, ESP OFF Indicator Lamp, SLIP Indicator Lamp,
Brake Warning Lamp
×: ON –: OFF Symptom Symptom description Result
Motor operation noiseThis is noise of motor inside ESP/TCS/ABS control unit. Slight noise
may occur during ESP, TCS, and ABS operation.
Normal
When the vehicle speed goes over 20 km/h (12.5 MPH), motor and
valves operating noise may be heard. It happens only once after ignition
switch is ON. This is a normal status of the system operation check.
System operation check
noiseWhen engine starts, slight “click” noise may be heard from engine room.
This is normal and is part of system operation check.Normal
ESP/TCS operation
(SLIP indicator lamp blink-
ing)TCS may activate momentarily if wheel speed changes when driving
over location where friction coefficient varies, when downshifting, or
when fully depressing accelerator pedal.Normal
Cancel the ESP/TCS
function for the
inspection on a chas-
sis dynamometer. When checking speed meter etc. with a 2-wheel-drive chassis dyna-
mometer, vehicle speed is not increased by pressing down on the accel-
erator.
ABS operation (Longer stop-
ping distance)On roads with low friction coefficients, such as snowy roads or gravel
roads, vehicles with ABS may require a longer stopping distance. There-
fore, when driving on such roads, avoid overconfidence and keep speed
sufficiently low.Normal
Insufficient feeling of accel-
erationDepending on road conditions, driver may feel that feeling of accelera-
tion is insufficient. This is because traction control, which controls
engine and brakes to achieve optimal traction, has the highest priority
(for safety). As a result, there may be times when acceleration is slightly
less than usual for the same accelerator pedal operation.Normal
ConditionABS warning
lampESP OFF indi-
cator lampSLIP indicator
lampBrake warning
lamp [Note 1]Remarks
Ignition SW OFF. – – – – –
Approx. 2 seconds after igni-
tion switch is turned ON.×××× [Note 2] –
Approx. 2 seconds later after
ignition switch ON.–––× [Note 2]Go out 2 seconds after
ignition switch is turned
ON.

PRECAUTIONS
ATC-11
C
D
E
F
G
H
I
K
L
MA
B
AT C

SERVICE HOSES
Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite the manifold gauge.
SERVICE COUPLERS
Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.
REFRIGERANT WEIGHT SCALE
Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2″-16
ACME.
CALIBRATING ACR4 WEIGHT SCALE
Calibrate the scale every three months.
To calibrate the weight scale on the ACR4:
1. Press Shift/Reset and Enter at the same time.
2. Press 8787 . “A1 ” will be displayed.
3. Remove all weight from the scale.
4. Press 0 , then press Enter . “0.00 ” will be displayed and change to “A2 ”.
5. Place a known weight (dumbbell or similar weight), between 4.5 and 8.6 kg (10 and 19 lb) on the center of
the weight scale.
6. Enter the known weight using four digits. (Example 10 lb = 10.00, 10.5 lb = 10.50)
7. Press Enter — the display returns to the vacuum mode.
8. Press Shift/Reset and Enter at the same time.
9. Press 6 — the known weight on the scale is displayed.
10. Remove the known weight from the scale. “0.00 ” will be displayed.
11 . P r e s s Shift/Reset to return the ACR4 to the program mode.
RHA272D
Shut-off valve rotation A/C service valve
Clockwise Open
Counterclockwise Close
RHA273D
RHA274D
