2005 NISSAN X-TRAIL diagram

A/T INDICATOR
DI-53
C
D
E
F
G
H
I
J
L
MA
B
DI

A/T INDICATORPFP:24814

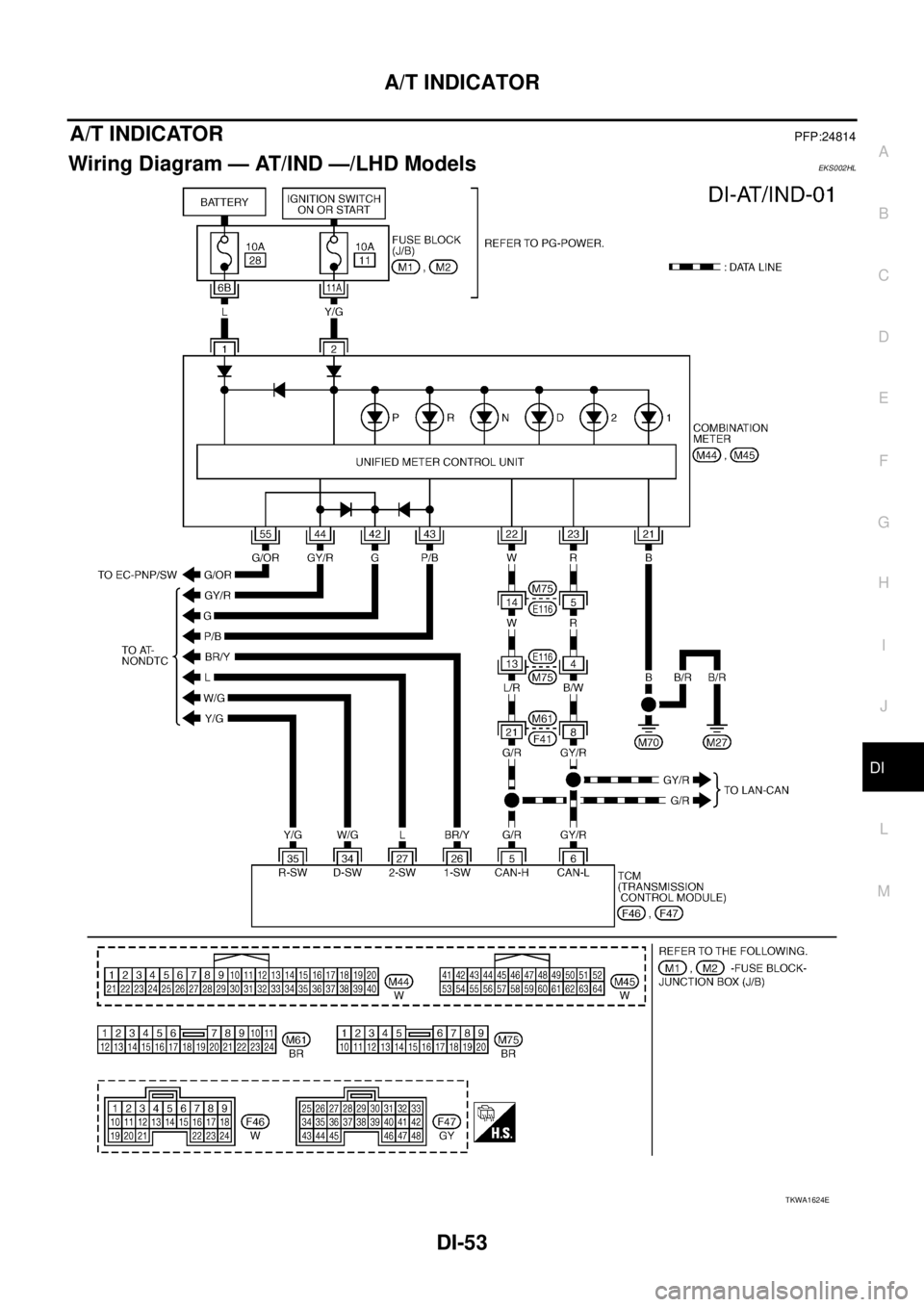

Wiring Diagram — AT/IND —/LHD ModelsEKS002HL
TKWA1624E

DI-54
A/T INDICATOR

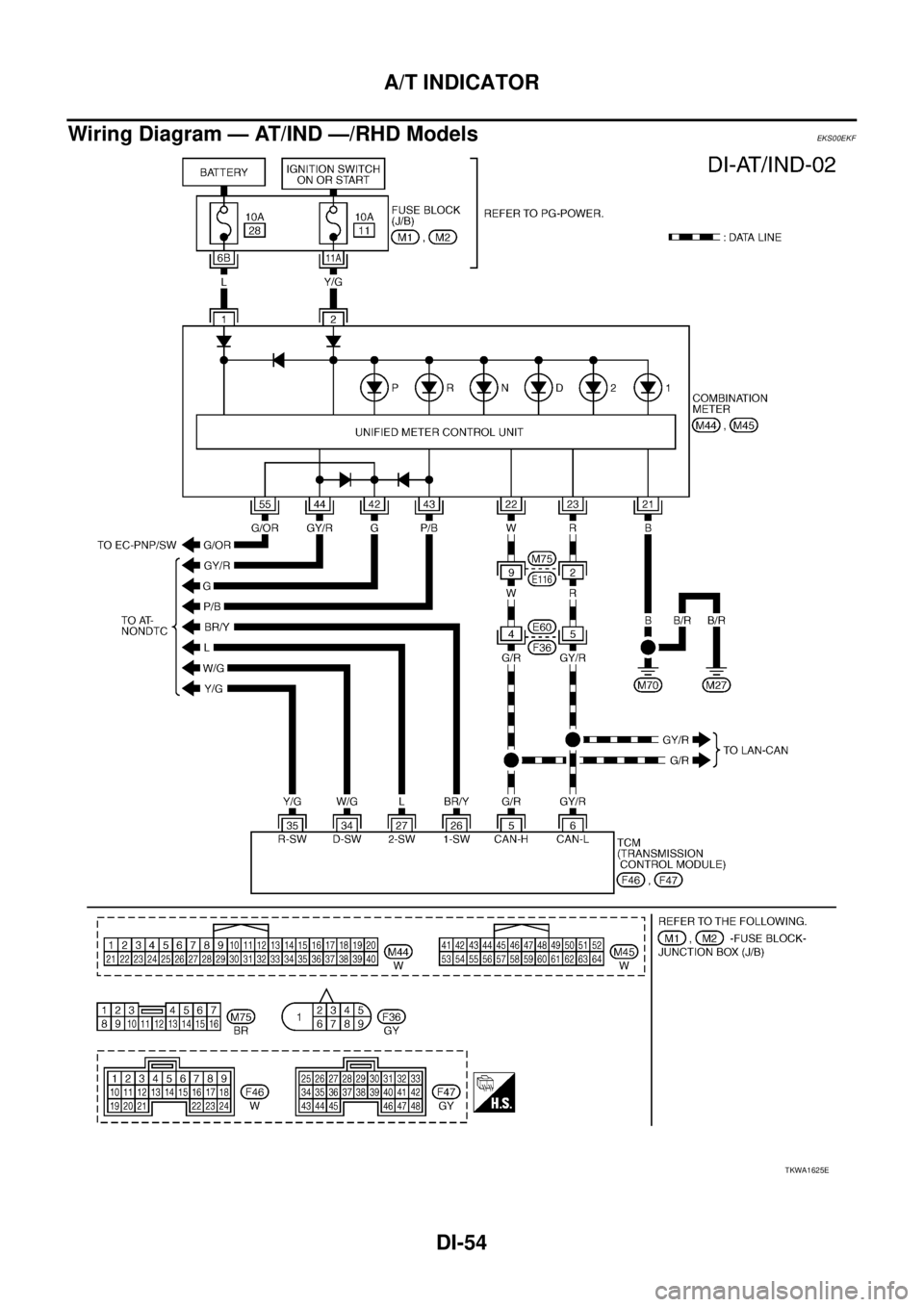

Wiring Diagram — AT/IND —/RHD ModelsEKS00EKF
TKWA1625E

WARNING CHIME
DI-57
C
D
E
F
G
H
I
J
L
MA
B
DI

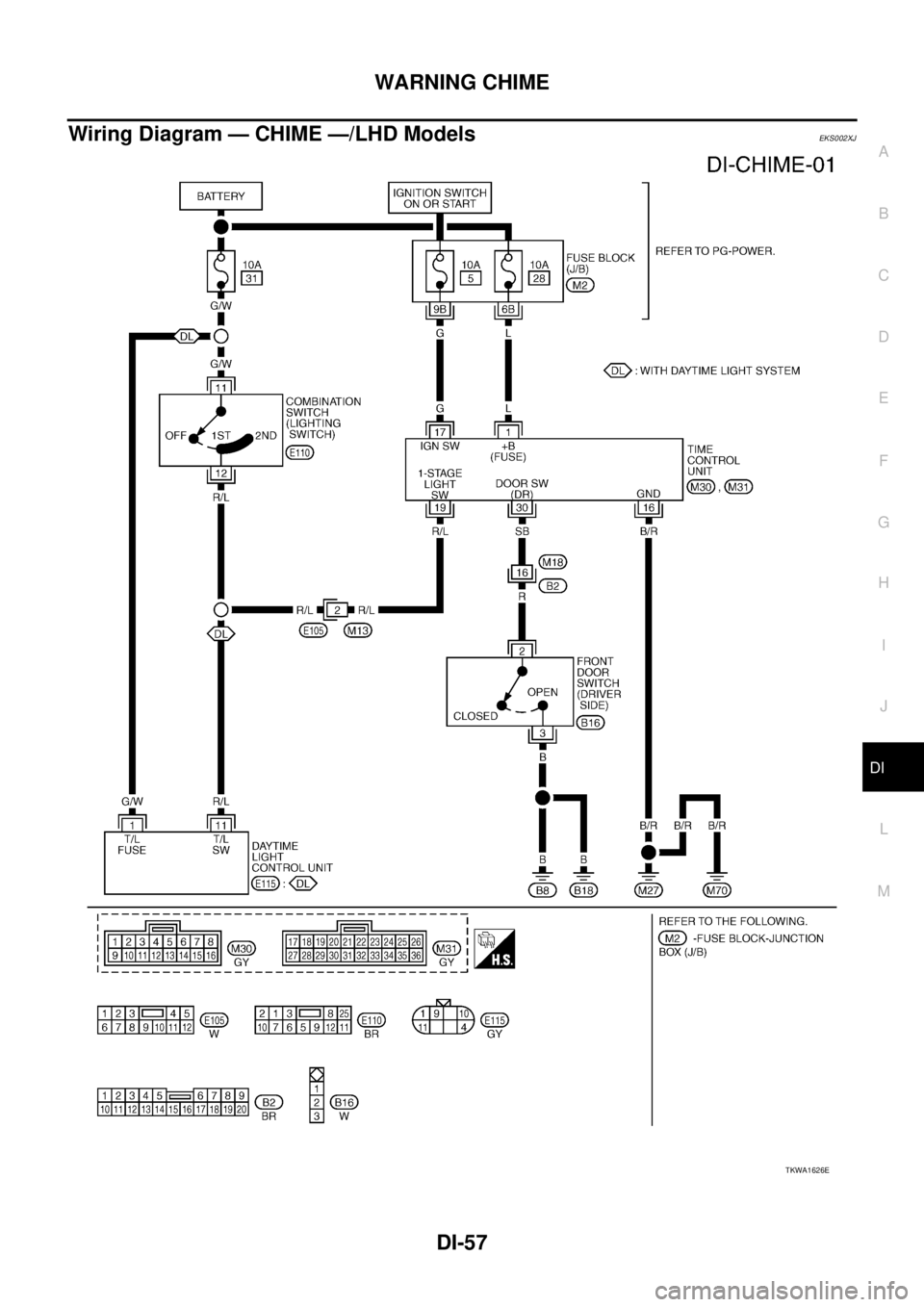

Wiring Diagram — CHIME —/LHD ModelsEKS002XJ
TKWA1626E

DI-58
WARNING CHIME

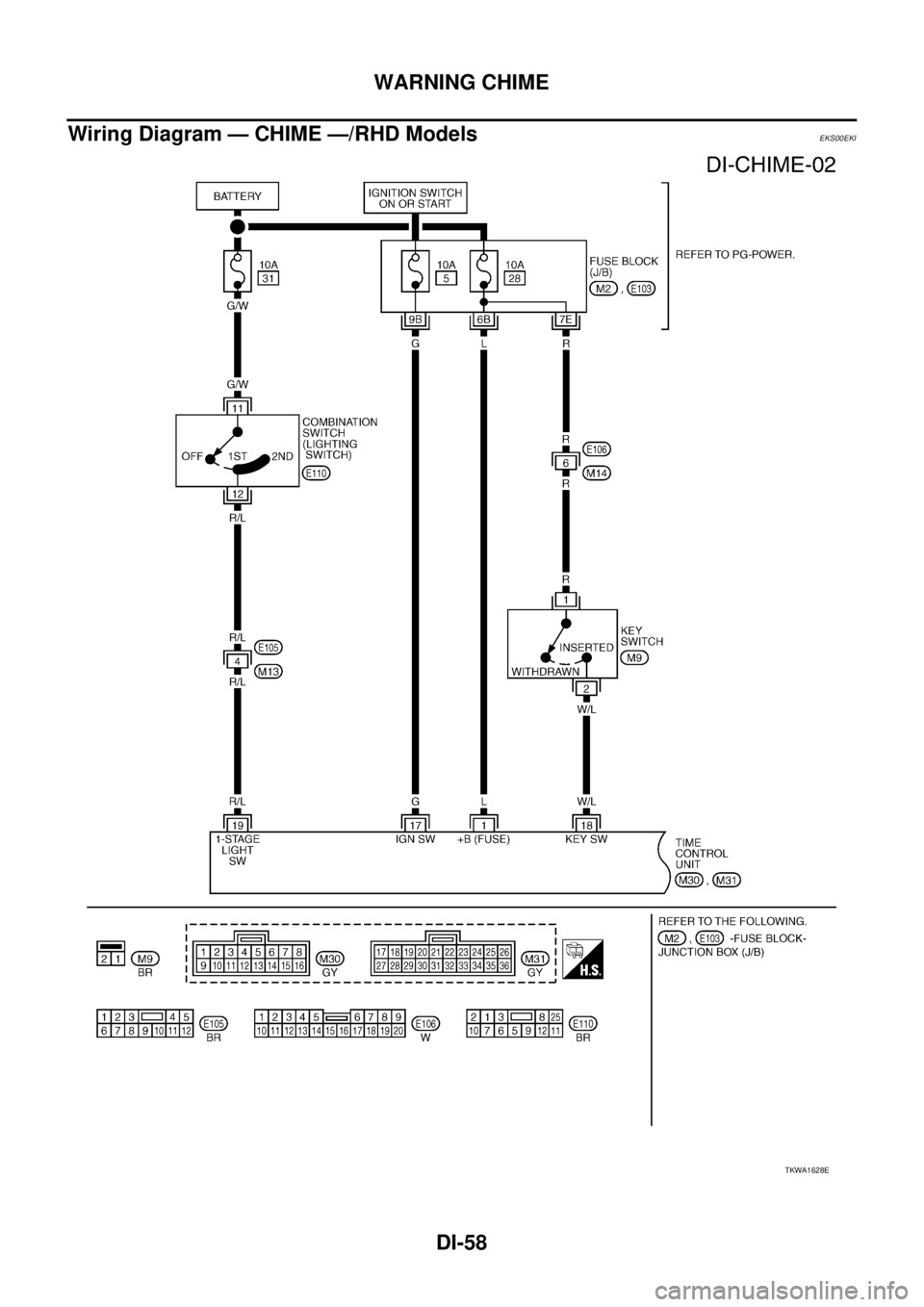

Wiring Diagram — CHIME —/RHD ModelsEKS00EKI
TKWA1628E

CLOCK
DI-63
C
D
E
F
G
H
I
J
L
MA
B
DI

CLOCKPFP:25820
Wiring Diagram — CLOCK —EKS002I5
TKWA1630E

WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION WW
A
B
WW

WIPER, WASHER & HORN
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
FRONT WIPER AND WASHER SYSTEM .................. 4
System Description .................................................. 4
WIPER OPERATION ............................................ 4
WASHER OPERATION ......................................... 5
Wiring Diagram — WIPER — .................................. 6
Wiring Diagram — WIPER —/LHD models .............. 7
Terminal and Reference Values for Combination
Switch ....................................................................... 8
Removal and Installation of Front Wiper Arms,
Adjustment for Wiper Arms Stop Location ............... 8
Removal and Installation of Front Wiper Drive
Assembly .................................................................. 9
REMOVAL ............................................................. 9
INSTALLATION ................................................... 10
Front Washer Nozzle Adjustment ............................ 11
Washer Tube Layout ............................................... 11
Removal and Installation of Front Washer Nozzle ... 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Inspection for Front Washer Nozzle ....................... 12
CHECK VALVE ................................................... 12
Removal and Installation of Wiper and Washer
Switch ..................................................................... 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Removal and Installation of Washer Tank .............. 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
Removal and Installation of Washer Motor ............ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
REAR WIPER AND WASHER SYSTEM .................. 14
Wiring Diagram — WIP/R — .................................. 14
Terminal and Reference Values for Combination
Switch ..................................................................... 16Removal and Installation of Rear Wiper Arms ........ 16
WIPER ARMS ..................................................... 16
Removal and Installation of Rear Wiper Motor ....... 17
REMOVAL ........................................................... 17
INSTALLATION ................................................... 17
Rear Washer Nozzle Adjustment ........................... 18
Removal and Installation of Rear Washer Nozzle ... 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18
Inspection for Rear Washer Nozzle ........................ 18
CHECK VALVE .................................................... 18
Removal and Installation of Wiper and Washer
Switch ..................................................................... 19
Removal and Installation of Washer Tank .............. 19
Removal and Installation of Washer Motor ............. 19
Washer Tube Layout .............................................. 19
HEADLAMP WASHER ............................................. 20
System Description ................................................. 20
Wiring Diagram —HLC— ....................................... 21
Wiring Diagram —HLC—/RHD models .................. 23
Removal and Installation of Headlamp Washer Noz-
zle ........................................................................... 25
REMOVAL ........................................................... 25
INSTALLATION ................................................... 25
Inspection for Headlamp Washer Nozzle ............... 25
CHECK VALVE .................................................... 25
Removal and Installation of Washer Tank .............. 25
Removal and Installation of Washer Motor ............. 25
Washer Tube Layout .............................................. 26
HORN ........................................................................ 27
Wiring Diagram — HORN — .................................. 27
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28
CIGARETTE LIGHTER ............................................. 29
Wiring Diagram — CIGAR — ................................. 29
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 30
POWER SOCKET ..................................................... 31

WW-2 Wiring Diagram —POWER SOCKET— ................. 31
Removal and Installation of Front Power Socket
(Driver Box) ............................................................ 32
REMOVAL ........................................................... 32
INSTALLATION .................................................... 32
Removal and Installation of Front Power Socket (Center Console) ..................................................... 32
REMOVAL ............................................................ 32
INSTALLATION .................................................... 32
Removal and Installation of Rear Power Socket ..... 32
REMOVAL ............................................................ 32
INSTALLATION .................................................... 32

PRECAUTIONS
WW-3
C
D
E
F
G
H
I
J
L
MA
B
WW

PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0079K
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Wiring Diagrams and Trouble Diagnosis EKS0079L
When you read wiring diagrams, refer to the following:

Refer to GI-14, "How to Read Wiring Diagrams" in GI section

Refer to PG-2, "POWER SUPPLY ROUTING" for power distribution circuit in PG section
When you perform trouble diagnosis, refer to the following:

Refer to GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section

Refer to GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section
